Problem Symptoms Table

PROBLEM SYMPTOMS TABLE
If there are no DTCs output but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting procedure.

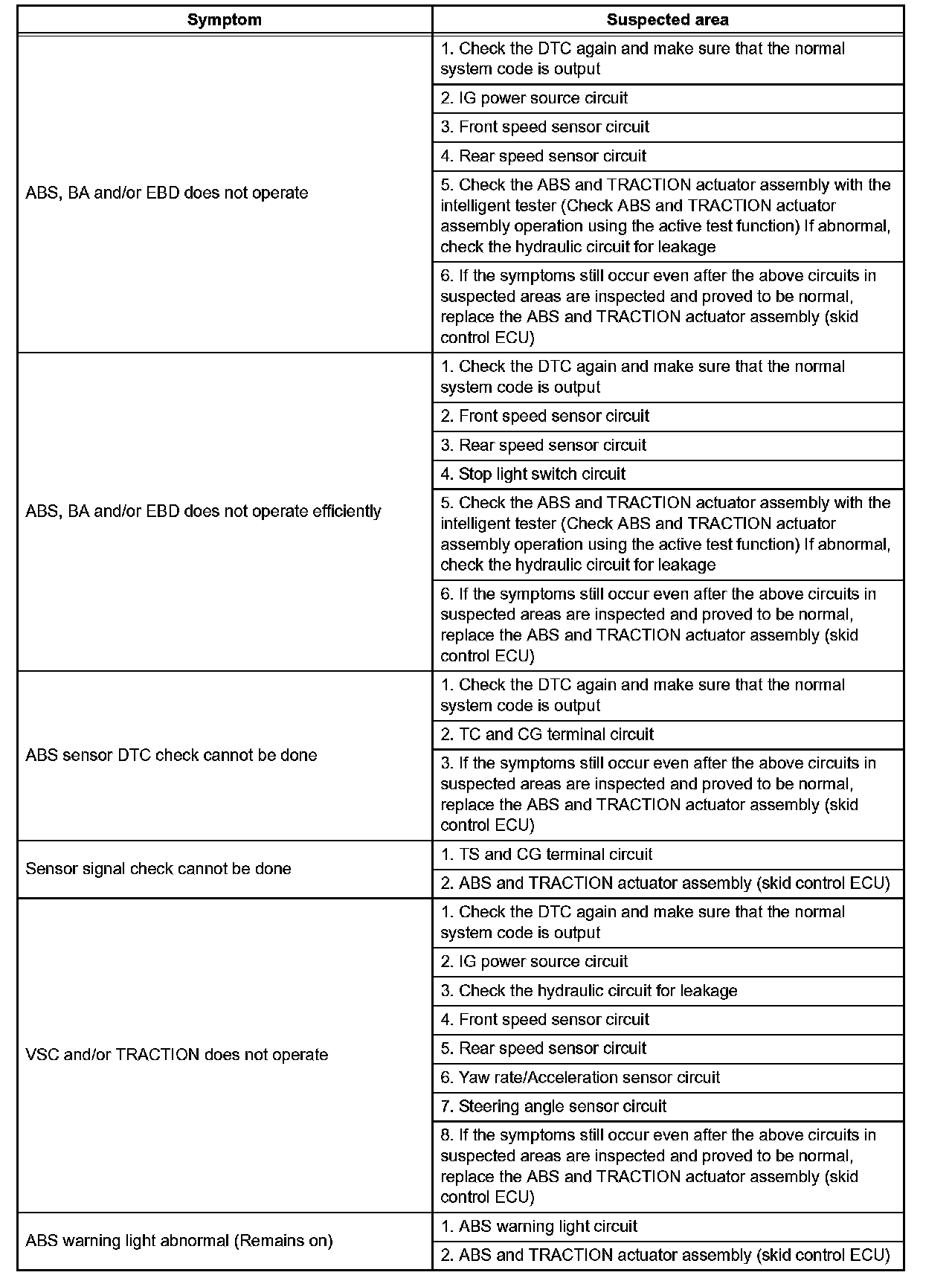

Problem Symptoms Table - Vehicle Stability Control System (part 1):

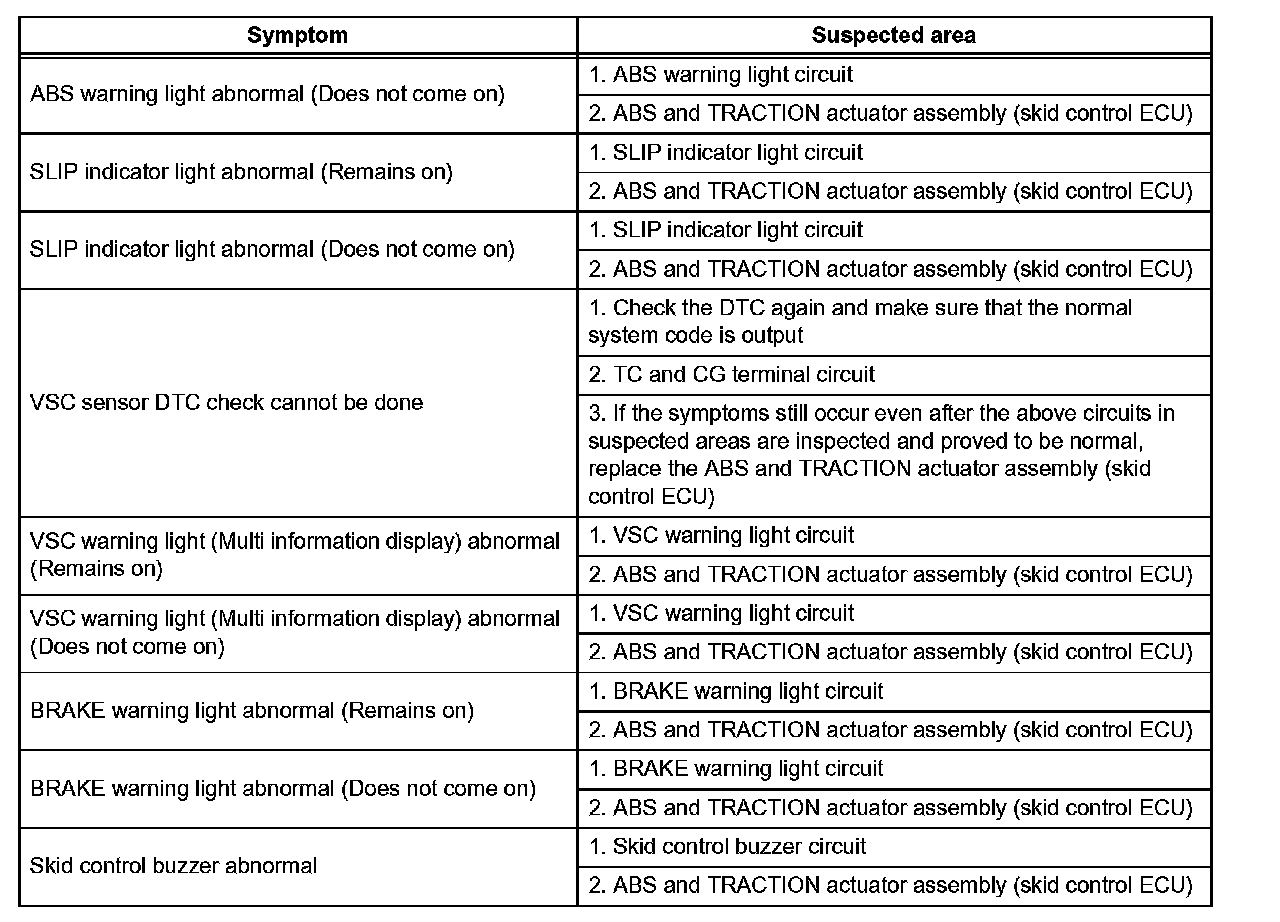

Problem Symptoms Table - Vehicle Stability Control System (part 2):
