Brake Warning Light Does Not Come ON

Brake Warning Light does not Come ON

NOTICE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration.

INSPECTION PROCEDURE

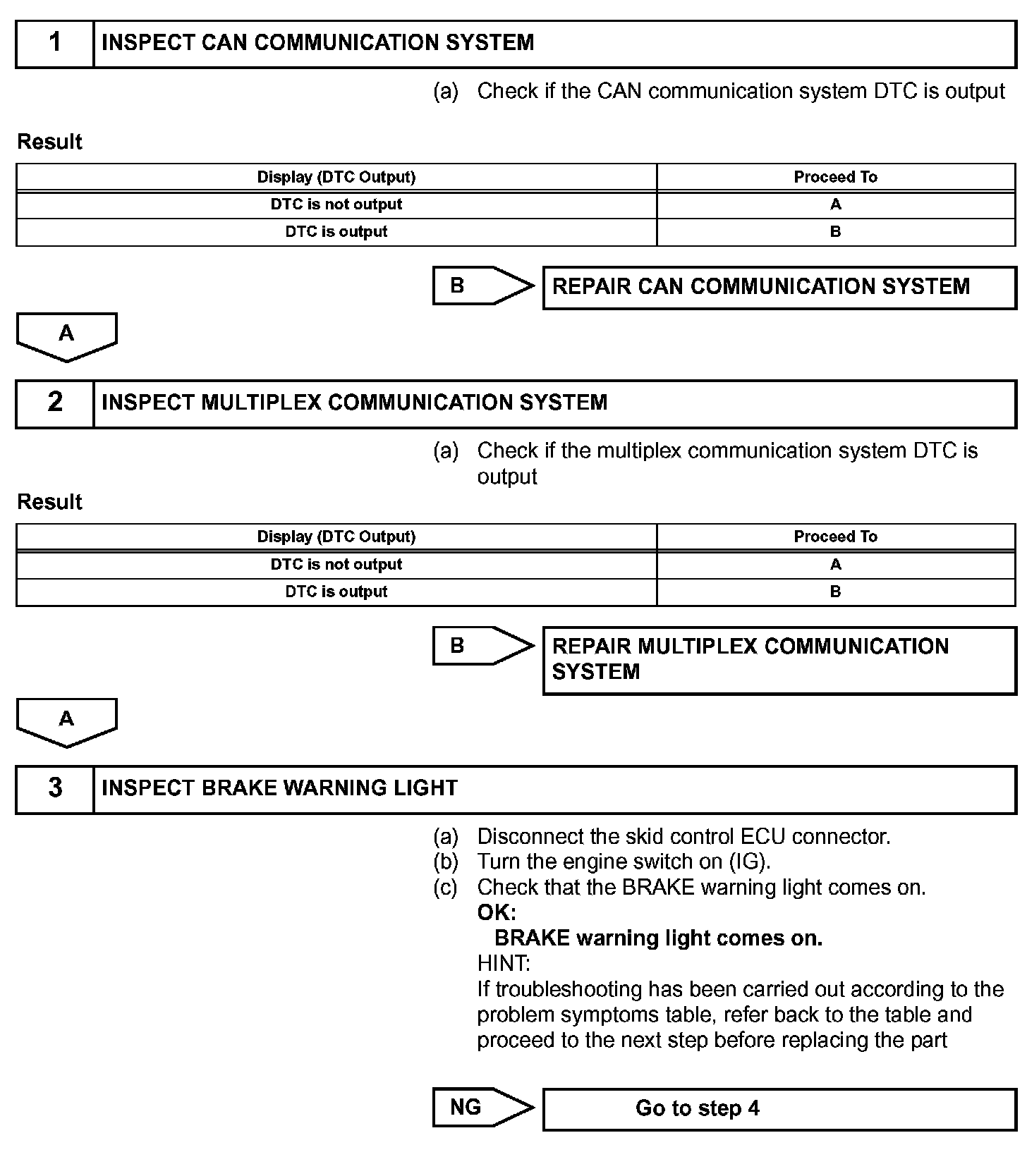

Steps 1-3:

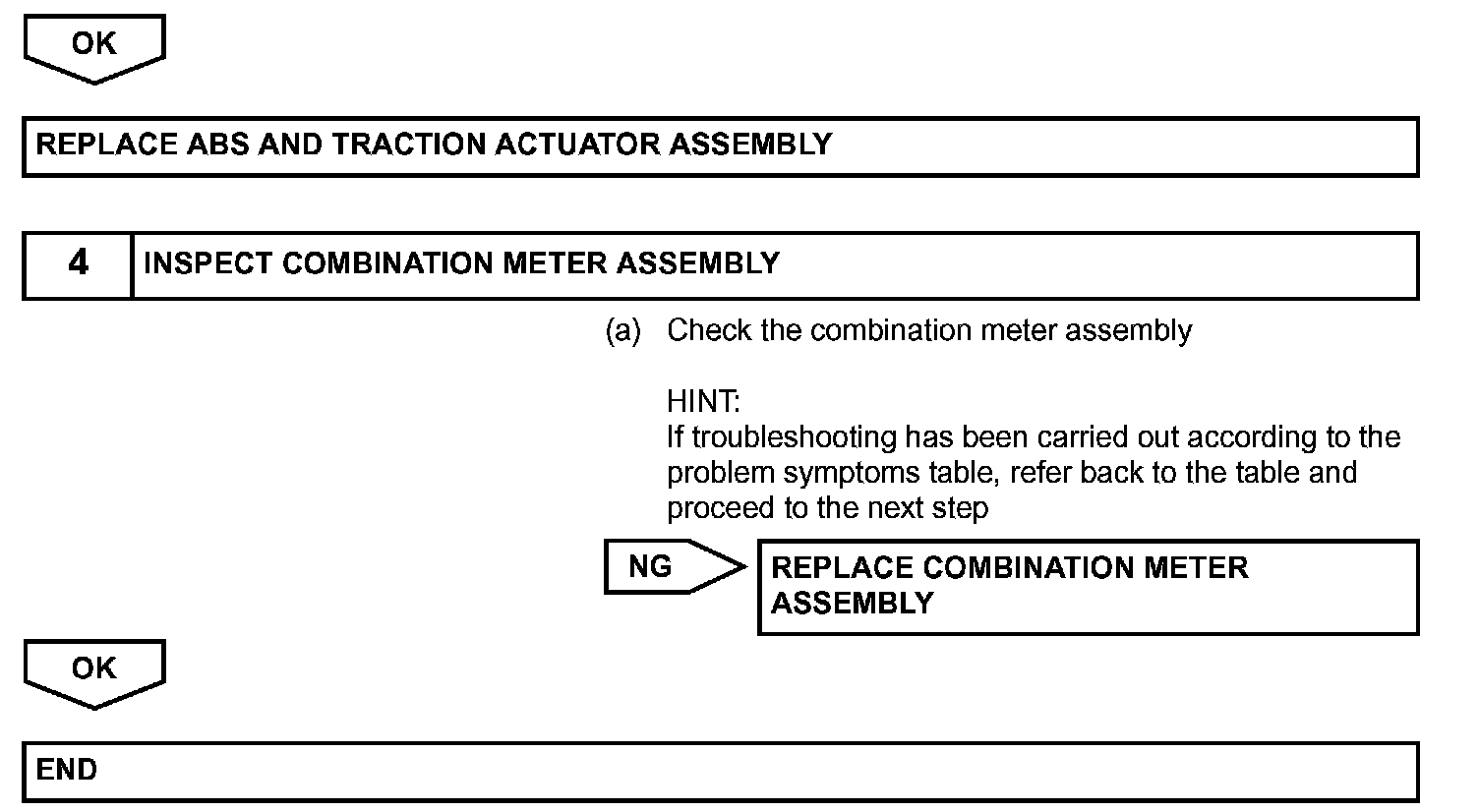

Steps 3-4:
