Slip Indicator Light Does Not Come ON

Slip Indicator Light does not Come ON

WIRING DIAGRAM
(See page BC-394).

NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration.

INSPECTION PROCEDURE

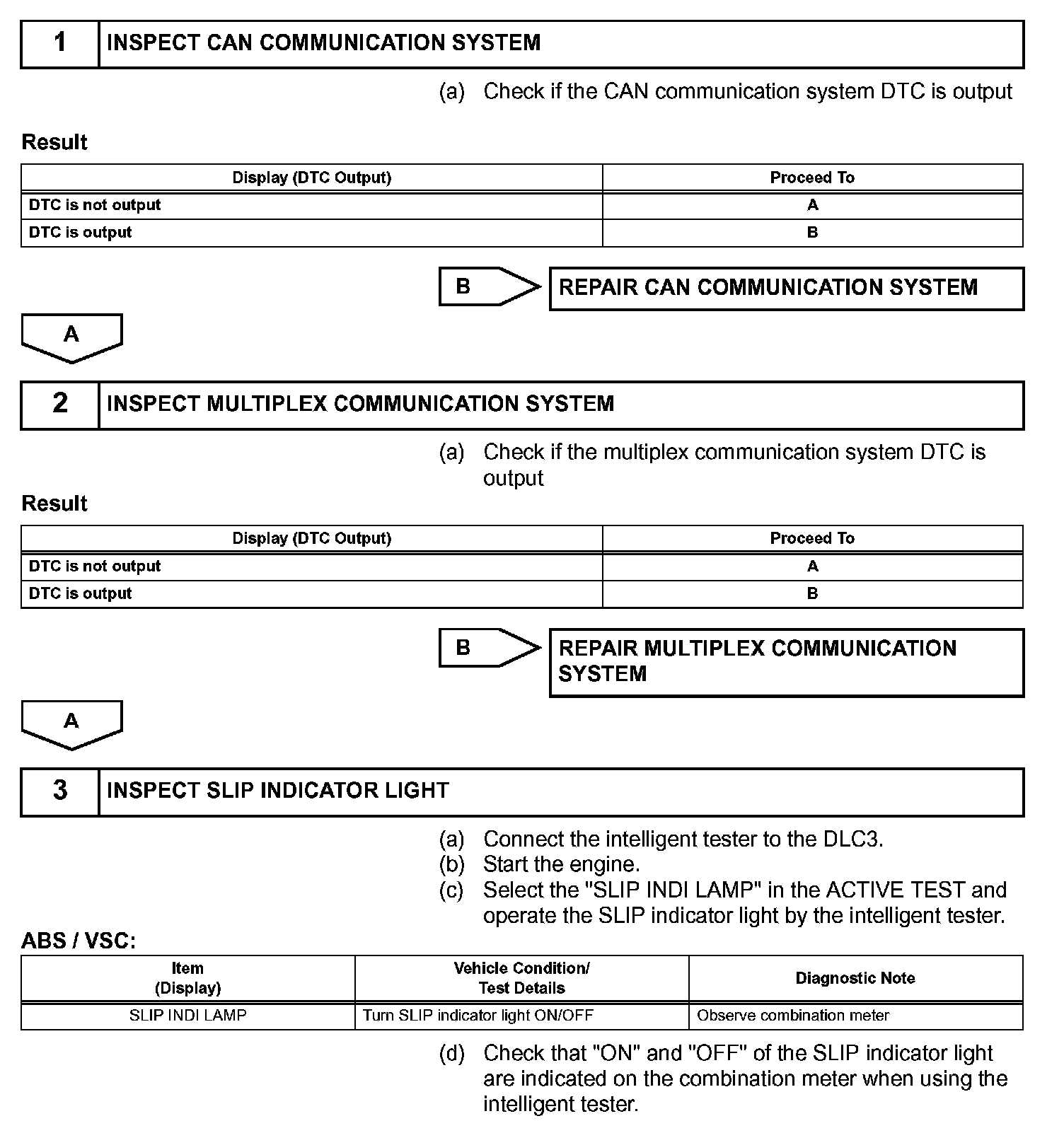

Steps 1-3:

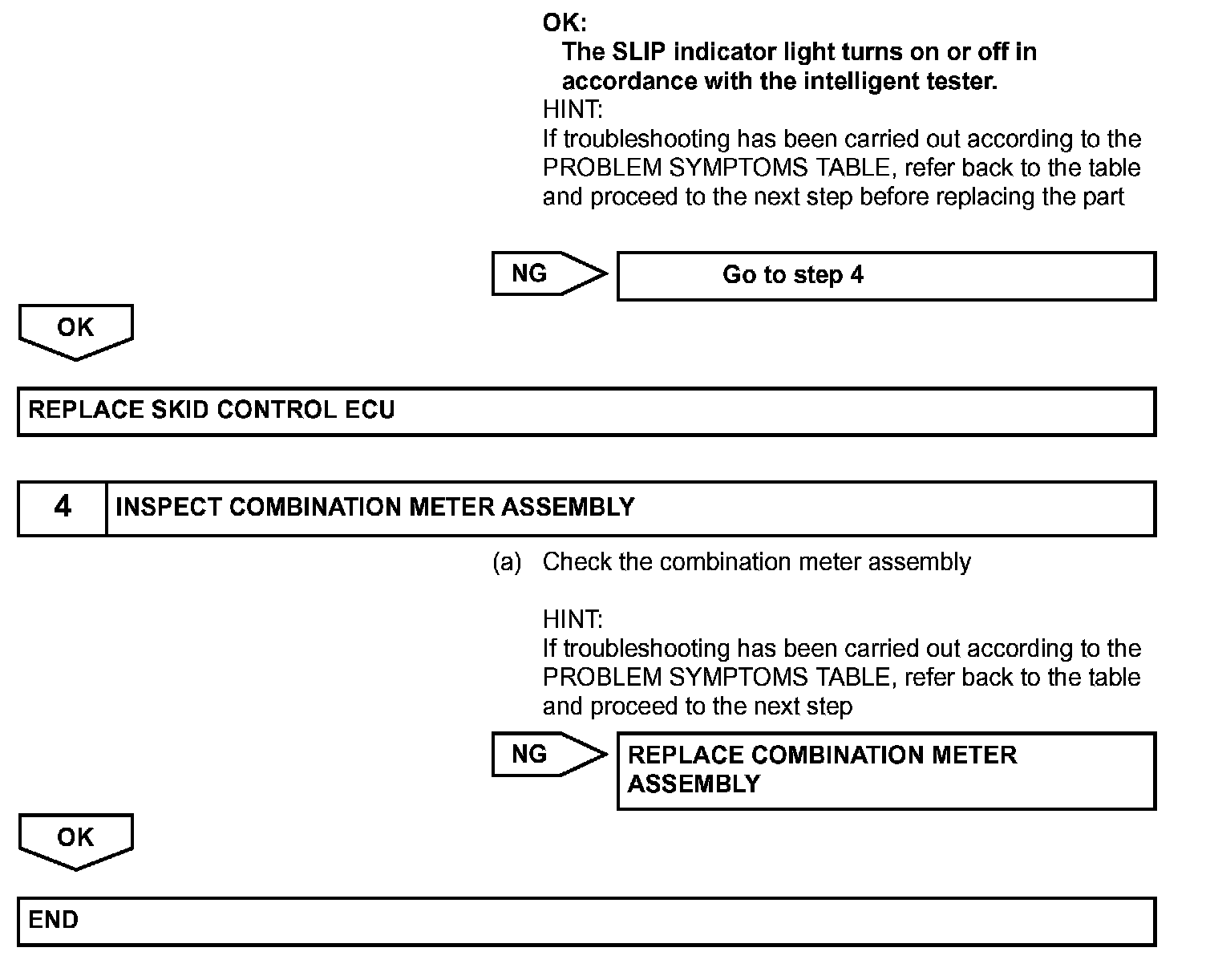

Steps 3-4:
