Brake Warning Light Does Not Come ON
Brake Warning Light Does Not Come ON
Brake Warning Light does not Come ON
WIRING DIAGRAM
(See page BC-378).
NOTICE:
When replace the skid control ECU, perform initialization of linear solenoid valve and calibration.
INSPECTION PROCEDURE

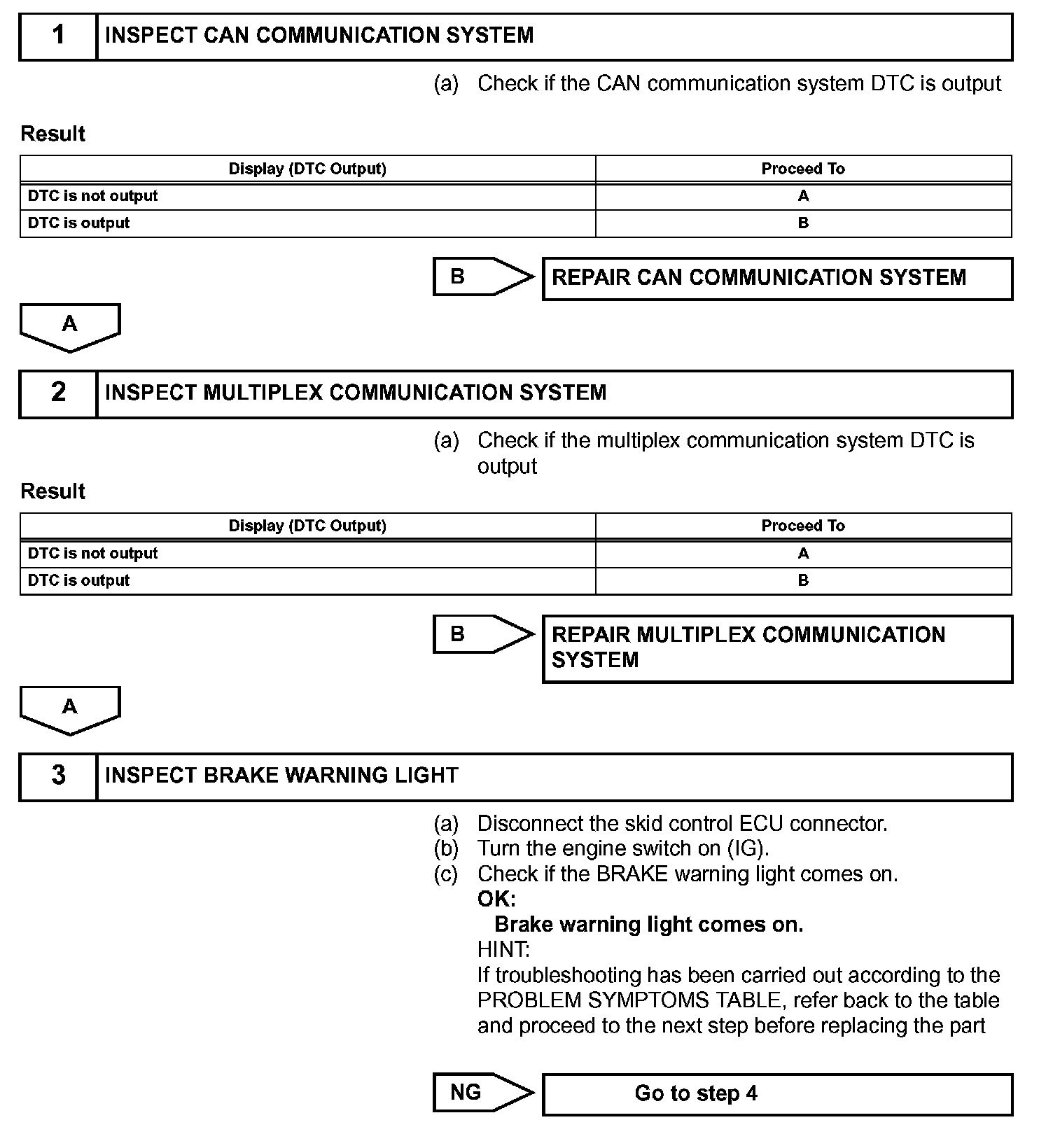

Steps 1-3:

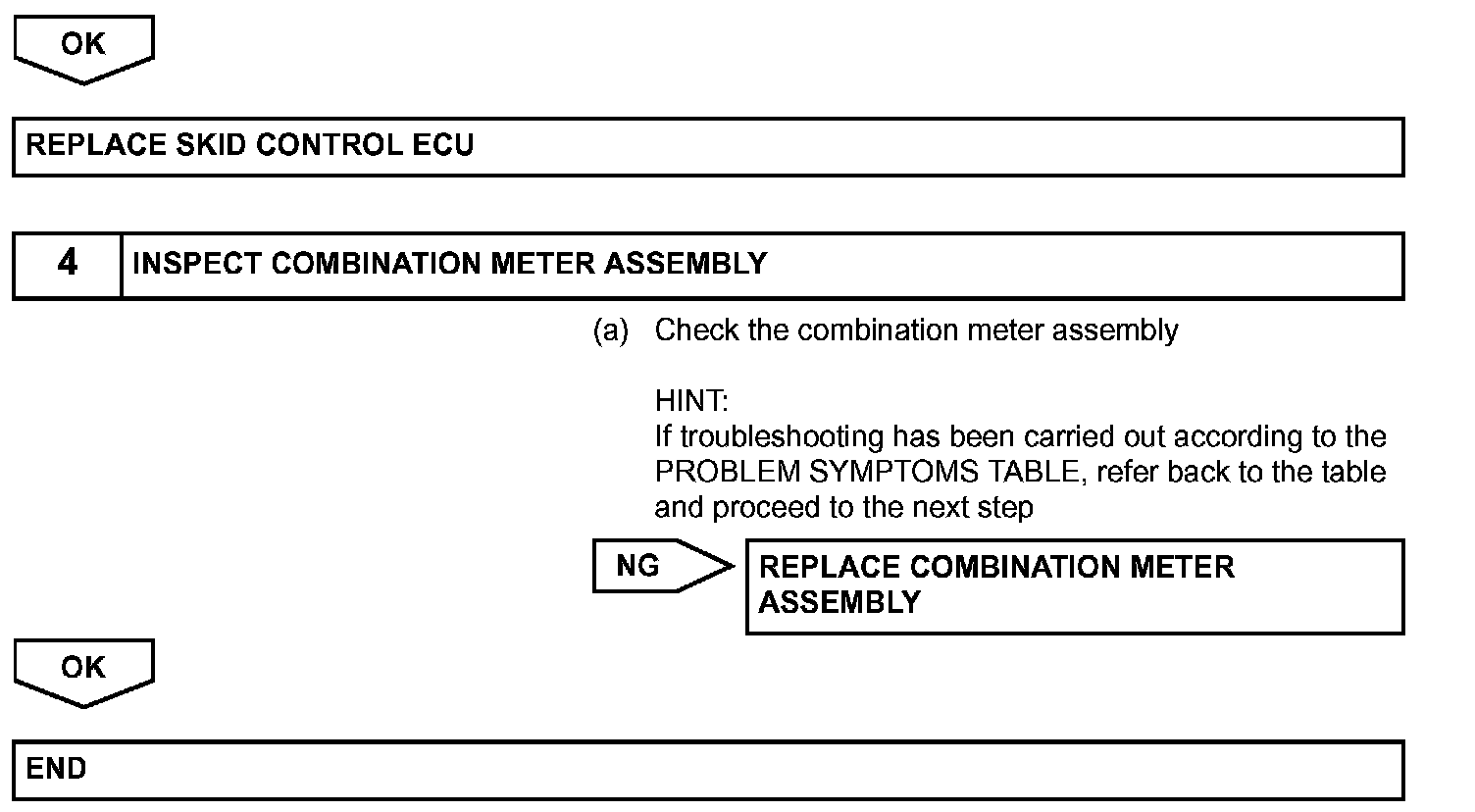

Steps 3-4:
