Brake Control Warning Light Remains ON

Brake Control Warning Light Remains ON

DESCRIPTION
If the ECU stores a DTC, the brake control (ECB/VSC) warning light comes on in the combination meter. The skid control ECU is connected to the combination meter via CAN and multiplex communications.

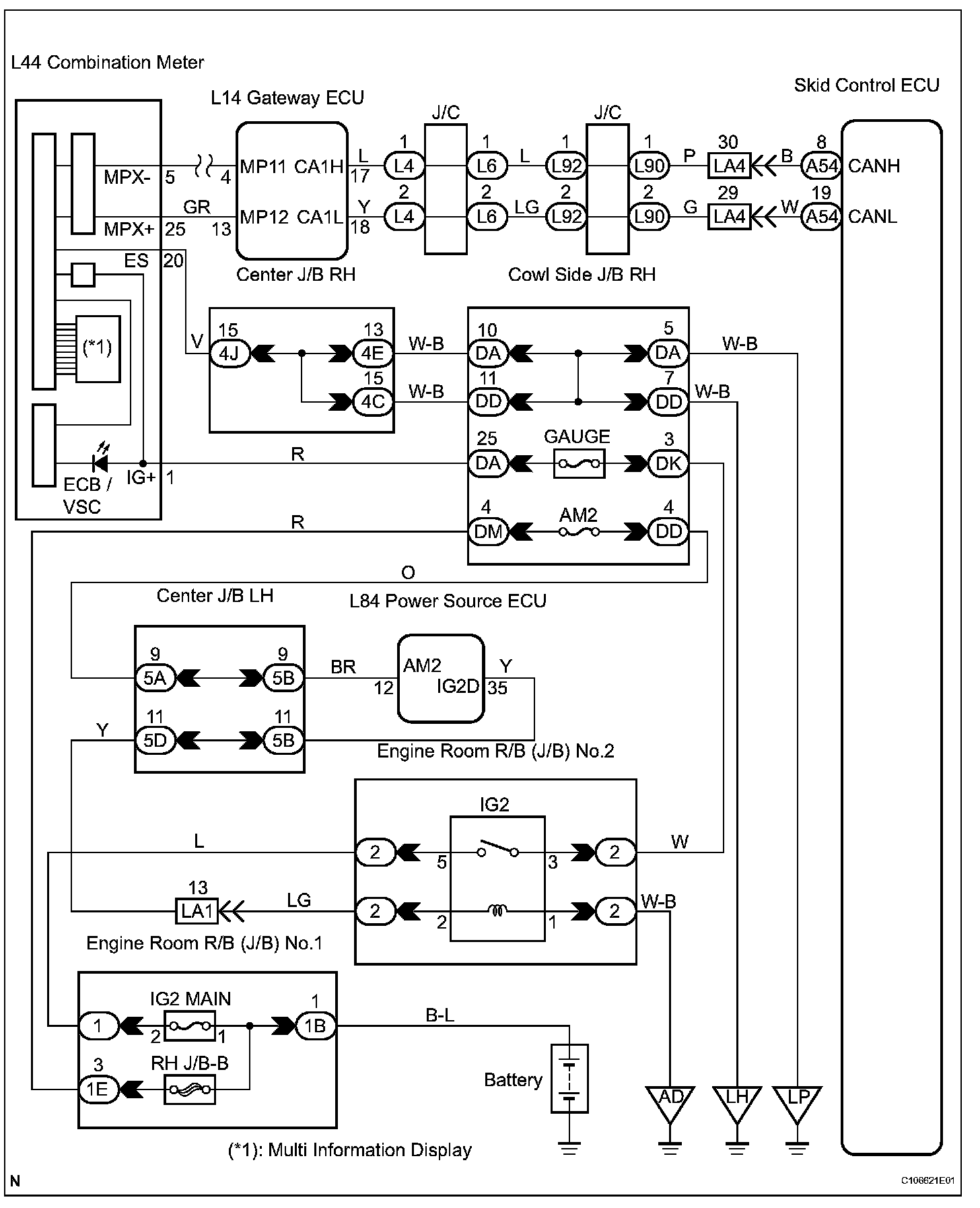

Wiring Diagram:






NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration.

INSPECTION PROCEDURE

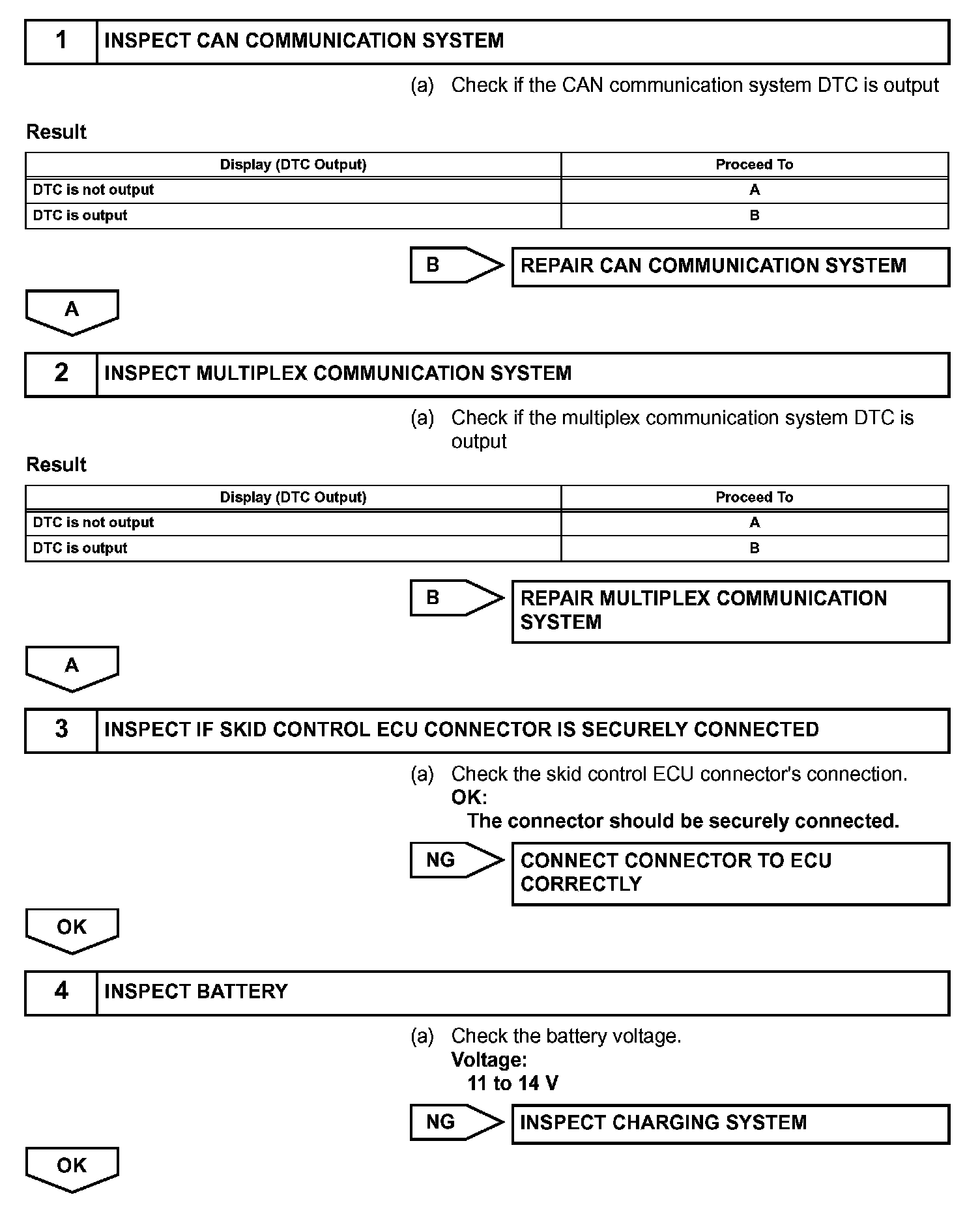

Steps 1-4:

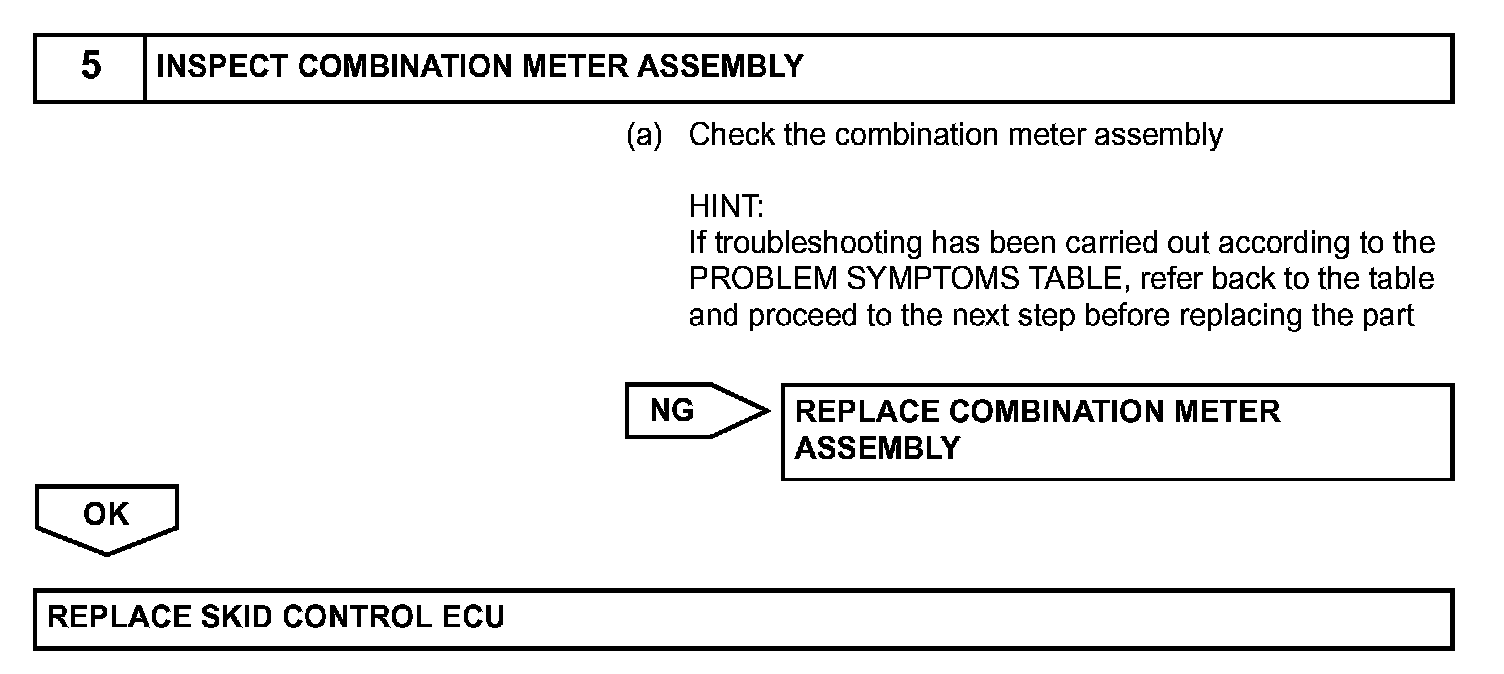

Step 5:
