Brake Control Warning Light Does Not Come ON

Brake Control Warning Light does not Come ON

WIRING DIAGRAM
(See page BC-388).

NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration.

INSPECTION PROCEDURE

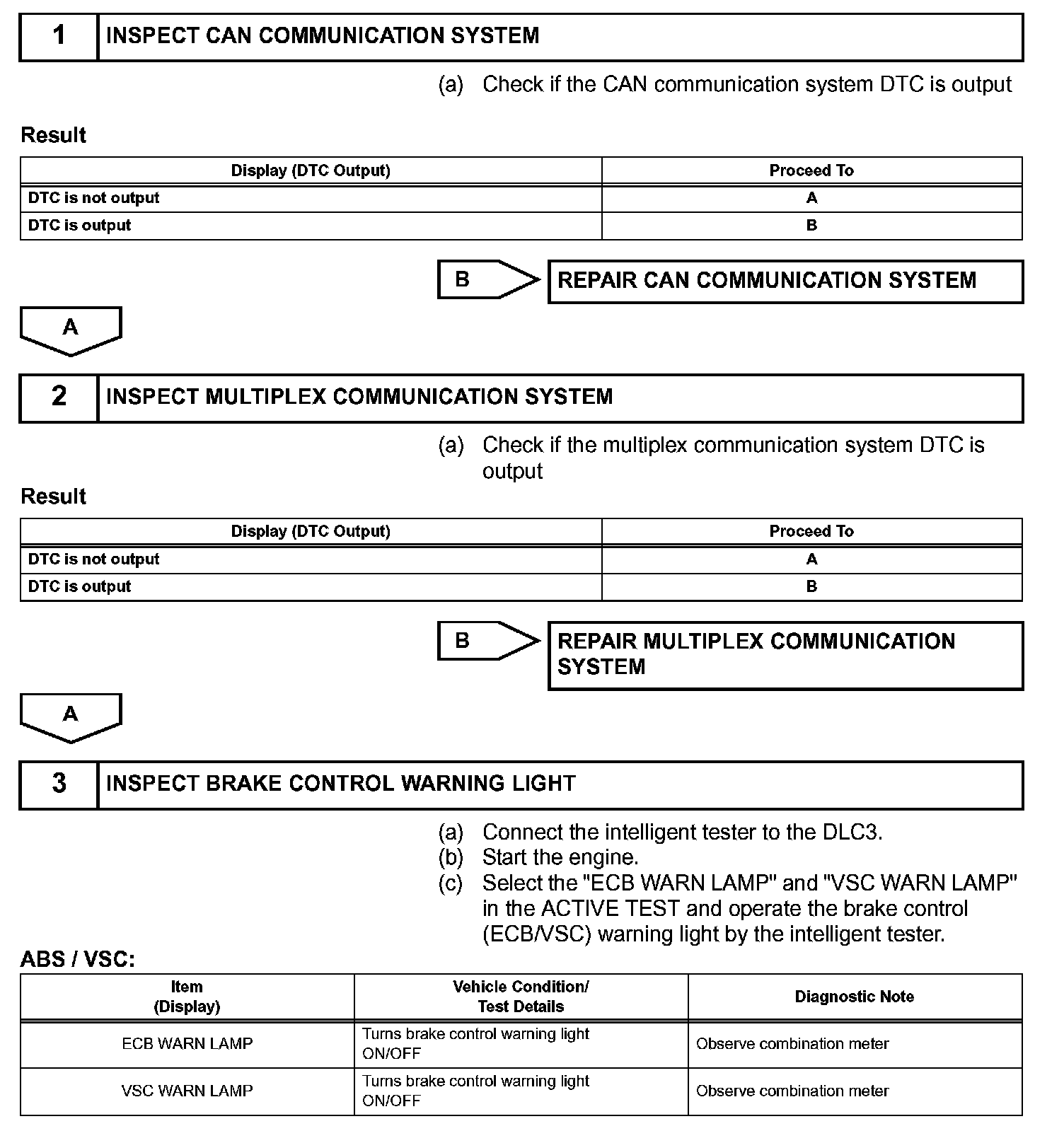

Steps 1-3:

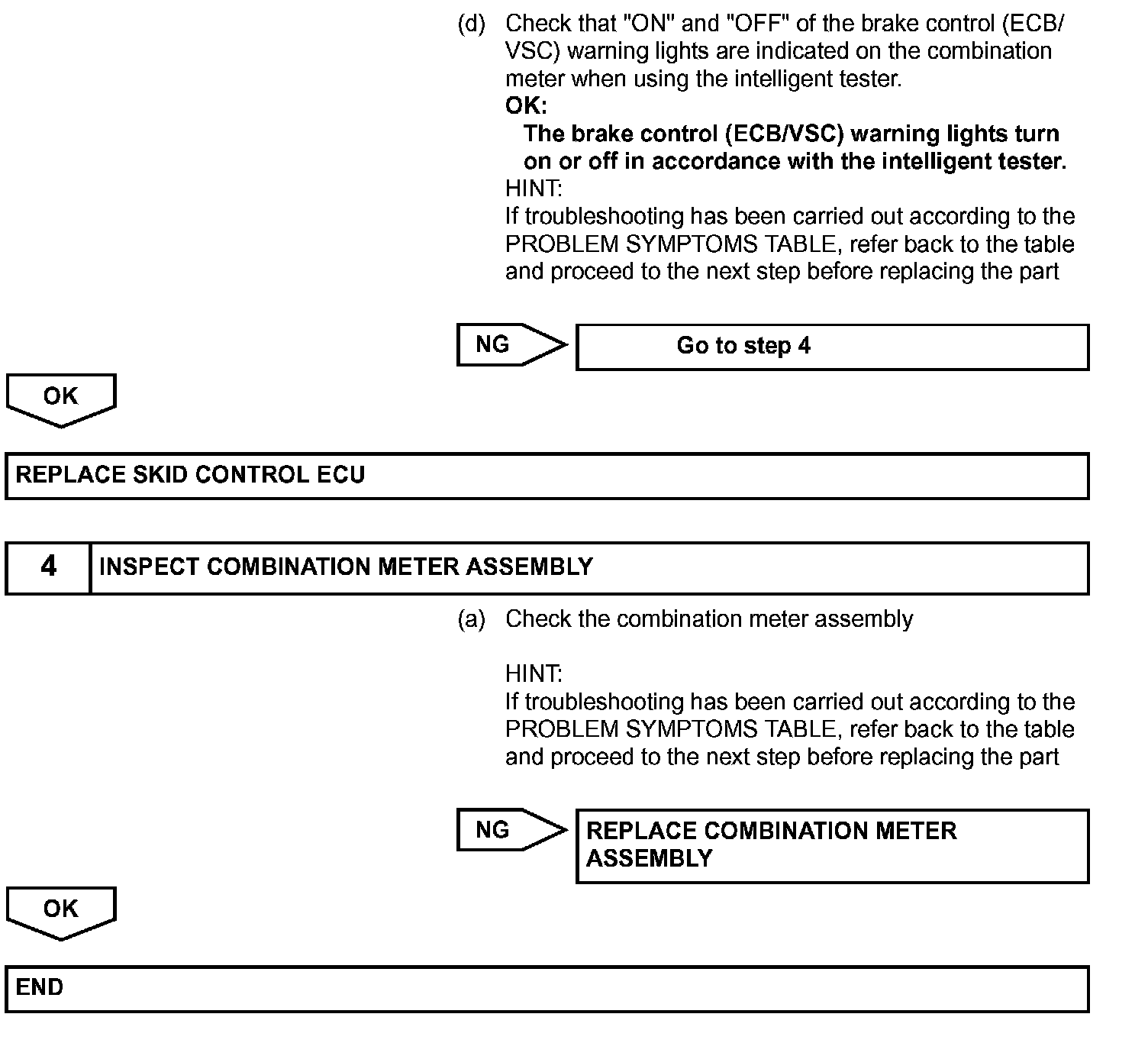

Steps 3-4:
