Vehicle Stability Control System

TERMINALS OF ECU

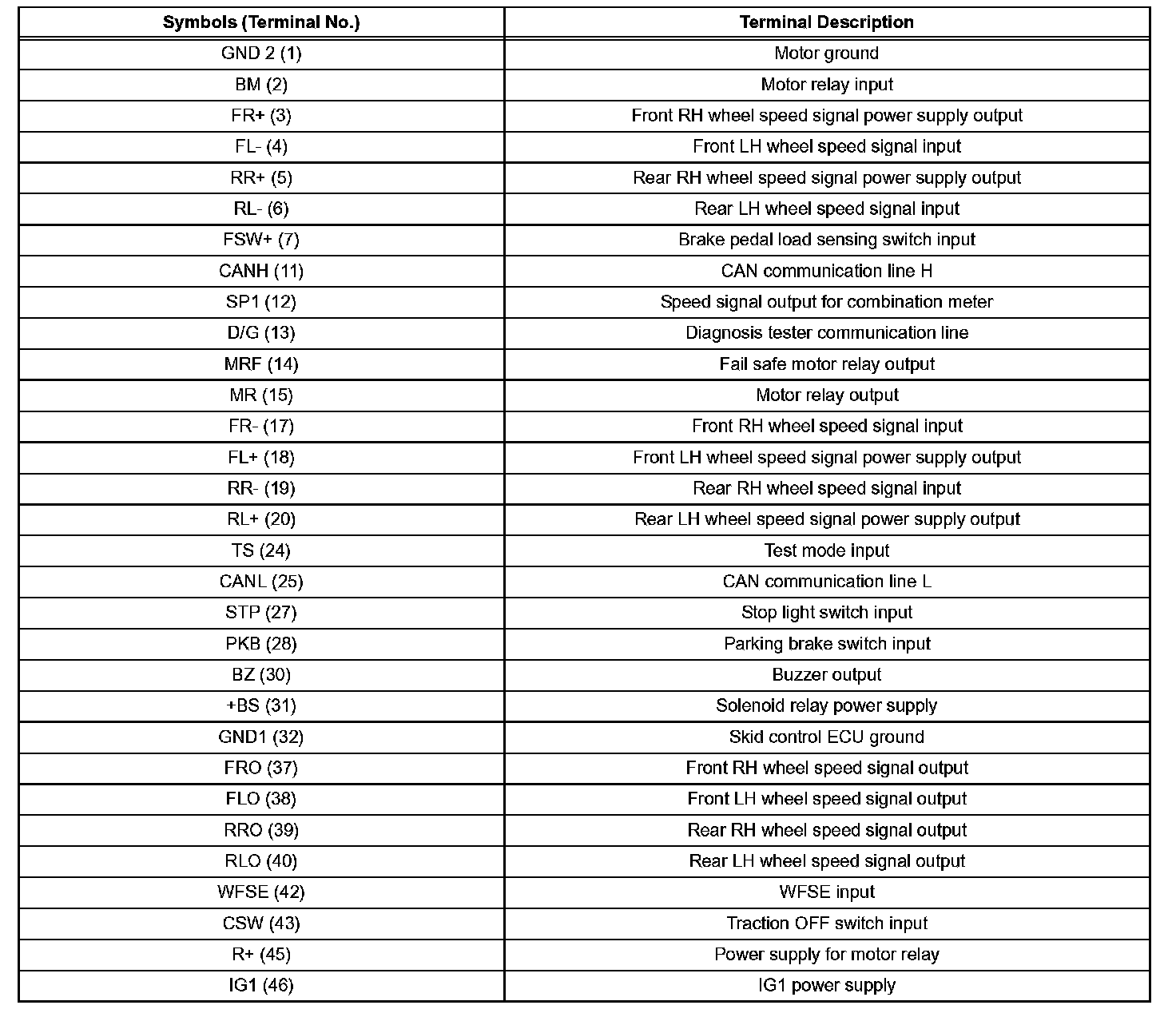

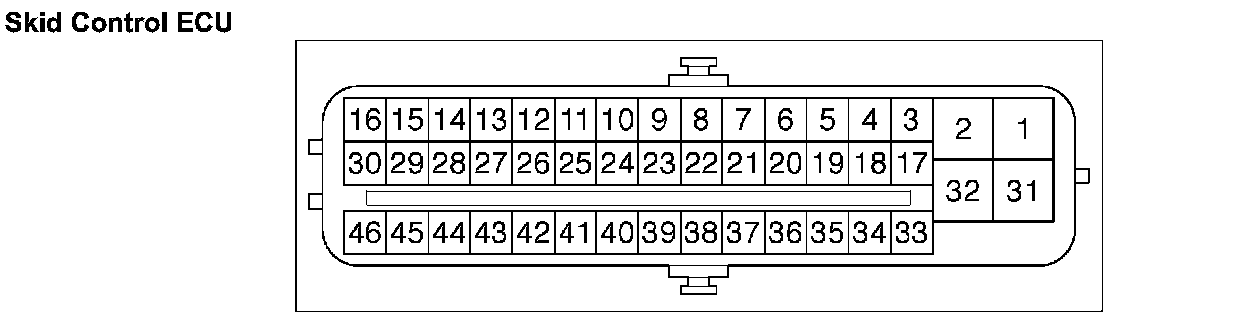

Skid Control ECU (part 1):

Skid Control ECU (part 2):

1. Terminal of ECU

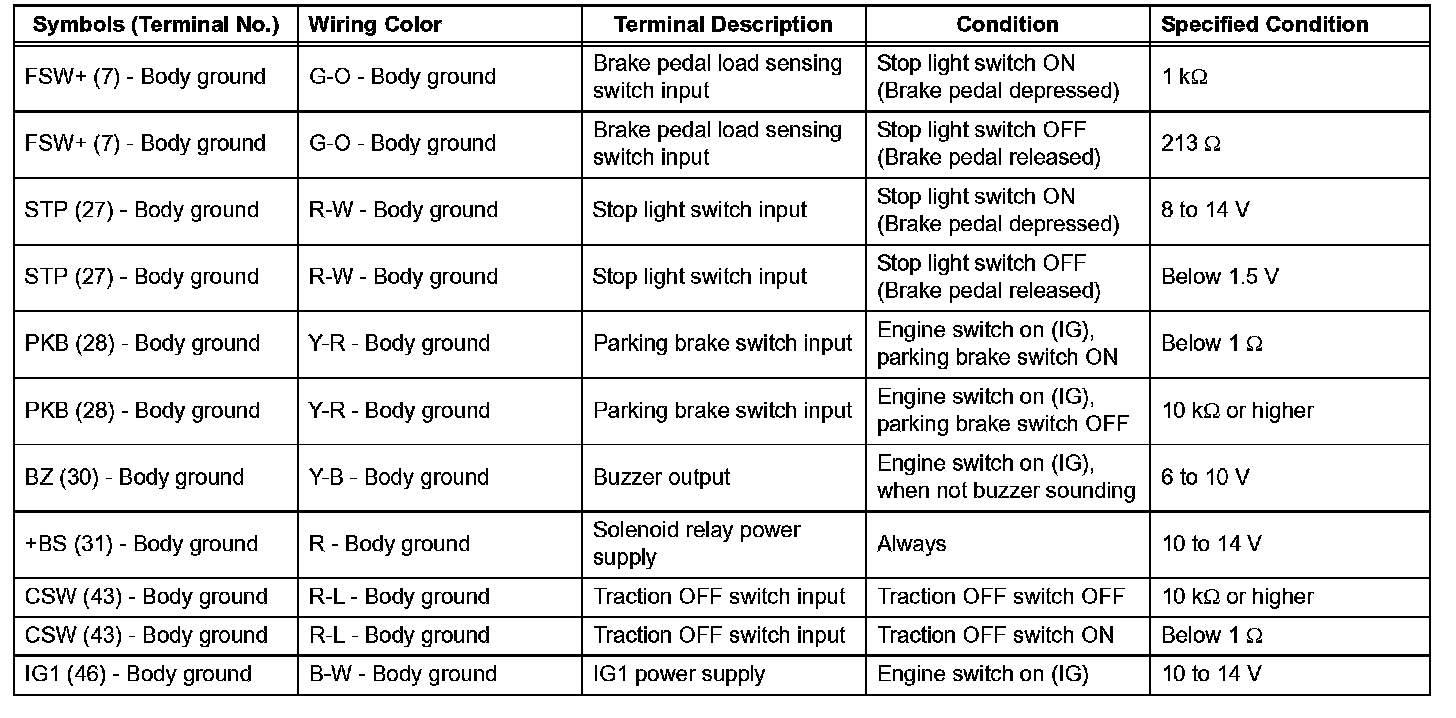

2. Terminal Inspection

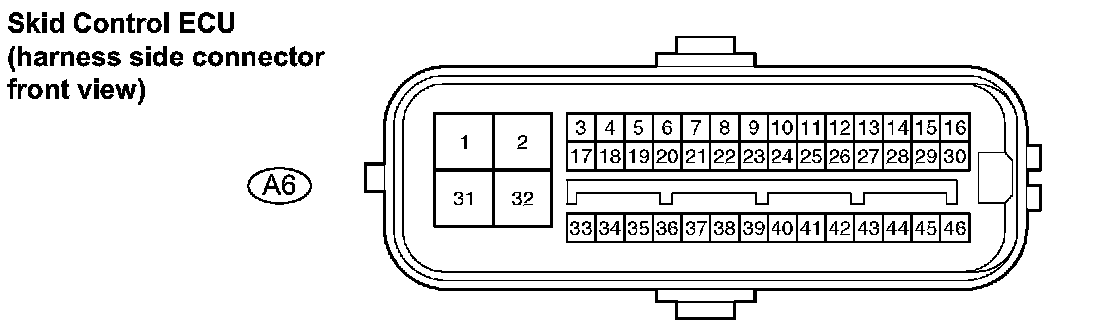

Skid Control ECU (Harness Side Connector Front View):

a. Disconnect the connector and measure the voltage or resistance on the wire harness side.





HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.
