Electronically Controlled Brake System

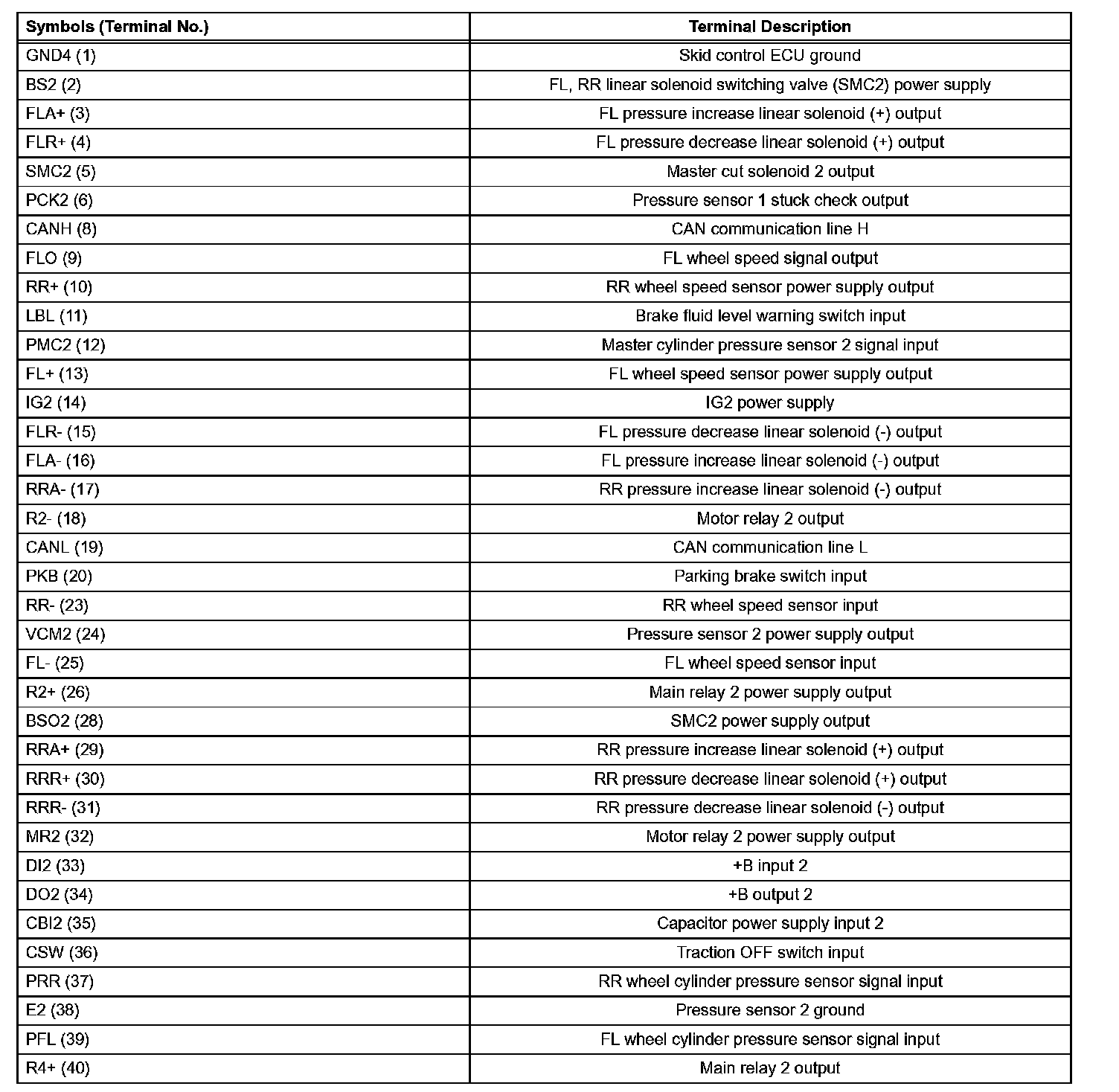

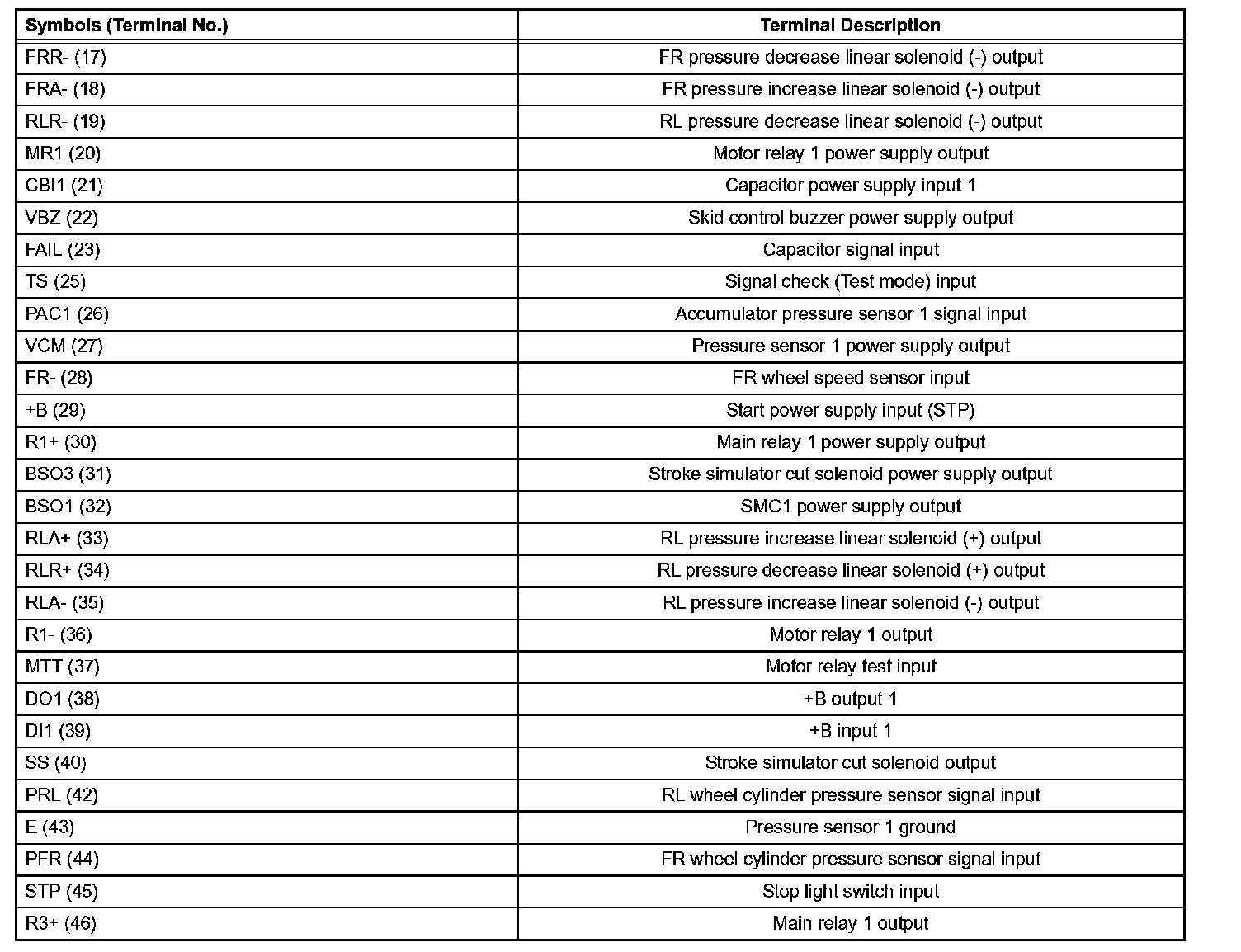

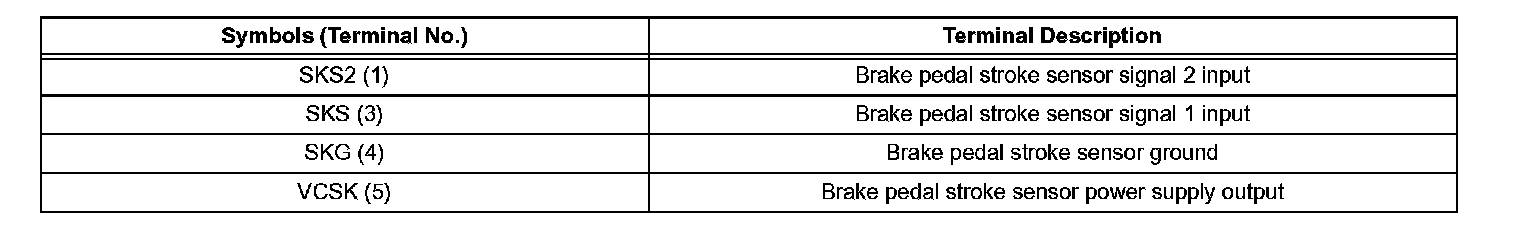

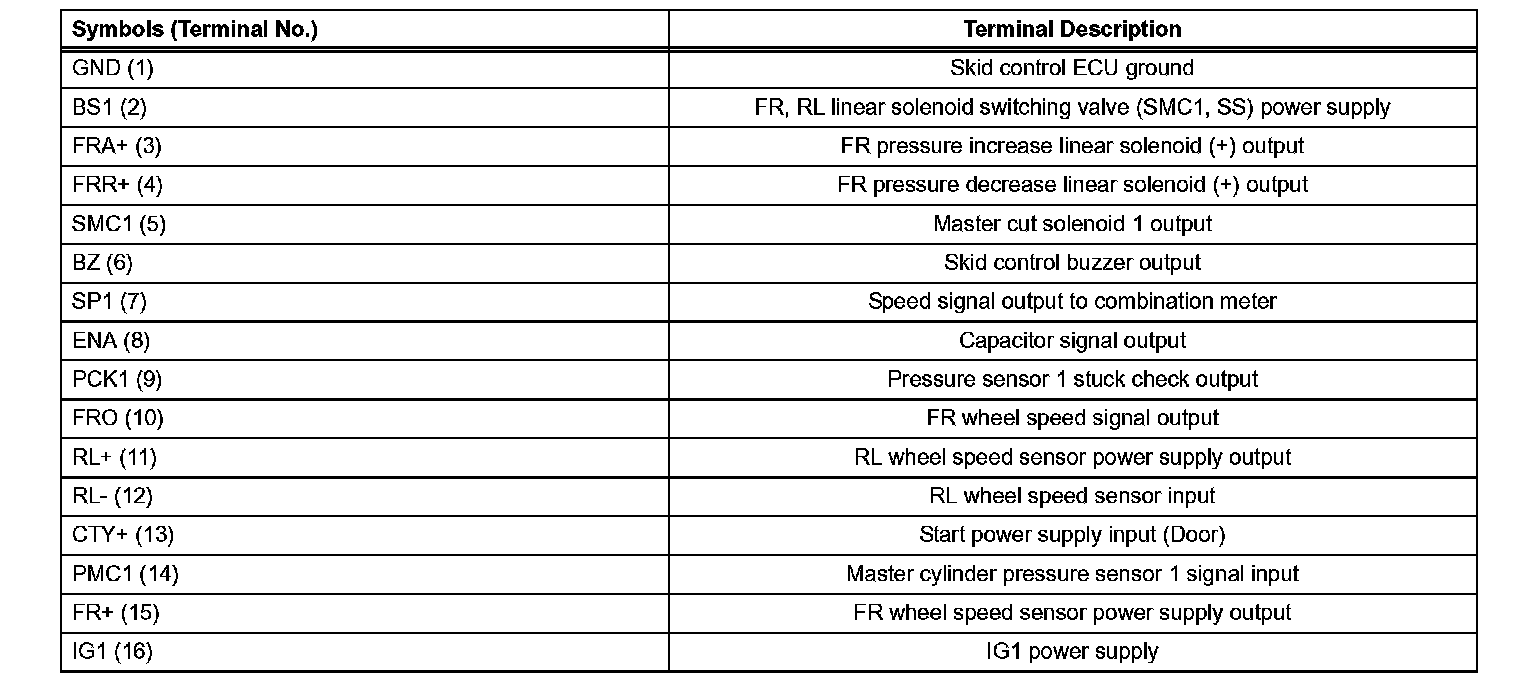

TERMINALS OF ECU

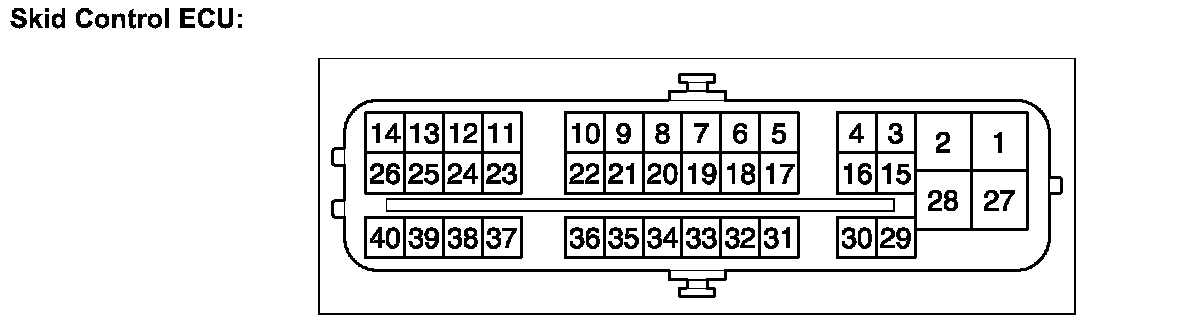

Skid Control ECU:

Skid Control ECU:

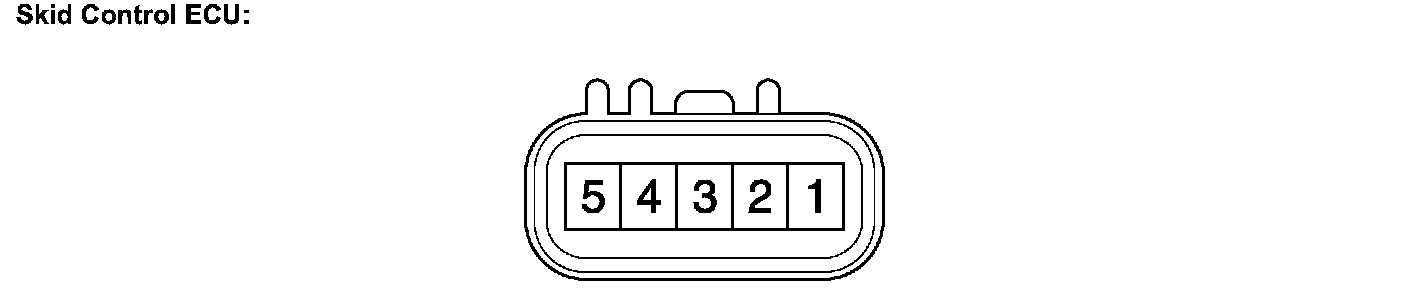

Skid Control ECU:

1. TERMINALS OF ECU

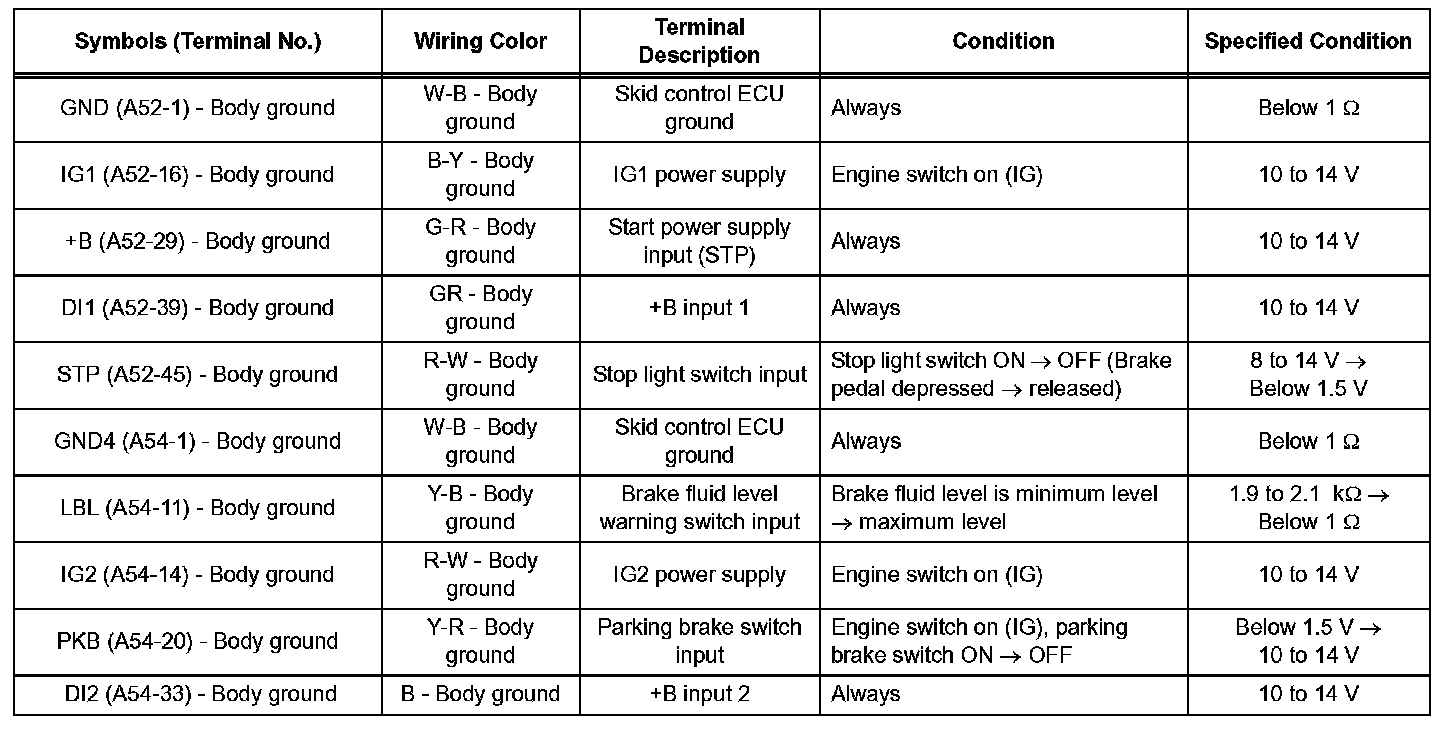

2. TERMINAL INSPECTION

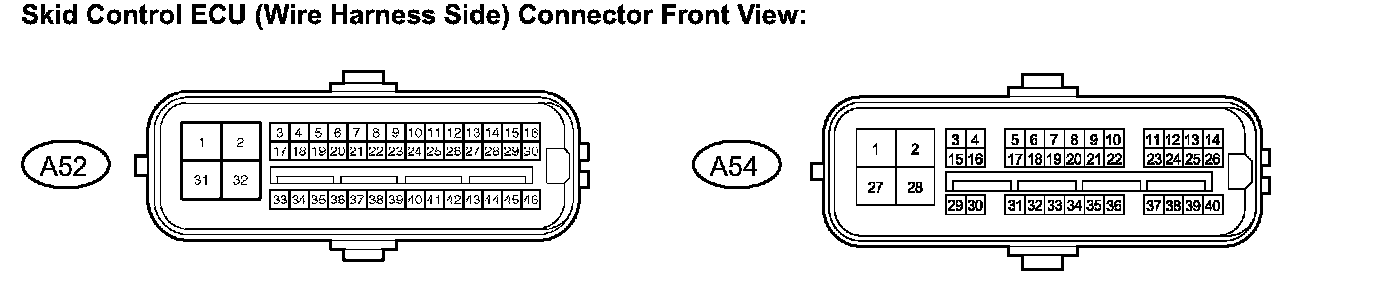

Skid Control ECU (Wiring Harness Side) Connector Front View:

a. Disconnect the connector and measure the voltage or resistance on the wire harness side.





HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.
