How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

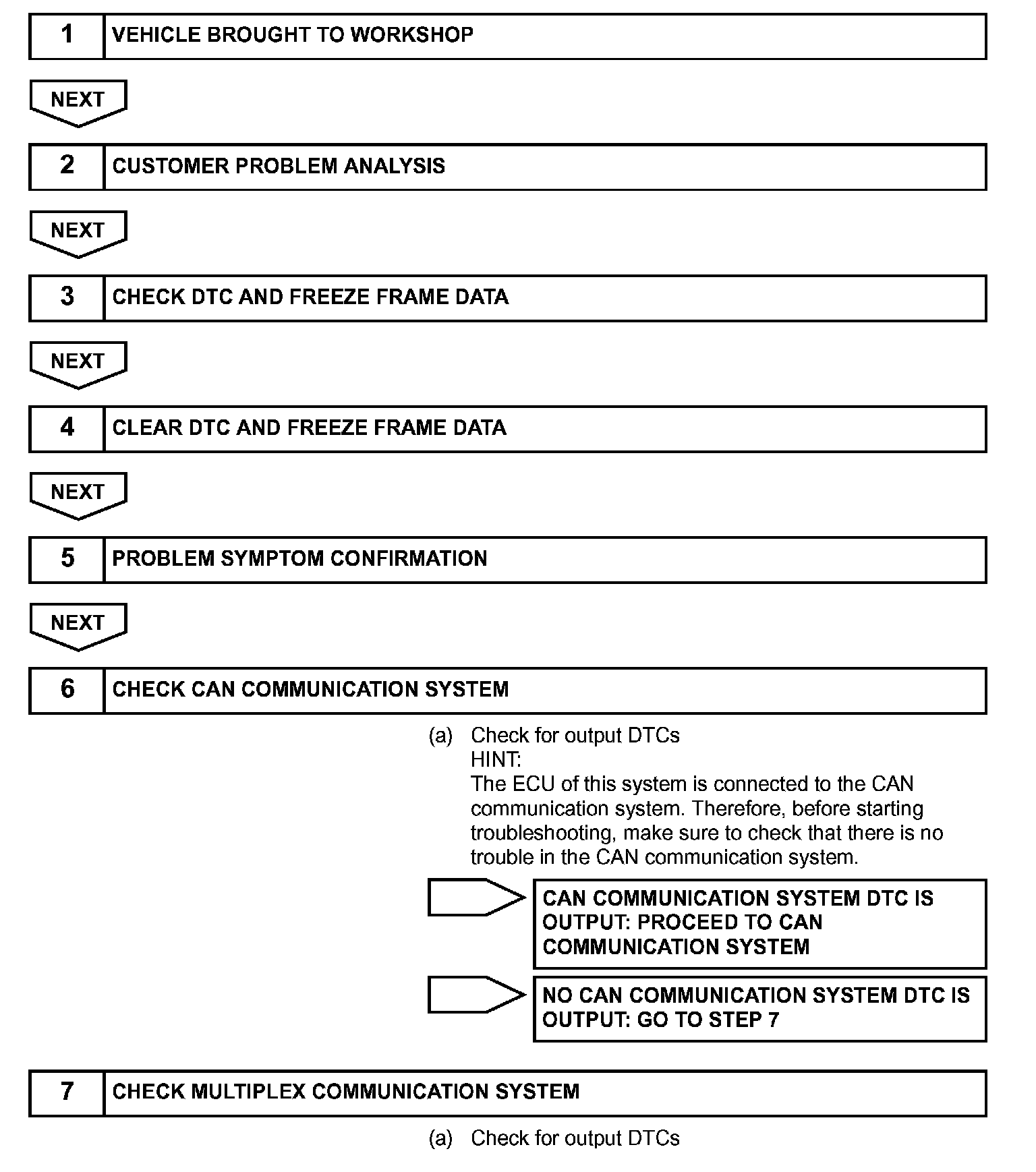

Steps 1-7:

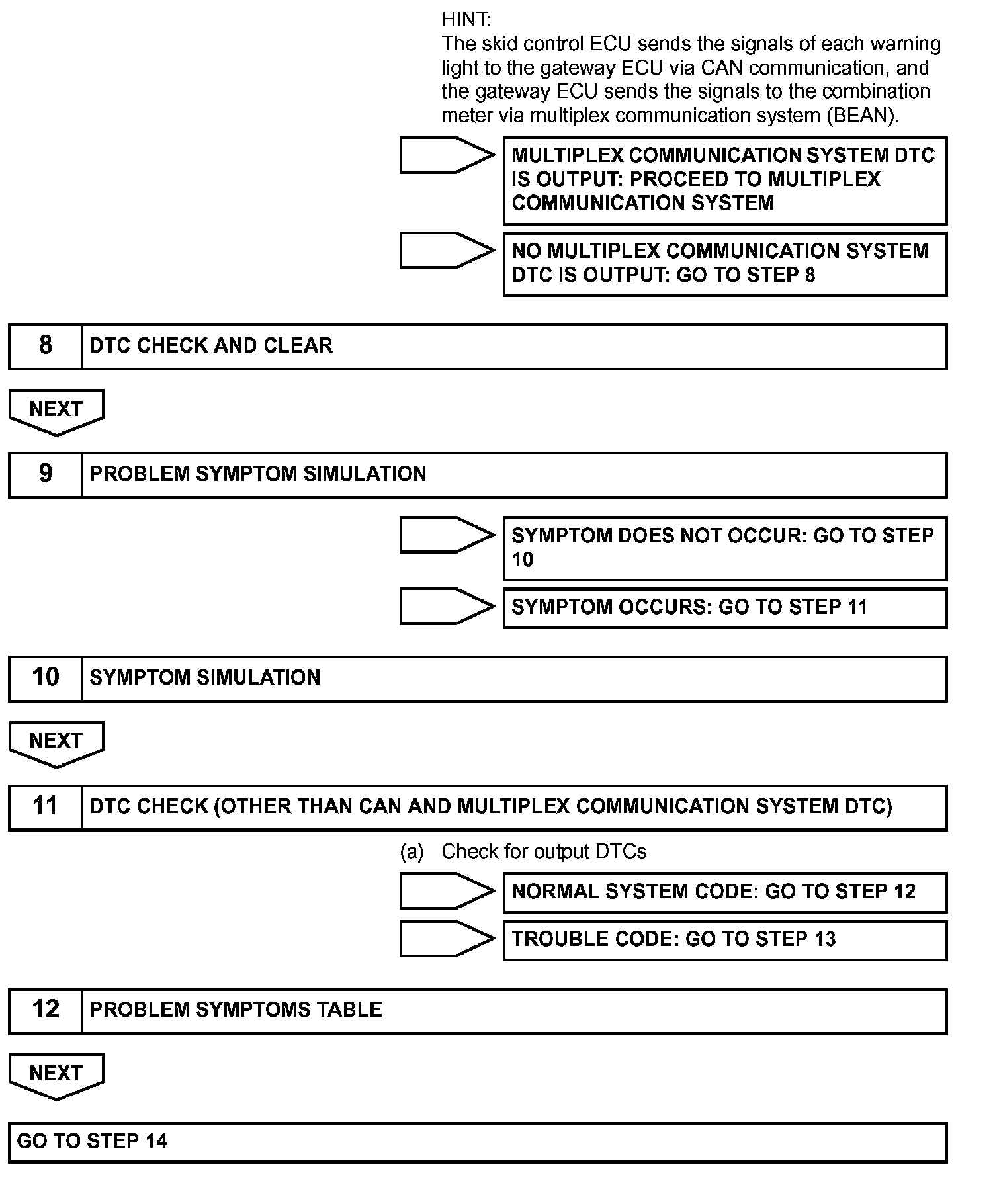

Steps 7-12:

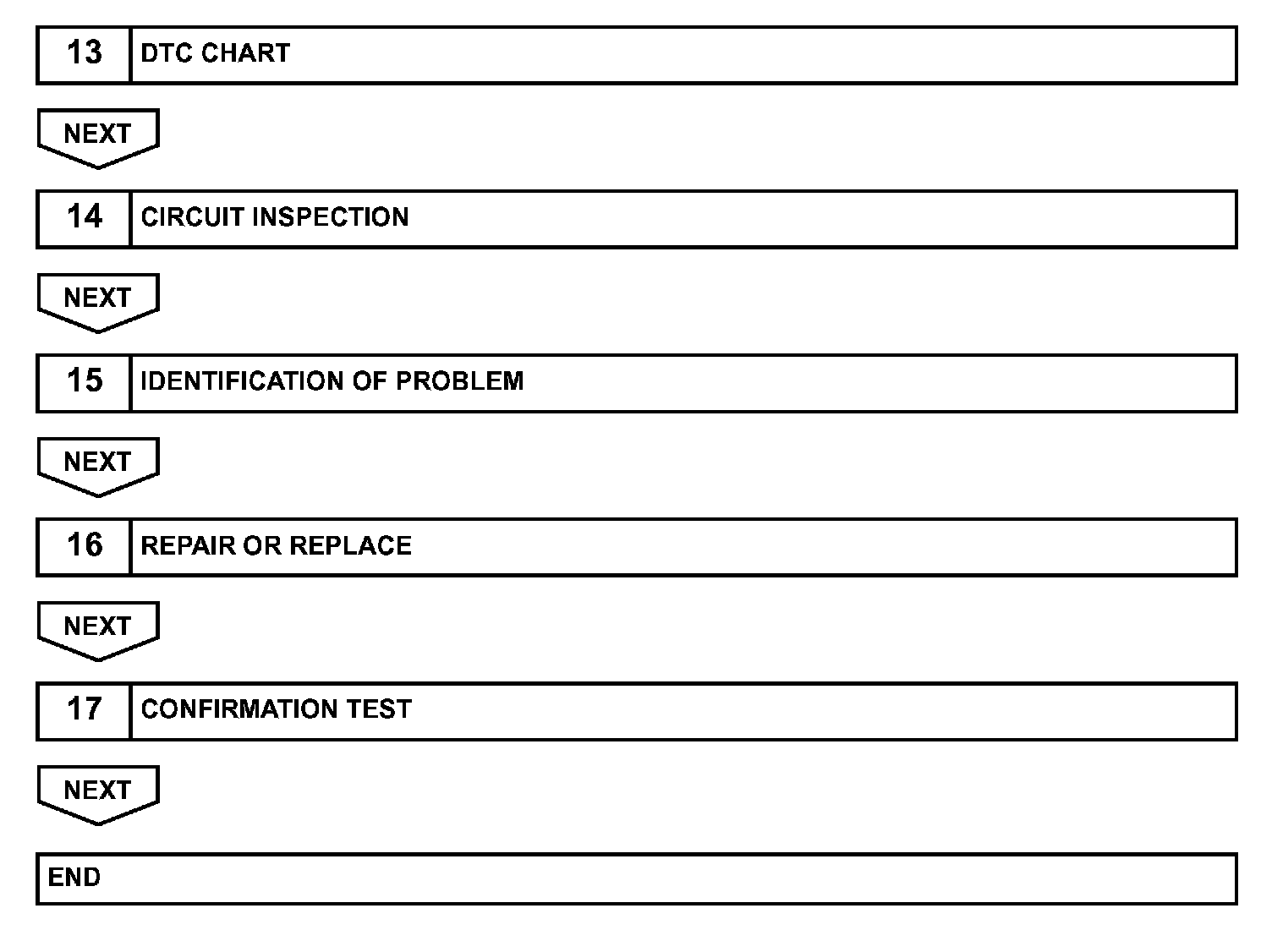

Steps 13-17:





The intelligent tester can be used at steps 3, 4, 6, 7, 8, 11, 14, and 17.
