Brake Actuator (W/ VSC)

BRAKE ACTUATOR (w/VSC)

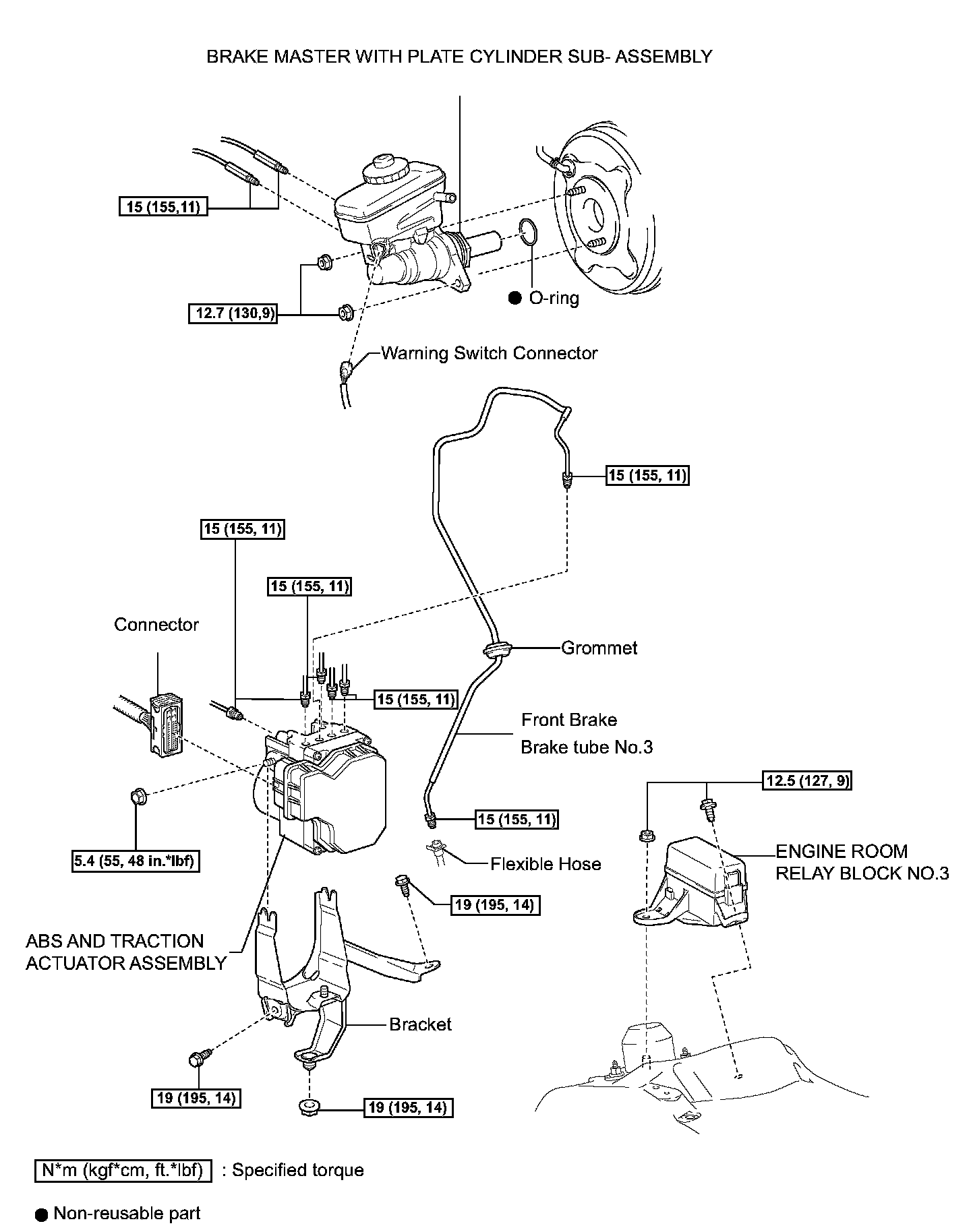

Components:

ON-VEHICLE INSPECTION
1. CONNECT INTELLIGENT TESTER
a. Connect the intelligent tester to the DLC3.
b. Start the engine and run at idle.
c. Select the Active Test mode on the intelligent tester.

HINT: Refer to the intelligent tester operator's manual for further details.

2. INSPECT ACTUATOR MOTOR OPERATION
a. With the motor relay on, check the actuator motor operation noise.
b. Turn the motor relay off.
c. Depress the brake pedal and hold it for approximately 15 seconds. Check that the brake pedal cannot be depressed further.
d. With the motor relay on, check that the pedal does not pulsate.

NOTICE: Do not keep a motor relay on continuously for more than 5 seconds. When operating it continuously, set an interval of more than 20 seconds.

e. Turn the motor relay off and release the brake pedal.

3. INSPECT RIGHT FRONT WHEEL OPERATION

NOTICE: Do not turn on a solenoid in a manner different than described below.

a. Turn the SFRH and SFRR solenoids
b. Turn the SFRH and SFRR solenoids off simultaneously, and check that the pedal can be depressed.

NOTICE: Do not keep the motor relay on continuously for more than 10 seconds. When operating them continuously, set an interval of more than 20 seconds.

c. Turn the SFRH and SFRR solenoids off simultaneously, and check that the pedal can be depressed.
d. Turn the motor relay on, and check that the pedal returns.

NOTICE: Do not keep the motor relay on continuously for more than 5 seconds. When operating it continuously, set an interval of more than 20 seconds.

e. Turn the motor relay off and release the brake pedal.

4. INSPECT OTHER WHEEL OPERATION
a. Using the same procedure, check the solenoids of the other wheels.

HINT:
^ Left front wheel: SRRH, SFLR
^ Right rear wheel: SRRH, SRRR
^ Left rear wheel: SRLH, SRLR

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

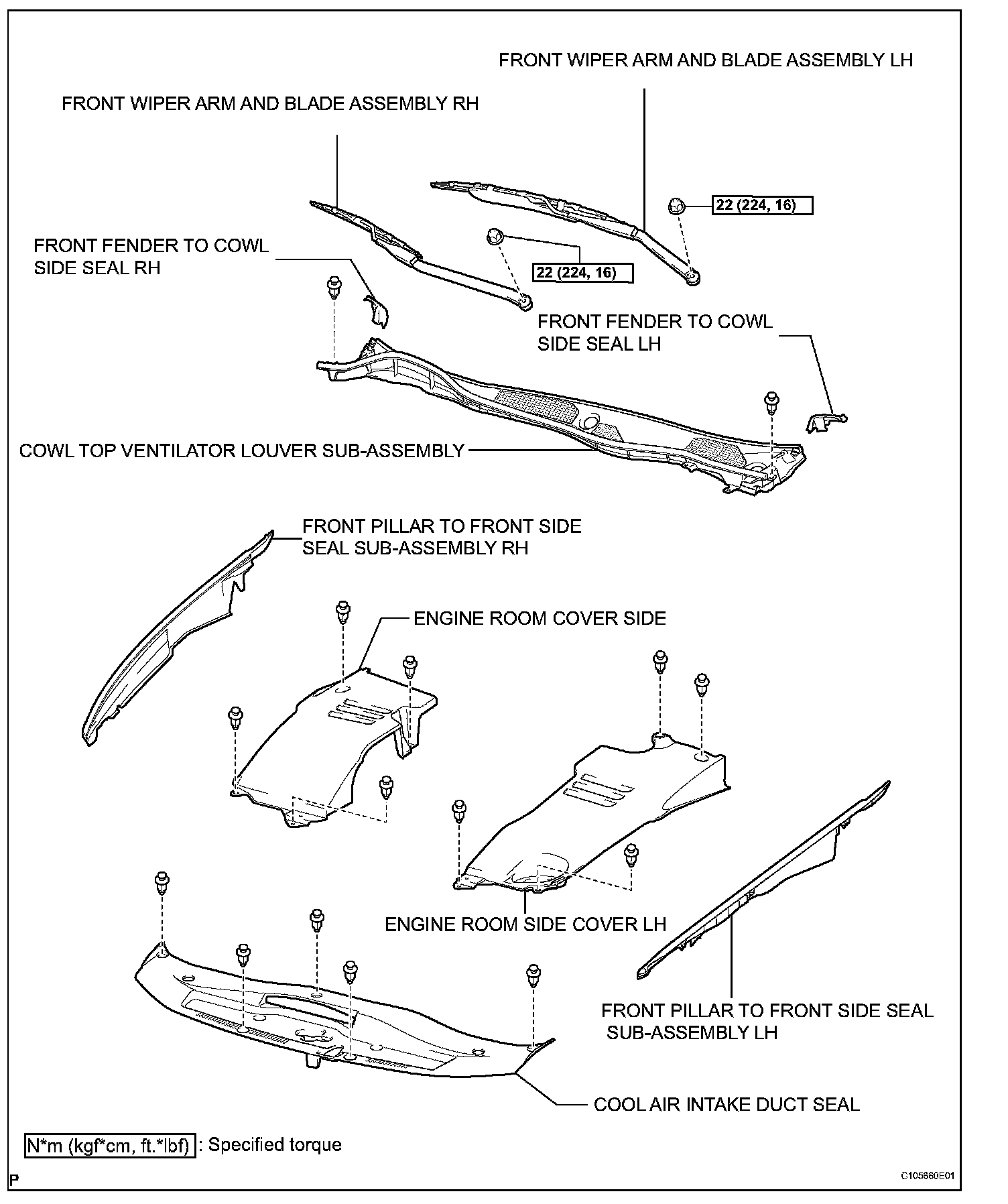

2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM COVER SIDE
4. REMOVE ENGINE ROOM SIDE COVER LH
5. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH
6. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH
7. REMOVE FRONT WIPER ARMAND BLADE ASSEMBLY LH
8. REMOVE FRONT WIPER ARMAND BLADE ASSEMBLY RH
9. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
10. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
11. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
12. SEPARATE ENGINE ROOM RELAY NO.3 BLOCK
a. Remove the nut, bolt and engine room relay No.3 block.

13. REMOVE FRONT WHEEL
14. DRAIN BRAKE FLUID

NOTICE: If brake fluid leaks onto any painted surface, wash or otherwise remove it completely.

15. REMOVE BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY

16. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY WITH BRACKET

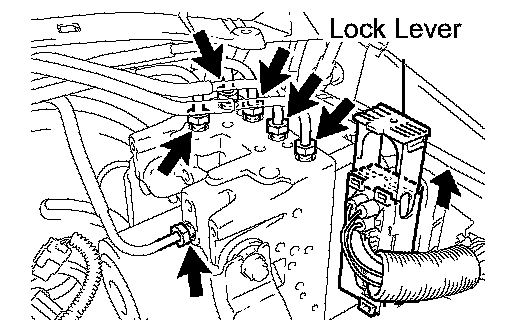

a. Release the lock lever and disconnect the actuator connector.

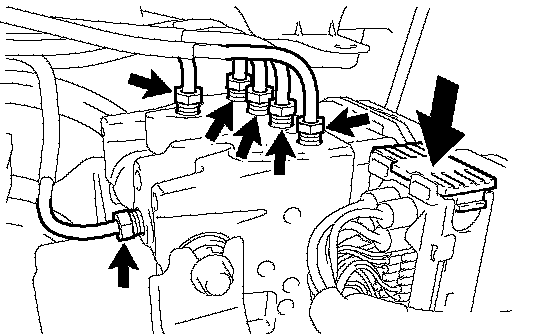

b. Using SST, disconnect the 6 brake tubes from the actuator assembly with bracket.
SST 09023-00101

c. Use tags or make a memo to identify the places to reconnect.

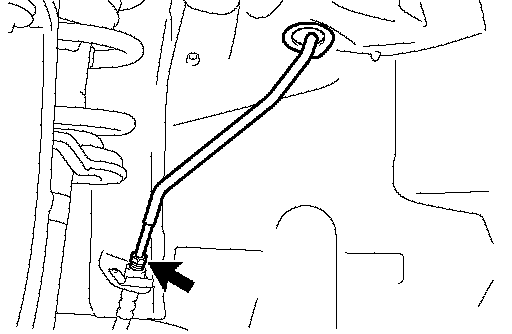

d. Using SST, disconnect the brake No.3 tube from the flexible hose.
SST 09023-00101
e. Separate the grommet and remove the brake tube No.3.

NOTICE: Do not damage the brake tube No.3.

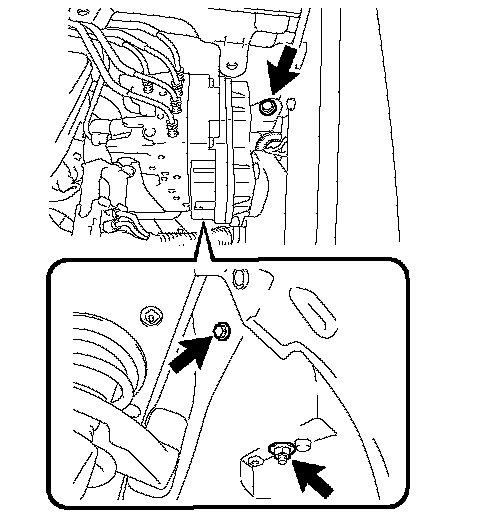

f. Remove the 2 bolts, nut and actuator assembly from the body with bracket.

NOTICE: Do not damage the brake tubes.

DISASSEMBLY
1. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY
a. Remove the 2 nuts and the actuator assembly from the actuator bracket assembly

REASSEMBLY
1. INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY
a. Install the actuator assembly to the actuator bracket assembly with the 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

INSTALLATION

1. INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY WITH BRACKET
a. Install the actuator assembly with bracket to the body with the 2 bolts and nut.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)

NOTICE: Do not to damage the brake tubes.

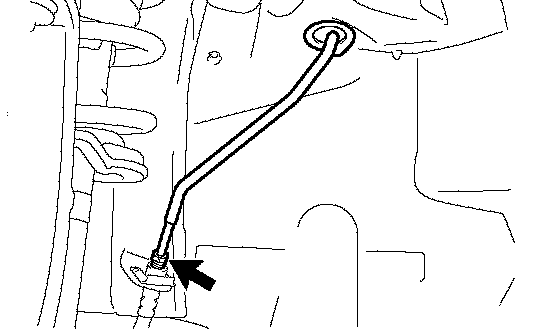

b. Using SST, connect the brake No.3 tube to the flexible hose.
SST 09023-00101
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
c. Install the grommet to the body

NOTICE: Make sure that the grommet is installed correctly.

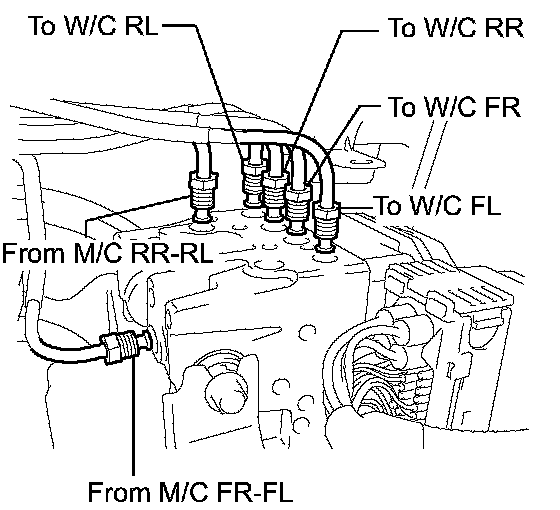

d. Temporarily tighten each brake tube to the connect positions of the actuator assembly with bracket as shown in the illustration.

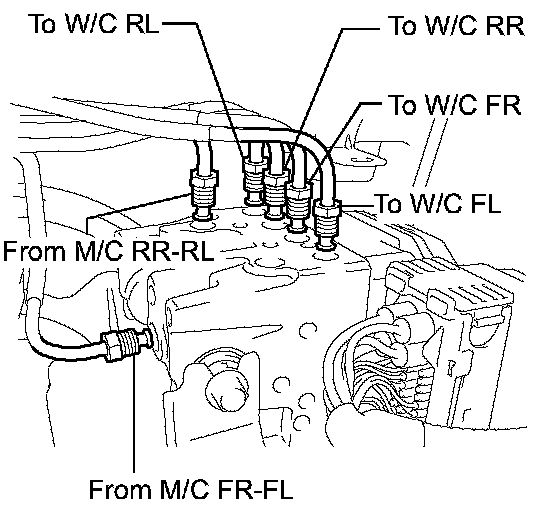

e. Using SST, fully tighten each brake tube to the connect positions of the actuator assembly with bracket as shown in the illustration.
SST 09023-00101
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
f. Connect the actuator connector.

NOTICE: Make sure that the connector is locked securely.

2. INSTALL BRAKE MASTER WITH PLATE CYLINDER SUBASSEMBLY
3. INSTALL ENGINE ROOM RELAY NO.3 BLOCK
4. ADD RESERVOIR WITH BRAKE FLUID
5. BLEED BRAKE MASTER CYLINDER SUBASSEMBLY
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. BLEED BRAKE LINE
8. INSTALL FRONT WHEEL
9. INSPECT DTC
10. BLEED ABS AND TRACTION ACTUATOR ASSEMBLY
11. INSPECT FLUID LEVEL IN RESERVOIR
12. INSPECT BRAKE FLUID LEAKAGE
13. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
14. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
15. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY
17. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY
18. INSTALL ENGINE ROOM SIDE COVER LH
19. INSTALL ENGINE ROOM COVER SIDE
20. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH
21. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH
22. INSTALL COOL AIR INTAKE DUCT SEAL
23. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
24. INSPECT VSC SENSOR SIGNAL
25. INSPECT ACTUATOR WITH INTELLIGENT TESTER
26. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal.
