ABS Motor Relay (W/ VSC)

ABS MOTOR RELAY (w/VSC)

ON-VEHICLE INSPECTION

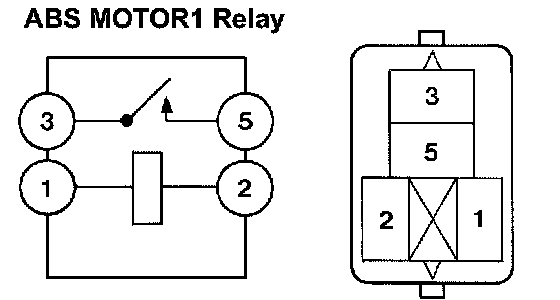

ABS MOTOR1 Relay:

1. INSPECT ABS MOTOR1 RELAY
a. Remove the ABS MOTOR1 relay
b. Measure the resistance according to the value(s) in the table below.

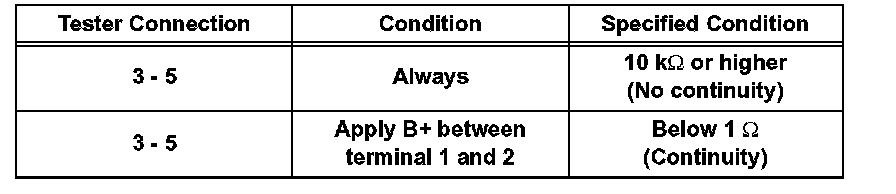

Resistance:

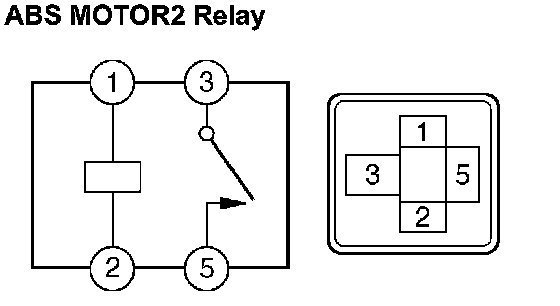

ABS MOTOR2 Relay:

2. INSPECT ABS MOTOR2 RELAY
a. Remove the ABS MOTOR 2 relay
b. Measure the resistance according to the value(s) in the table below.

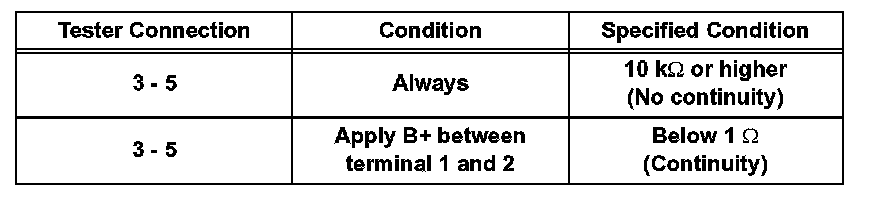

Resistance:
