TS and CG Terminal (ABS and Traction Actuator Assembly)

TS and CG Terminal Circuit

DESCRIPTION
In the sensor check mode, a malfunction of the speed sensor that cannot be detected when the vehicle is stopped is detected while driving. Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and turning the engine switch from off to on (IG).

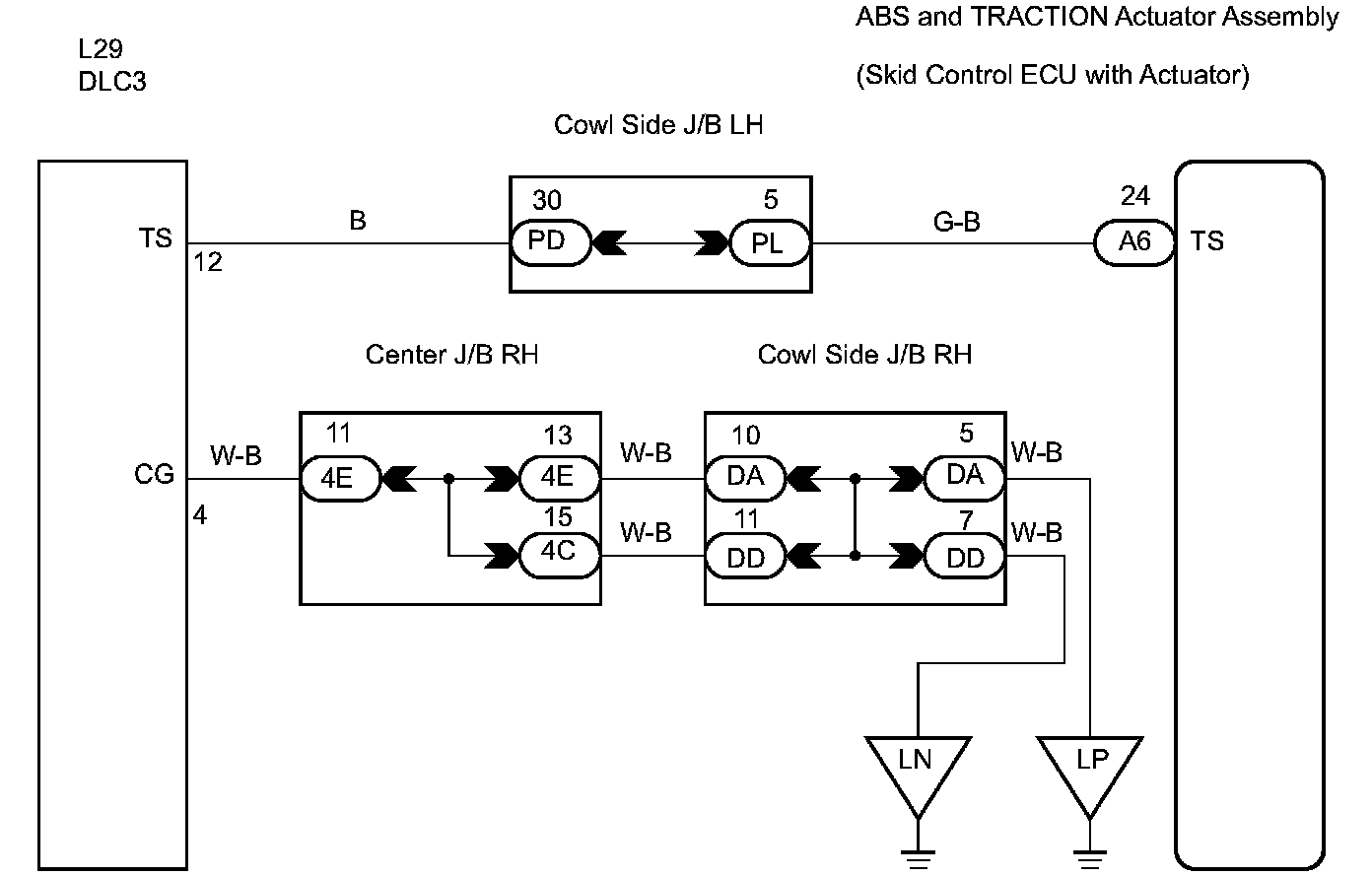

Wiring Diagram:

NOTICE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration.

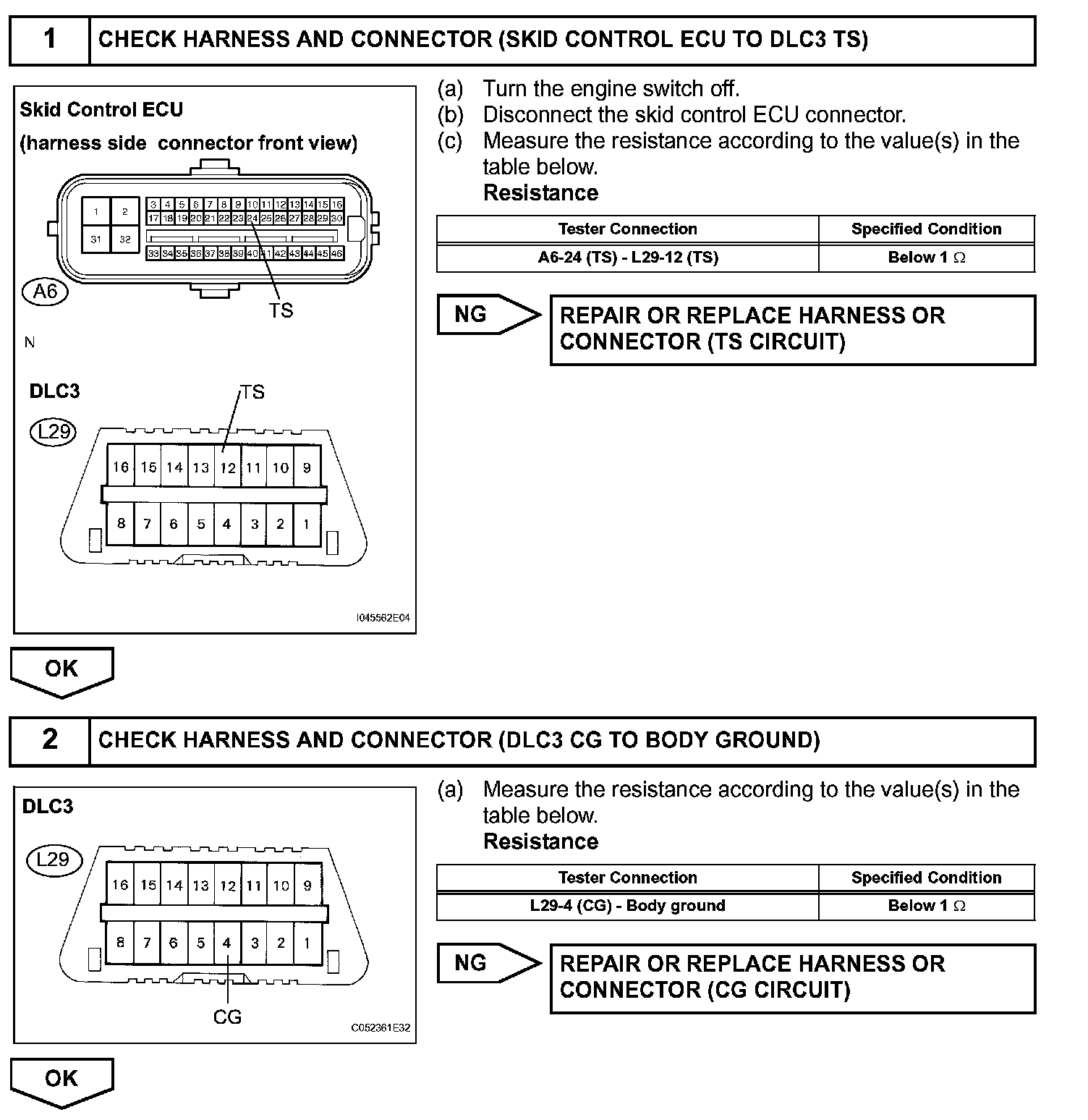

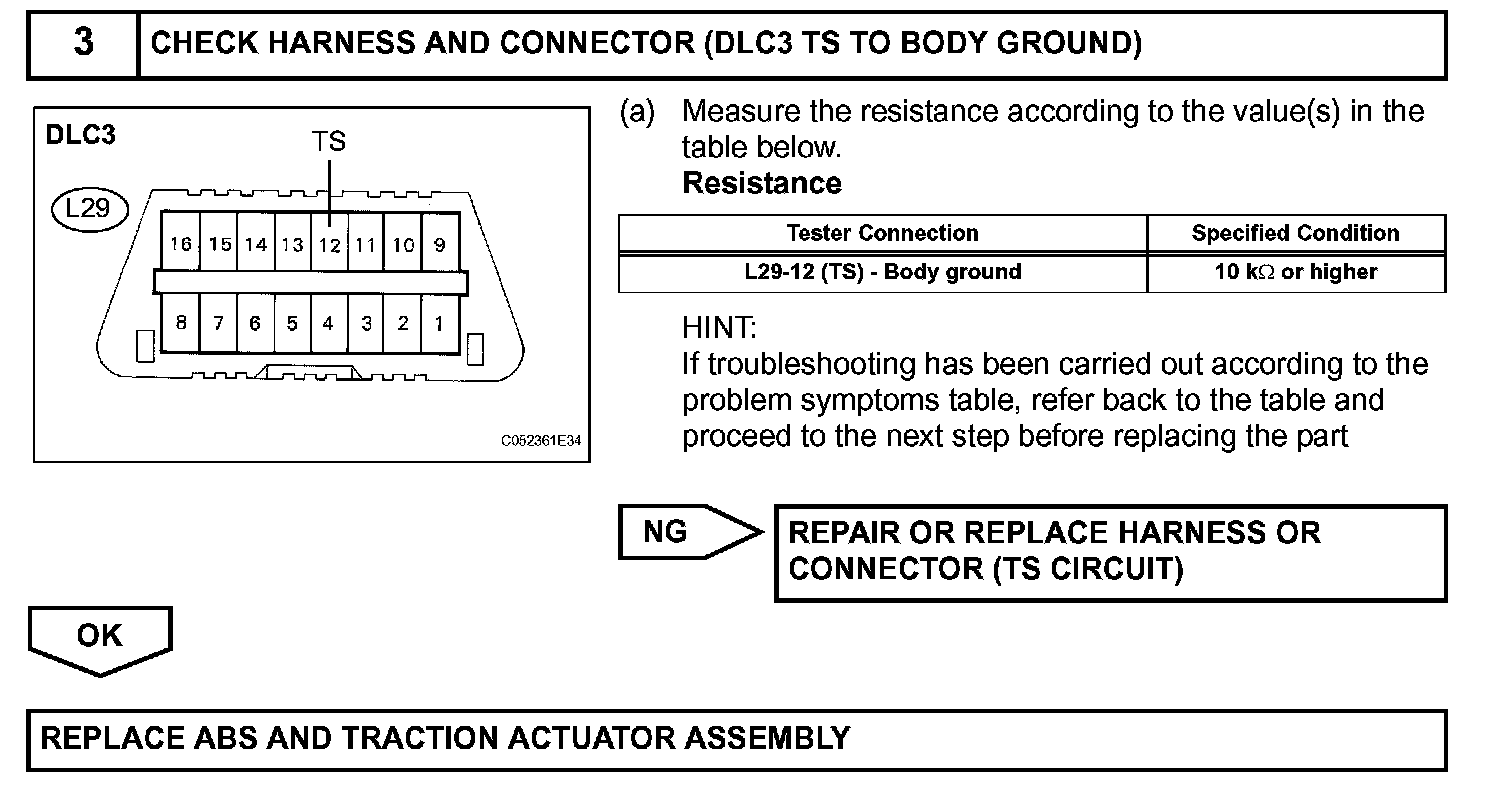

INSPECTION PROCEDURE
