ABS Main Relay (W/ ECB)
ABS MAIN RELAY (w/ECB)ON-VEHICLE INSPECTION

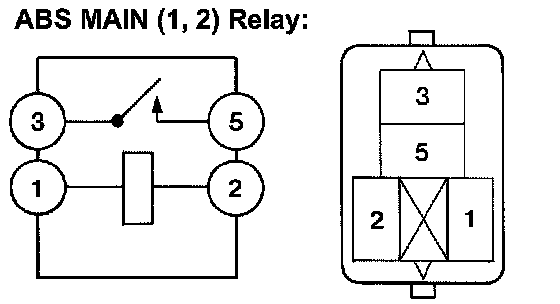

ABS MAIN (1, 2) Relay:
1. INSPECT ABS MAIN RELAY
a. Remove the ABS MAIN 1 relay and ABS MAIN 2 relay
b. Measure the resistance according to the value(s) in the table below.

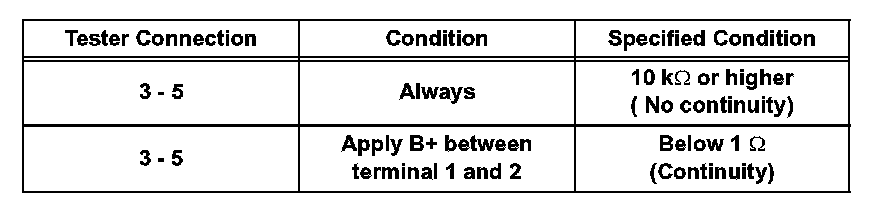

Resistance:
