Front Seat Cushion Heater

INSPECTION




1. INSPECT FRONT SEAT CUSHION HEATER LH
a. Heat the thermostat with a heat light.

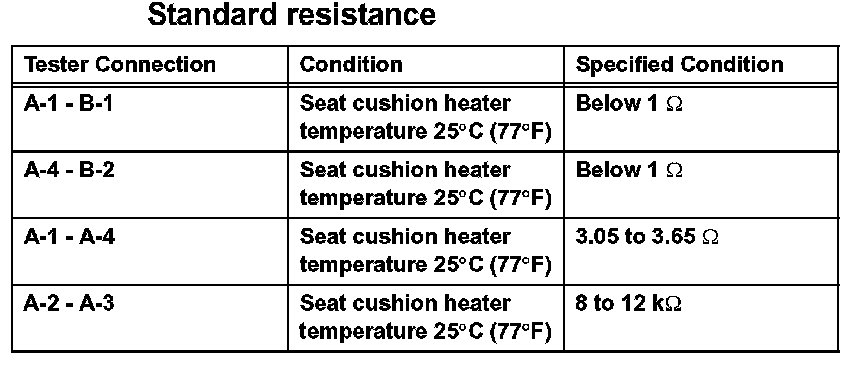

b. Measure the resistance of the heater.
If the result is not as specified, the heater control may have a malfunction.




2. INSPECT FRONT SEAT CUSHION HEATER RH
a. Heat the thermostat with a heat light.

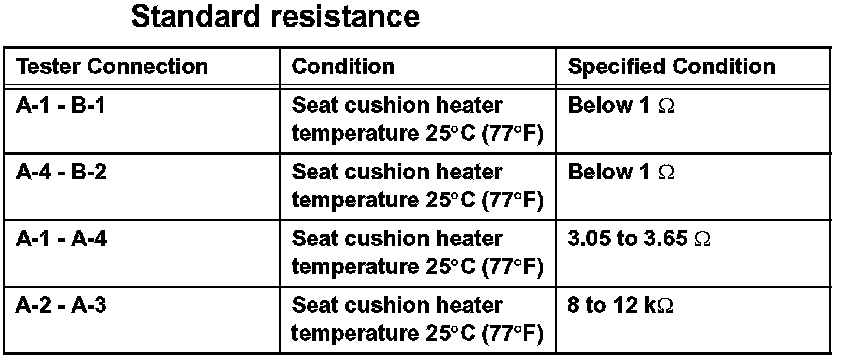

b. Measure the resistance of the heater.
If the result is not as specified, the heater control may have a malfunction.
