Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations

Seats: Locations

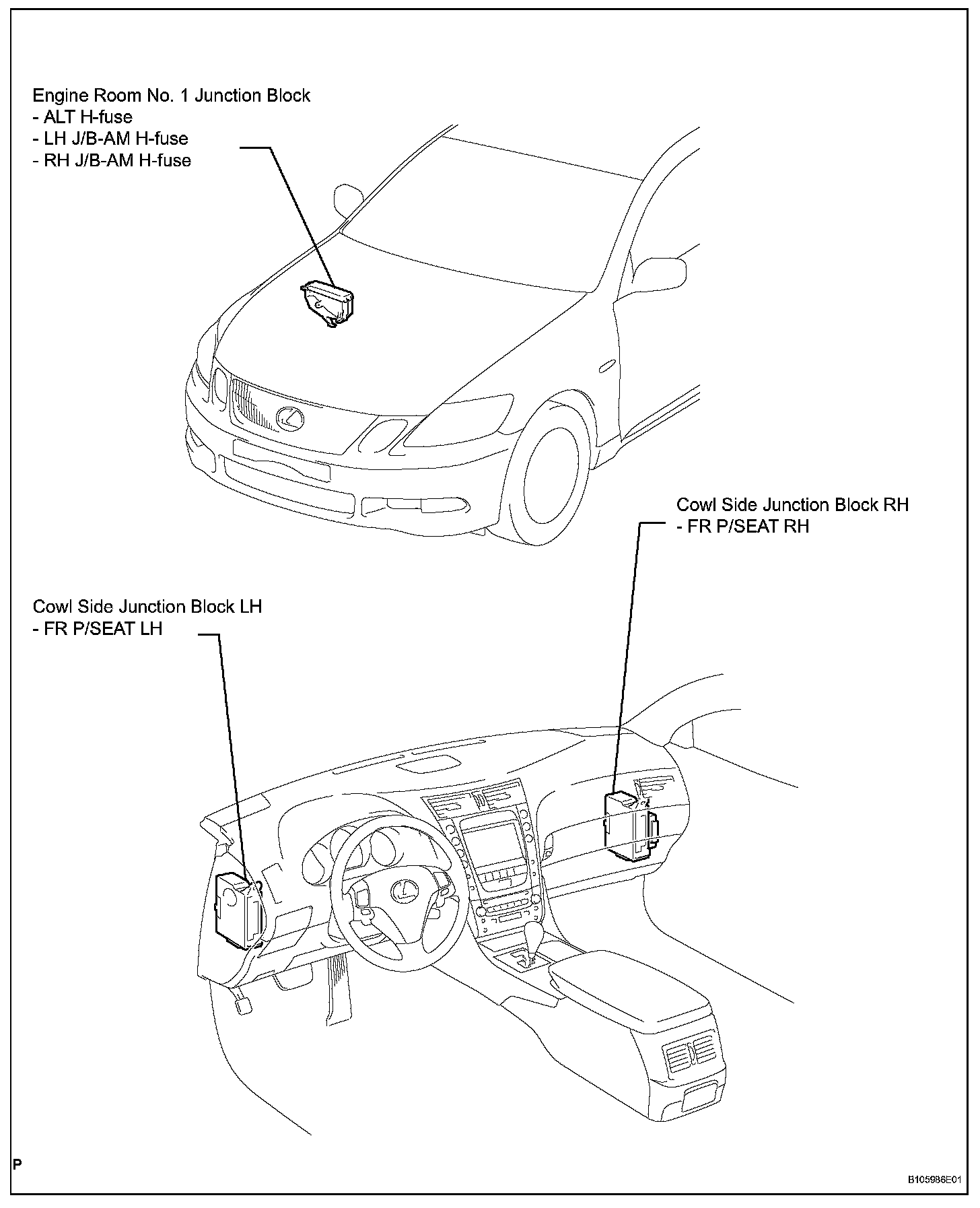

Front Power Seat Control System:



Front Power Seat Control System:

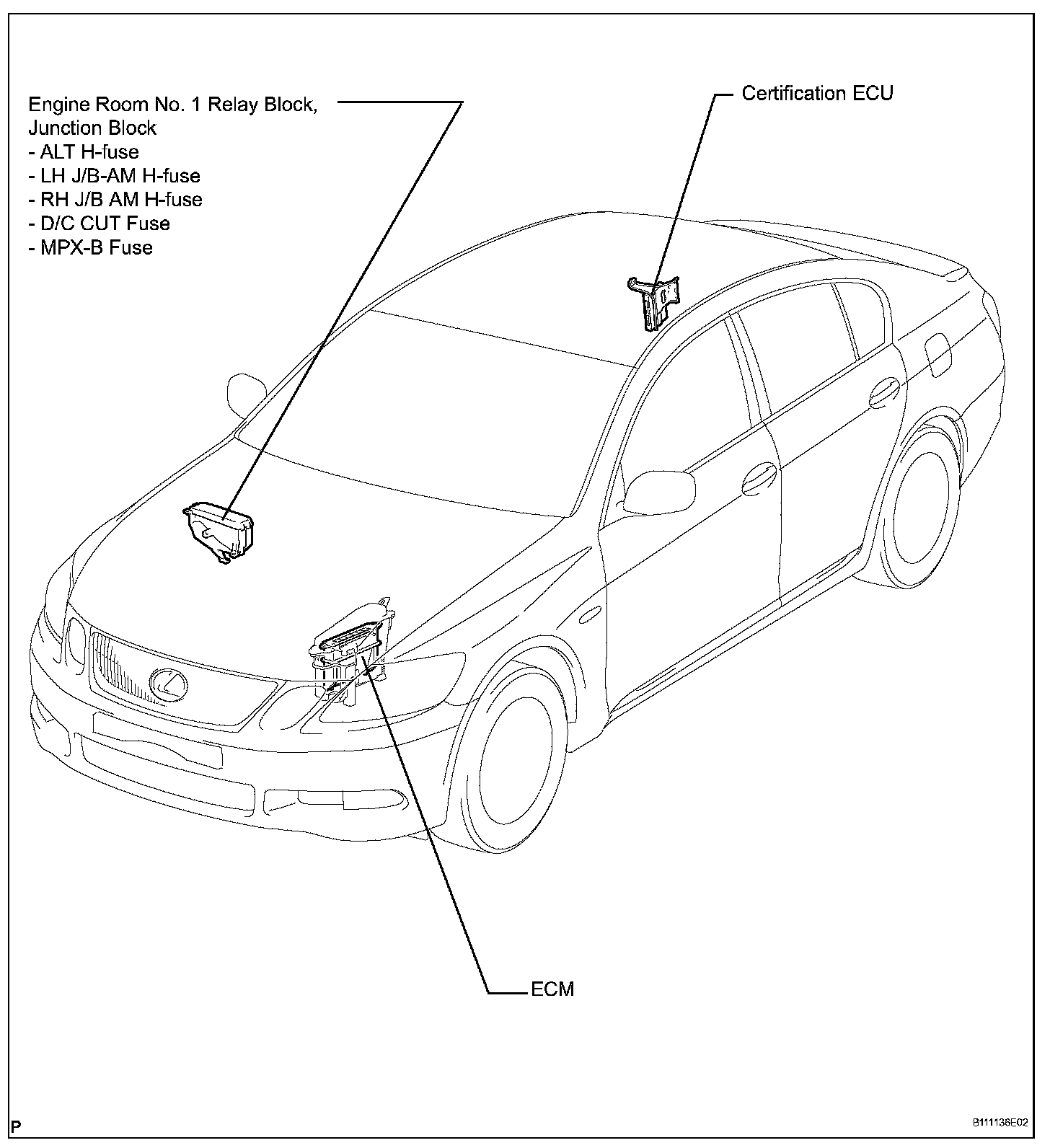

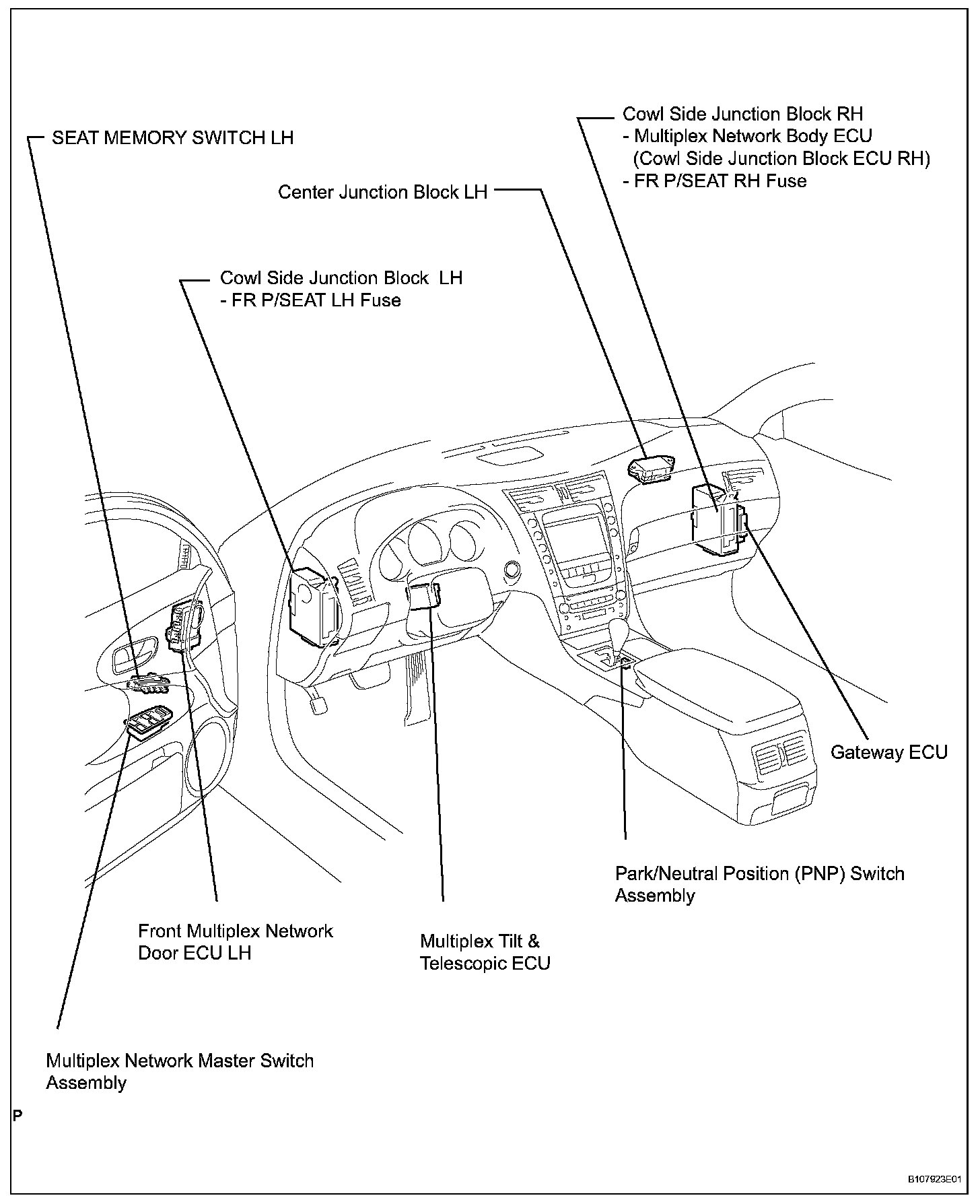

Front Power Seat Control System (W/Seat Position Memory System):



Front Power Seat Control System (W/Seat Position Memory System):



Front Power Seat Control System (W/Seat Position Memory System):



Front Power Seat Control System (W/Seat Position Memory System):

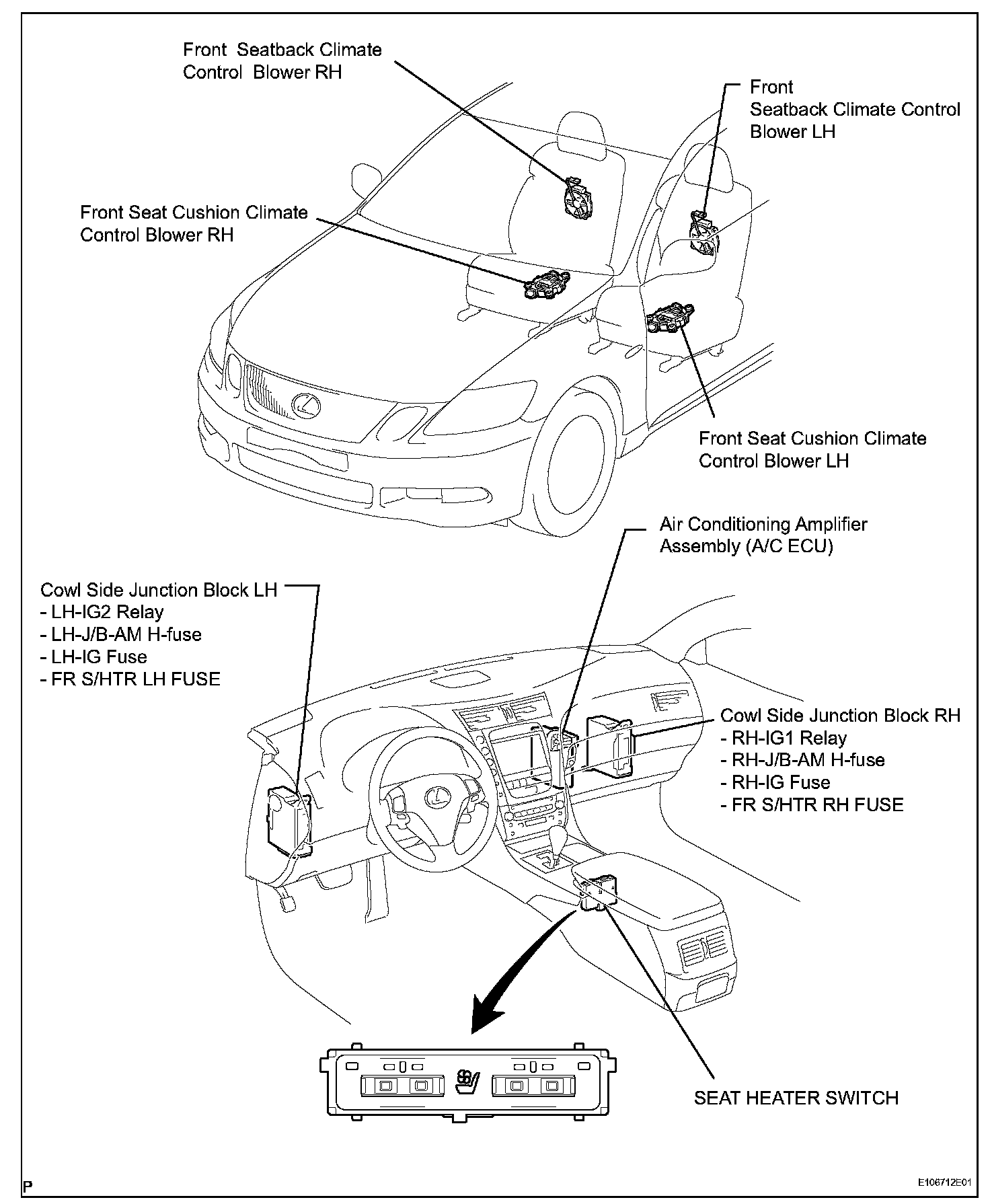

Climate Control Seat System:
