Climate Control Seat

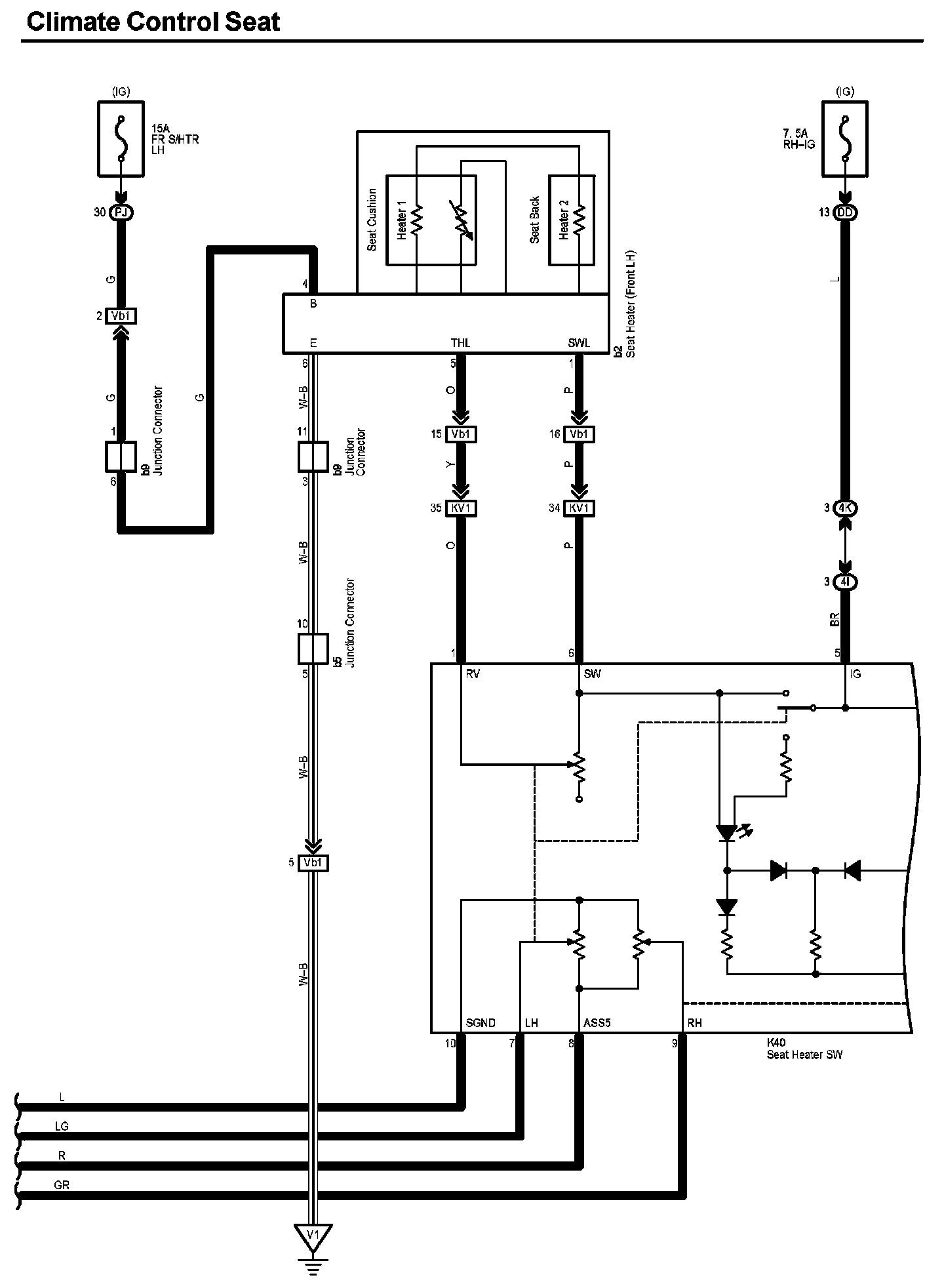

Climate Control Seat (Part 1):

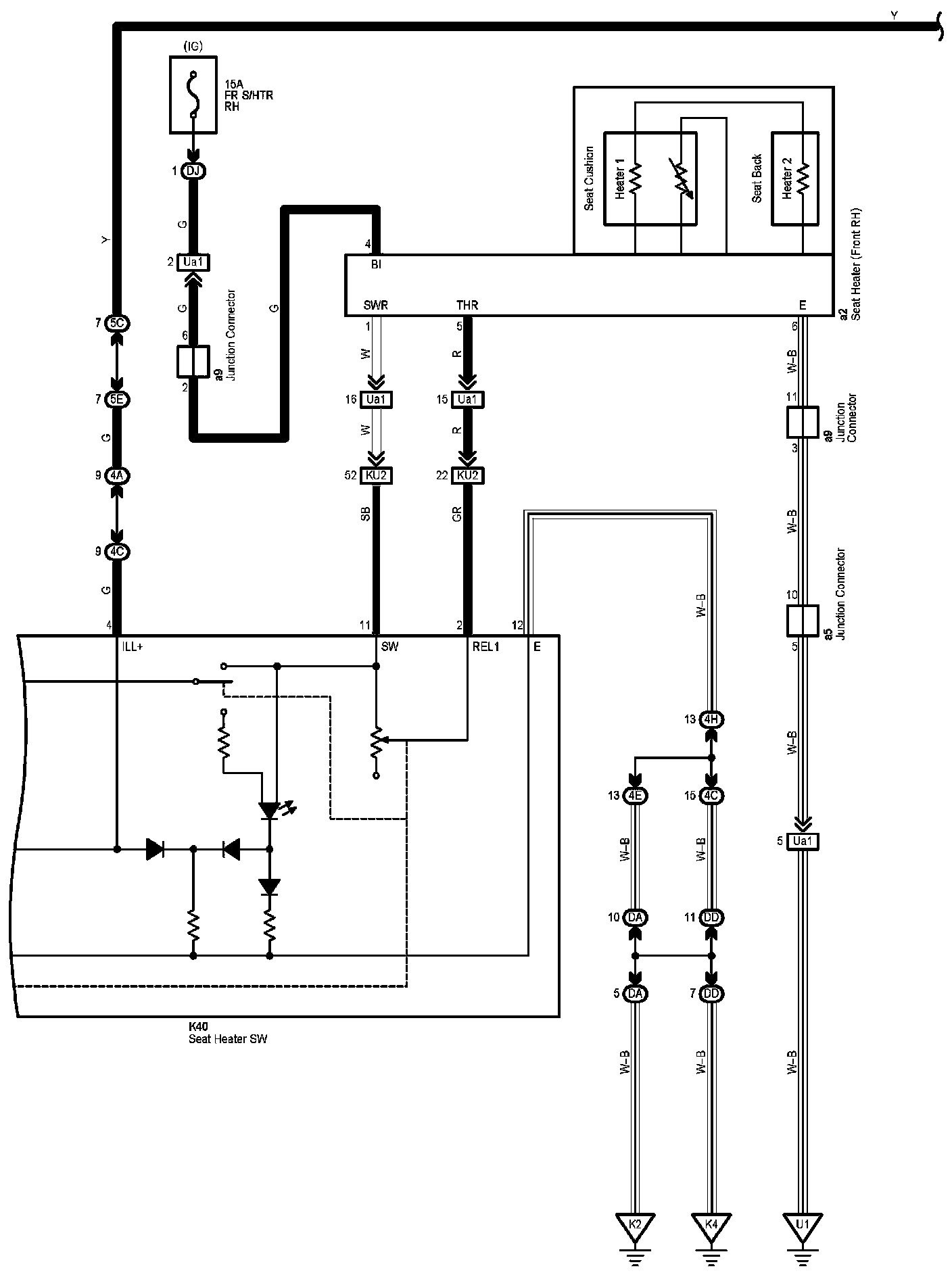

Climate Control Seat (Part 2):

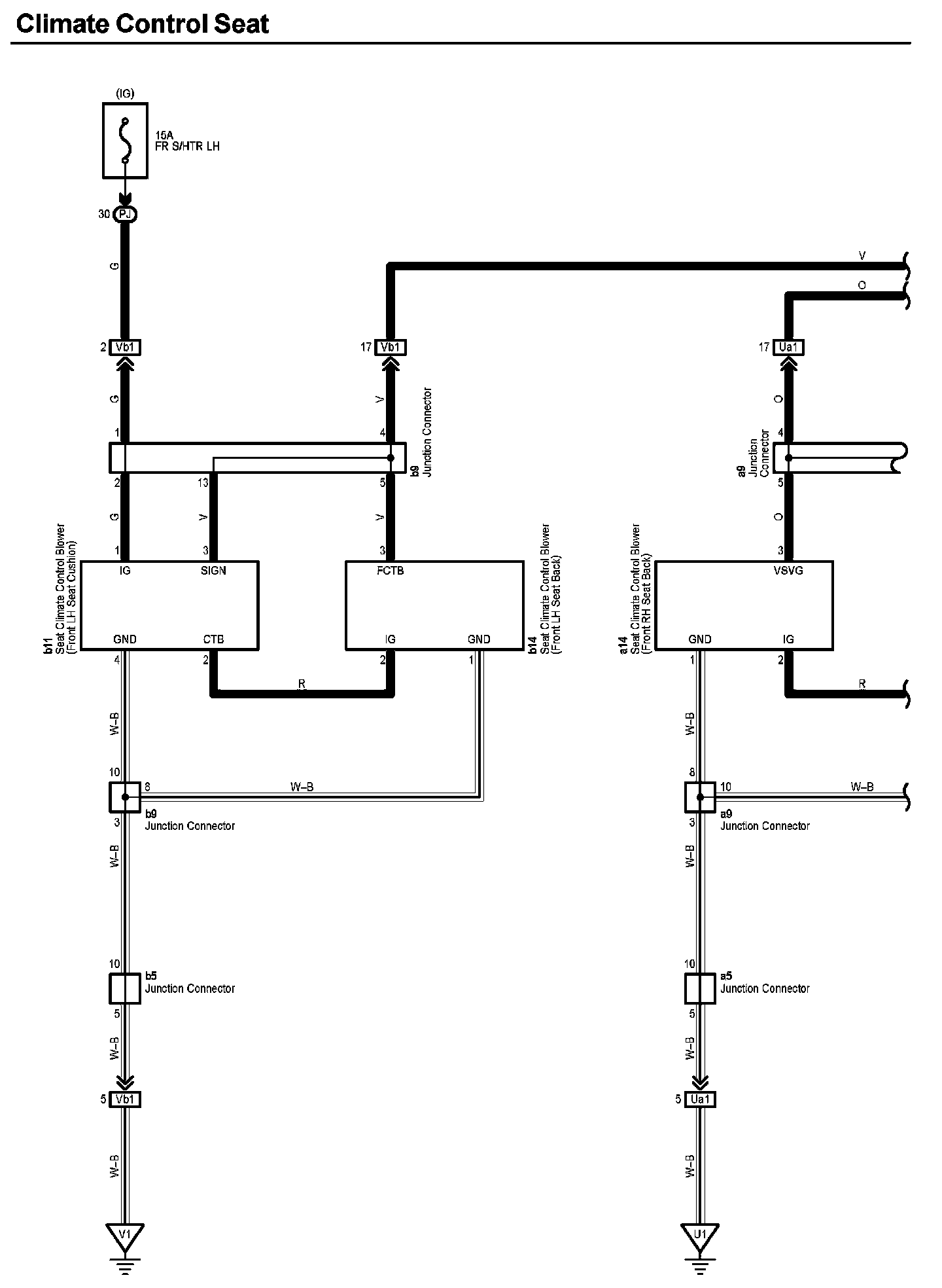

Climate Control Seat (Part 3):

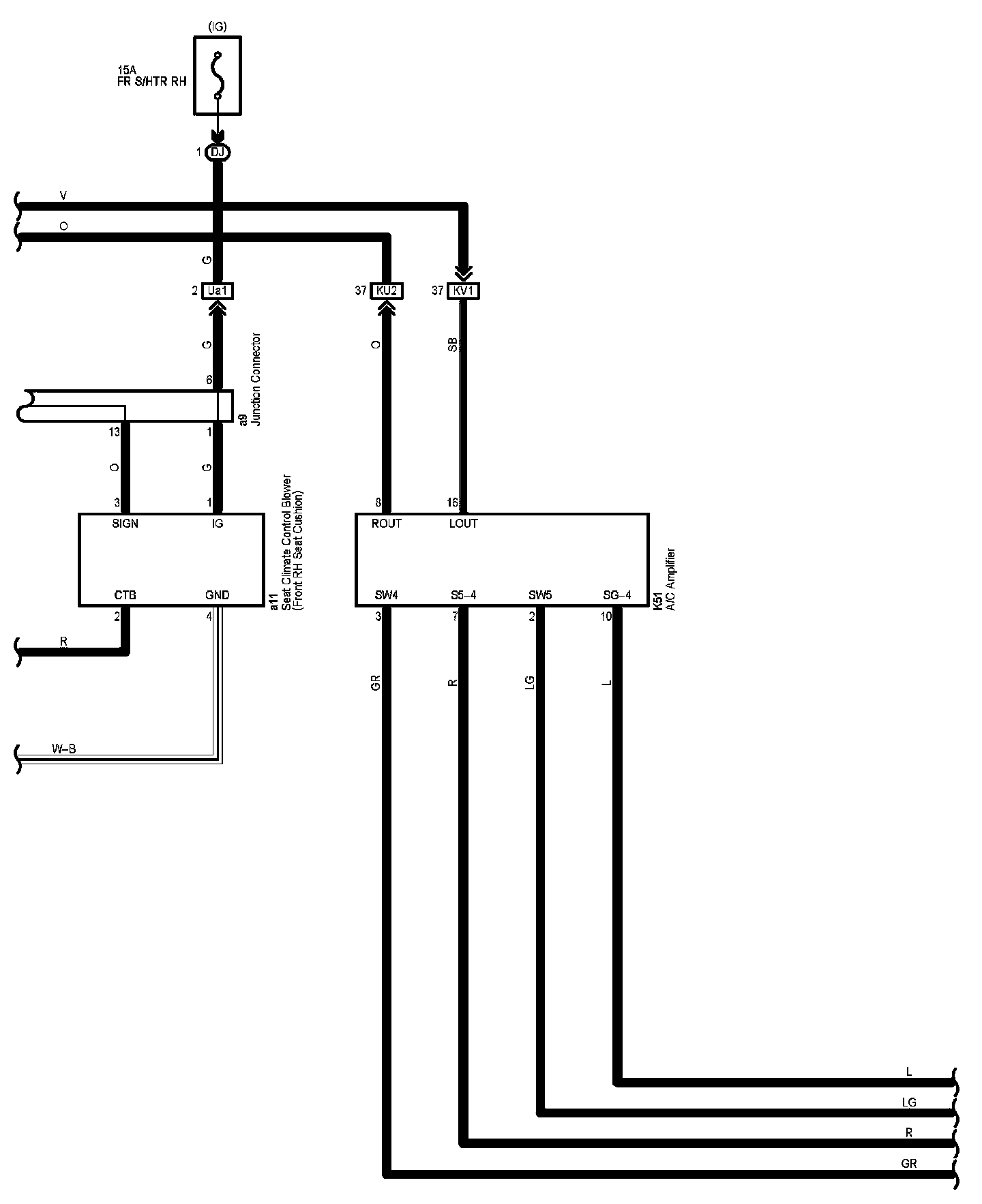

Climate Control Seat (Part 4):

Climate Control Seat (Part 5):

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
