Canada - Body - Initialization Sliding Roof
BulletinTSB2082
Issue Date
February 10, 2005
Title
INITIALIZATION OF SLIDING ROOF
Component
GENERAL INFORMATION
Models
'06 GS300 AND GS430
Please initialize the sliding roof after installing the DCC fuse in its original location during Pre-Delivery Service (PDS).
The installation of the DCC fuse will enable the operation of the "automatic open and close" and "jam protection" functions of the sliding roof.
NOTE:
Any time the battery terminal has been disconnected, initialize the sliding roof after reconnecting the battery terminal.
APPLICABLE VEHICLES:
- 2006 model year GS300 and GS430 vehicles.

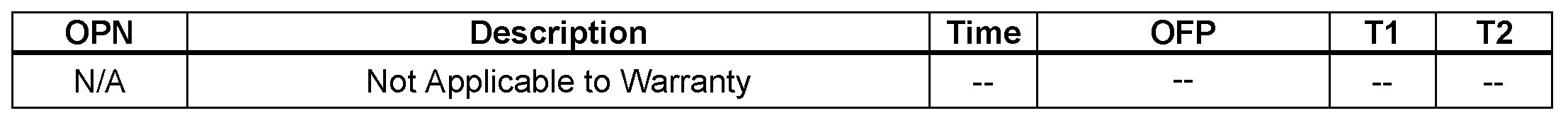

WARRANTY INFORMATION:
INITIALIZATION PROCEDURE:
1. Turn the ignition switch to the "ON" position.
2. Push and hold the sliding roof switch to the "TILT UP" side or the "SLIDE-CLOSE" side until the following cycle of the sliding roof operation is completed:
A. Closing
B. Fully tilt up
C. Fully tilt down
D. Fully slide open
E. Fully slide close
3. After the cycle of operation above is completed, the initialization is completed.
4. Check for proper operation of the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" positions.
NOTE:
Jam protection function is enabled through the above initialization procedure.
