Body - Sliding Roof Initialization Procedure

PRE-DELIVERY SERVICE
PD003-05

January 25, 2005

Title:
INITIALIZATION OF SLIDING ROOF DURING PDS

Models:
'06 GS 300 & GS 430

Introduction

Please initialize the sliding roof after installing the DCC fuse in its original location during Pre-Delivery Service (PDS).

The installation of the DCC fuse will enable the operation of the "automatic open and close" and "jam protection" functions of the sliding roof.

NOTE:
Any time the battery terminal has been disconnected, initialize the sliding roof after reconnecting the battery terminal.

Applicable Vehicles
^ 2006 model year GS 300 and GS 430 vehicles.

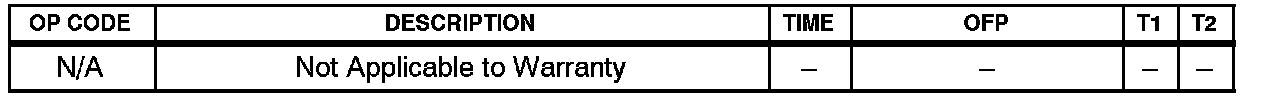

Warranty Information

Initialization Procedure

1. Turn the ignition switch to the "ON" position.

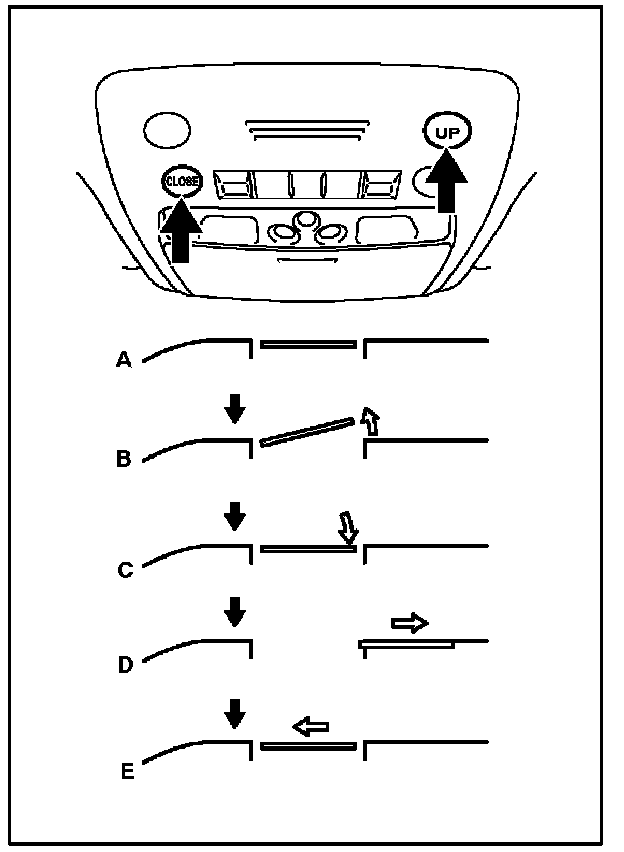

2. Push and hold the moon roof switch to the "TILT UP" side or the "SLIDE-CLOSE" side until the following cycle of the moon roof operation is completed:

A. Closing

B. Fully tilt up

C. Fully tilt down

D. Fully slide open

E. Fully slide close

3. After the cycle of operation above is completed, initialization is complete.

4. Check for proper operation of the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" positions.

NOTE:
Jam protection function is enabled through the above initialization procedure.
