Sliding Roof Control Switch Circuit

Sliding Roof Control Switch Circuit

DESCRIPTION
The sliding roof drive gear (sliding roof ECU) receives slide switch and tilt switch signals and drives its built-in motor.

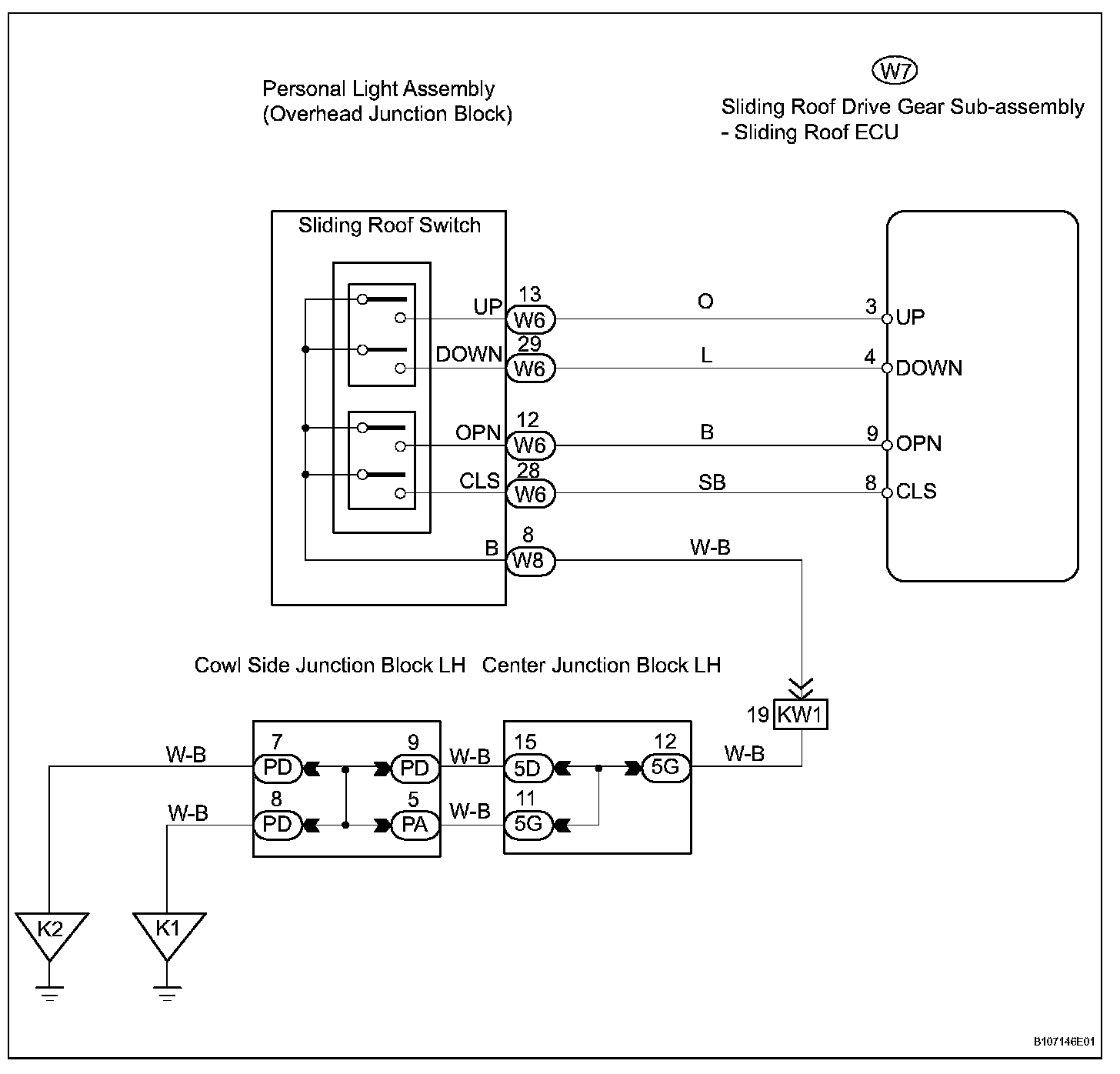

Wiring Diagram:

Step 1:

Step 1(Continued)-2:

Step 3:

Step 4:

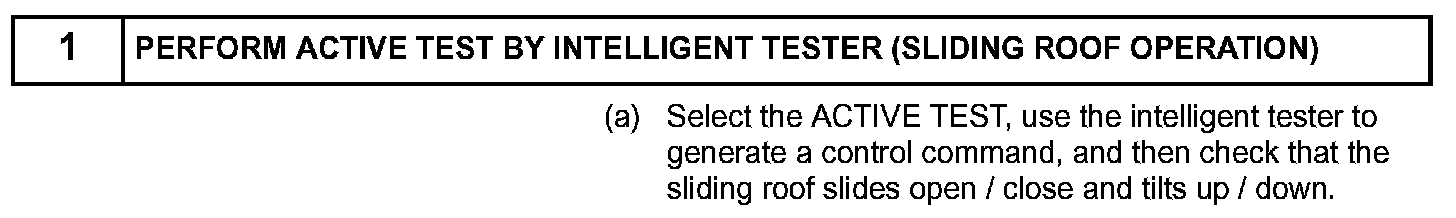

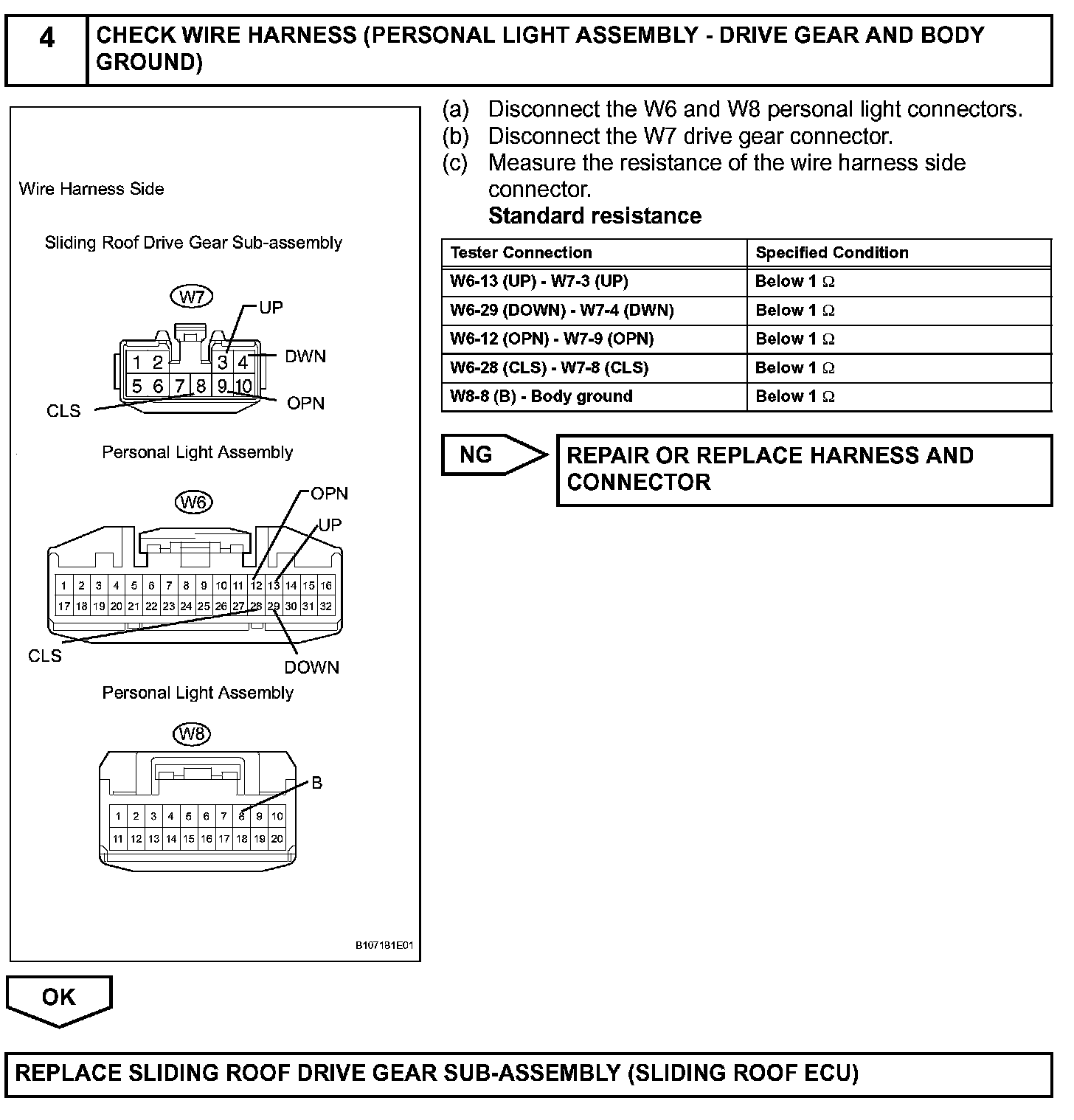

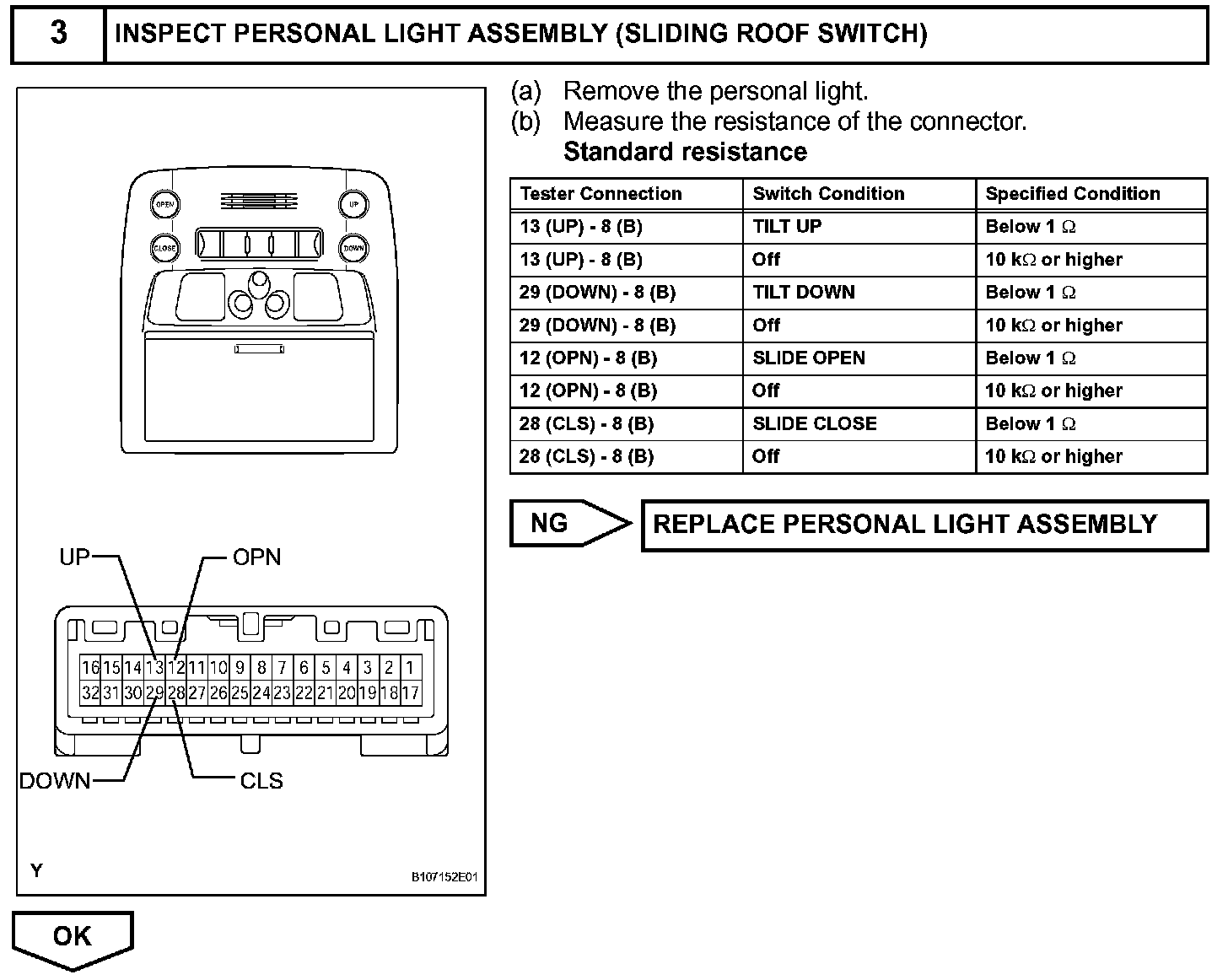

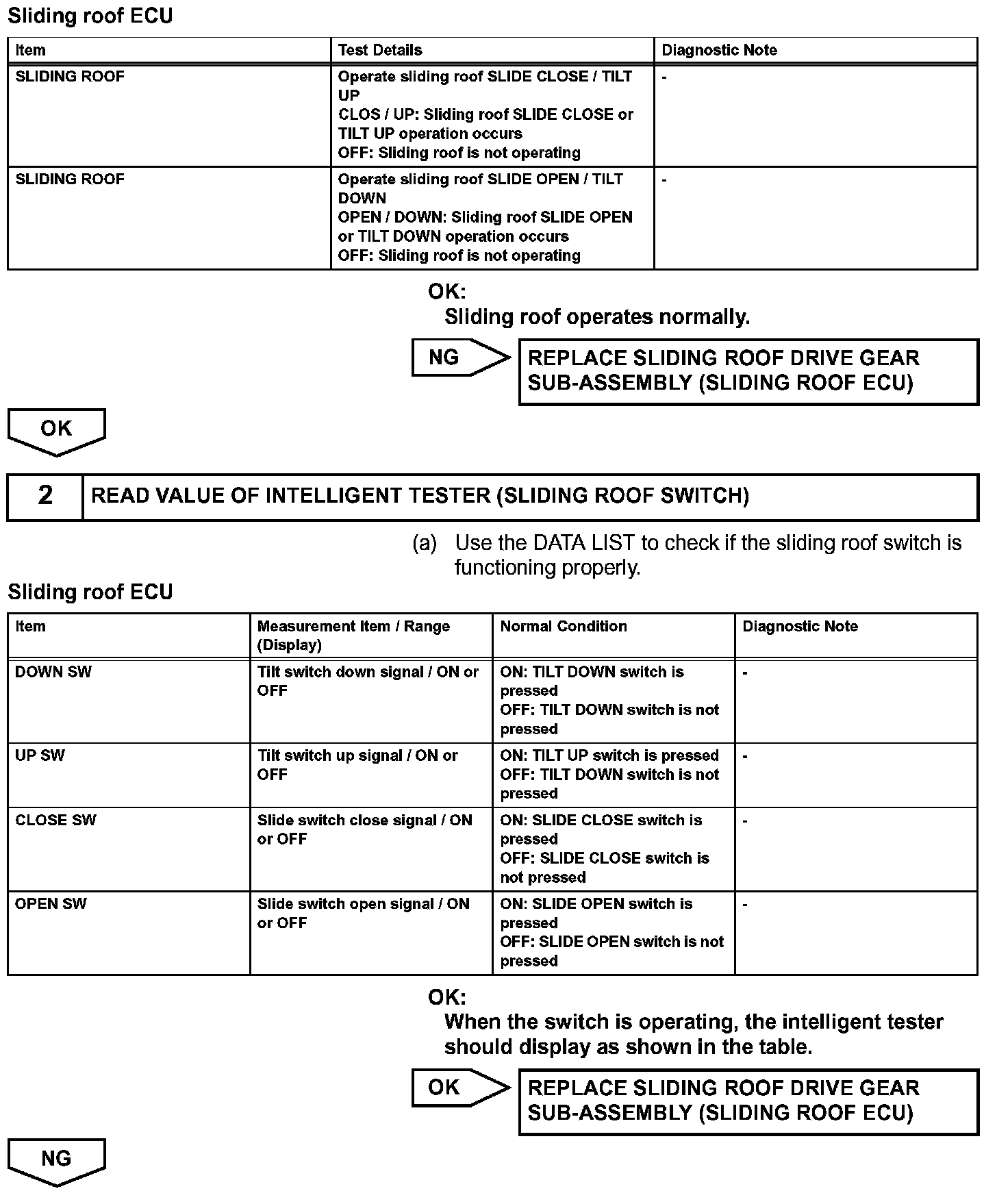

INSPECTION PROCEDURE
