Mirrors: Description and Operation
SYSTEM DESCRIPTION1. POWER MIRROR CONTROL SYSTEM DESCRIPTION
This system has the given functions: automatic glare resistant electrochromic (EC) mirror, reverse shift-linked mirror, electrical remote control type mirror, memory function, and rear window defogger-linked mirror heater.

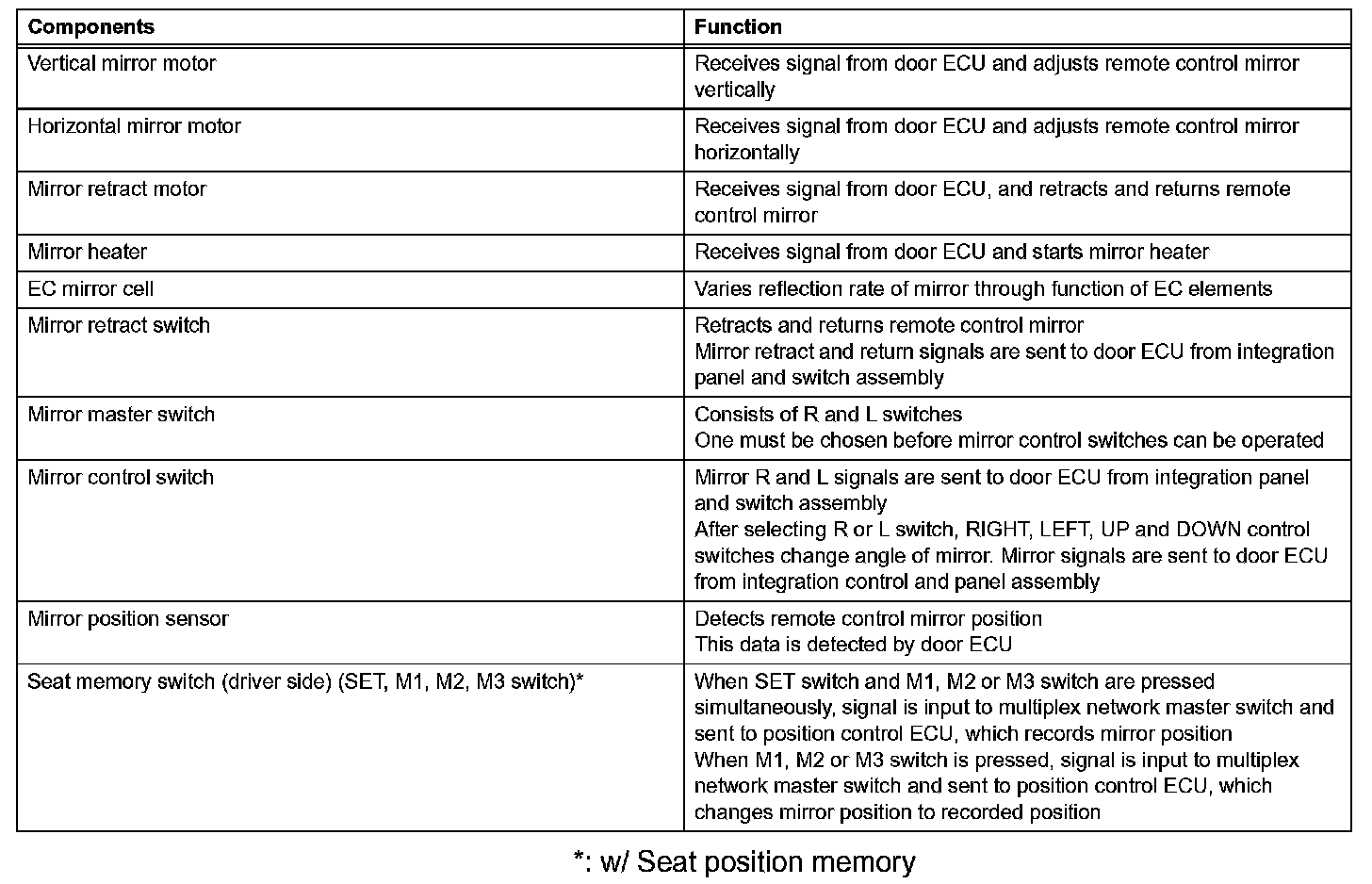

2. FUNCTION OF MAIN COMPONENT

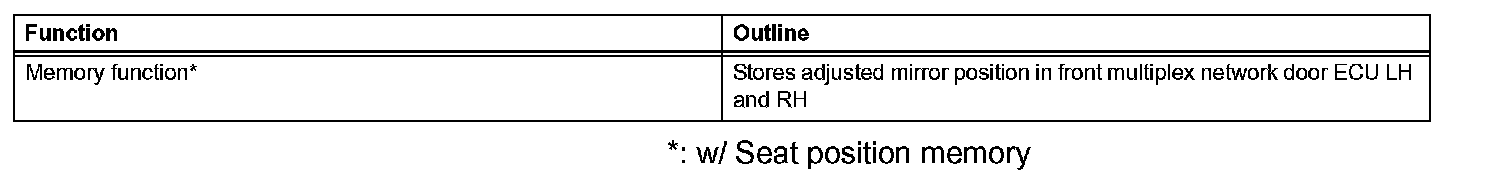

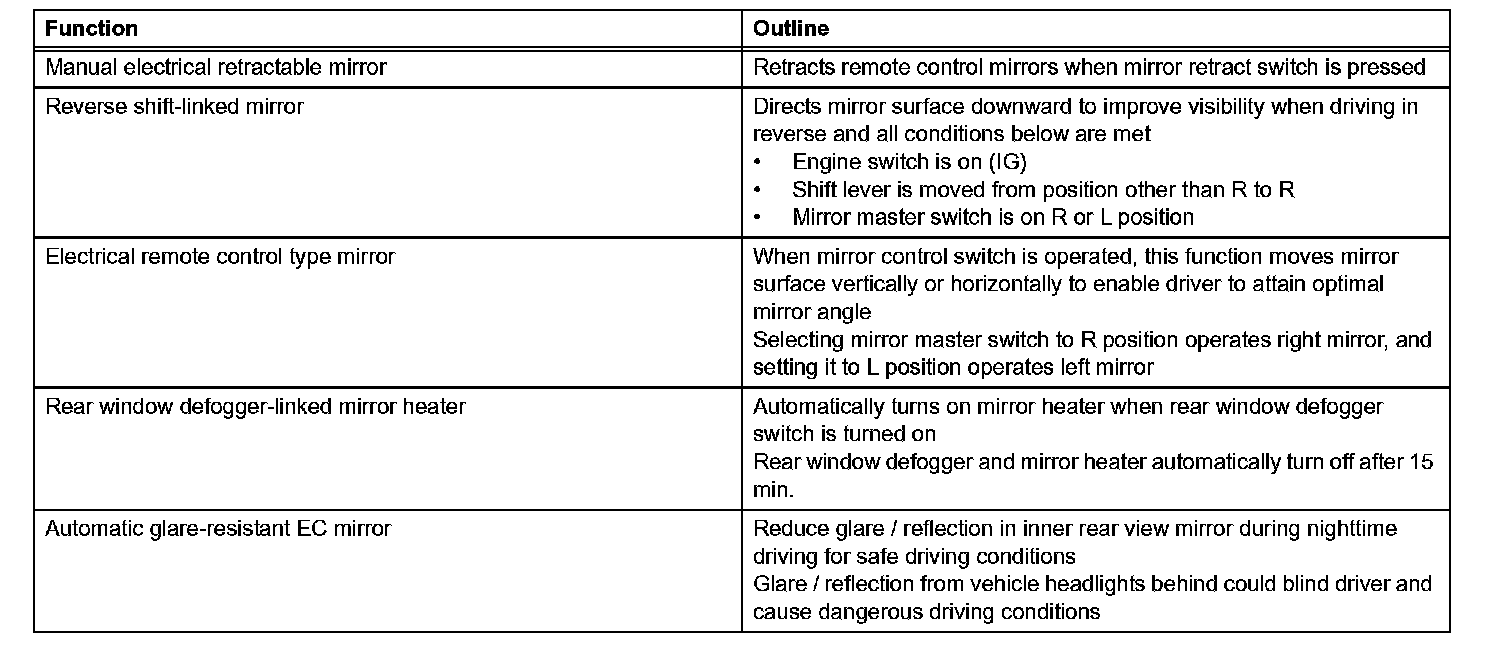

3. SYSTEM OPERATION
The remote control mirror has the given features:
