Key Lock-In Prevention Function Does Not Work Properly (Manual Operation and Key-Linked Lock Are Activated)

Key Lock-in Prevention Function does not Work Properly (Manual Operation and Key-Linked Lock are Activated)

DESCRIPTION
When the door control transmitter is in the vehicle or the door courtesy light ON signal is output to the ECU, performing the door lock operation with the lock switch on the outer handle will not lock the door.

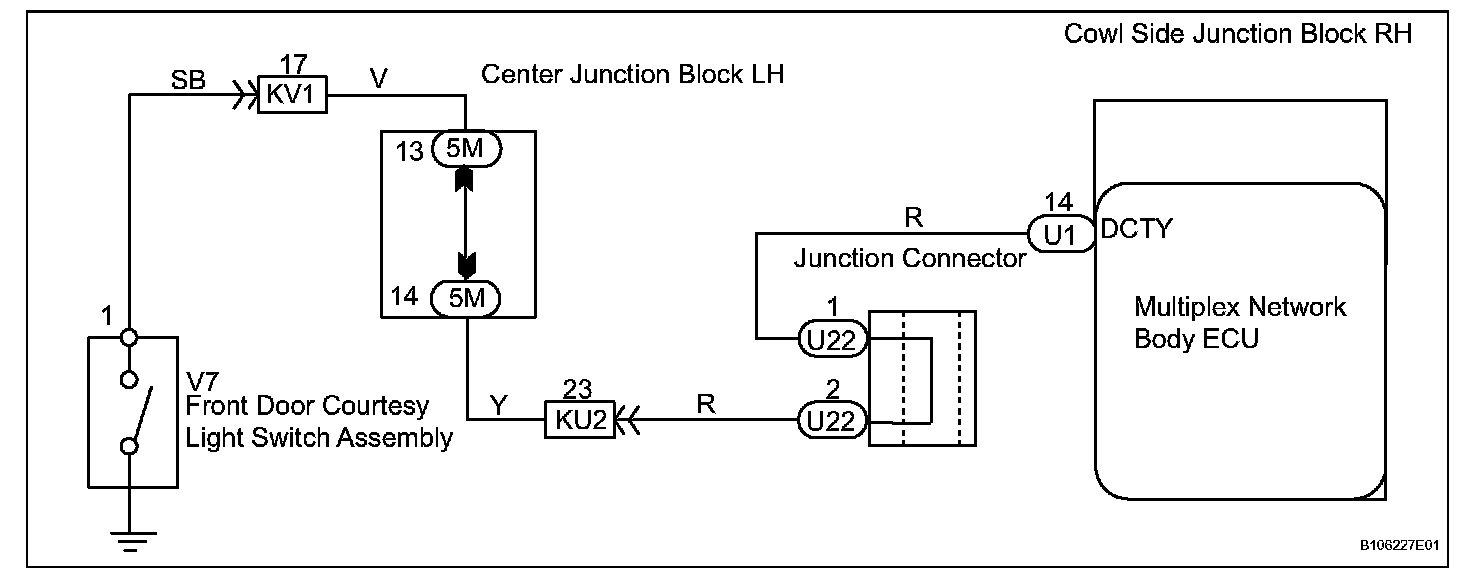

Wiring Diagram:

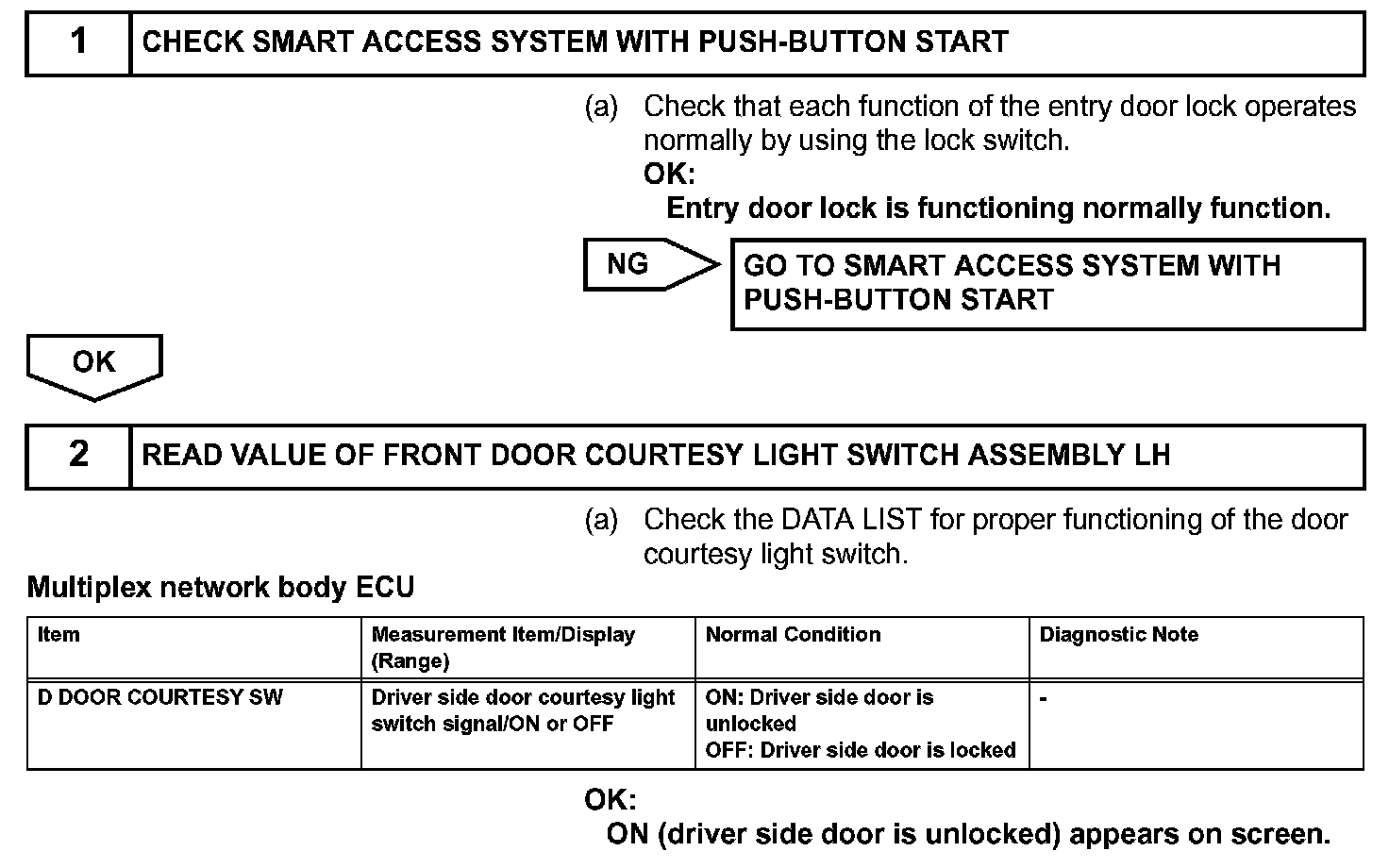

Step 1-2:

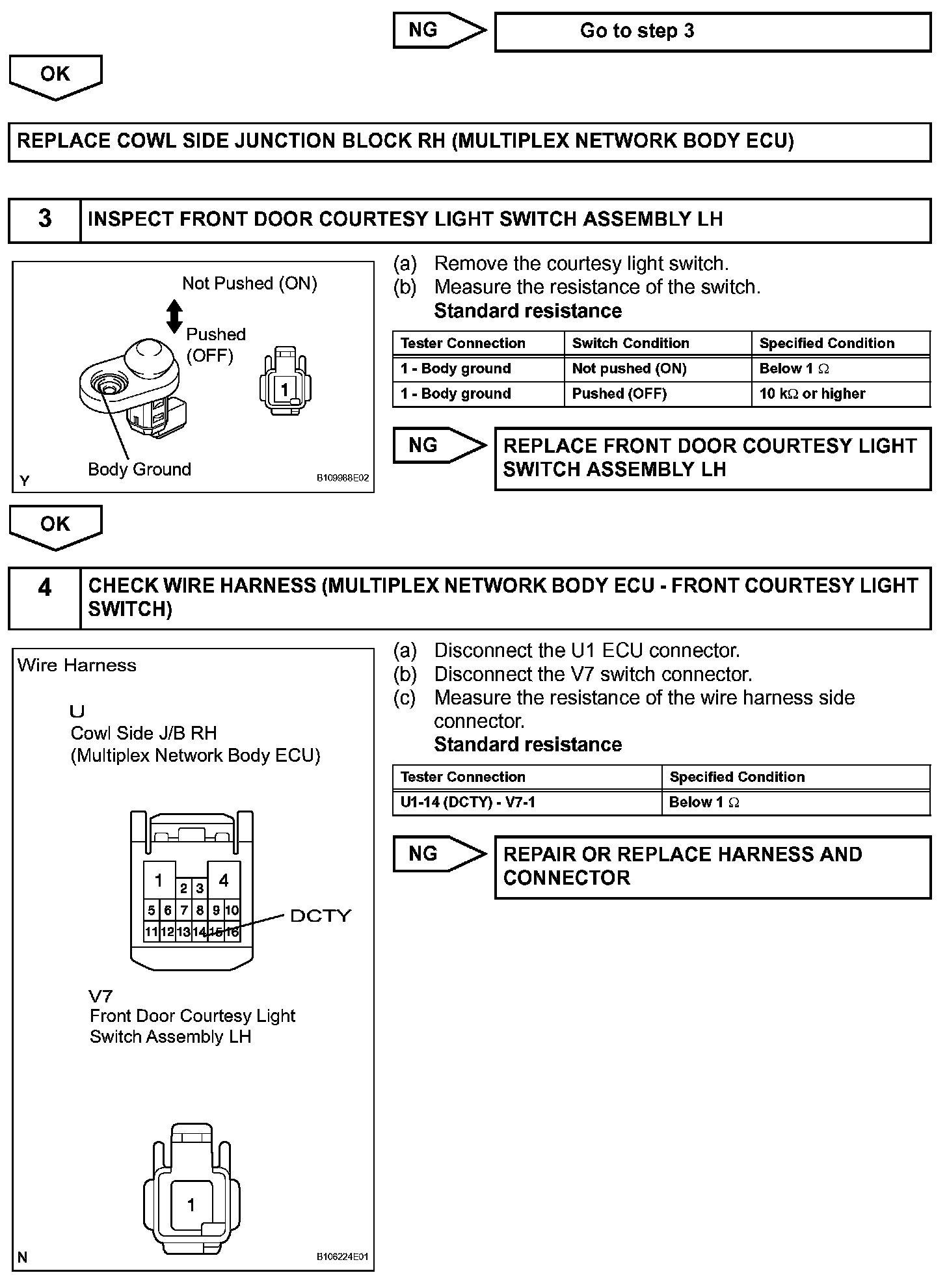

Step 2(continued)-4:

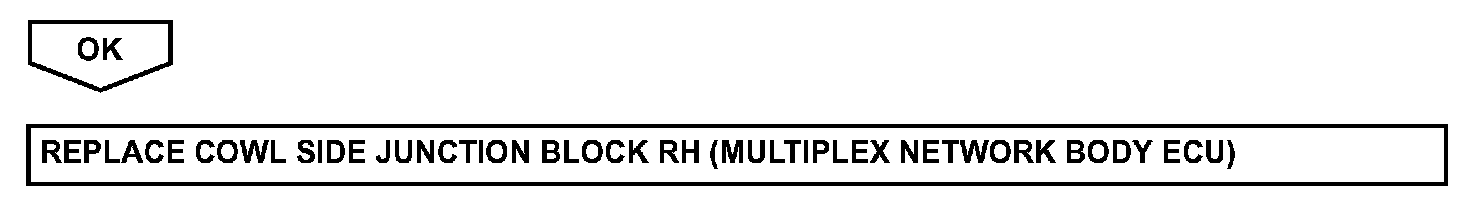

Step 4(continued):

INSPECTION PROCEDURE
