Canada - Body - Trunk Not Closing
BulletinTSB2194
Issue Date
January 16, 2006
Title
TRUNK WILL NOT CLOSE
Component
BODY COMPONENT
Models
'06 GS 300 & GS 430
INTRODUCTION:
Customers may complain that the trunk closer motor is not operating and the trunk will not close. An improved door closer motor has been developed to correct this condition.
APPLICABLE VEHICLES:
- 2006 model year GS 300 and GS 430 vehicles produced BEFORE the Production Change Effective VINs shown below.
PRODUCTION CHANGE INFORMATION:

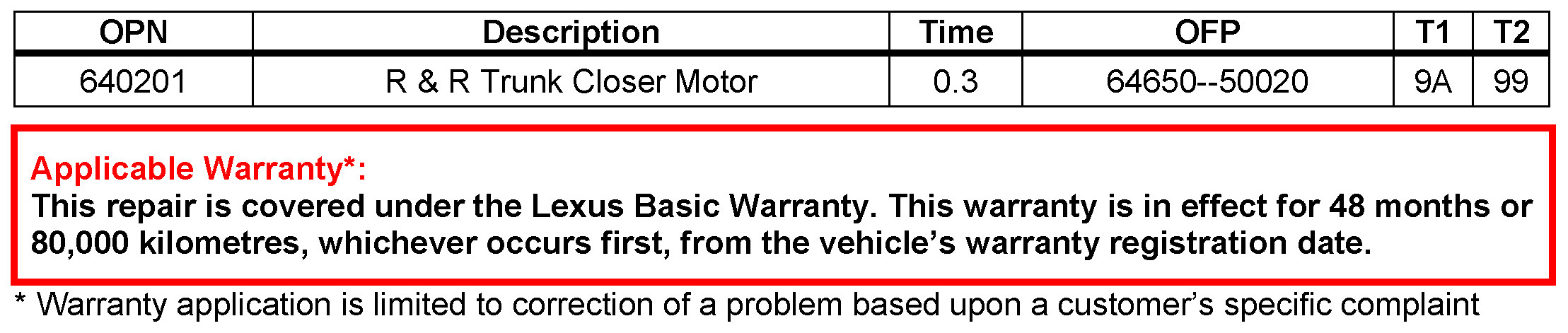

WARRANTY INFORMATION:

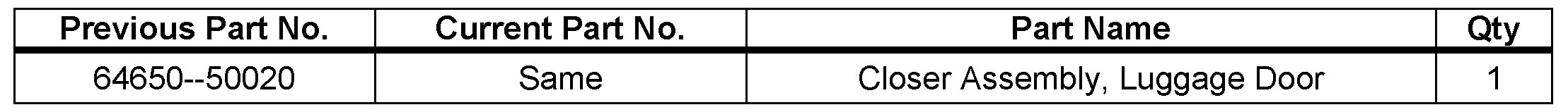

PARTS INFORMATION:

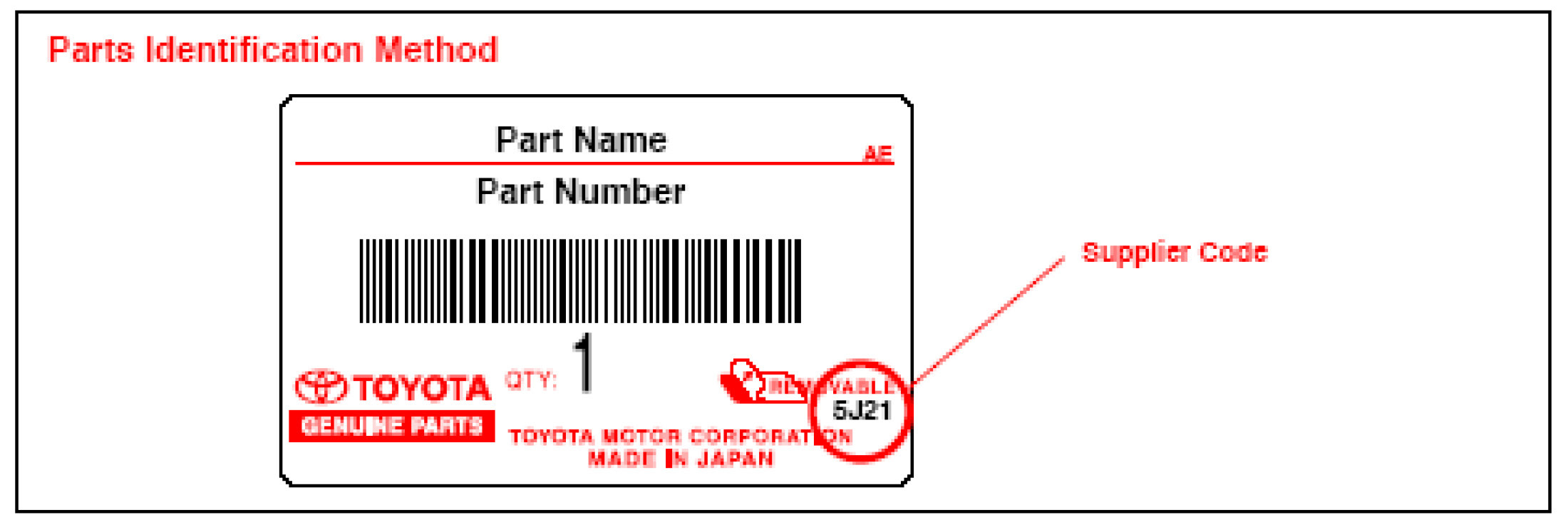

PARTS IDENTIFICATION METHOD:
REPAIR PROCEDURE:
Replace the trunk lock closer motor assembly.
Refer to ETAS, 2006 model year GS 300 or GS 430 Repair Manual: Engine Hood / Door: Luggage Compartment Door: On-vehicle Inspection, Removal, and Adjustment.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
