Passenger Side J/B ECU Power Source Circuit
Passenger Side J/B ECU Power Source CircuitDESCRIPTION
This circuit provides power to operate the multiplex network body ECU.
HINT: Given, the passenger side junction block ECU is referred to as the multiplex network body ECU.
Wiring Diagram:

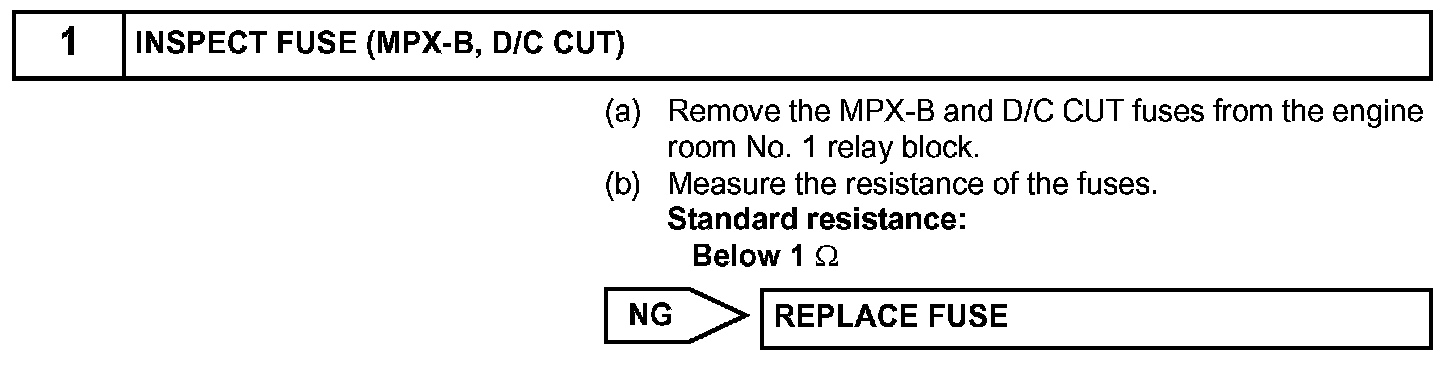

Step 1:

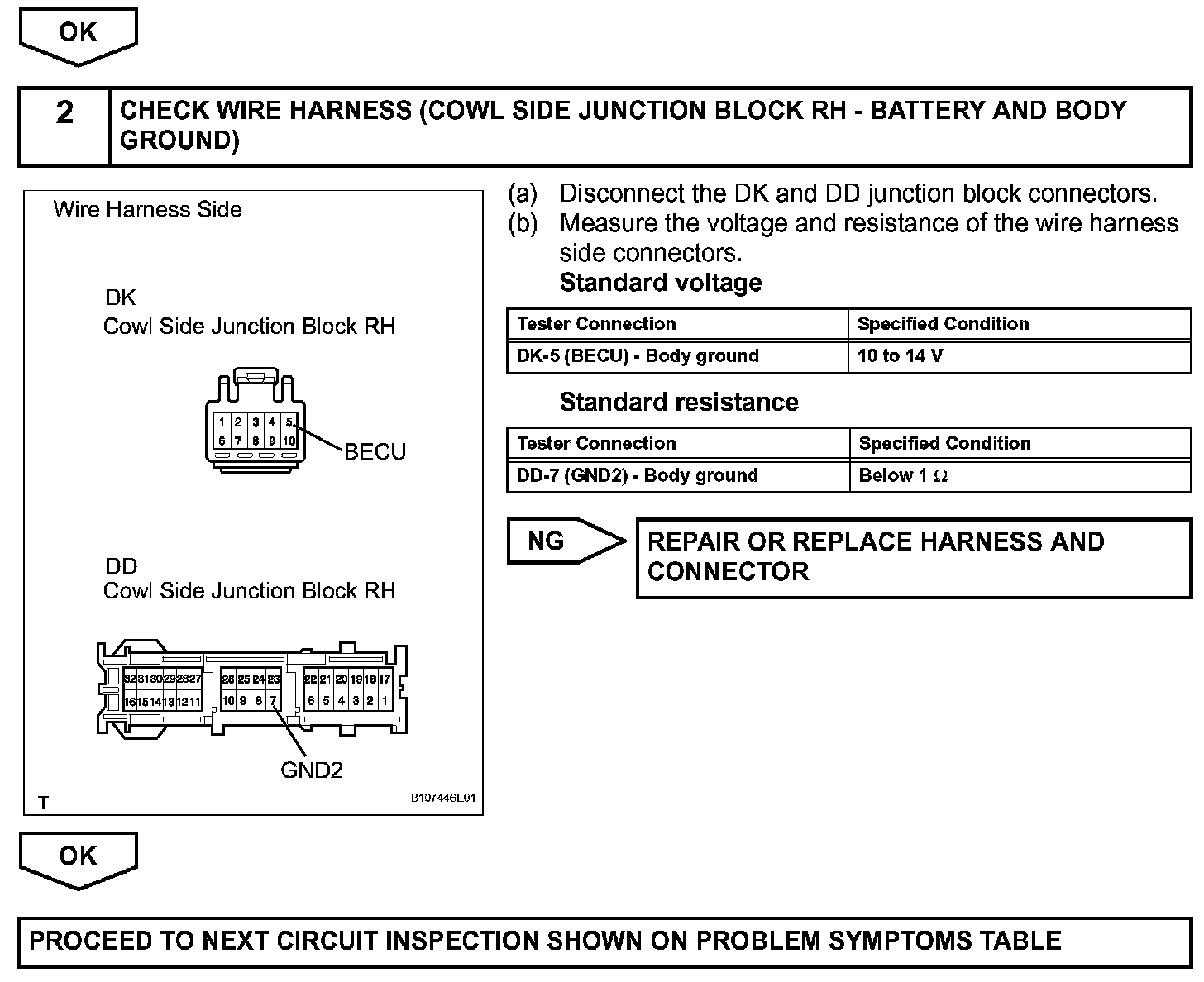

Step 1(continued)-2:
INSPECTION PROCEDURE
