Luggage Compartment Door

ON-VEHICLE INSPECTION

INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

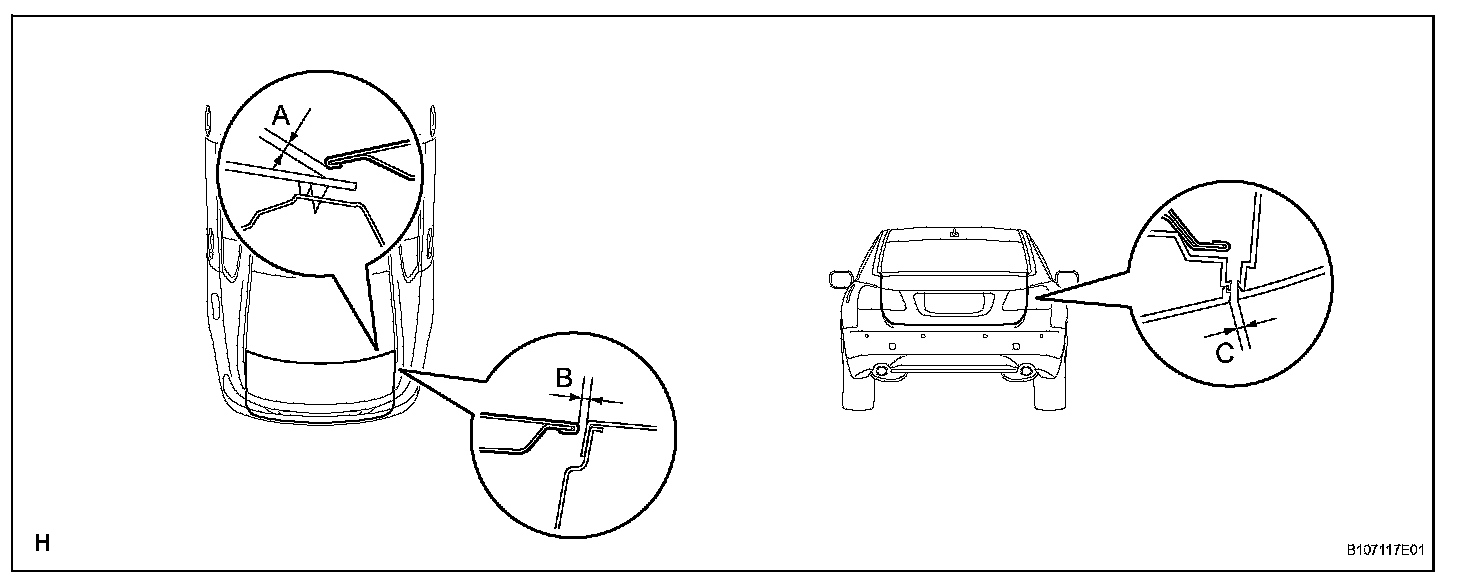

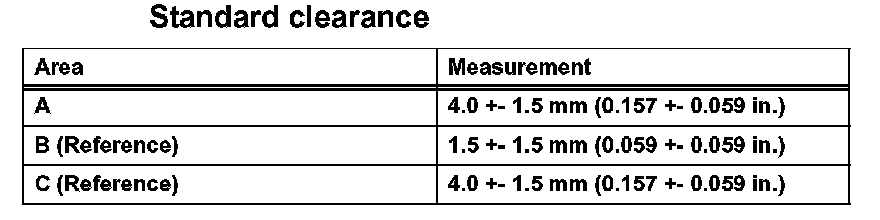

Check that the clearance measurements of areas A to C are within the standard range.
