Luggage Compartment Door Striker Assembly

INSPECTION

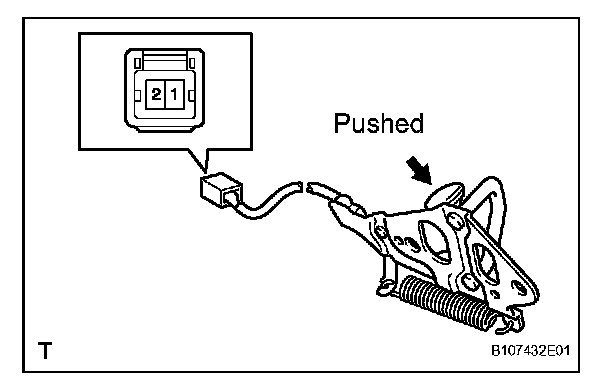

INSPECT LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY (DOOR UNLOCK SWITCH)

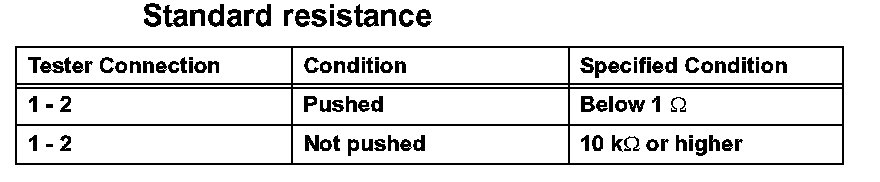

Measure the resistance of the switch.

If the result is not as specified, replace the switch.
