Driver Side J/B ECU Power Source Circuit

Driver Side J/B ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the cowl side junction block ECU LH.

HINT: Given, the driver side junction block ECU is referred to as the cowl side junction block ECU LH.

Wiring Diagram:

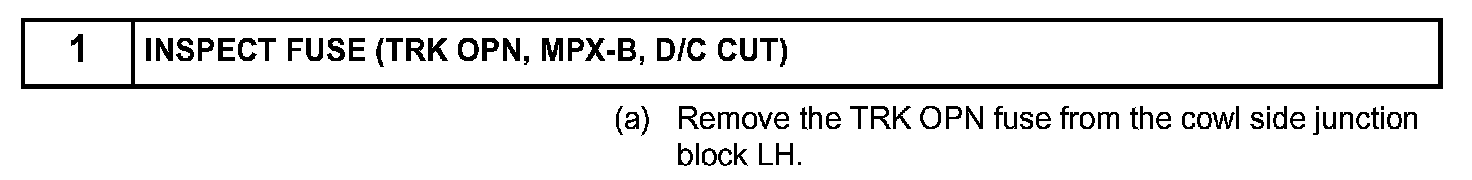

Step 1:

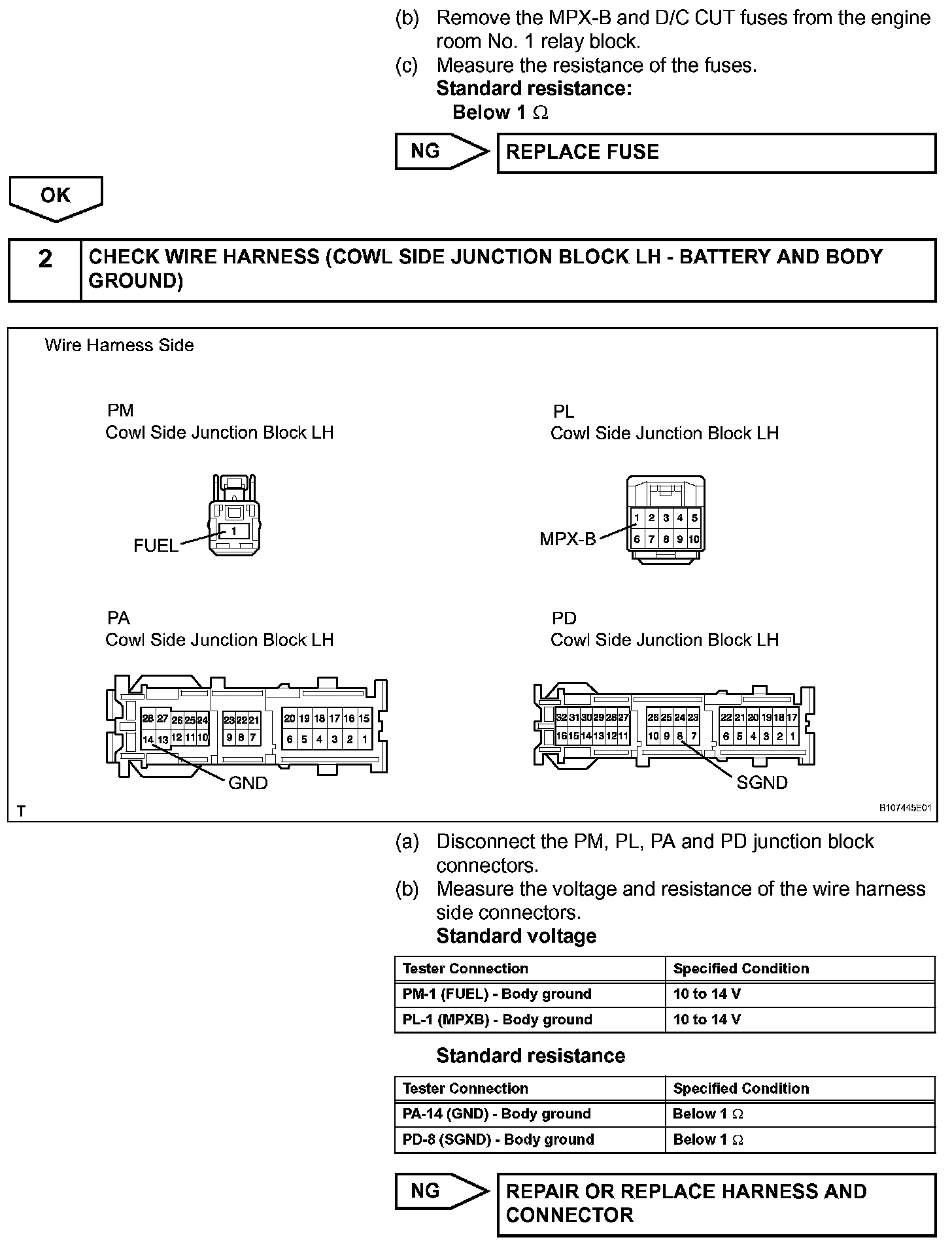

Step 1(continued)-2:

Step 2(continued):

INSPECTION PROCEDURE
