Wiring Diagram

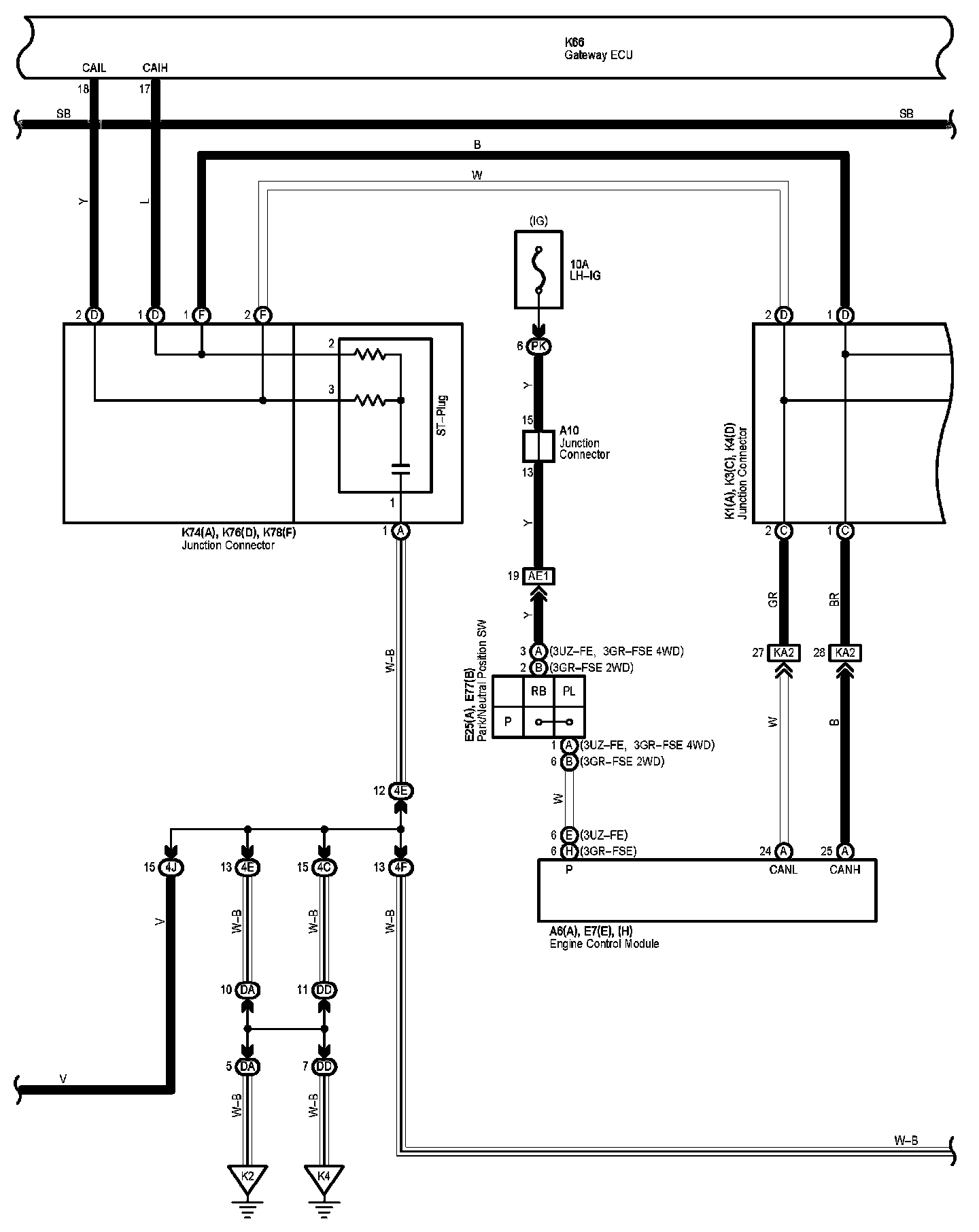

Power Trunk Opener And Closer (Part 1):

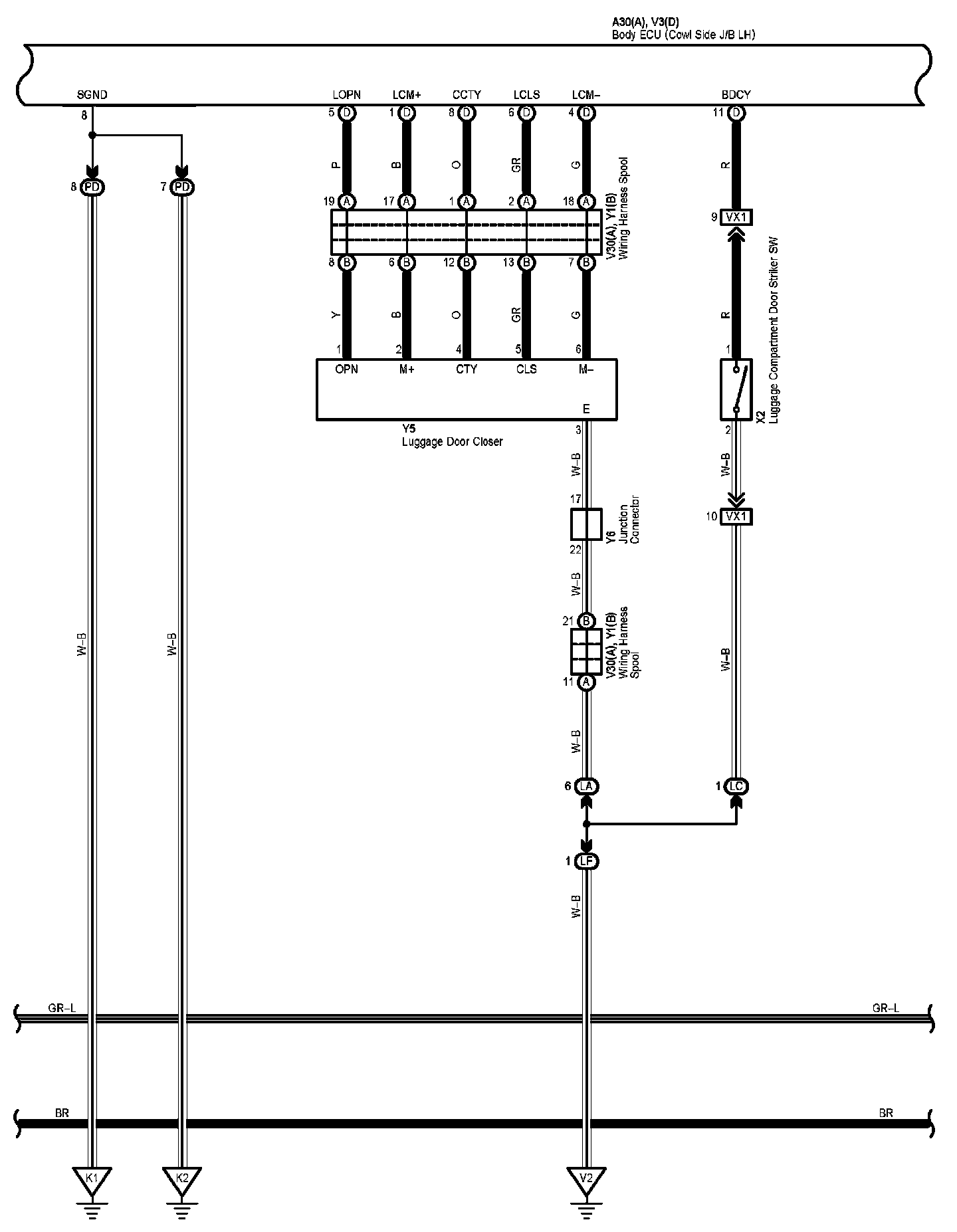

Power Trunk Opener And Closer (Part 2):

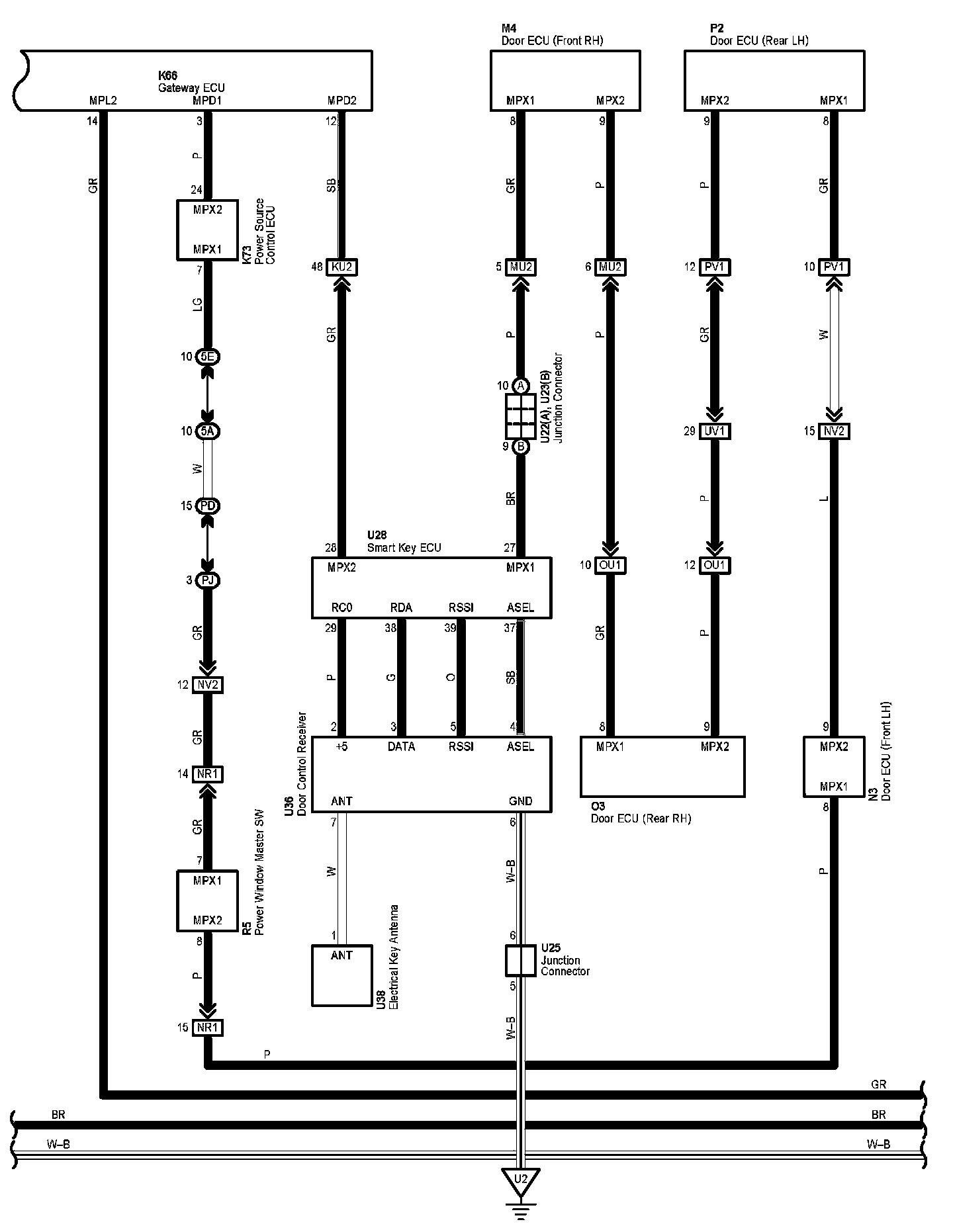

Power Trunk Opener And Closer (Part 3):

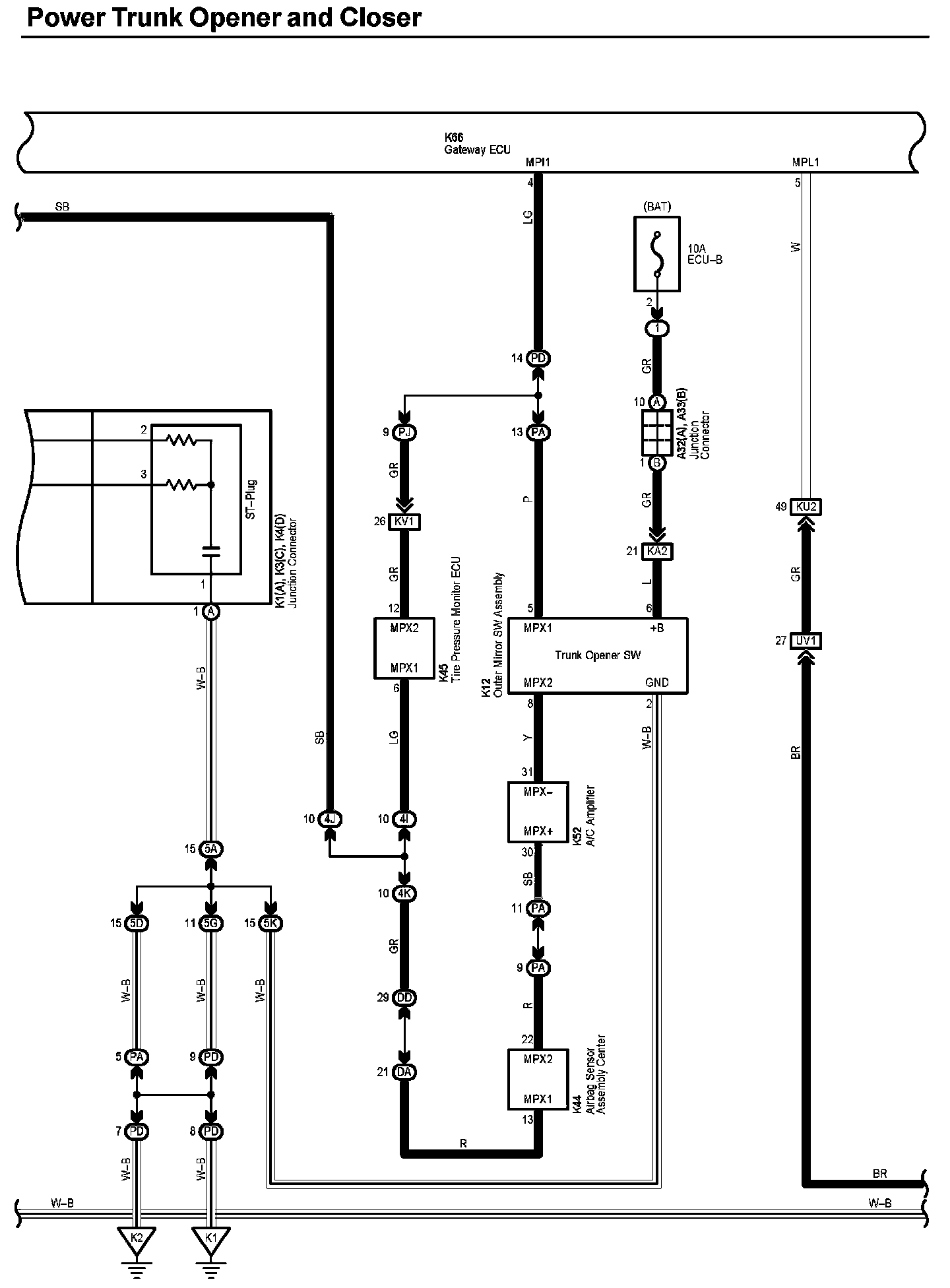

Power Trunk Opener And Closer (Part 4):

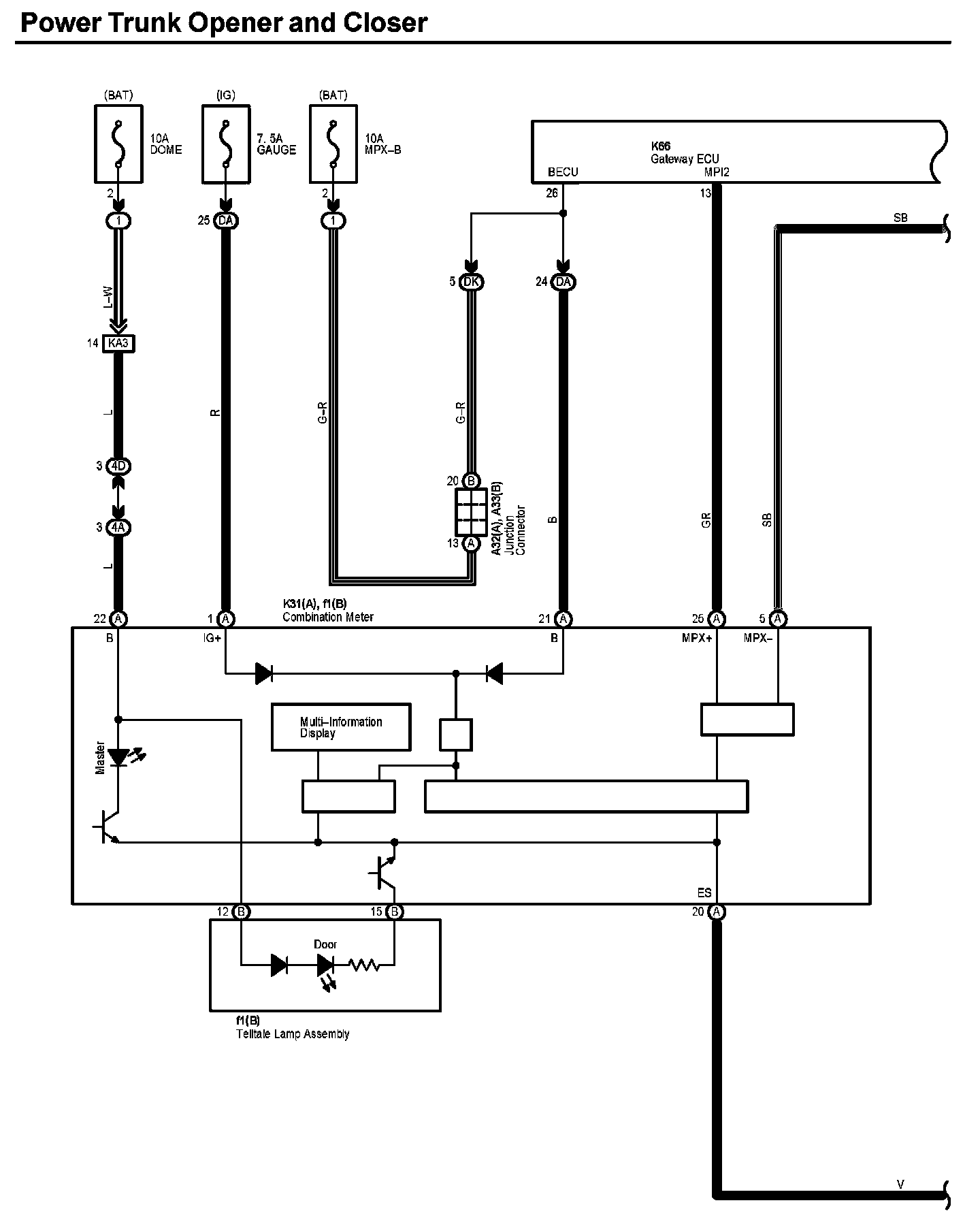

Power Trunk Opener And Closer (Part 5):

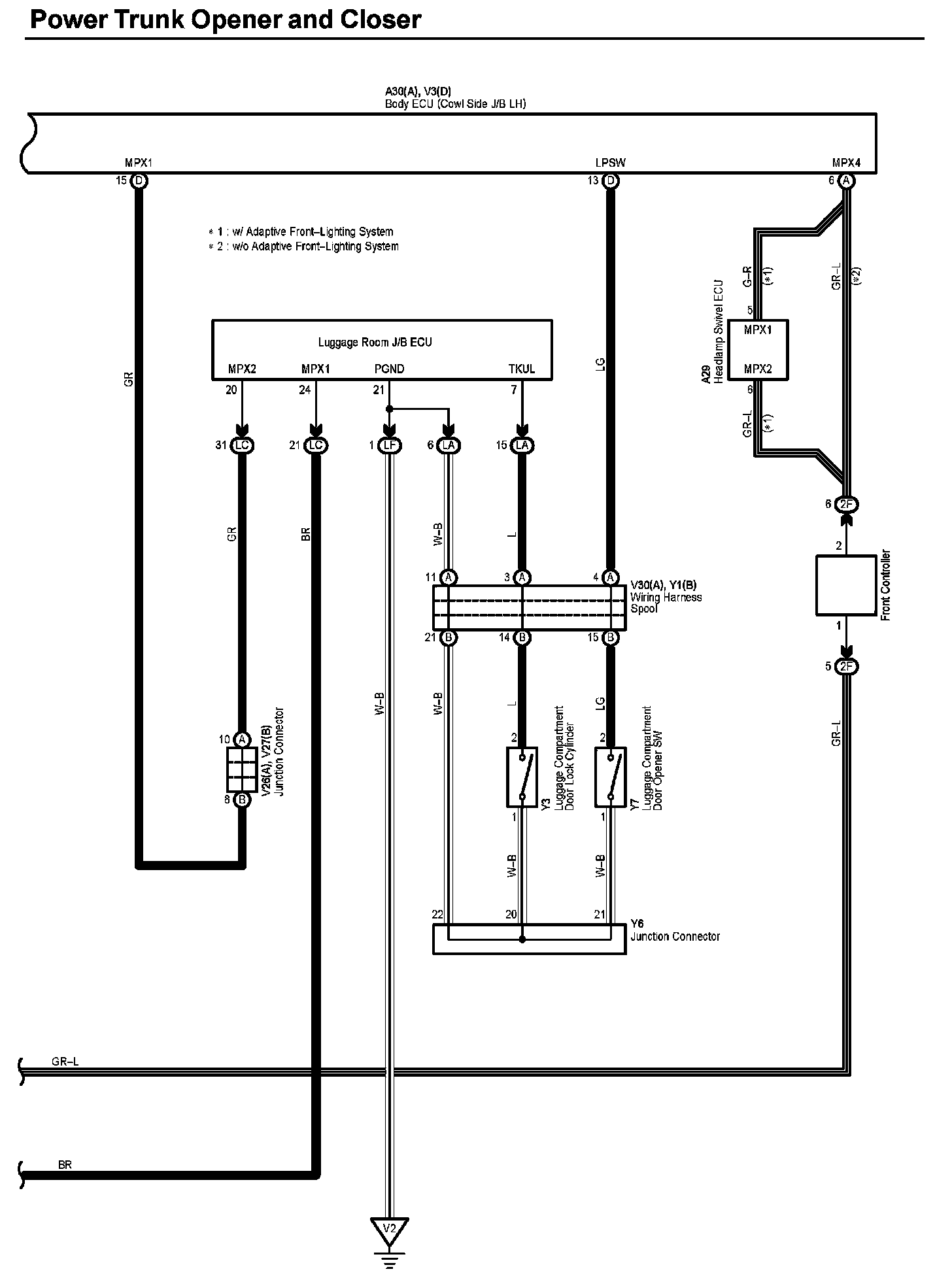

Power Trunk Opener And Closer (Part 6):

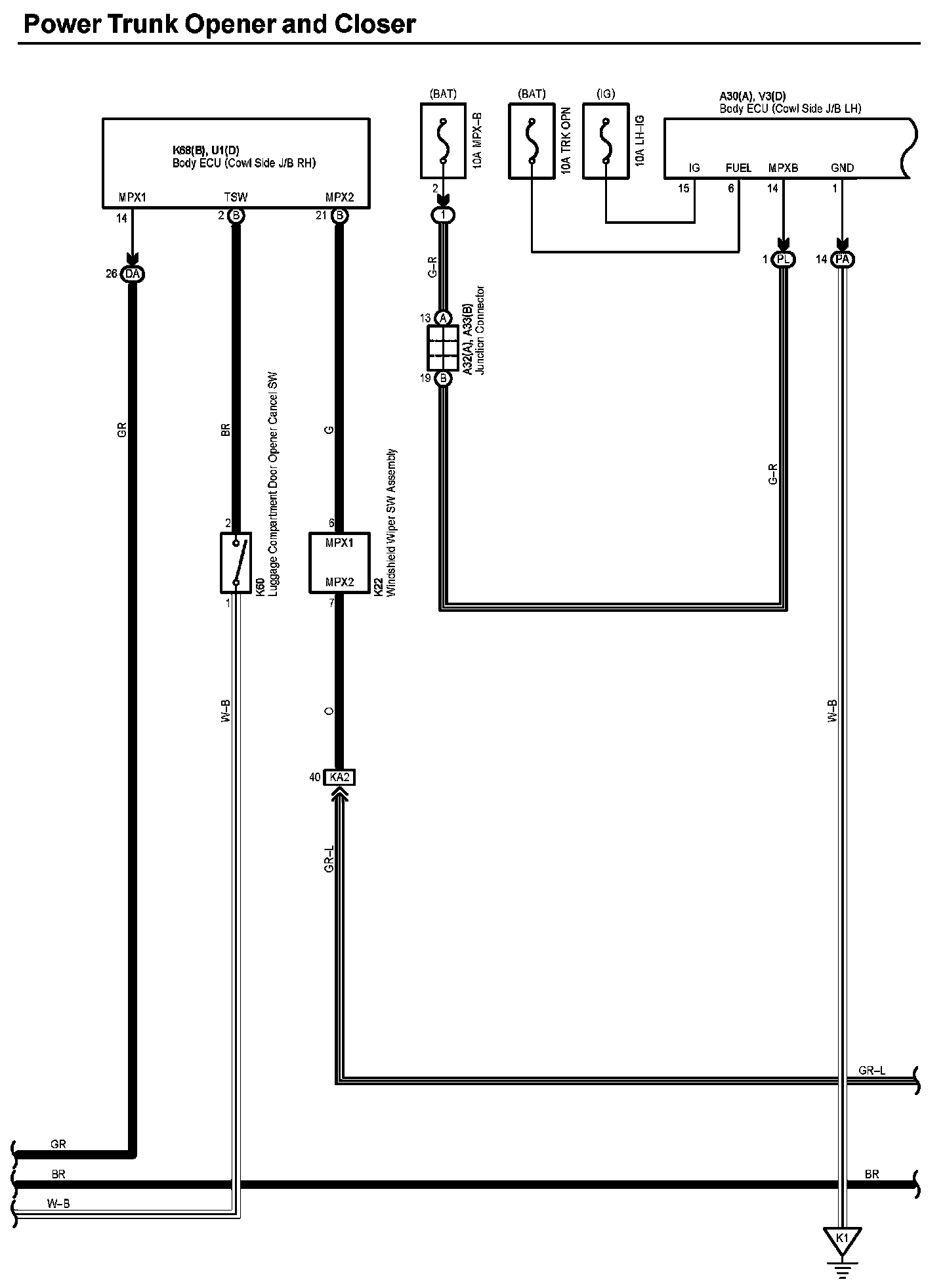

Power Trunk Opener And Closer (Part 7):

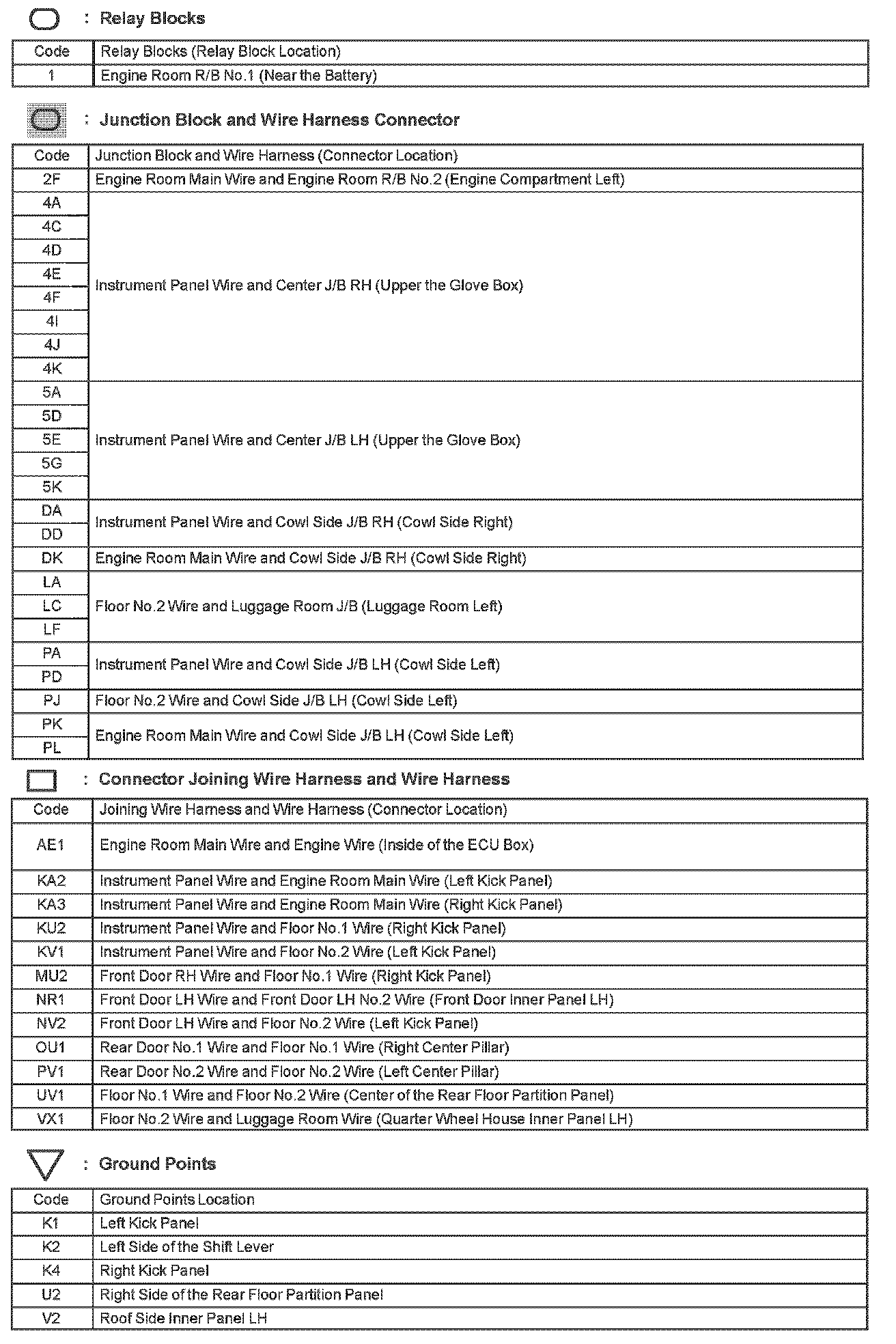

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
