Pinout Values and Diagnostic Parameters

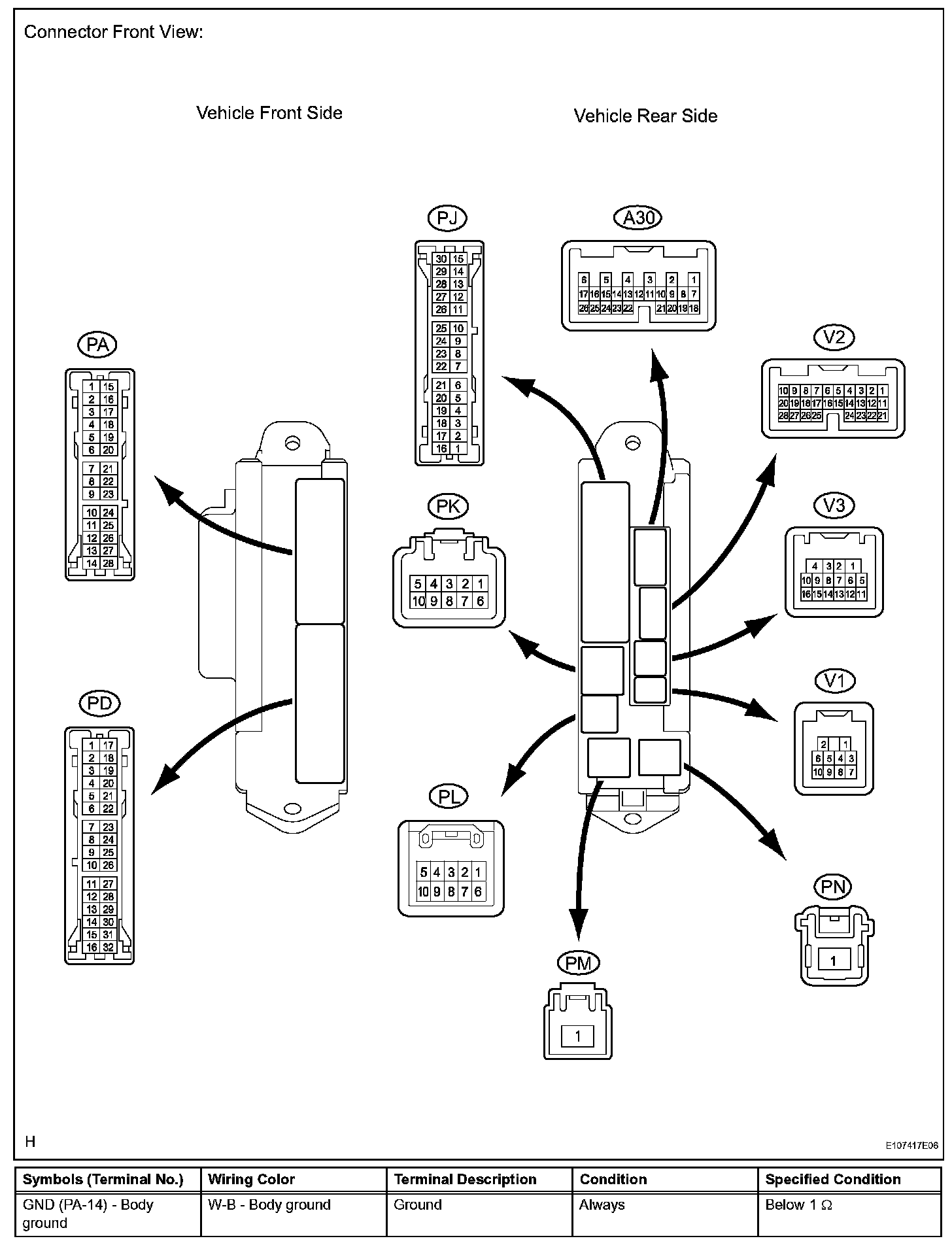

TERMINALS OF ECU1. CHECK COWL SIDE JUNCTION BLOCK LH (MULTIPLEX NETWORK BODY ECU)
a. Disconnect the PA, PD and PL, junction connectors.
b. Measure the voltage and resistance of the wire harness side connectors
If the result is not as specified, there may be a malfunction on the wire harness side connectors.
c. Reconnect the PA, PD and PL junction connector connectors.

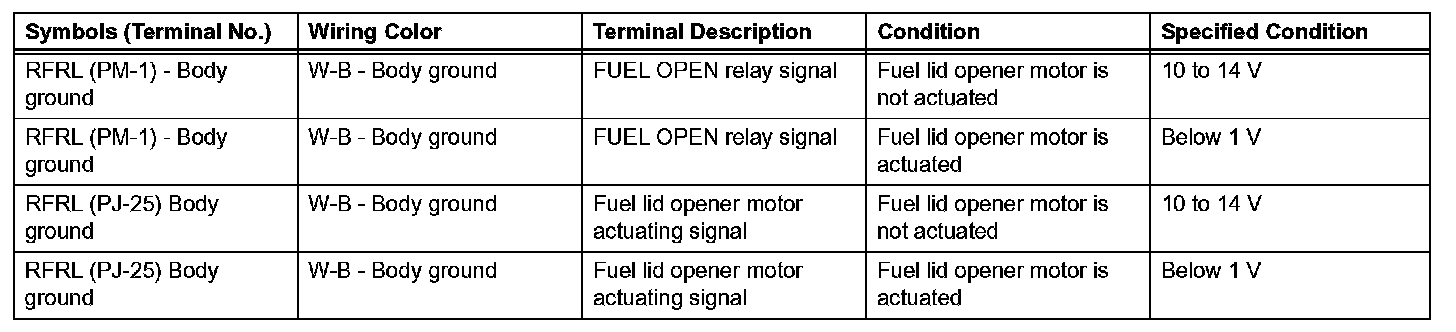

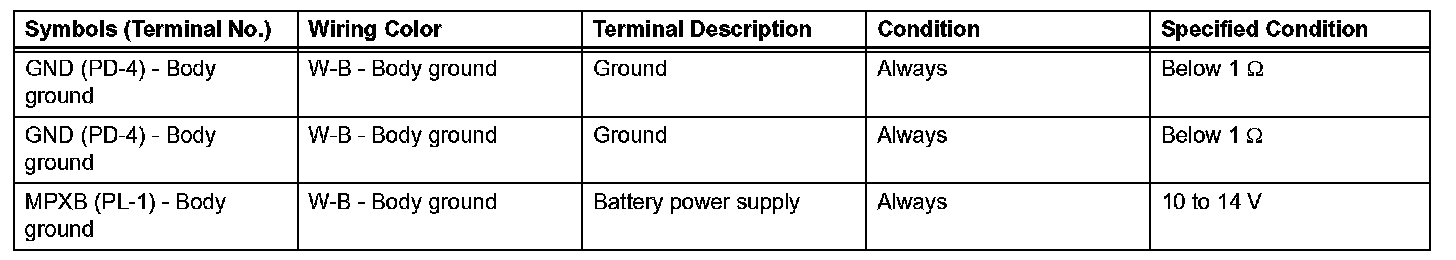

d. Measure the voltage of the wire harness side connectors.
If the result is not as specified, the junction connector may have a malfunction.

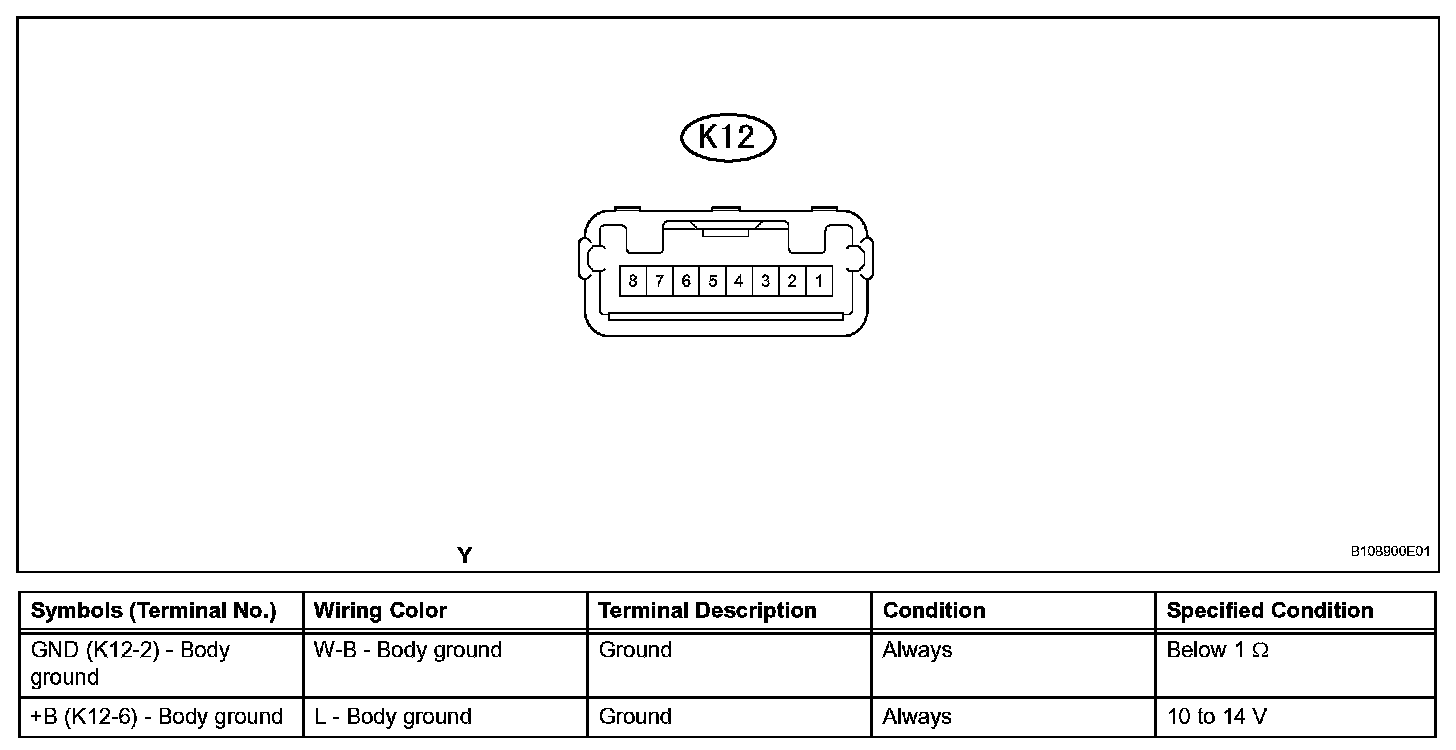

2. CHECK INTEGRATION CONTROL AND PANEL ASSEMBLY
a. Disconnect the K12 panel connector.
b. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side connectors.
