Fuel Door Release Actuator: Testing and Inspection
FUEL LID OPENER MOTOR ASSEMBLYINSPECTION

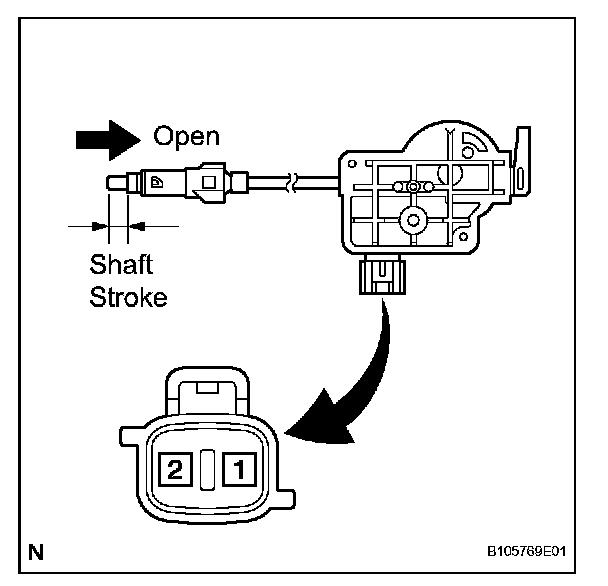

INSPECT FUEL LID W/MOTOR LOCK ASSY (FUEL LID OPENER MOTOR)

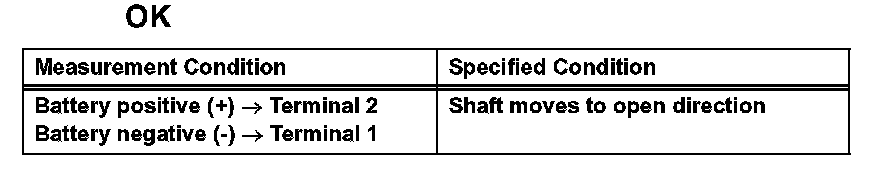

1. Apply battery voltage to the motor and check operation of the motor.
2. Check the shaft strokes.
Shaft stroke: 10.3 mm (0.41 in.) or more
