Front Door: Testing and Inspection

ON-VEHICLE INSPECTION

INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

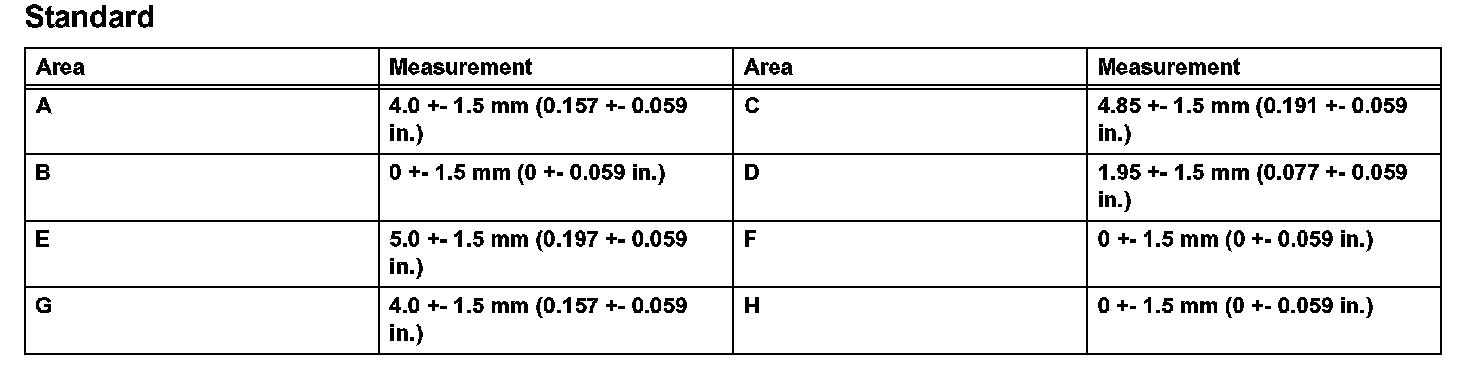

Check that the clearance measurements of areas A to H are within the standard range.
