Without Scan Tool

CLEAR/RECHECK DTC

HINT: Illustrations may differ from the actual vehicle depending on the device setting and options.

a. Start the diagnostic mode.




b. Clear DTC.

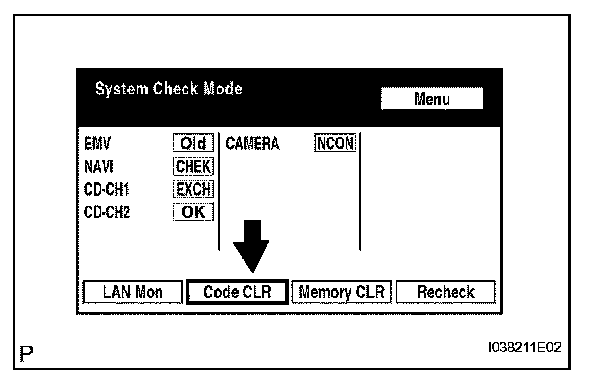

1. Press the Code CLR for 3 seconds.
2. DTC is cleared.

c. Recheck DTC.

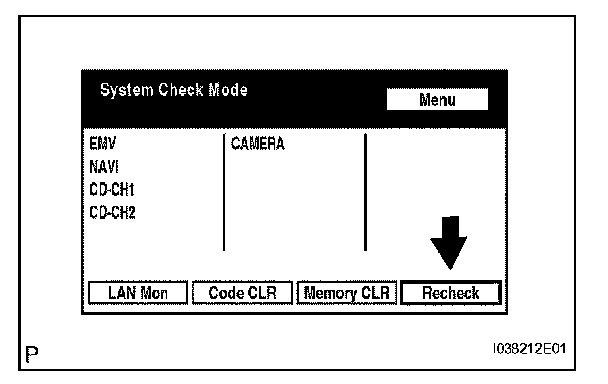

1. Press Recheck.

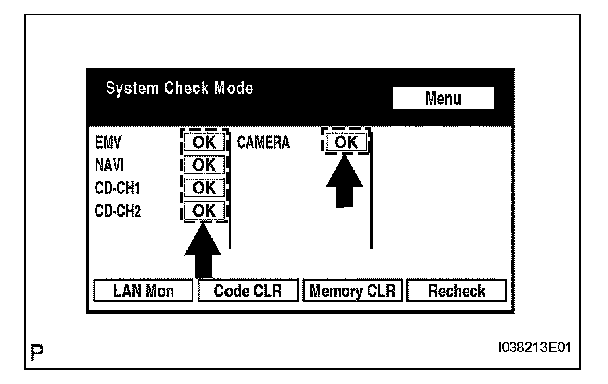

2. Confirm that all diagnostic codes are "OK" when the check results are displayed. If a code other than "OK" is displayed, perform troubleshooting again.

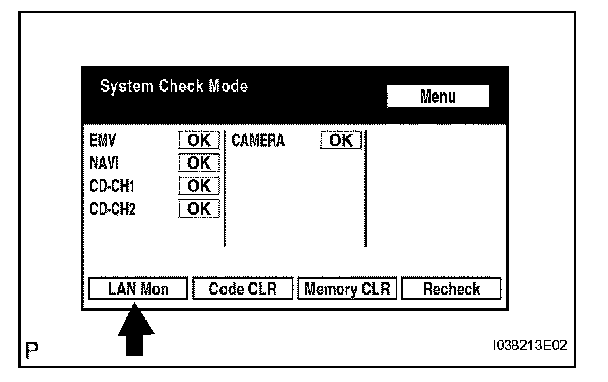

3. Press "LAN Mon" to enter the "LAN Monitor" screen.

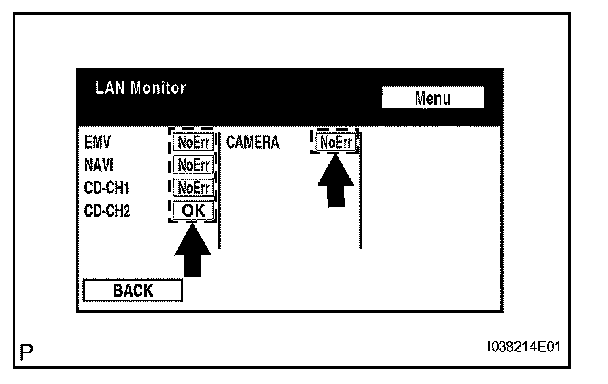

4. Confirm that all diagnostic codes are "No Err". If a code other than "No Err" is displayed, perform troubleshooting again.
