Steering Pad Switch Circuit

Steering Pad Switch Circuit

DESCRIPTION
This circuit sends an operation signal from the steering pad switch to the radio receiver assembly. If there is an open in the circuit, the audio system cannot be operated by the steering pad switch. If there is a short in the circuit, the same condition as that when the switch is continuously depressed occurs. Therefore, the radio receiver assembly cannot be operated by the steering pad switch, and also the radio receiver assembly itself does not function.

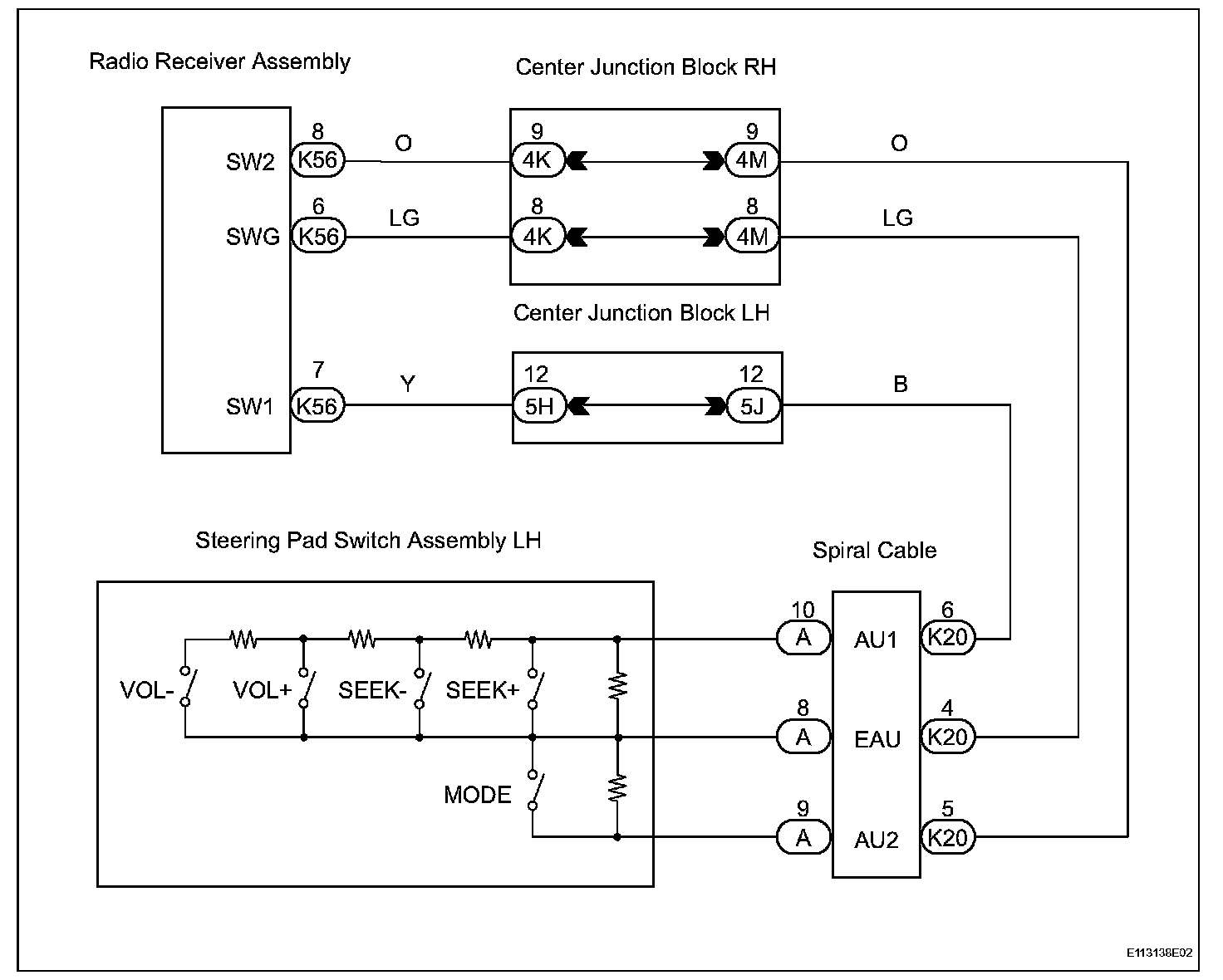

Wiring Diagram:

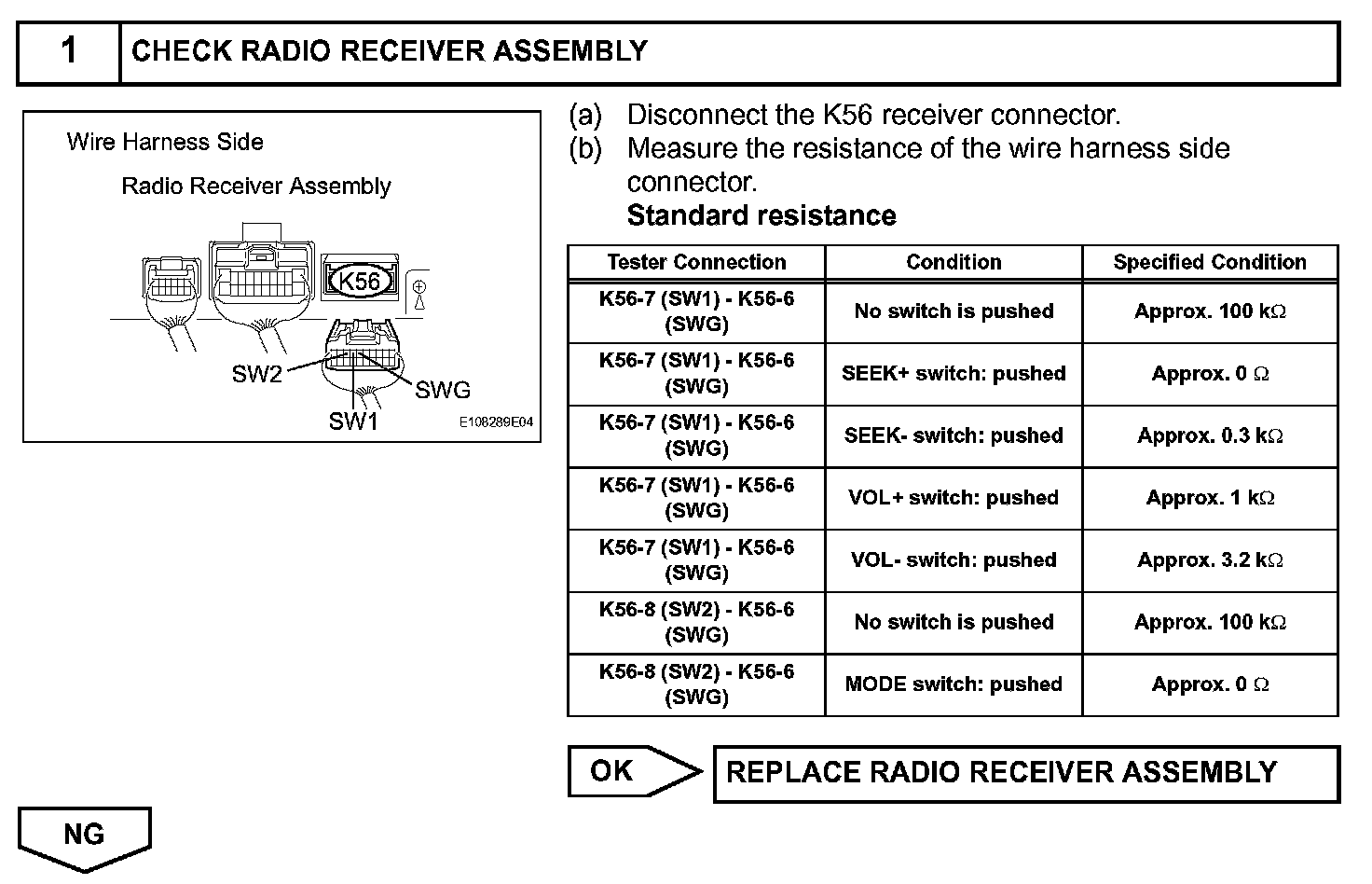

Step 1:

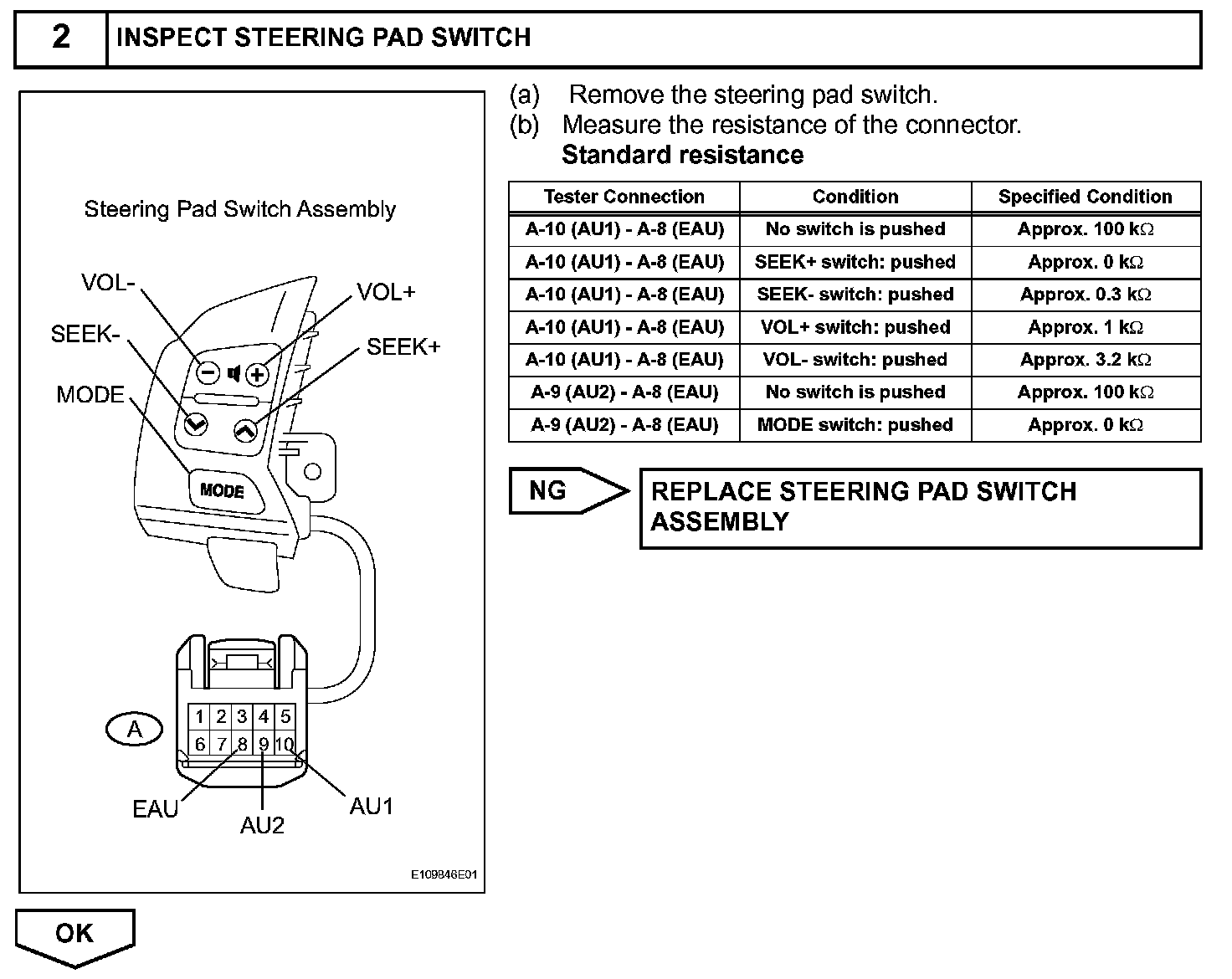

Step 2:

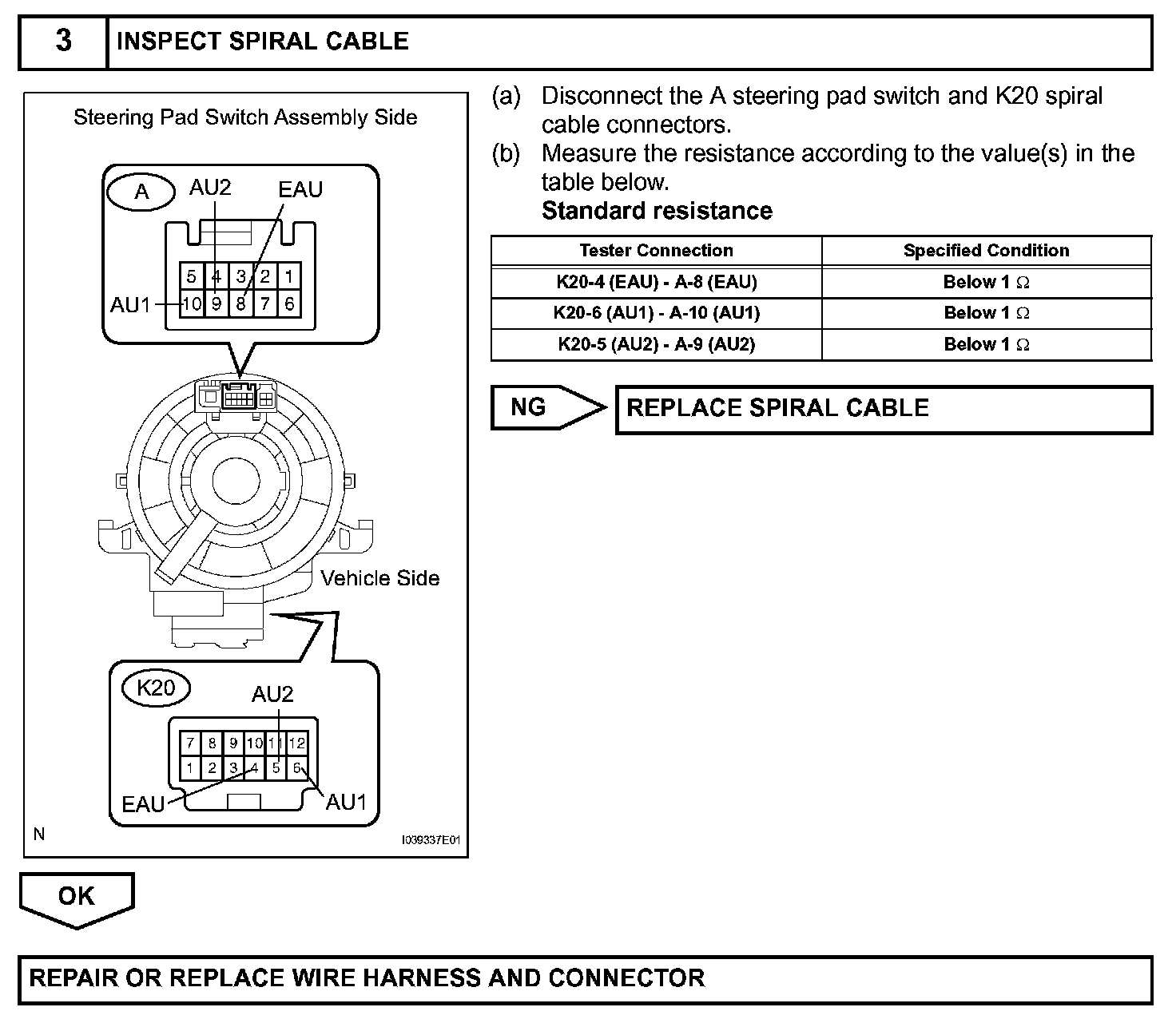

Step 3:

INSPECTION PROCEDURE
