Speaker Circuit

Speaker Circuit

DESCRIPTION
The stereo component amplifier sends sound signals to the speaker.

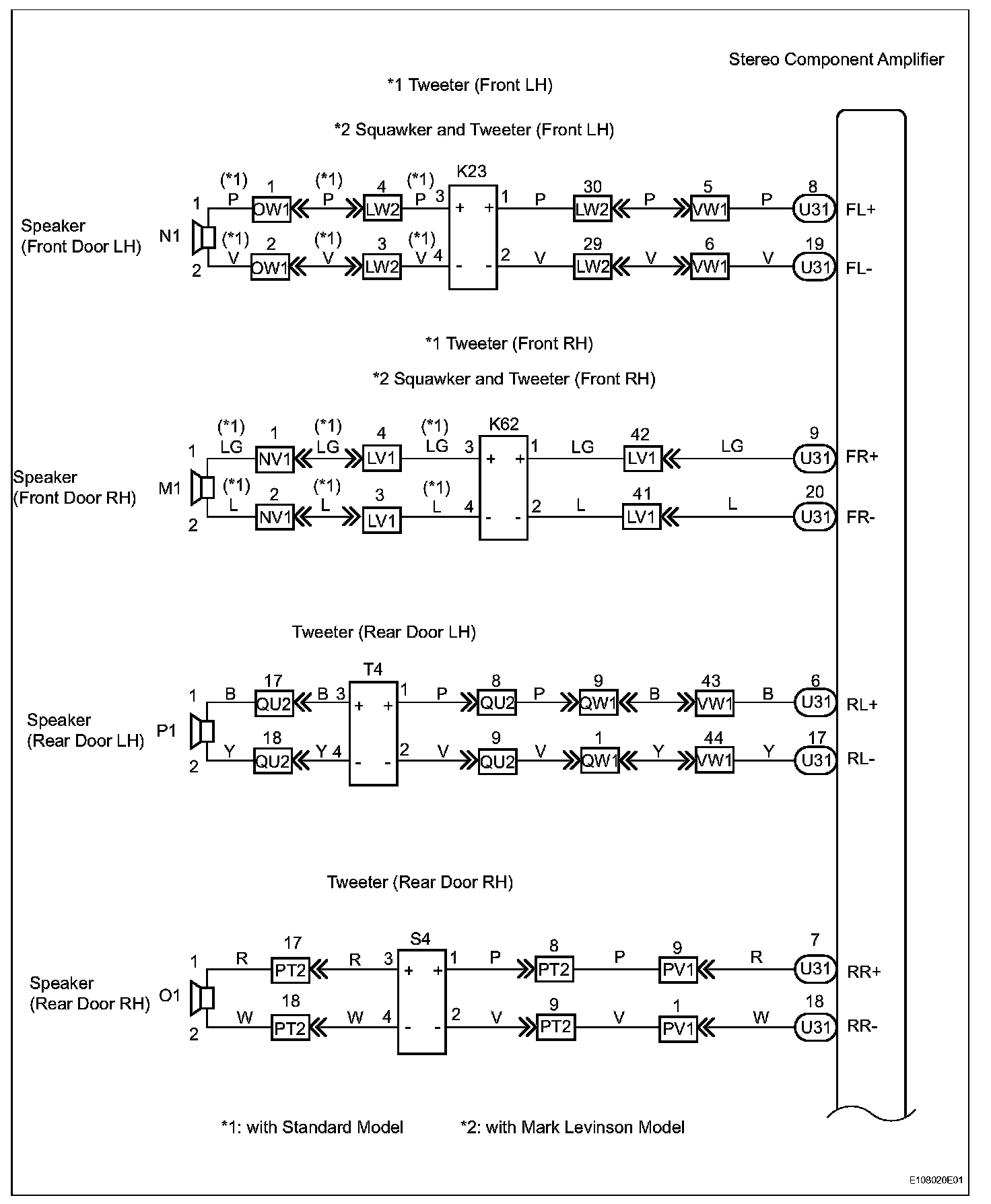

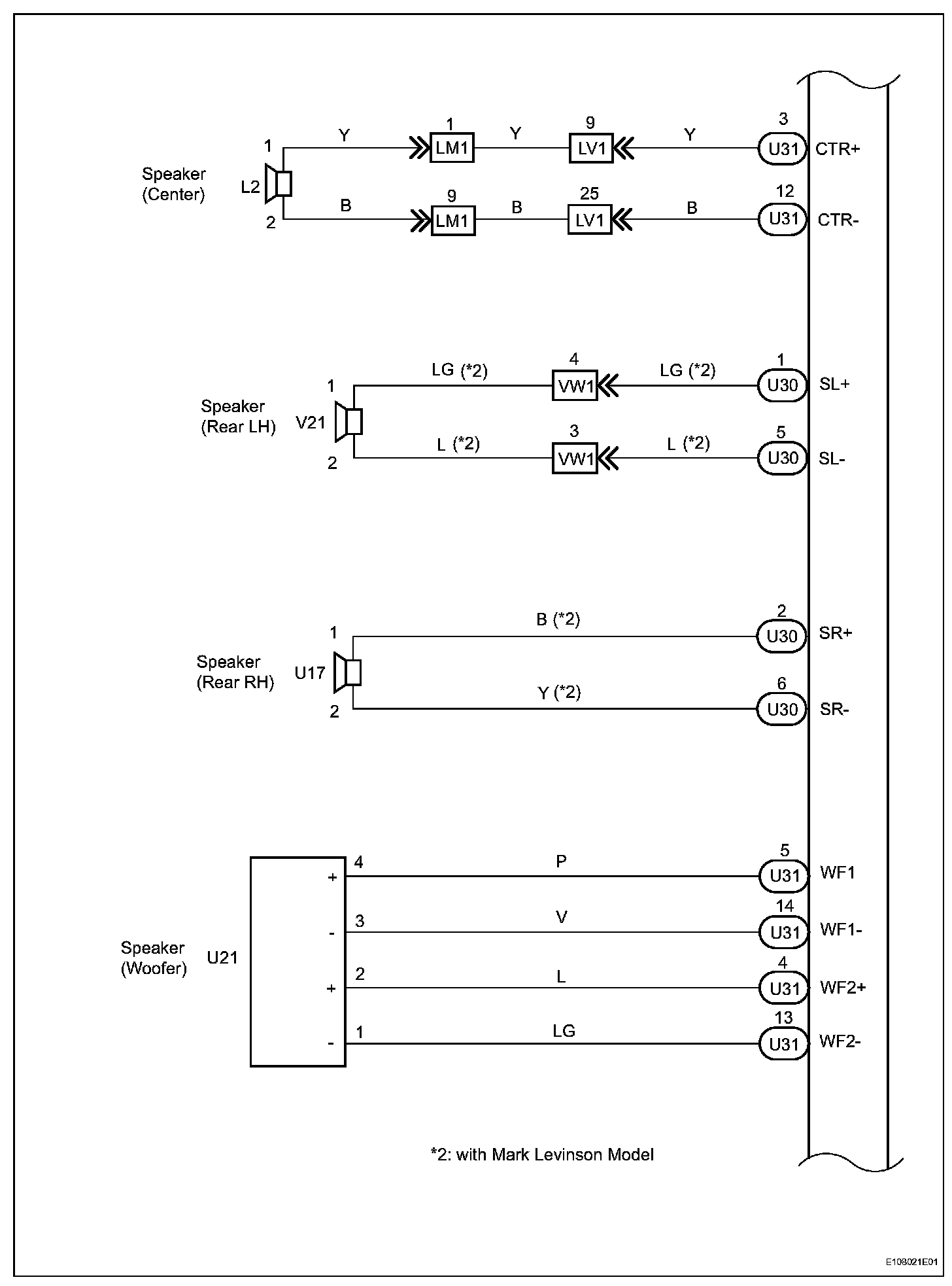

Wiring Diagram (Part 1):

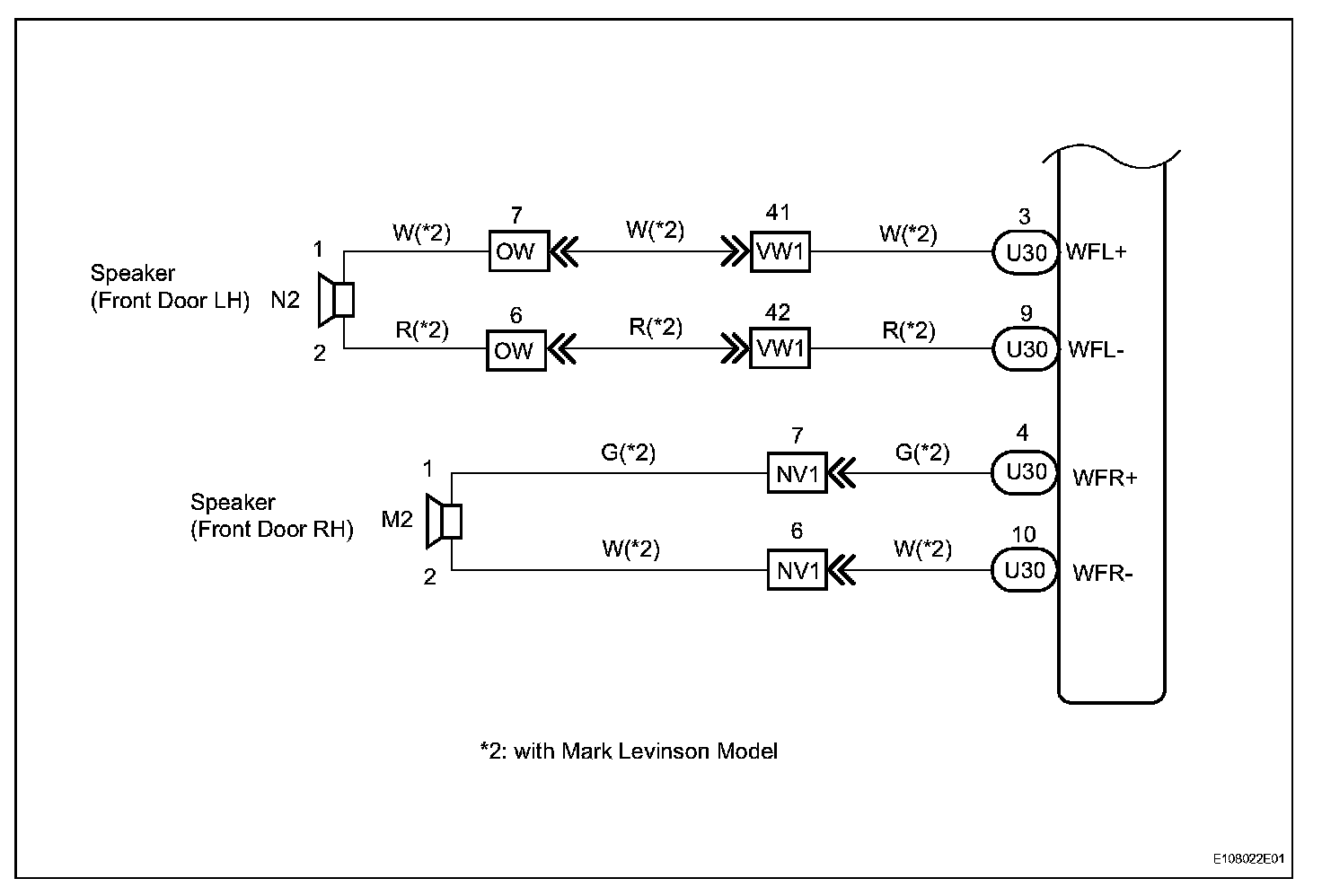

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

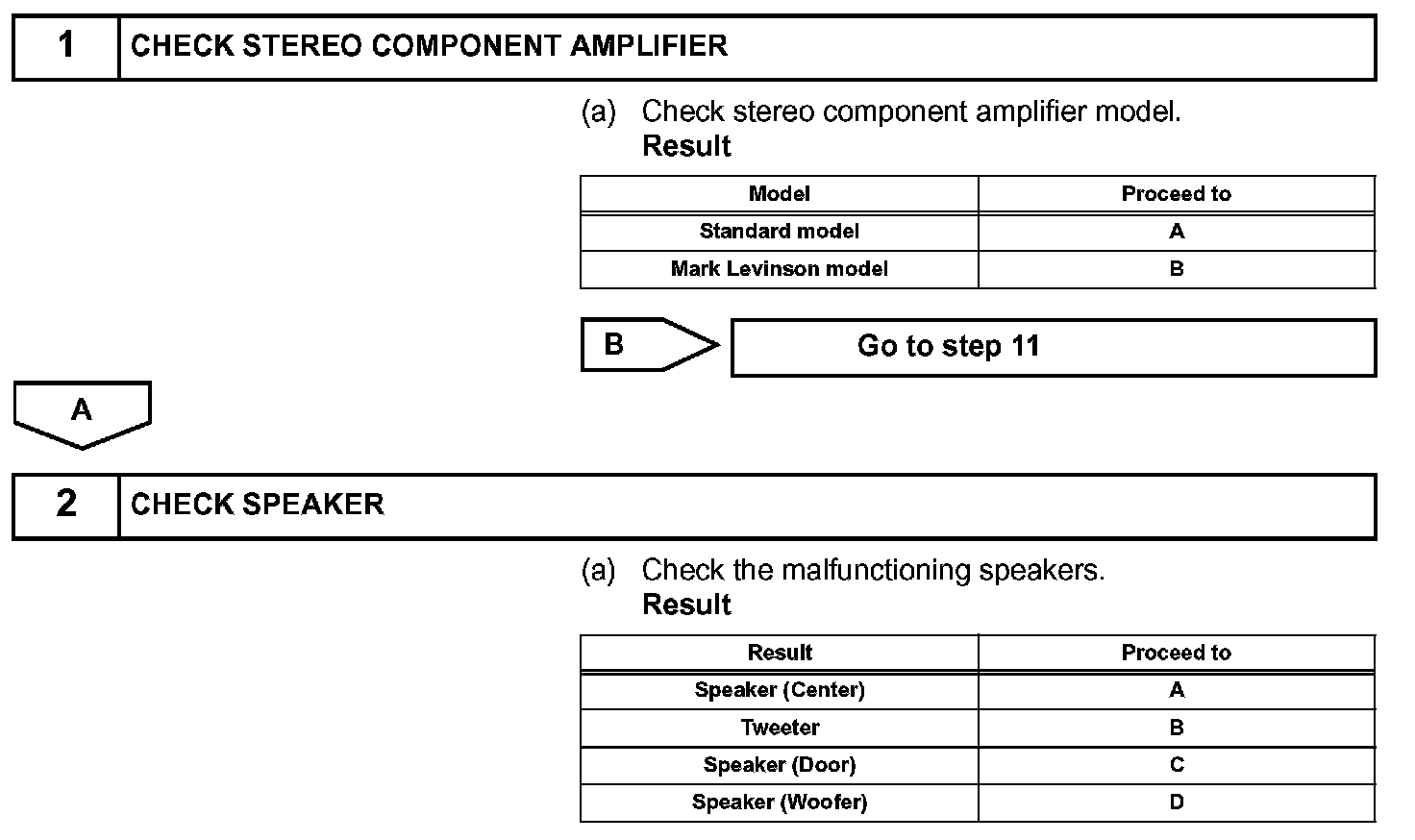

Step 1-2:

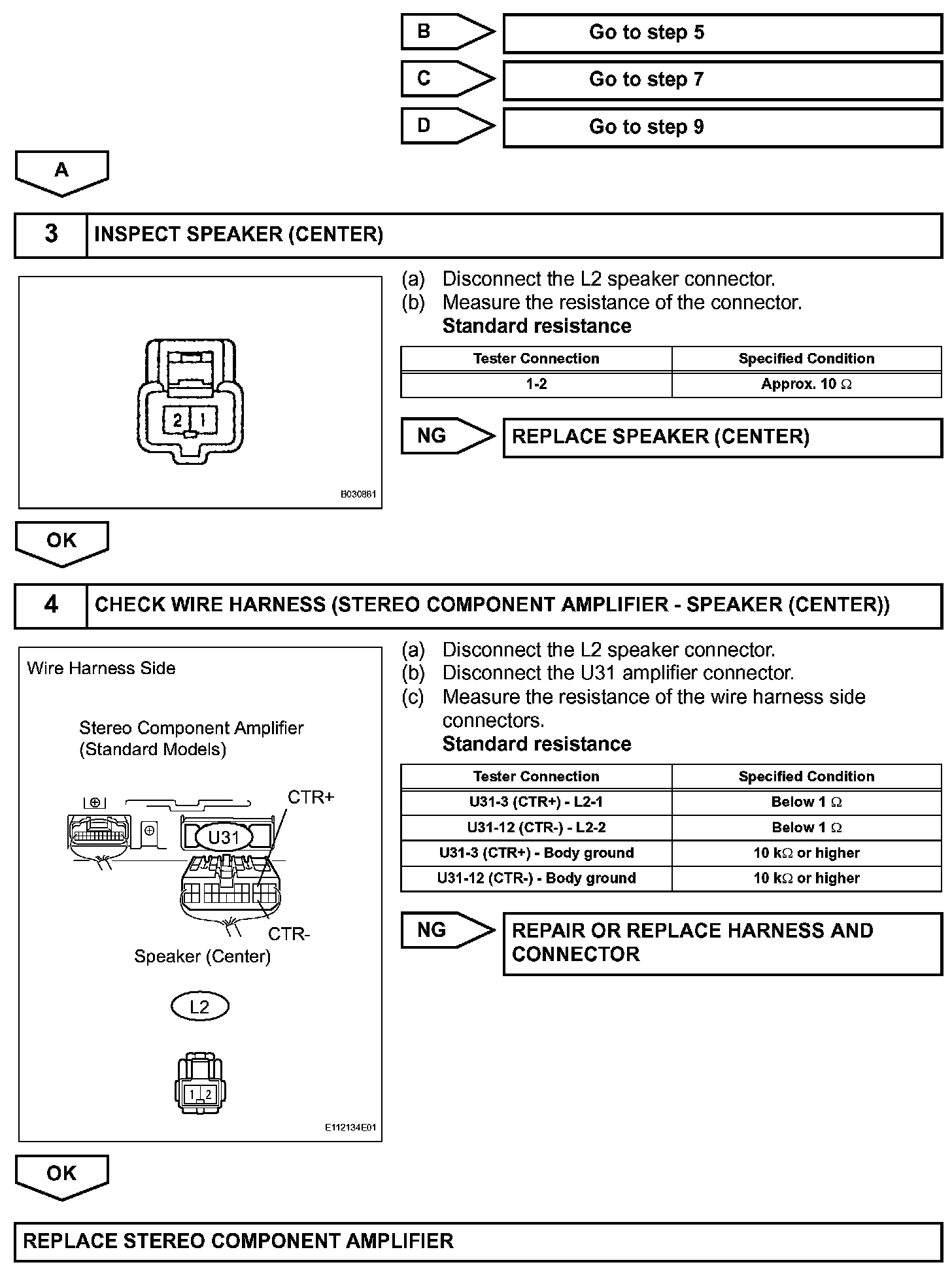

Step 2(continued)-4:

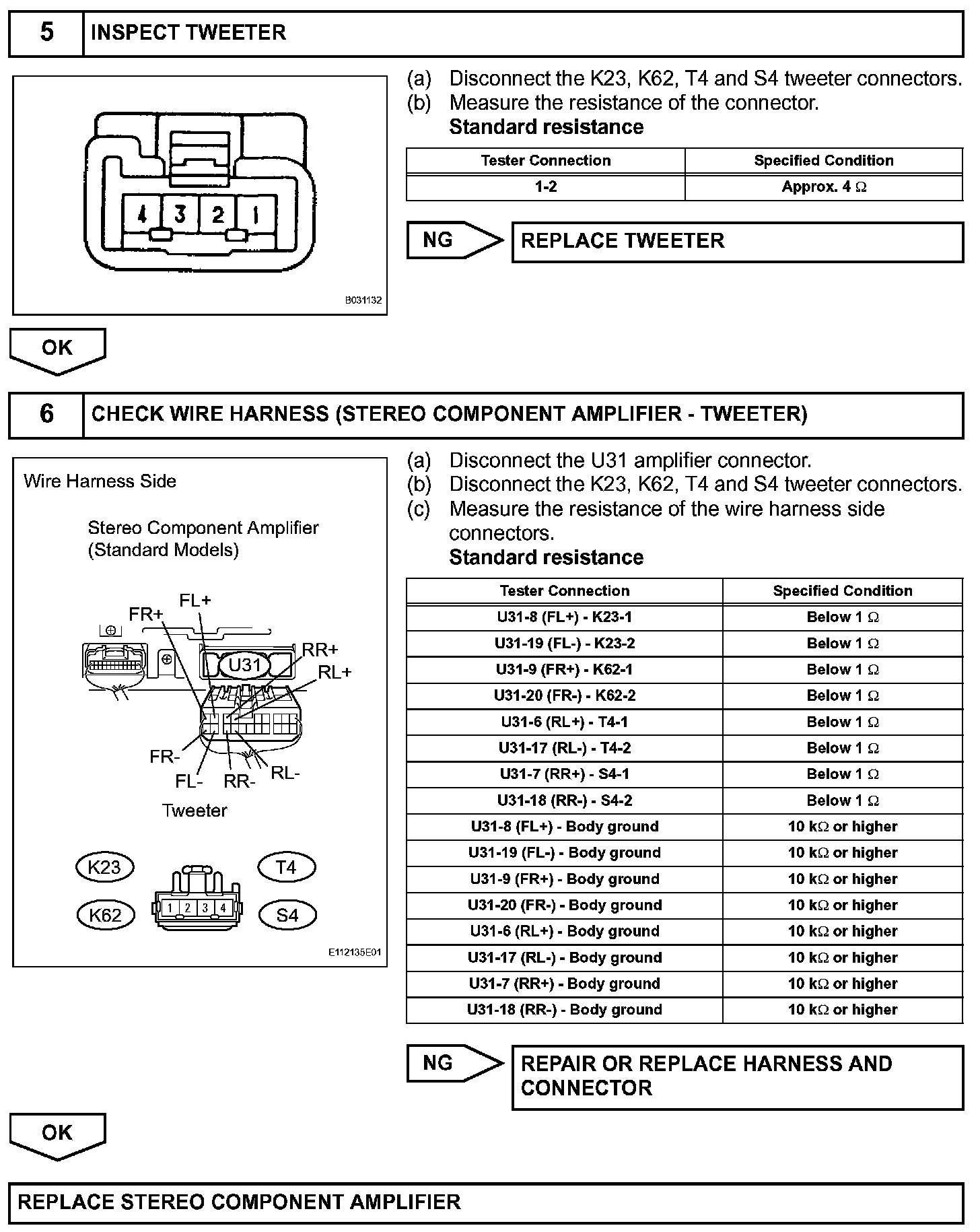

Step 5-6:

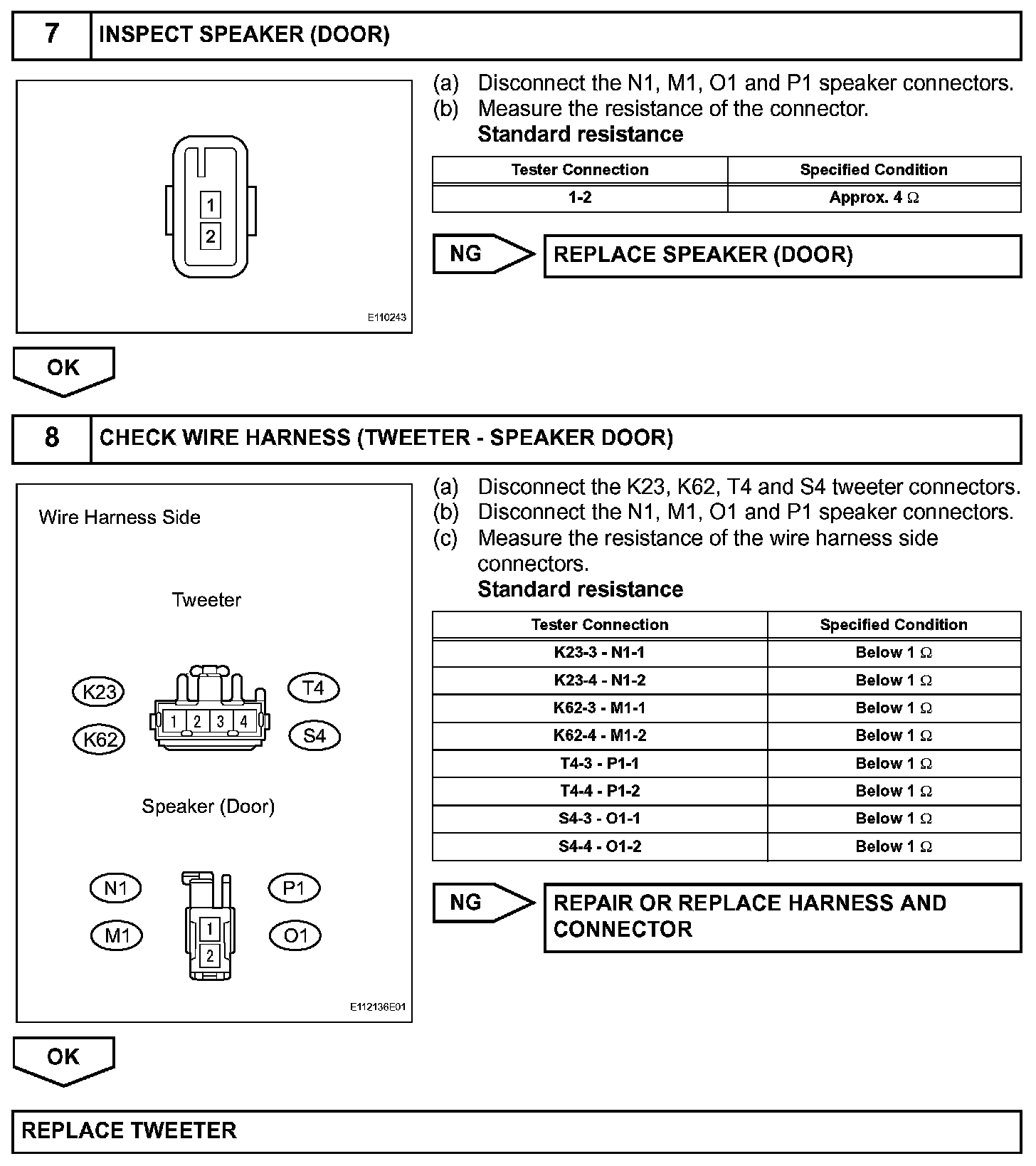

Step 7-8:

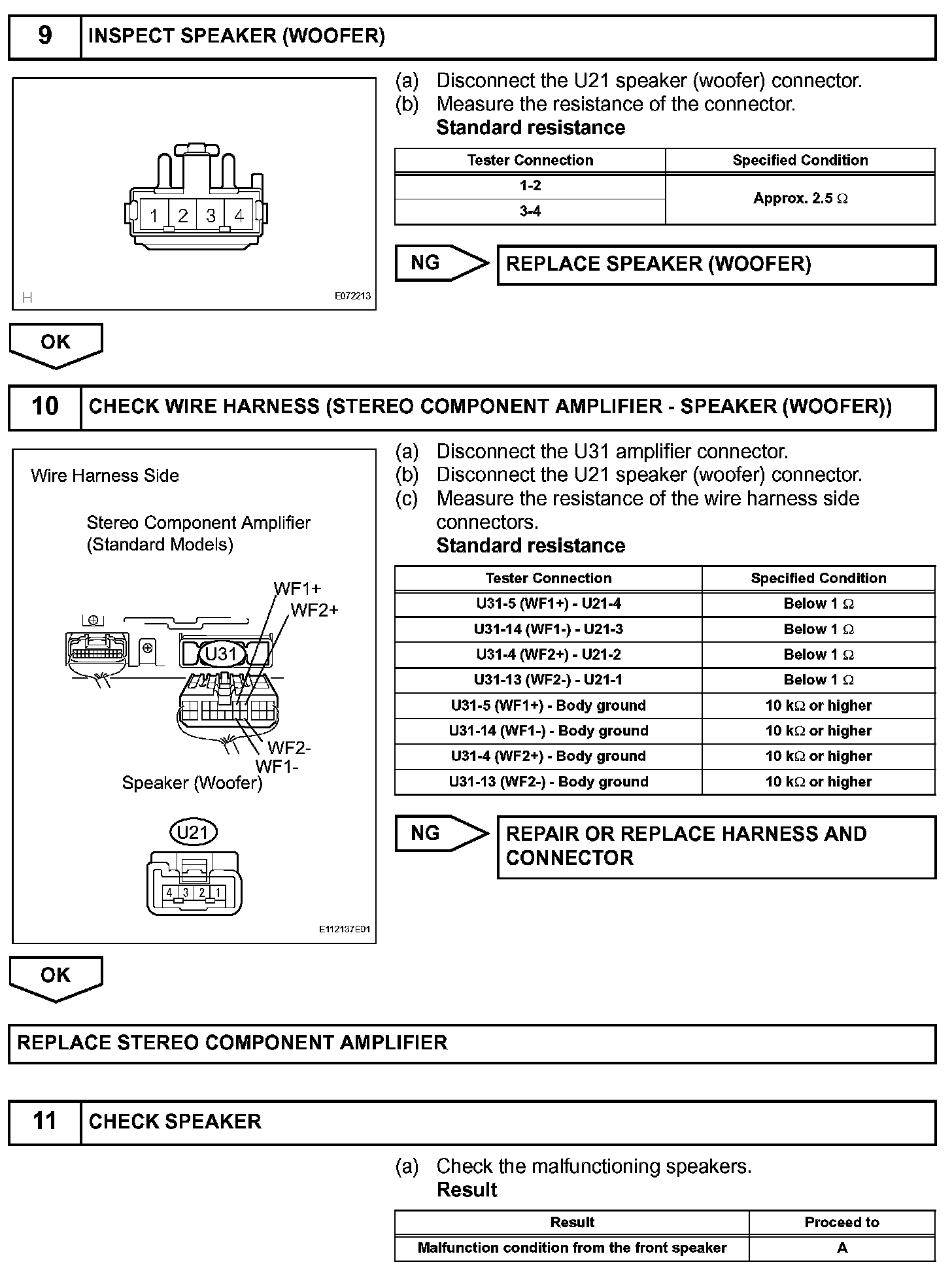

Step 9-11:

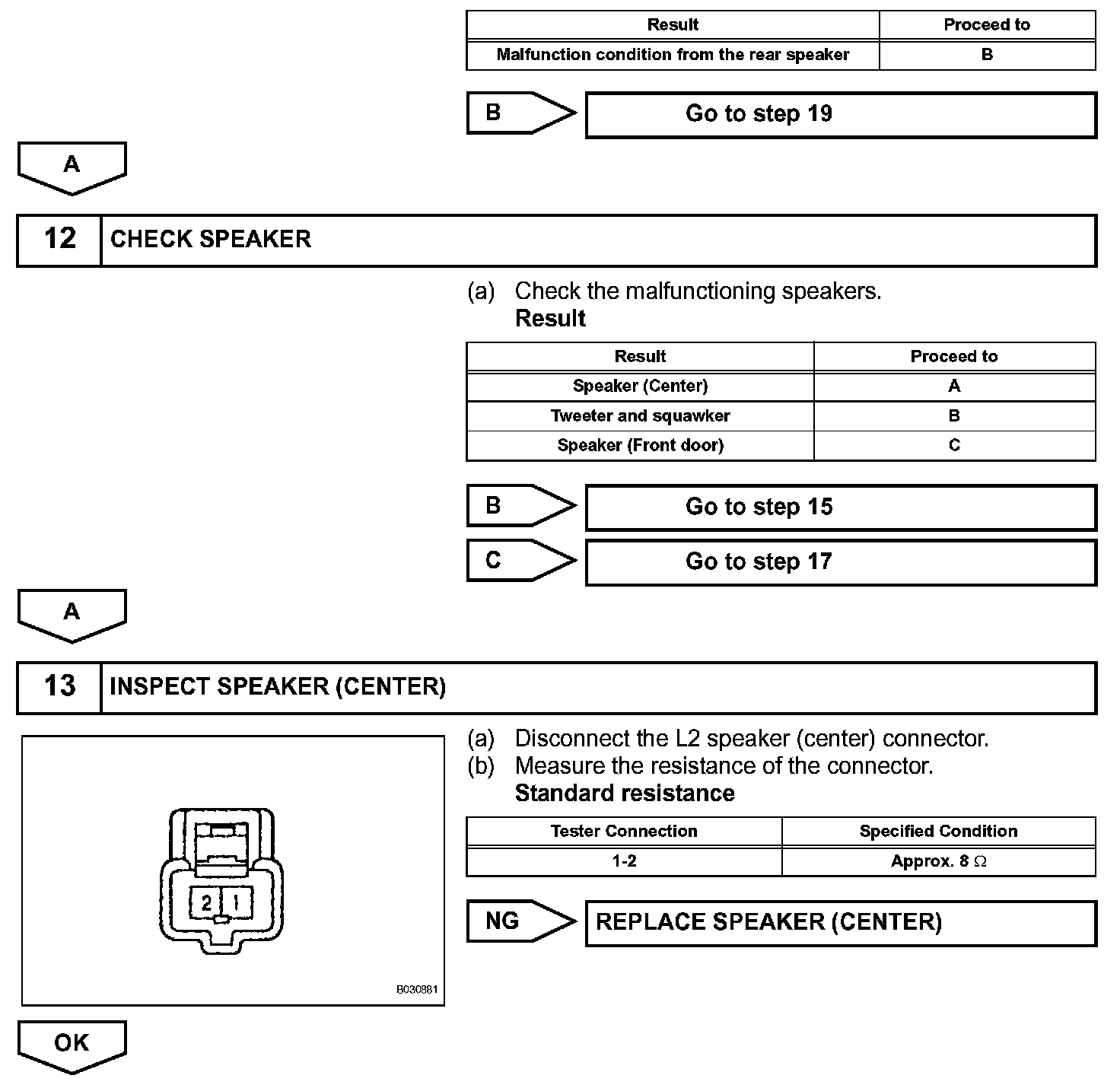

Step 11(continued)-13:

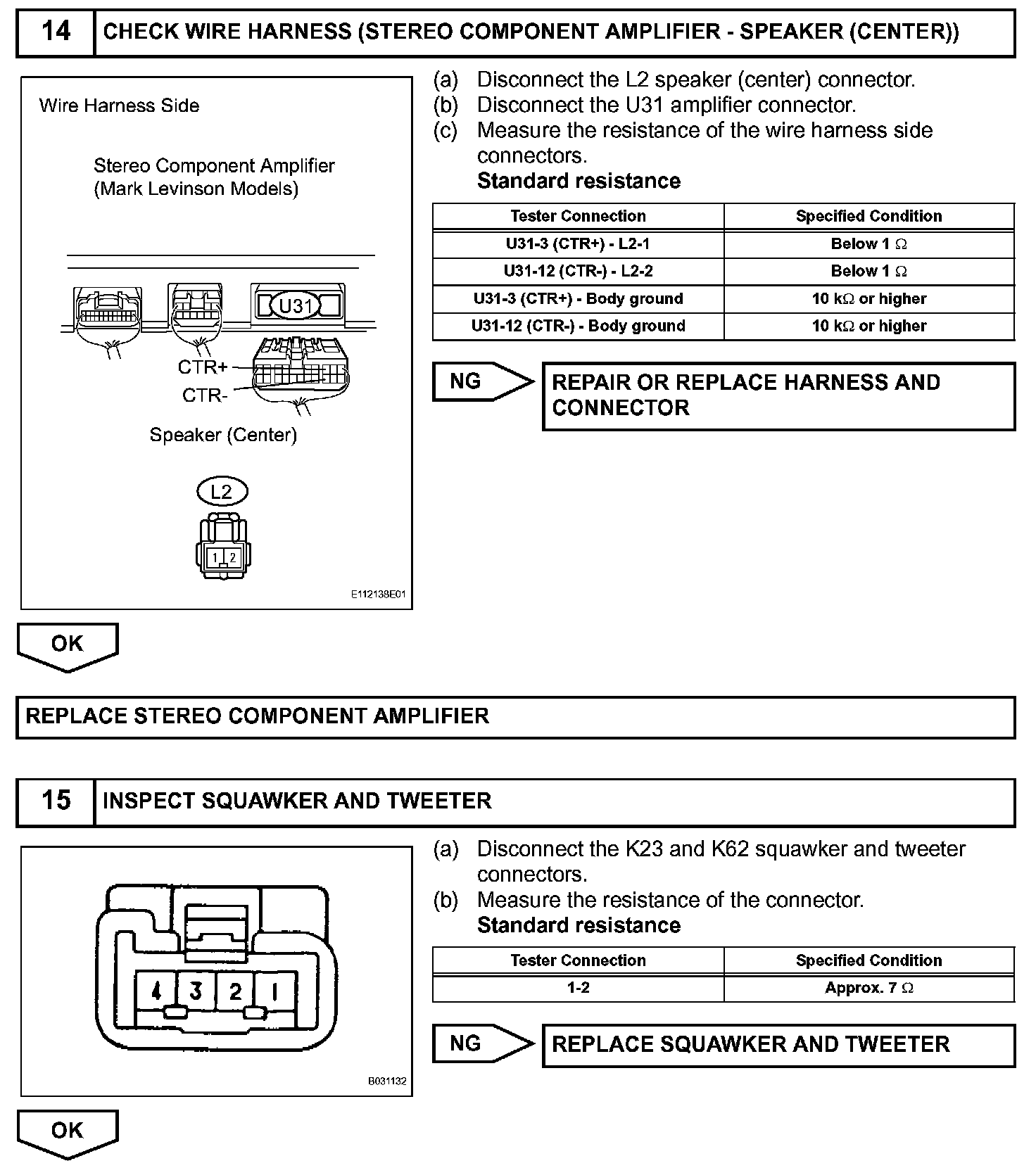

Step 14-15:

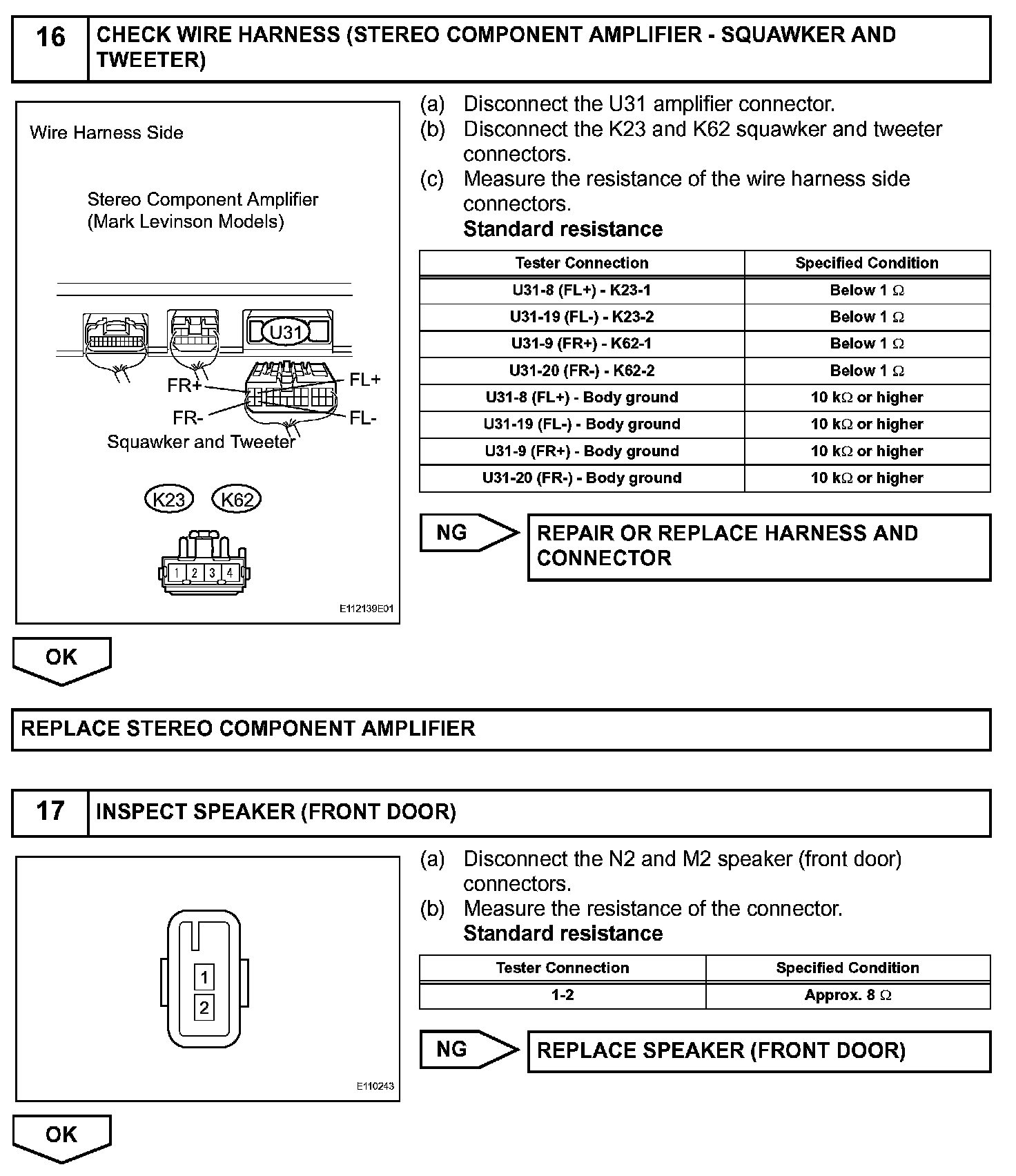

Step 16-17:

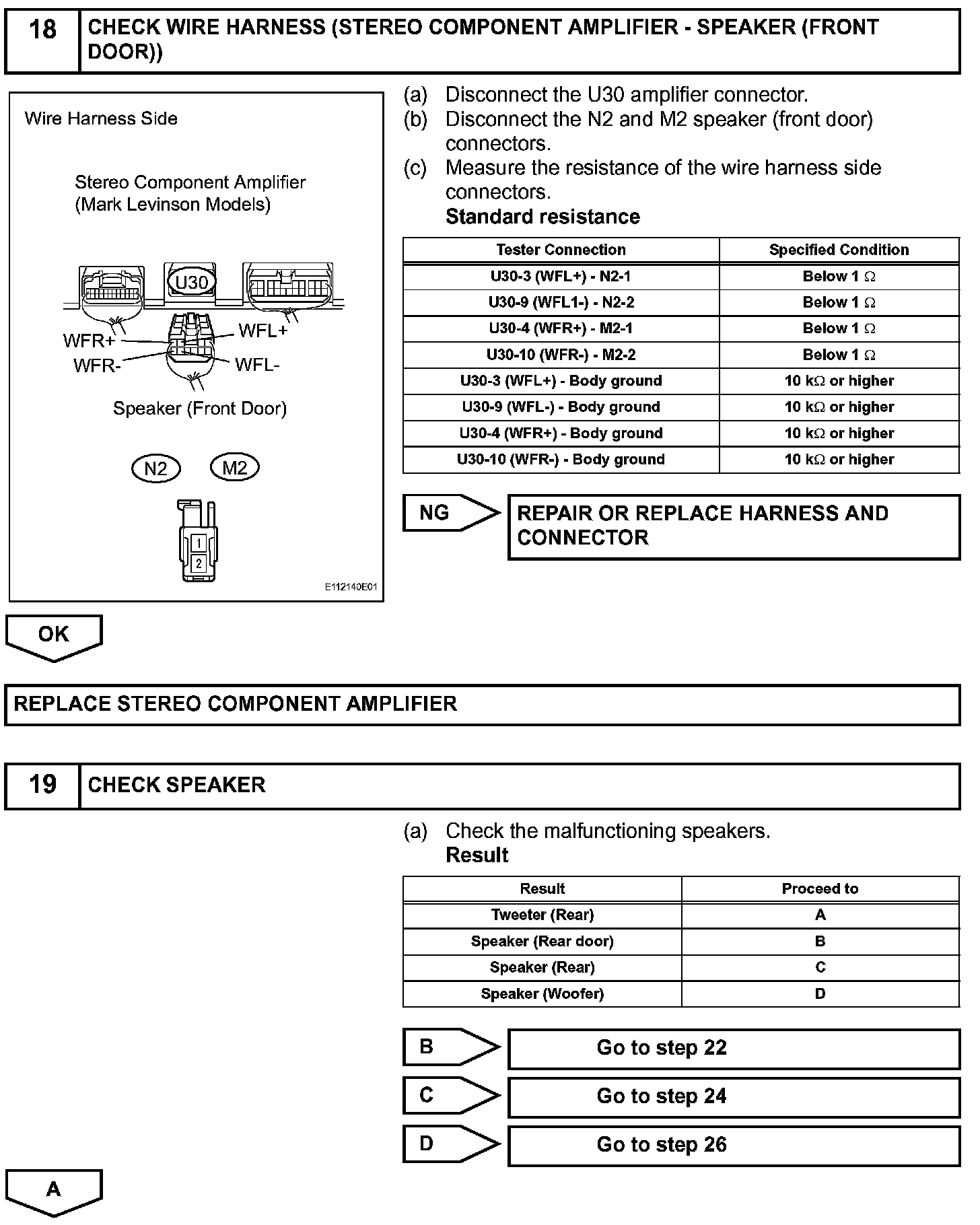

Step 18-19:

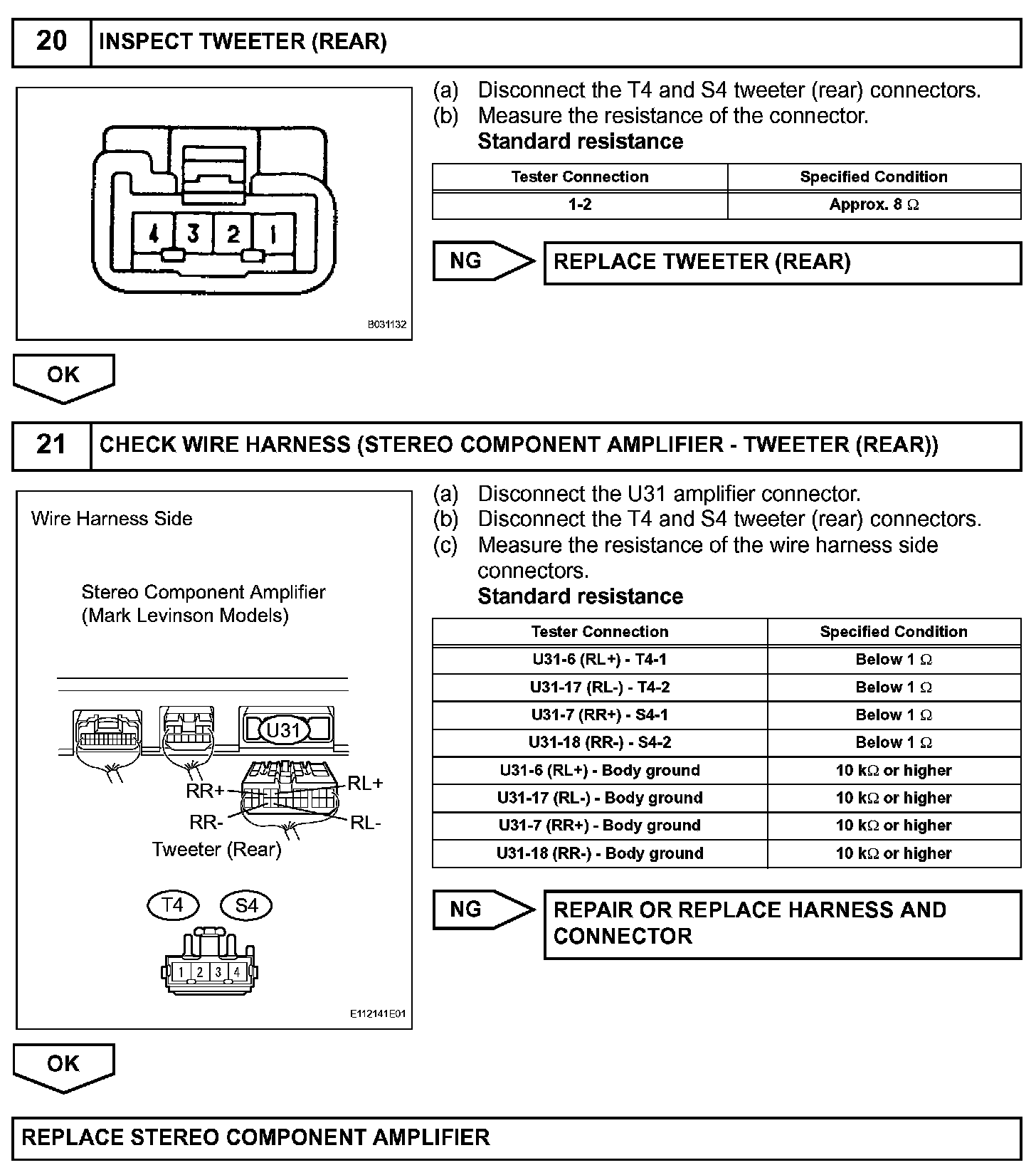

Step 20-21:

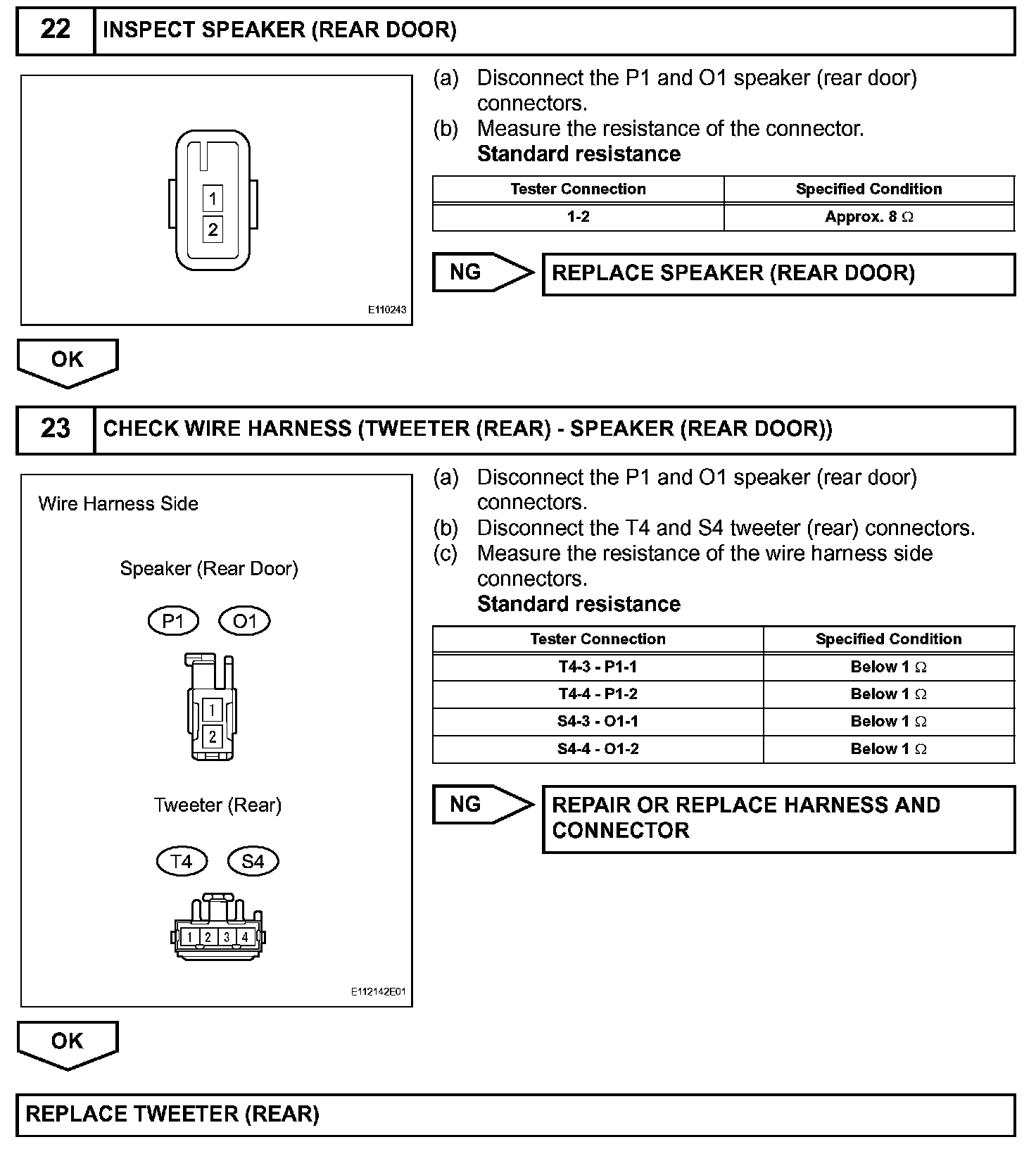

Step 22-23:

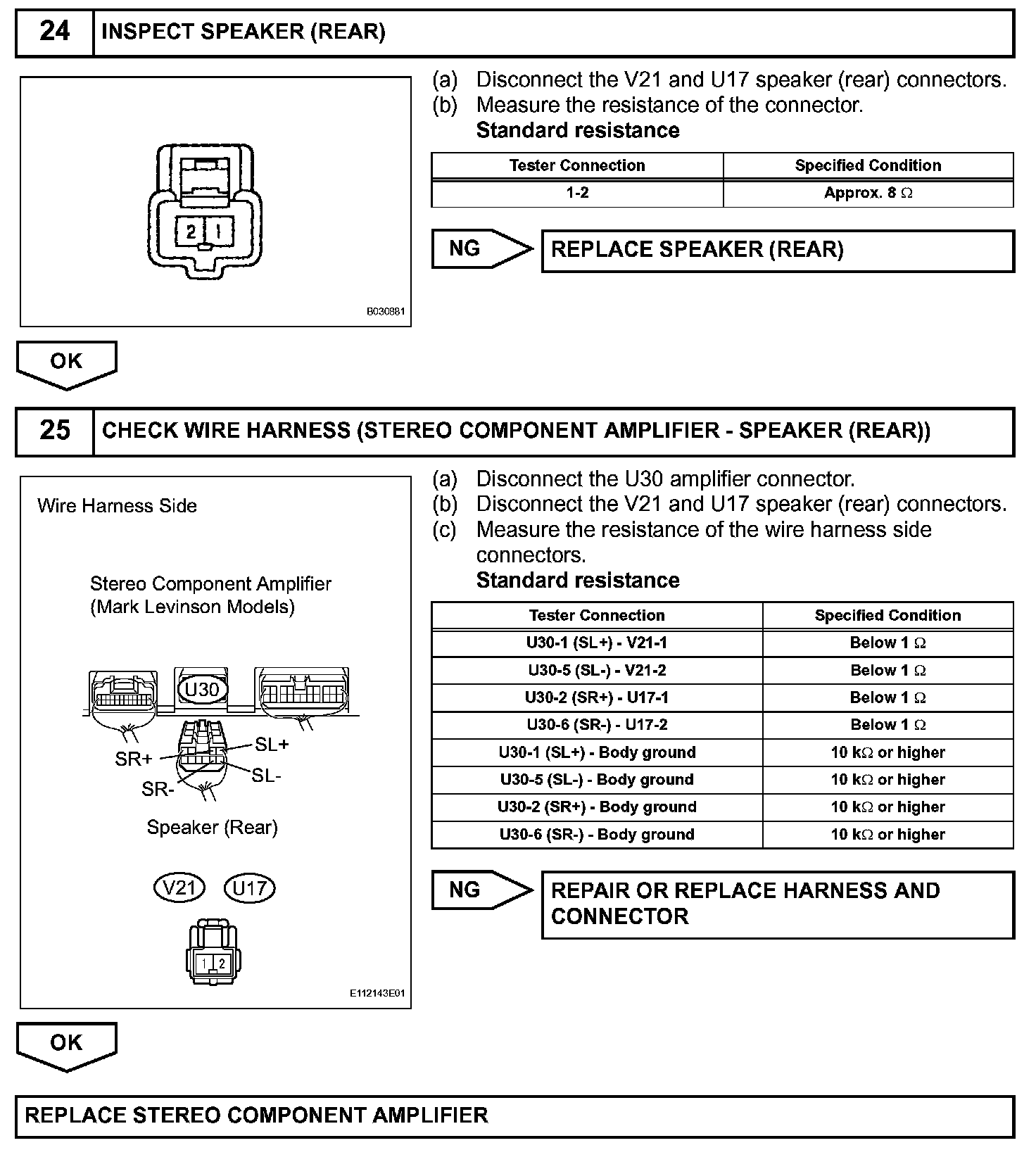

Step 24-25:

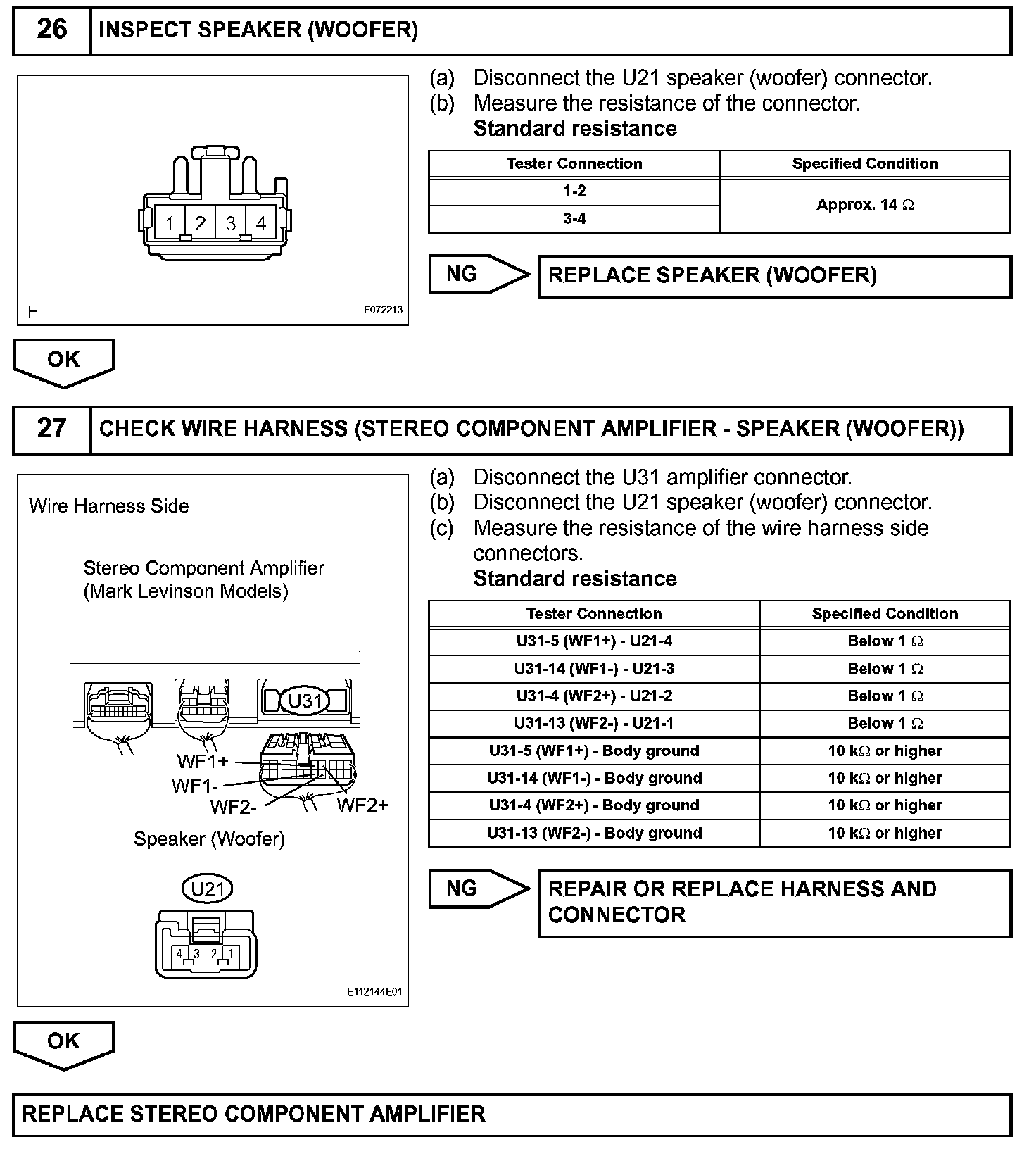

Step 26-27:

INSPECTION PROCEDURE
