Canada - Entertainment - Dash Speakers, Rattle Noise

Bulletin
TSB2163R

Issue Date
September 20, 2005

Title
DASH SPEAKER CONNECTOR RETAINER RATTLES

Component
BODY COMPONENT

Models
'06 GS 300 & GS 430

TSB REVISION NOTICE:
- June 13, 2006: P/N 86160-0WC50 has been added to the Parts Information table and the OFP in the Warranty Information table.
Previous versions of this TSB should be discarded.

INTRODUCTION:

Some customers may experience a rattle noise in the dash during driving. This condition can be caused by the speaker connector retainers becoming separated on vehicles with the Mark Levinson sound system. An updated Mark Levinson speaker is available to address the situation.

APPLICABLE VEHICLES:
- 2006 model year GS 300 and GS 430 vehicles produced BEFORE the Production Change Effective VINs shown below.

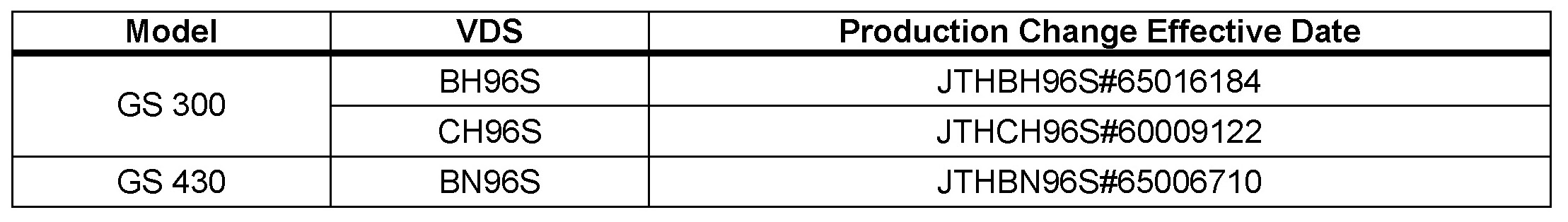

PRODUCTION CHANGE INFORMATION:

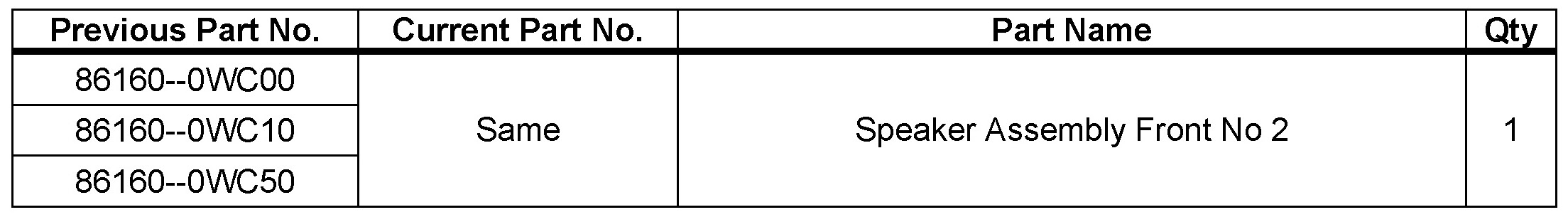

PARTS INFORMATION:

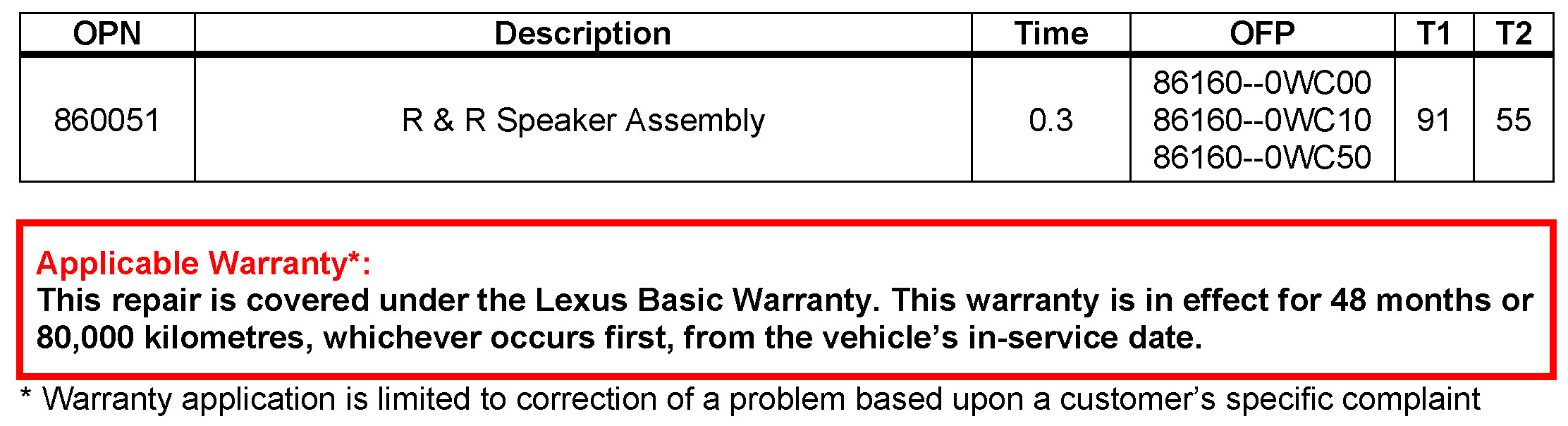

WARRANTY INFORMATION:

REPAIR PROCEDURE:
Refer to ETAS, 2006 model year GS430/300 Repair Manual: Audio / Visual: Front No. 2 Speaker: Components, Removal.
