Front No. 1 Speaker

INSPECTION

1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
a. With the speaker installed, check that there is no looseness or other abnormalities.
b. Check that there is no foreign matter in the speaker, no tears on the speaker's cone part, or other abnormalities.

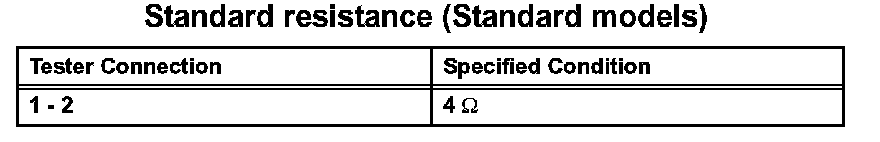

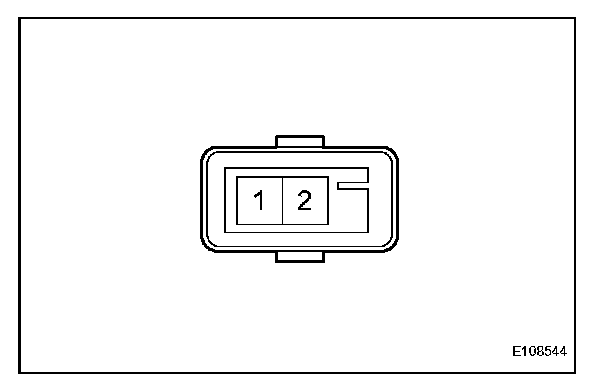

c. Measure the resistance of the speaker. Standard resistance (Standard models)

If the result is not as specified, replace the speaker assembly.
