Radio/Stereo: Testing and Inspection

Radio Receiver Power Source Circuit

DESCRIPTION
This circuit provides power to the radio receiver assembly.

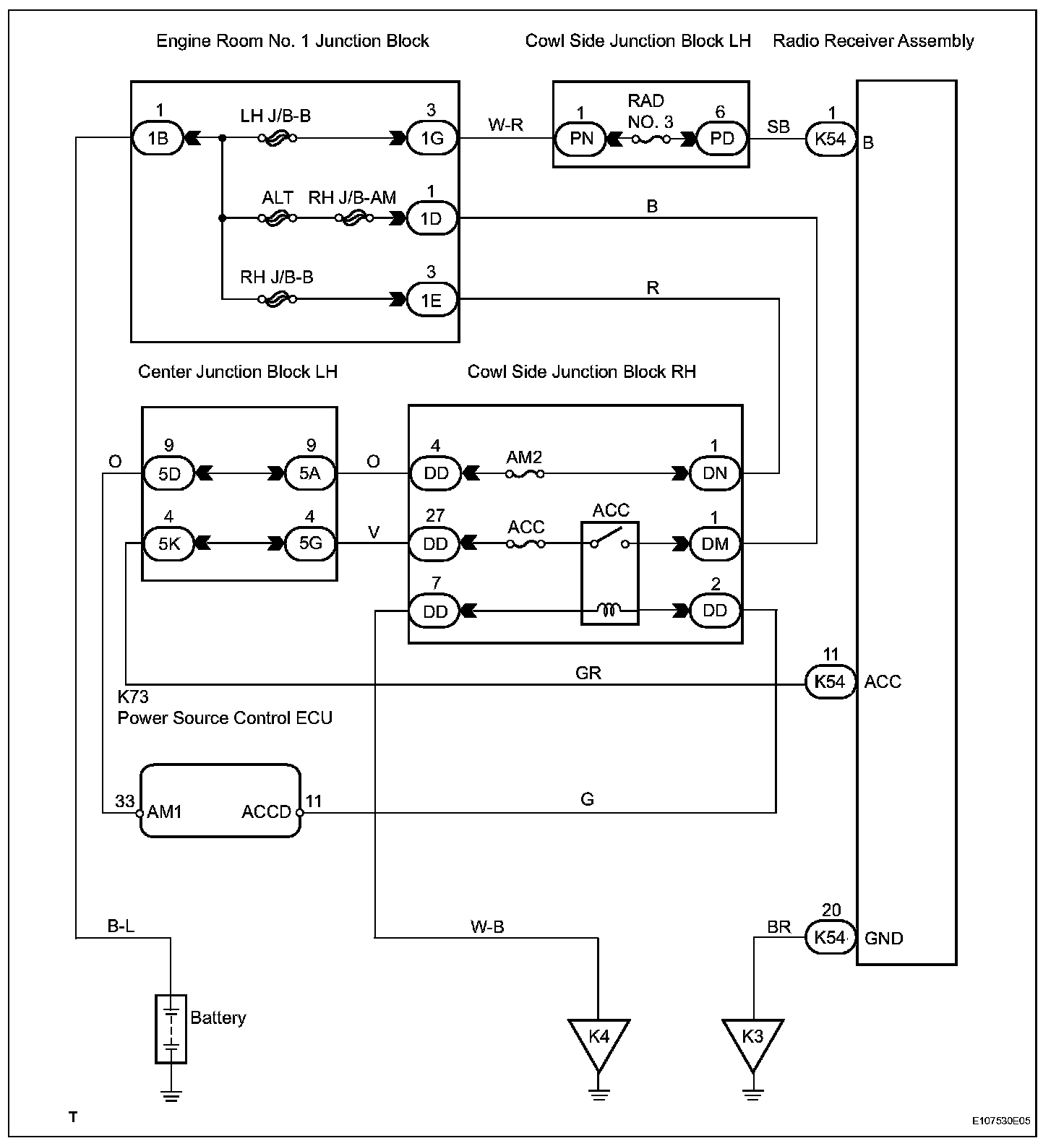

Wiring Diagram:






Step 1-2:

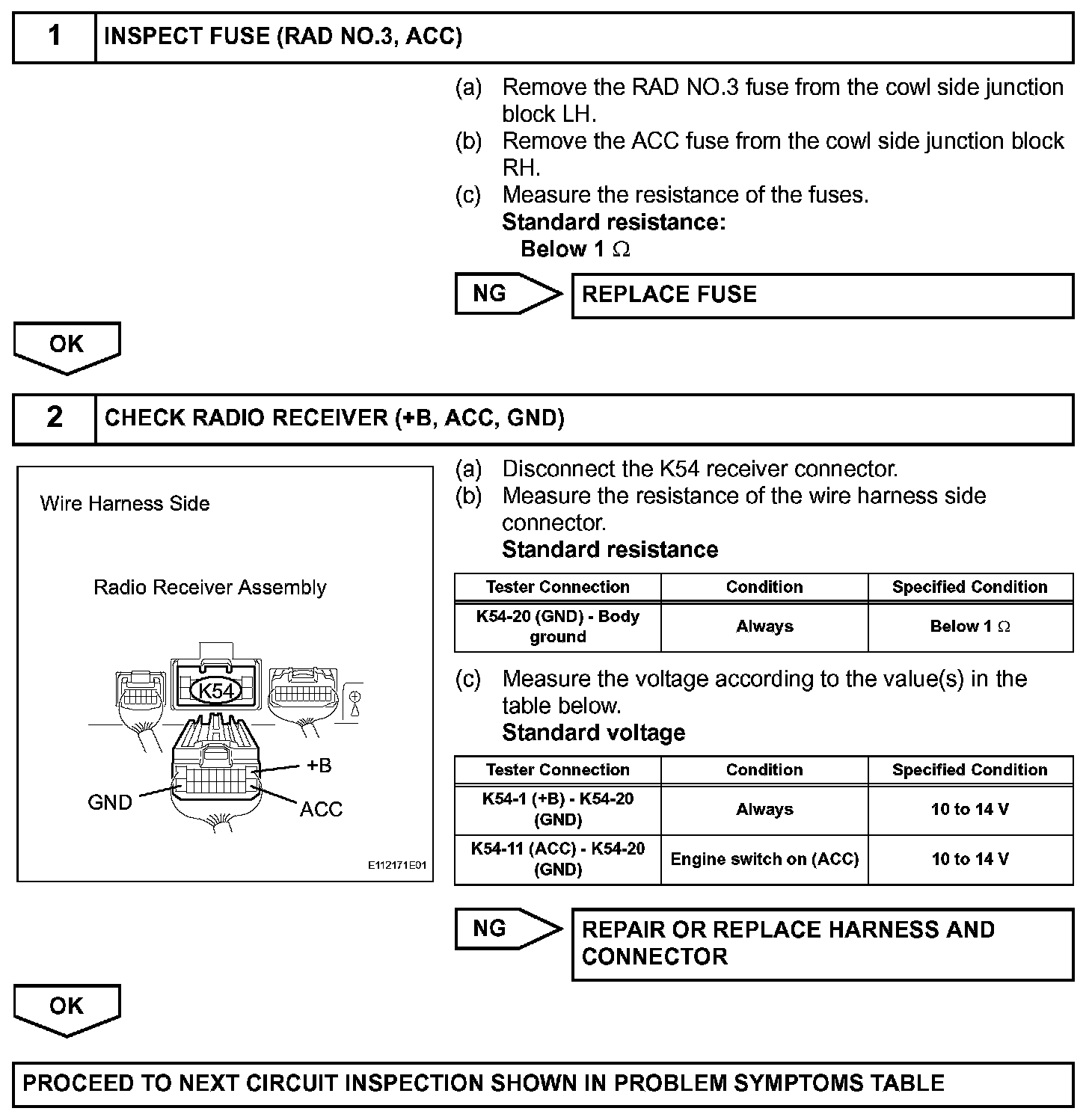

INSPECTION PROCEDURE
