Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> GPS Mark Is Not Displayed

GPS Mark Is Not Displayed

GPS Mark is not Displayed

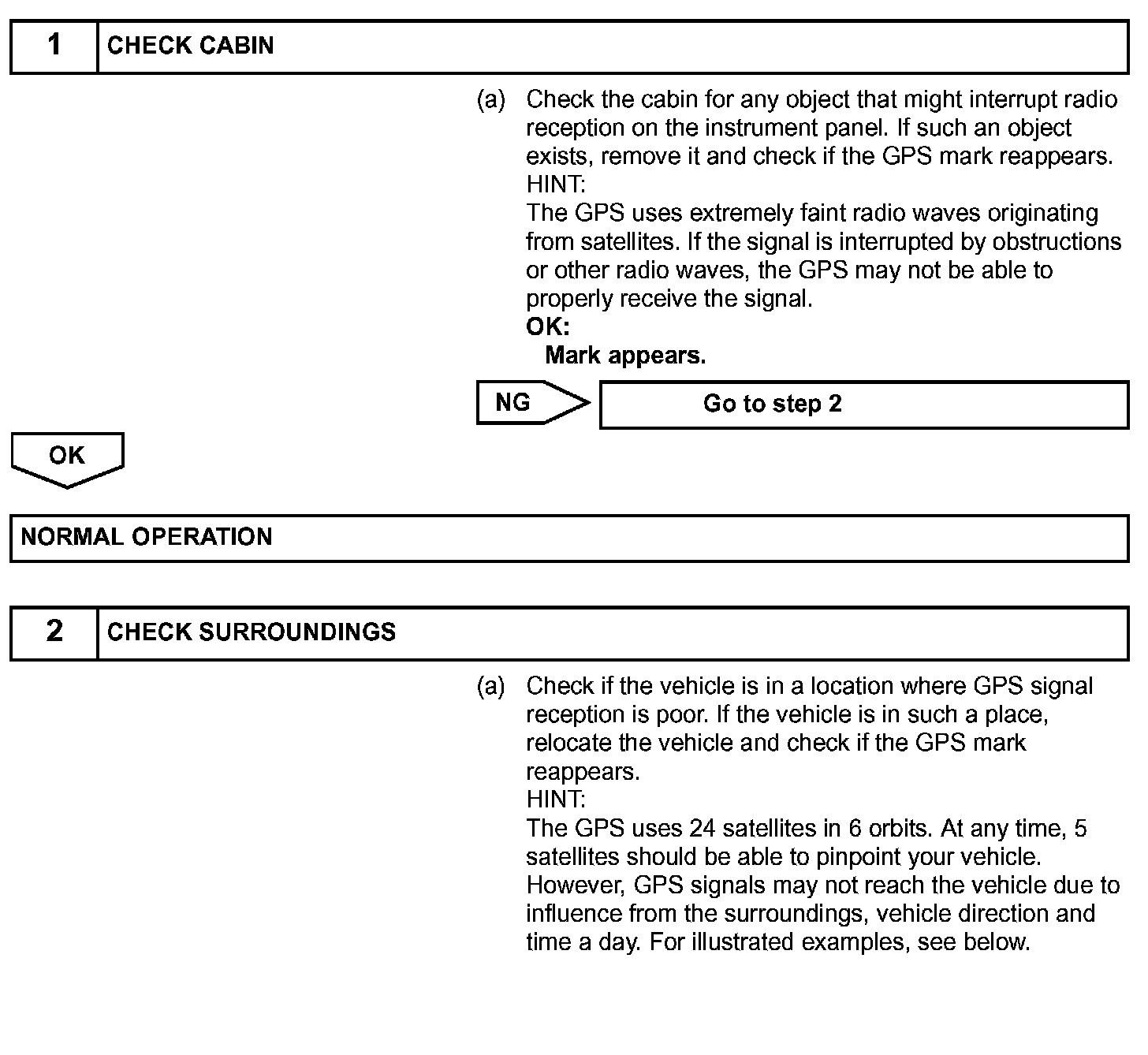

Step 1-2:

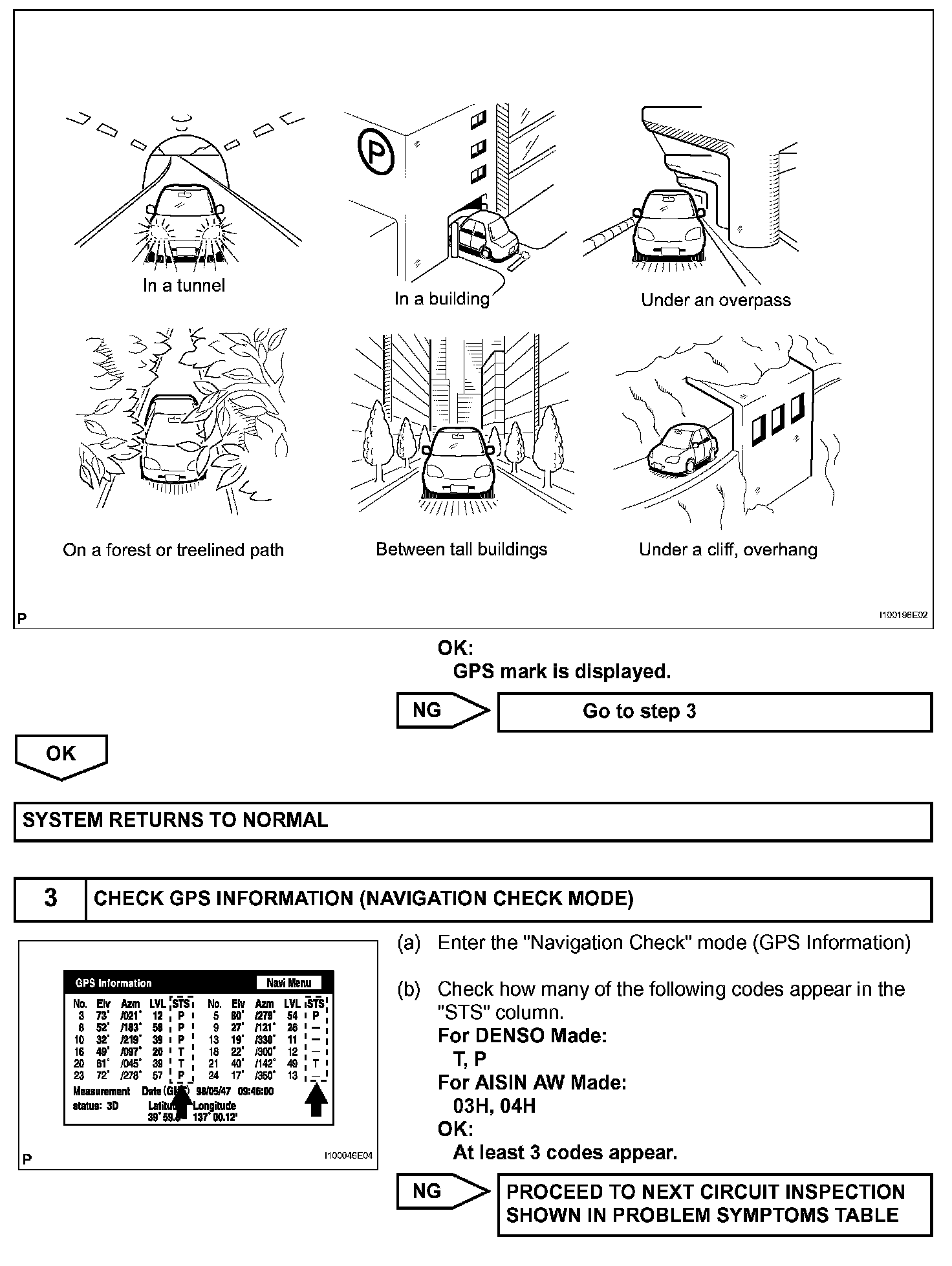

Step 2(Continued)-3:




Step 3(Continued):




INSPECTION PROCEDURE
