FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2006
>>
GS 300 RWD V6-3.0L (3GR-FSE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
Black Screen (No Image Appears on Navigation and Audio Screen)
Black Screen (No Image Appears on Navigation and Audio Screen)
Black Screen (No Image Appears on Navigation and Audio Screen)

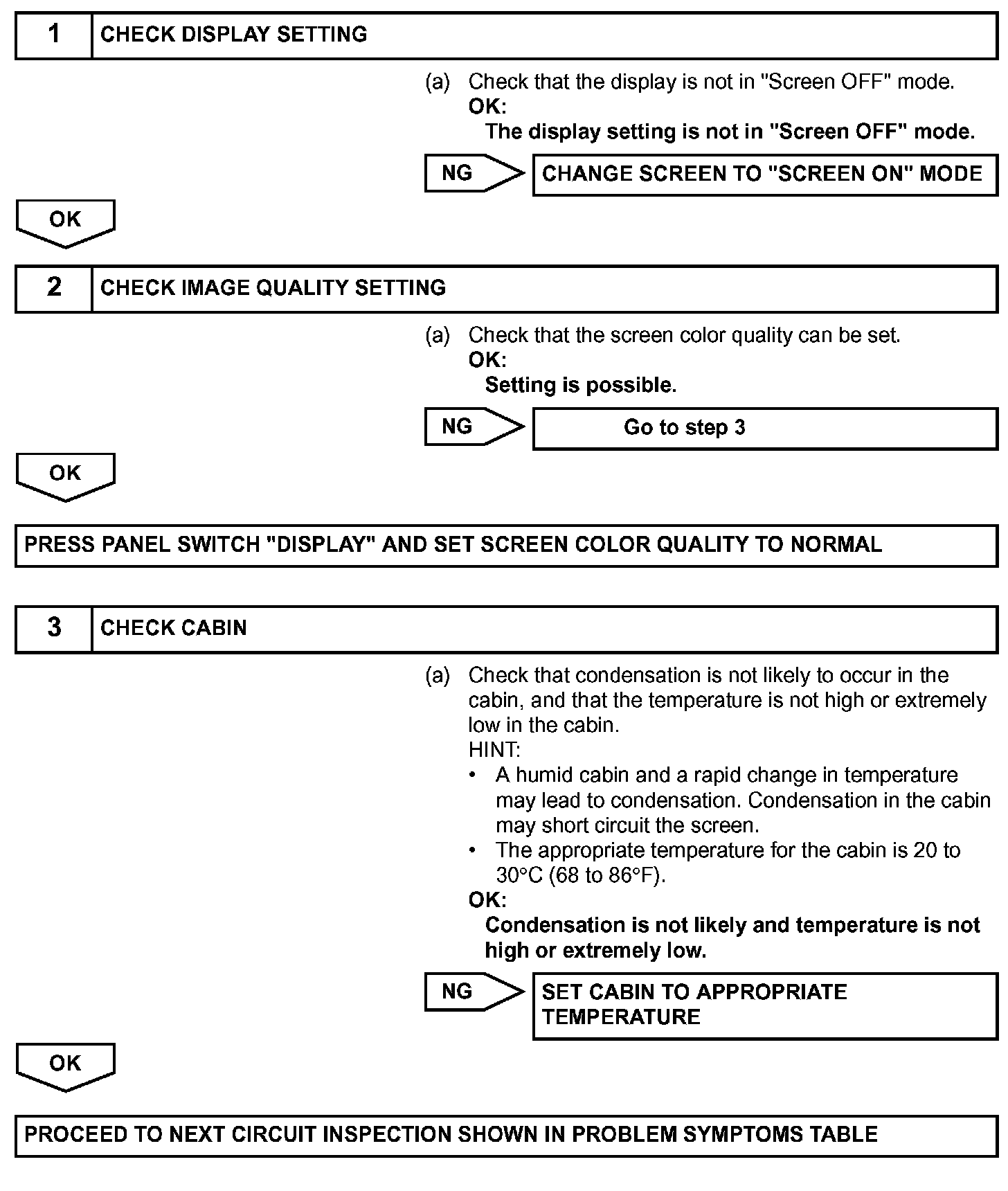

Step 1-3:
INSPECTION PROCEDURE
