Vehicle Speed Signal Circuit Between Navigation ECU and Combination Meter
Vehicle Speed Signal Circuit between Navigation ECU and Combination MeterDESCRIPTION
The navigation ECU receives the vehicle speed signal and information about the GPS antenna, and then adjusts the vehicle position.

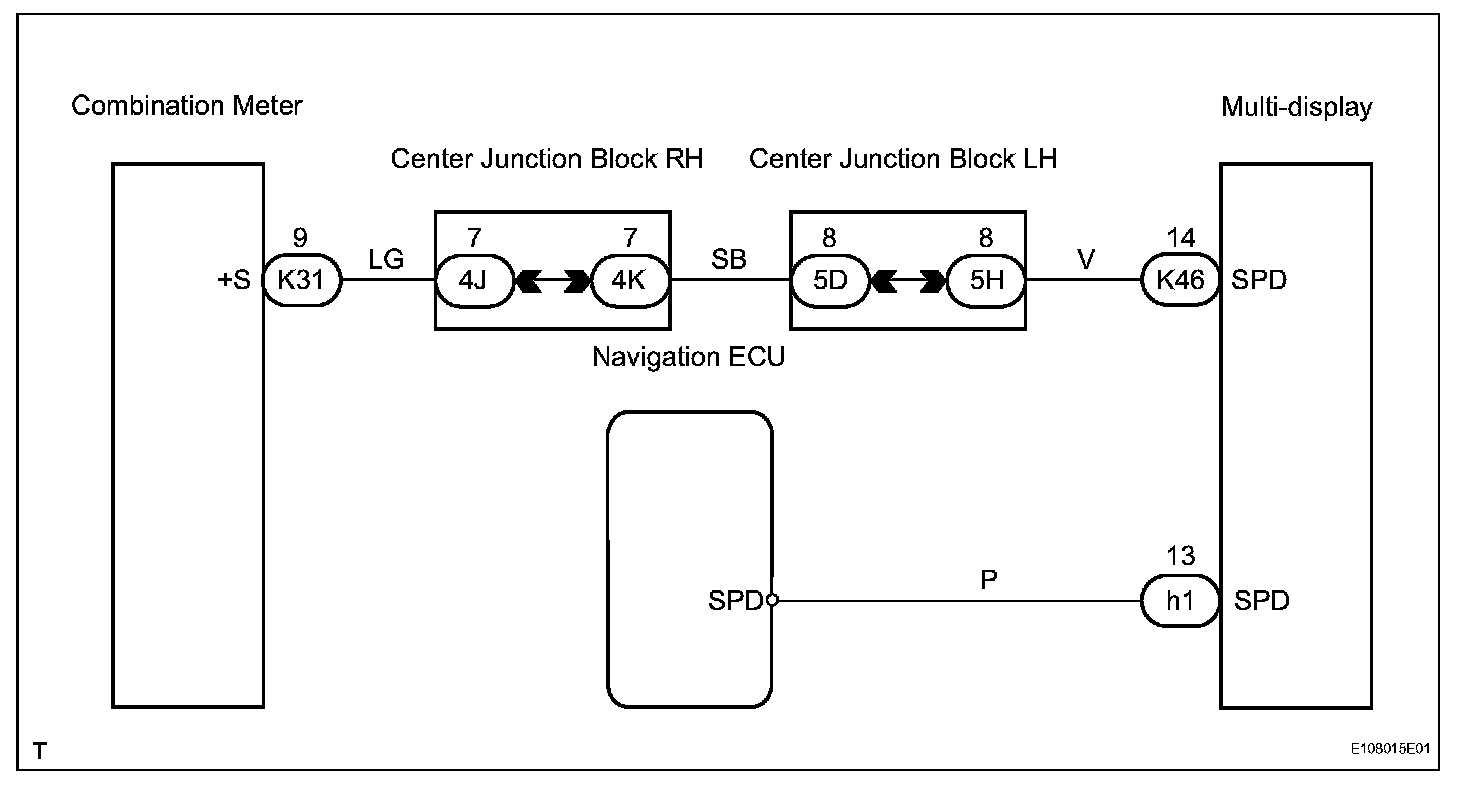

Wiring Diagram:

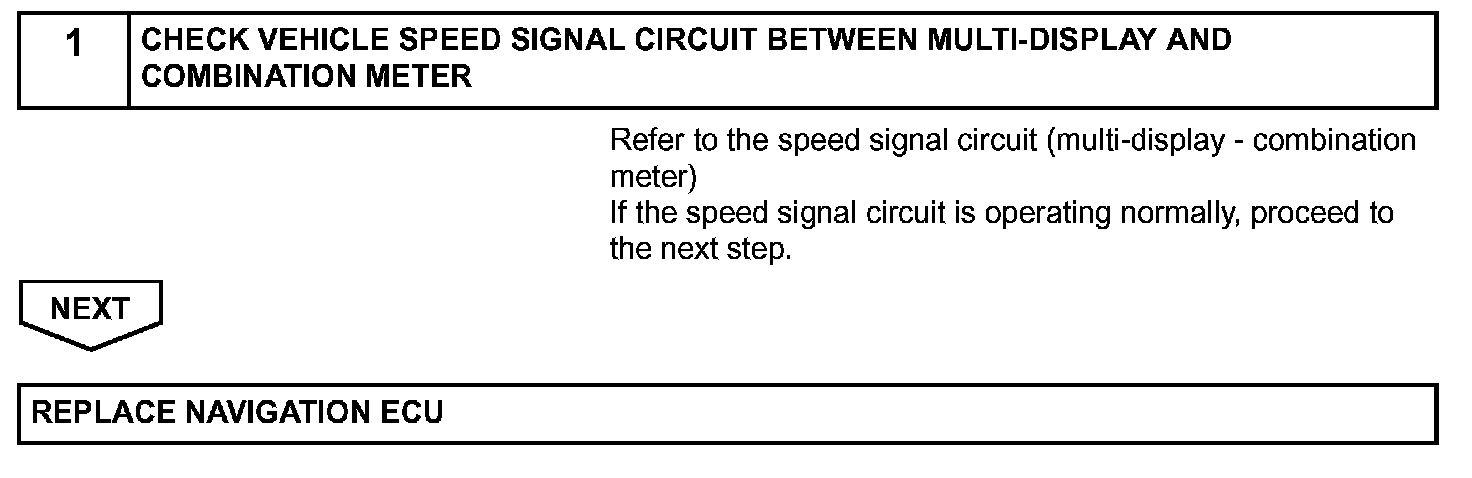

Step 1:
INSPECTION PROCEDURE
