Vehicle Speed Signal Circuit Between Multi-Display and Combination Meter

Vehicle Speed Signal Circuit between Multi-display and Combination Meter

DESCRIPTION
The multi-display performs the switch operation control while the vehicle is running by receiving the vehicle speed signal from the combination meter.

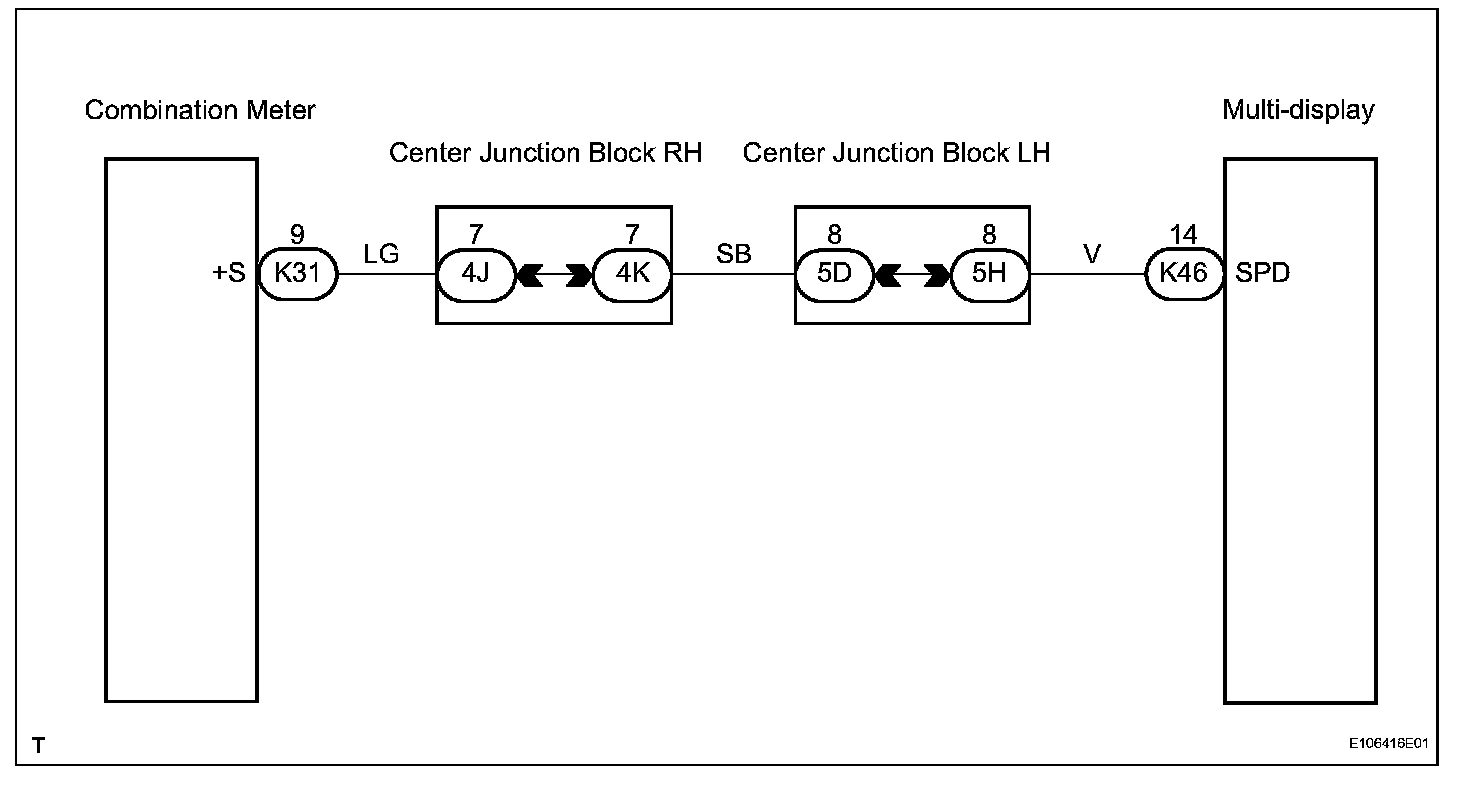

Wiring Diagram:

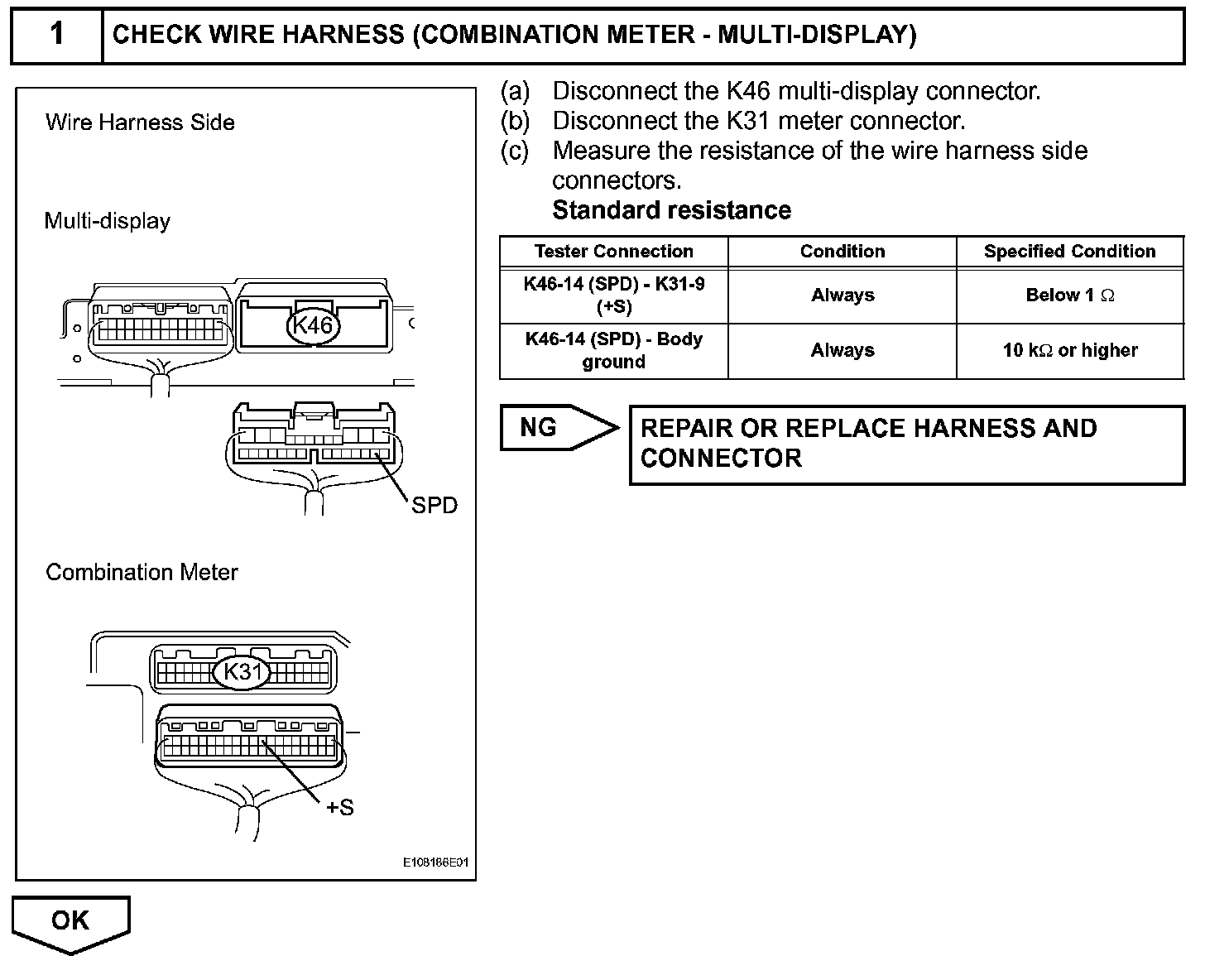

Step 1:

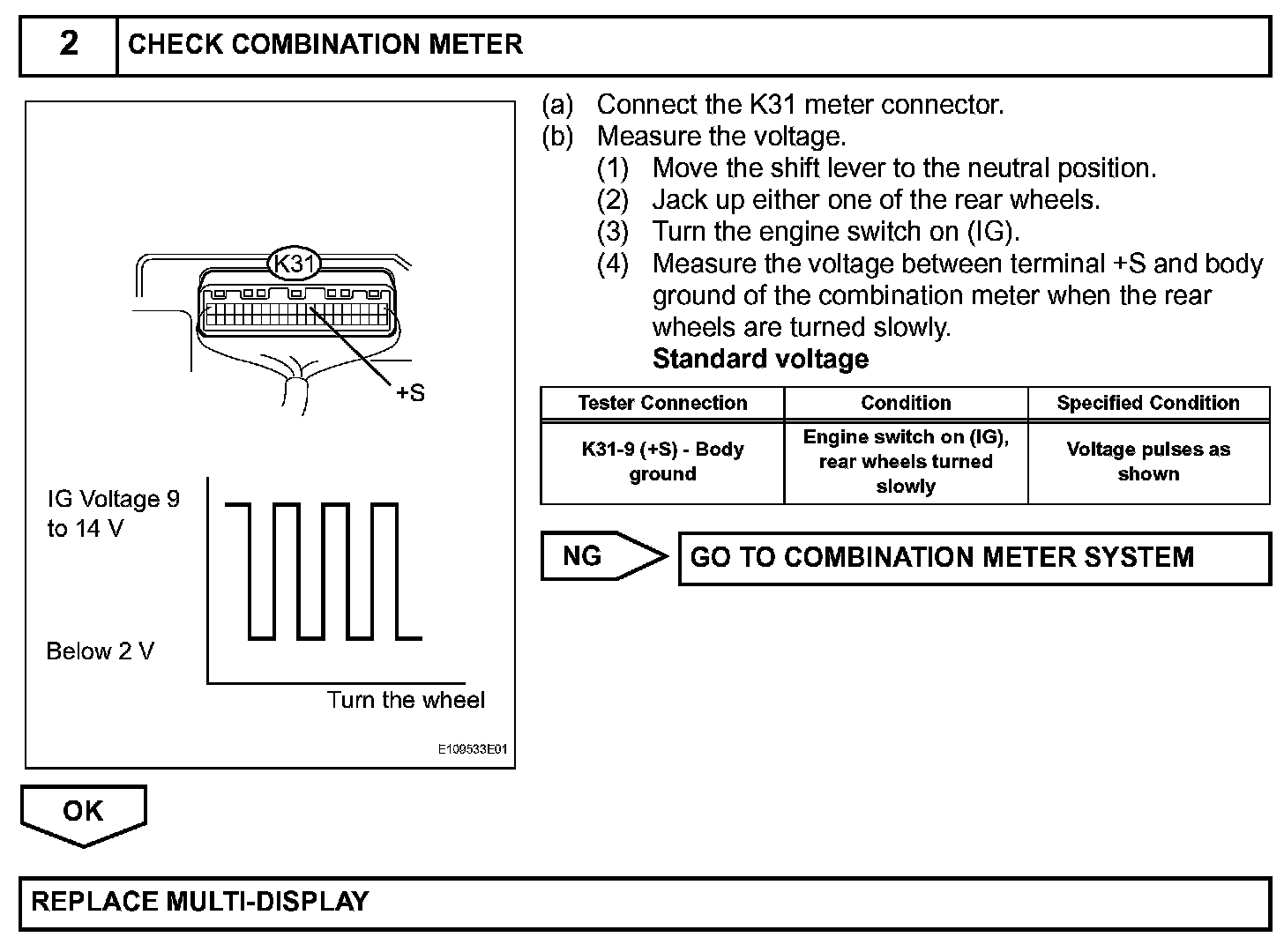

Step 2:




INSPECTION PROCEDURE
