Television Camera ECU Power Source Circuit

Television Camera ECU Power Source Circuit

DESCRIPTION
This circuit provides the power to the television camera ECU.

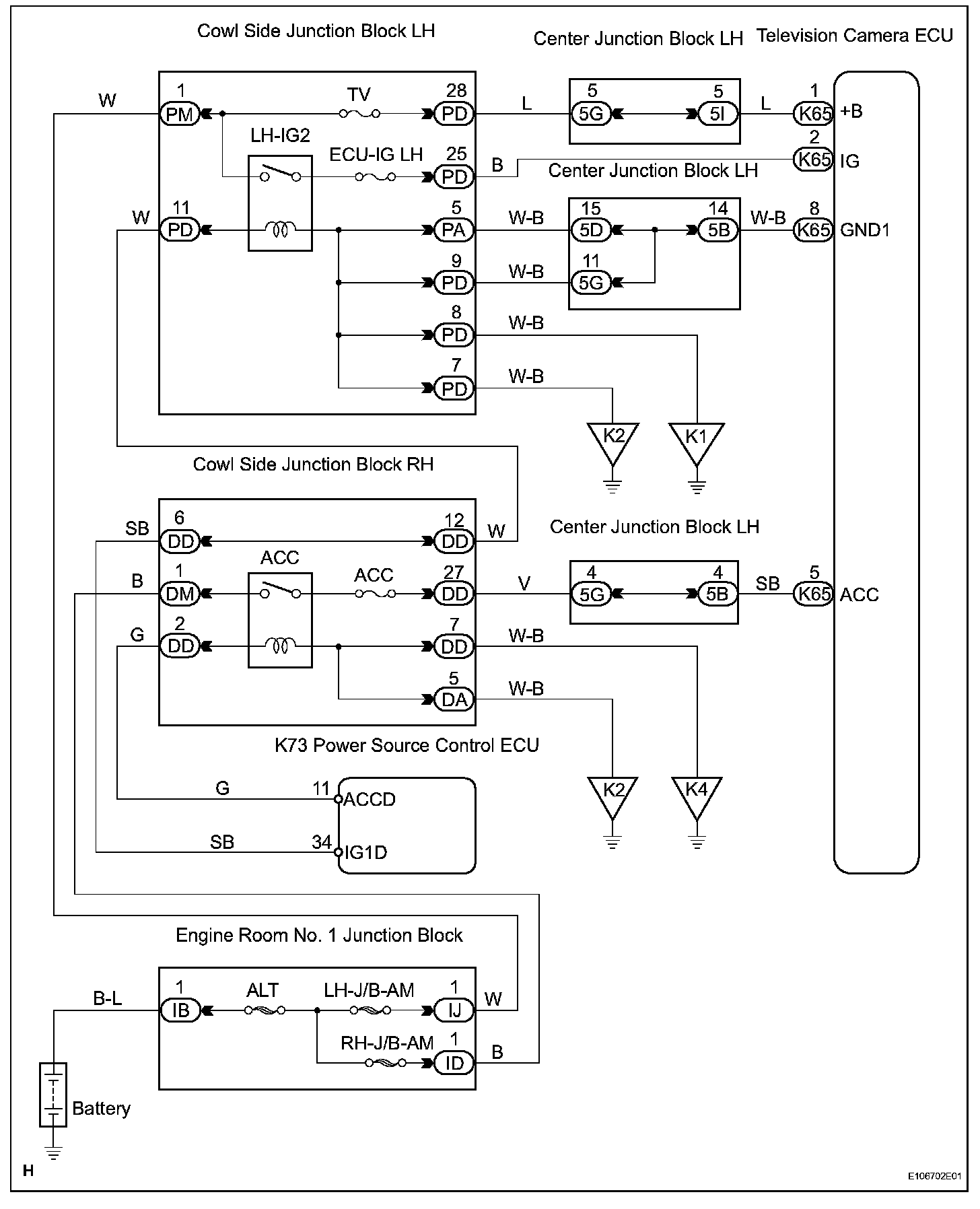

Wiring Diagram:

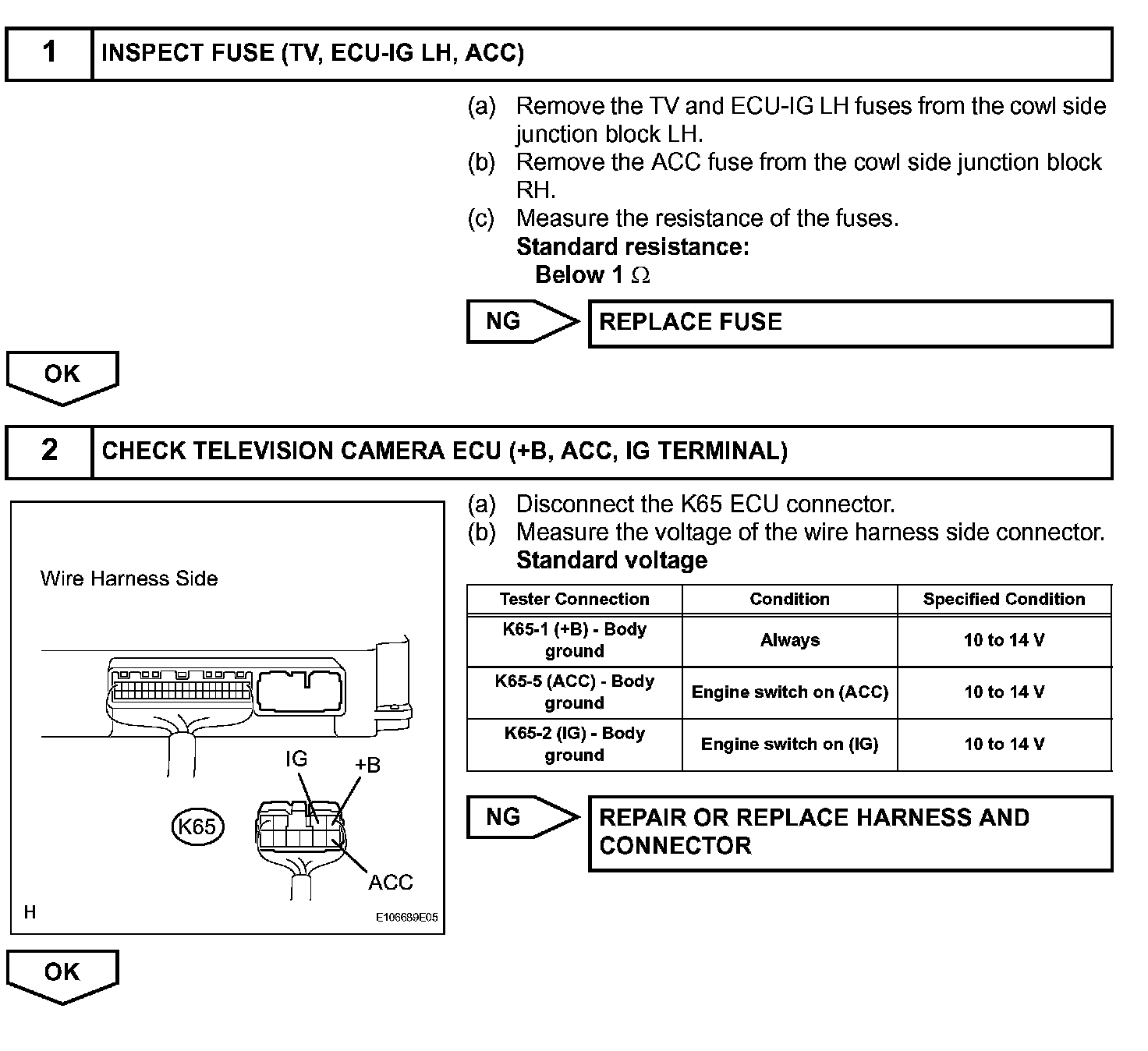

Step 1-2:

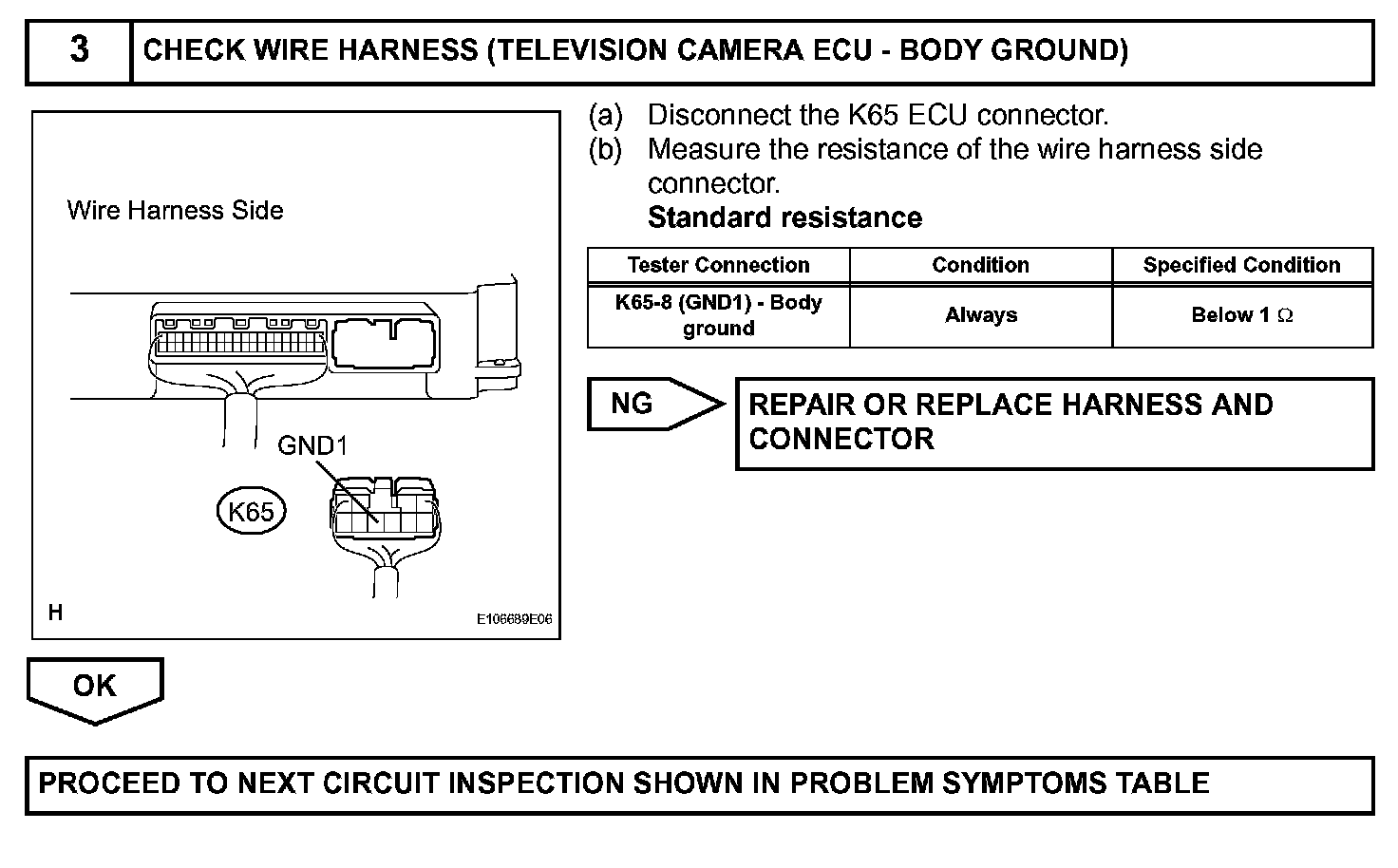

Step 3:




INSPECTION PROCEDURE
