Stereo Component Amplifier Power Source Circuit

Stereo Component Amplifier Power Source Circuit

DESCRIPTION
This circuit provides the power to the stereo component amplifier.

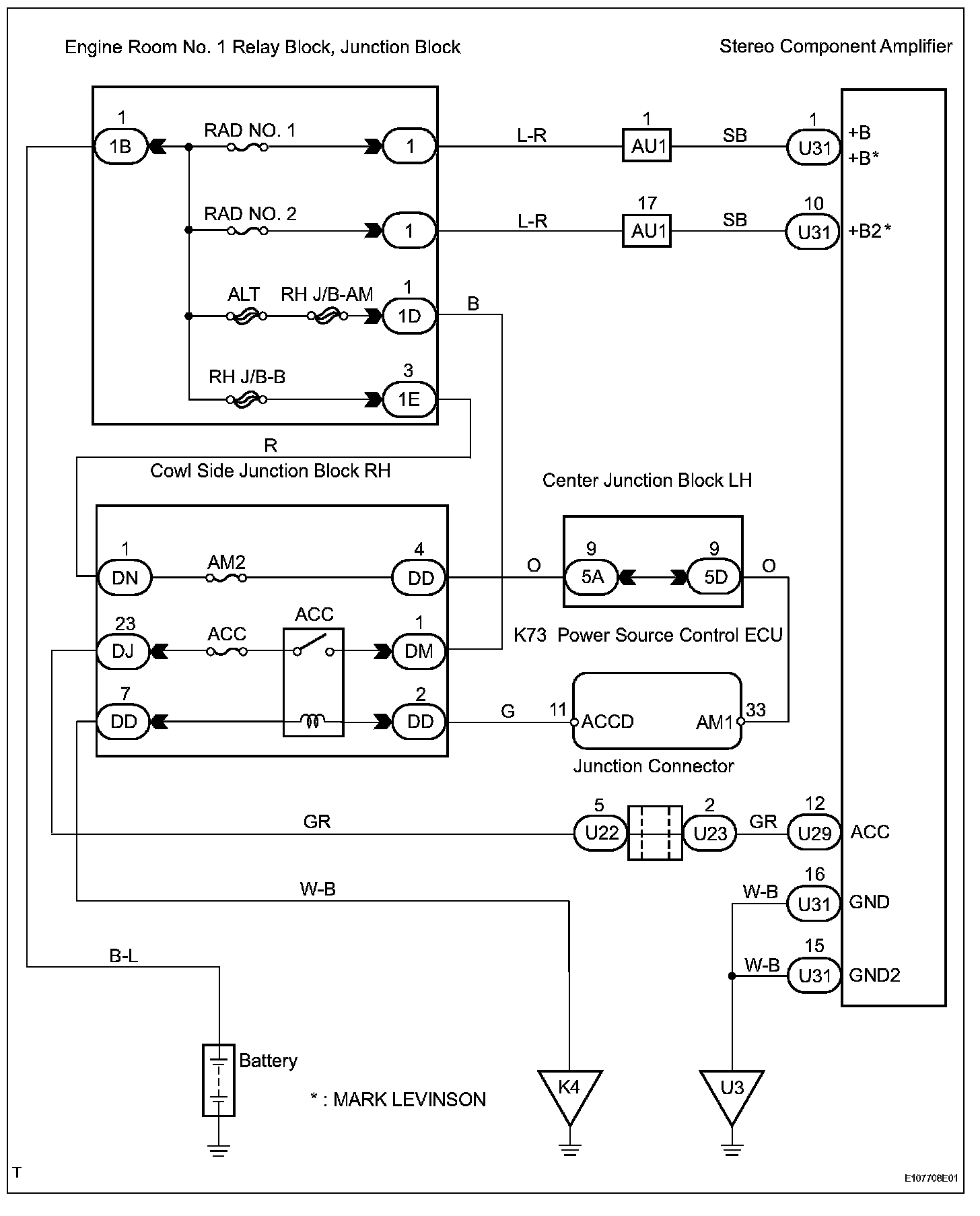

Wiring Diagram:

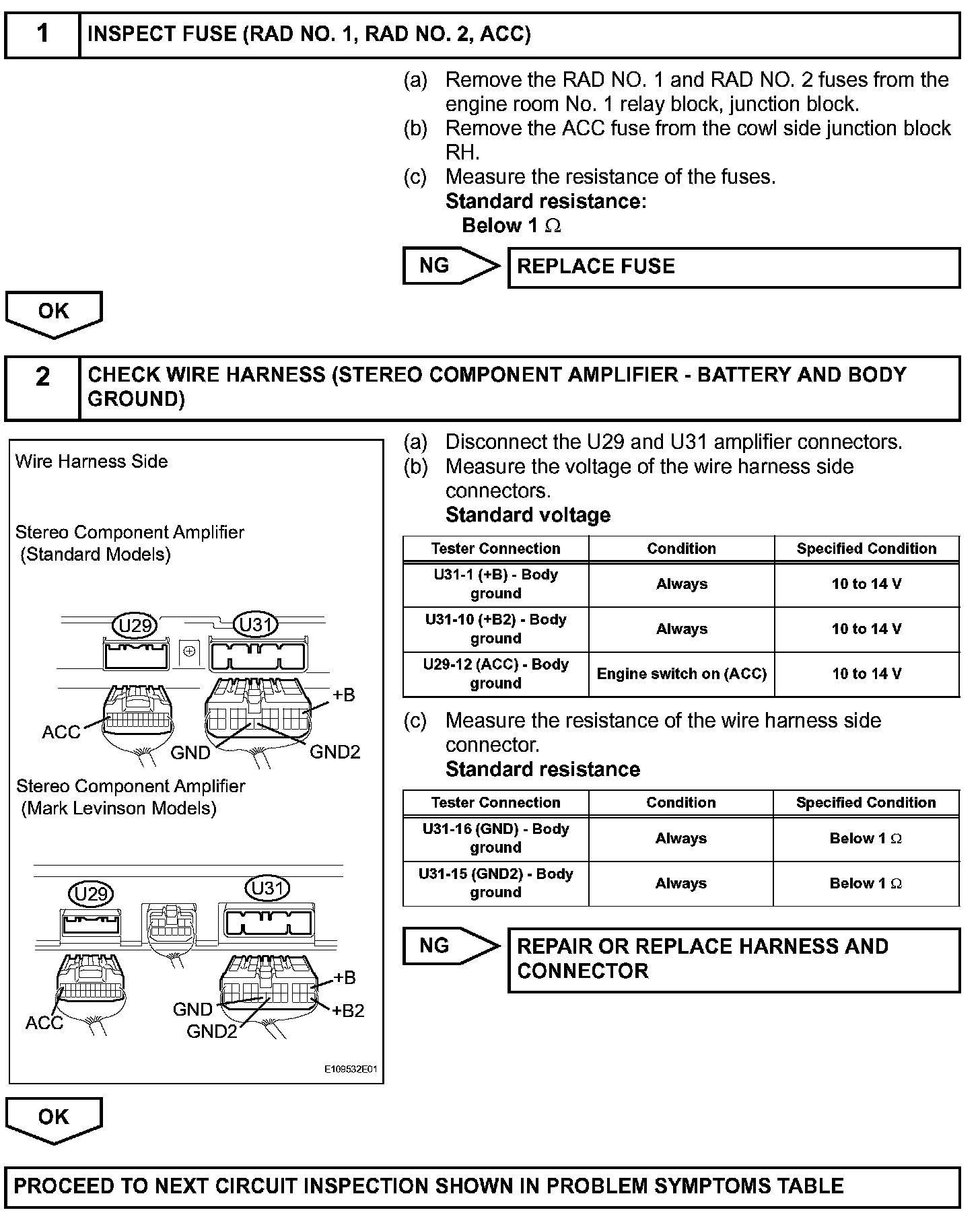

Step 1-2:




INSPECTION PROCEDURE
