Reverse Signal Circuit

Reverse Signal Circuit

DESCRIPTION
The multi-display receives the reverse signal from the cowl side junction block ECU LH and sends the signal to the navigation ECU. The multi-display receives information about the GPS's antenna, and then adjusts the vehicle position.

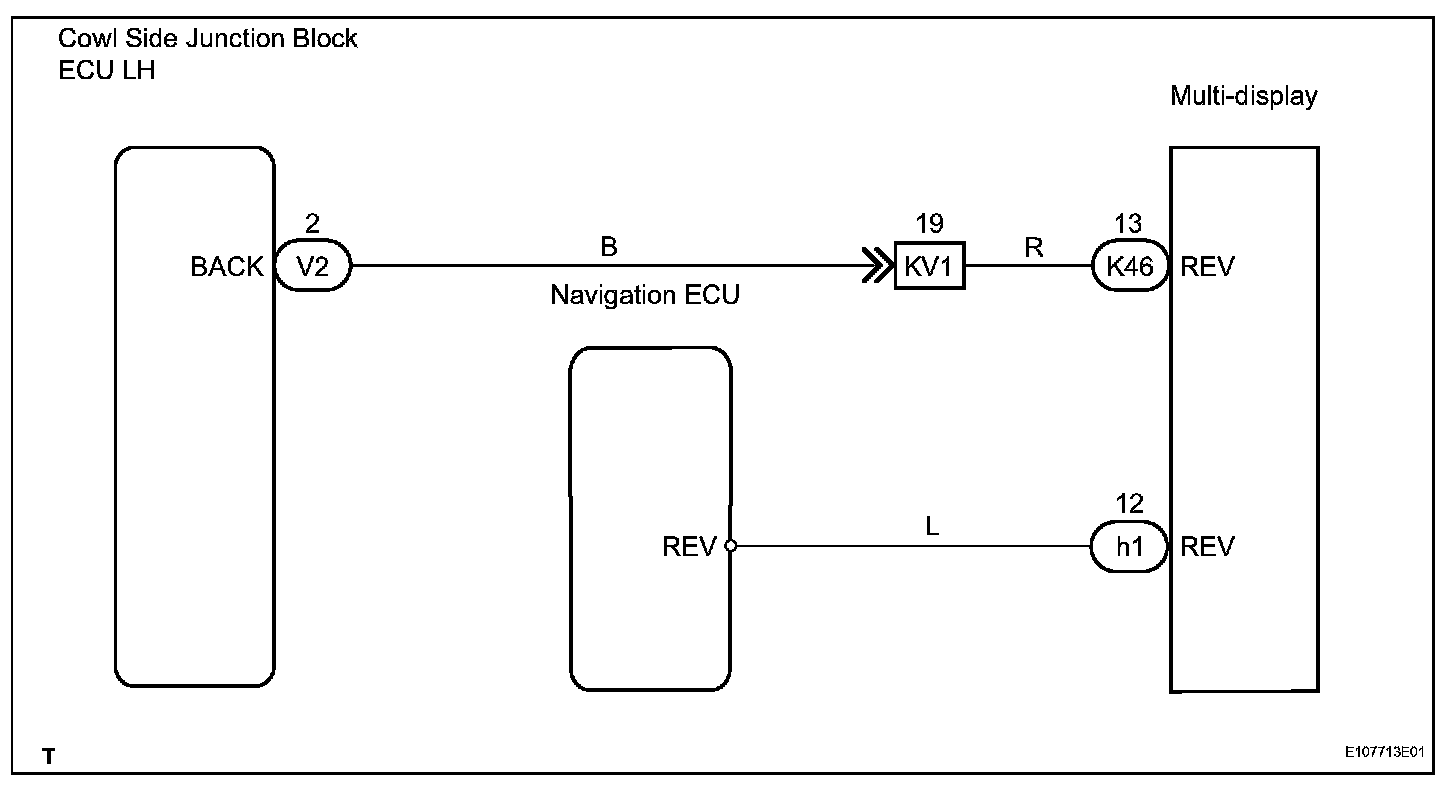

Wiring Diagram:

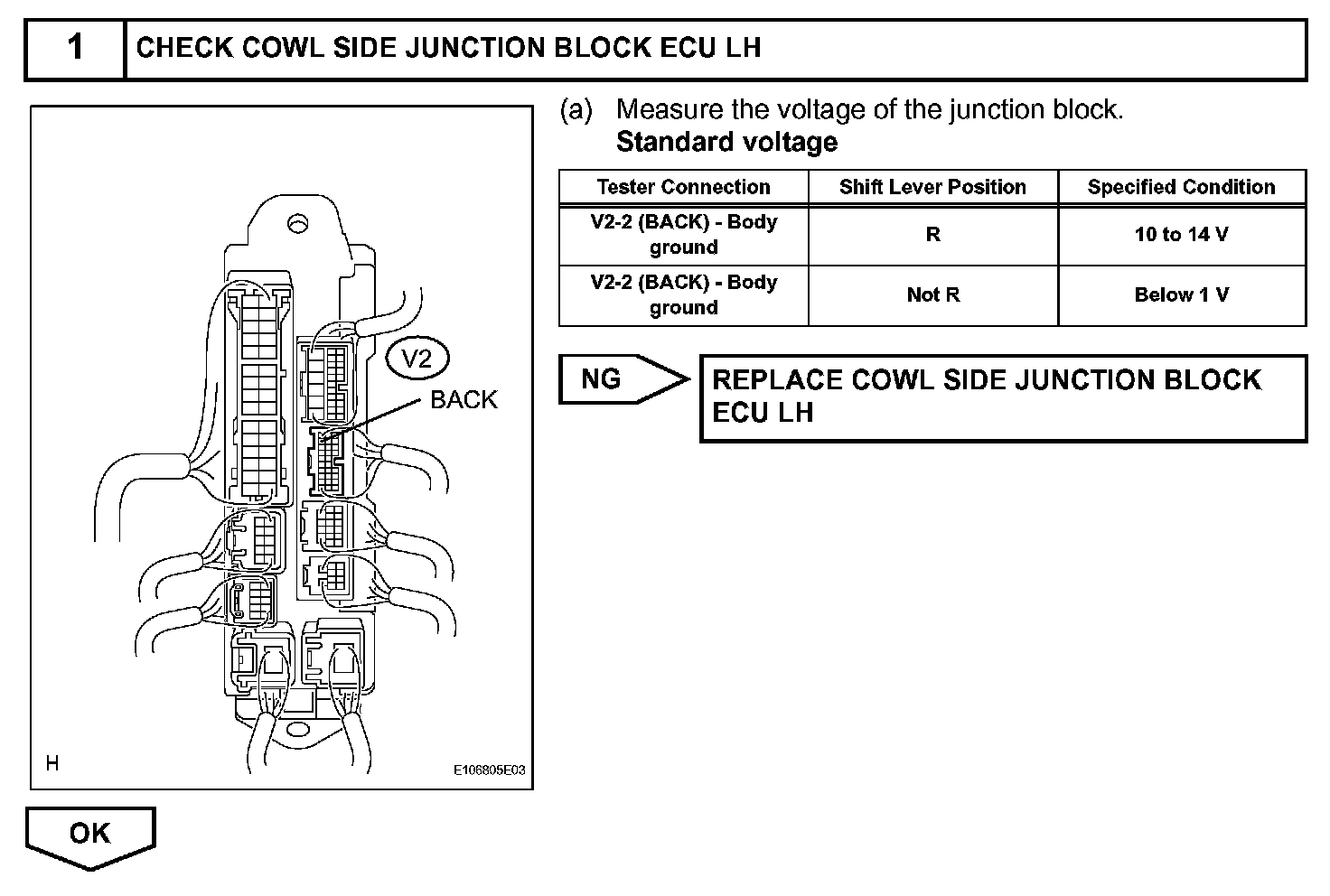

Step 1:

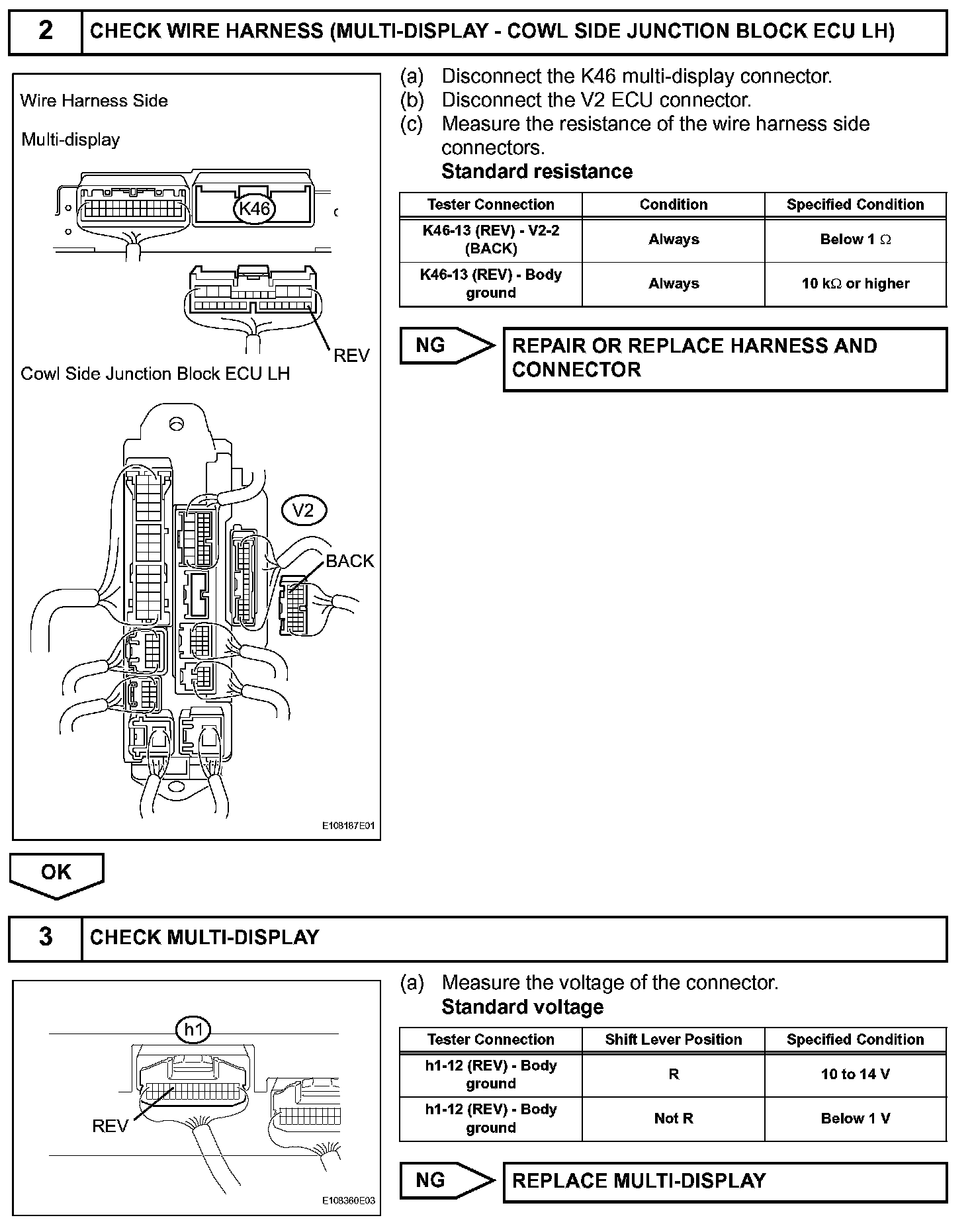

Step 2-3:

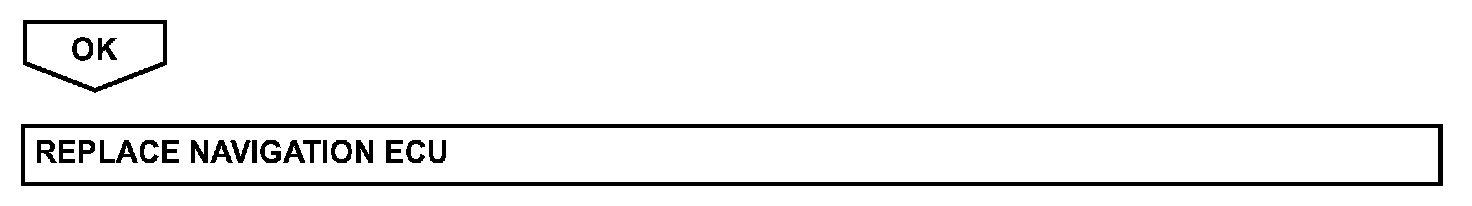

Step 3(Continued):

INSPECTION PROCEDURE
