Navigation ECU Power Source Circuit

Navigation ECU Power Source Circuit

DESCRIPTION
This circuit provides the power to the navigation ECU.

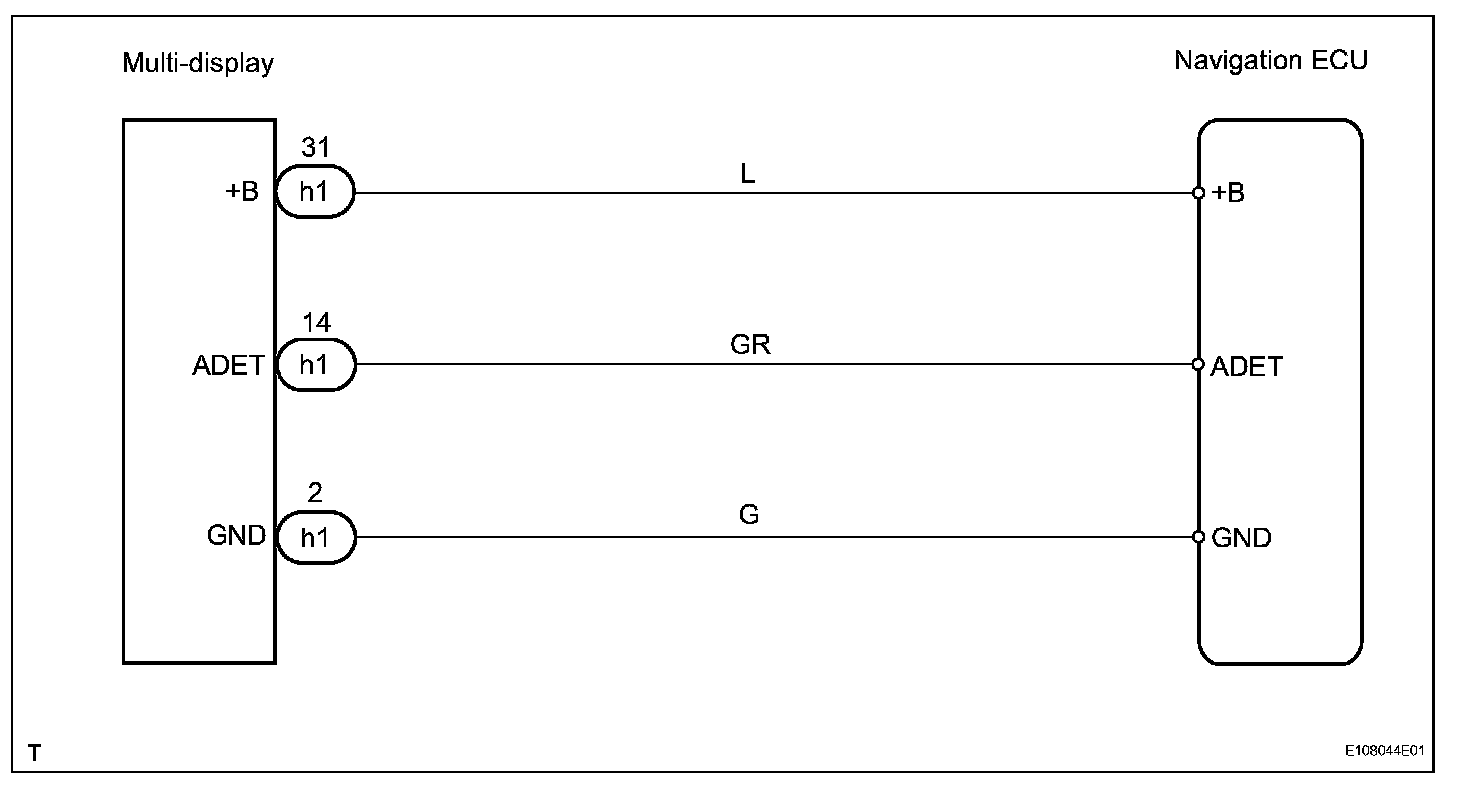

Wiring Diagram (Part 1):

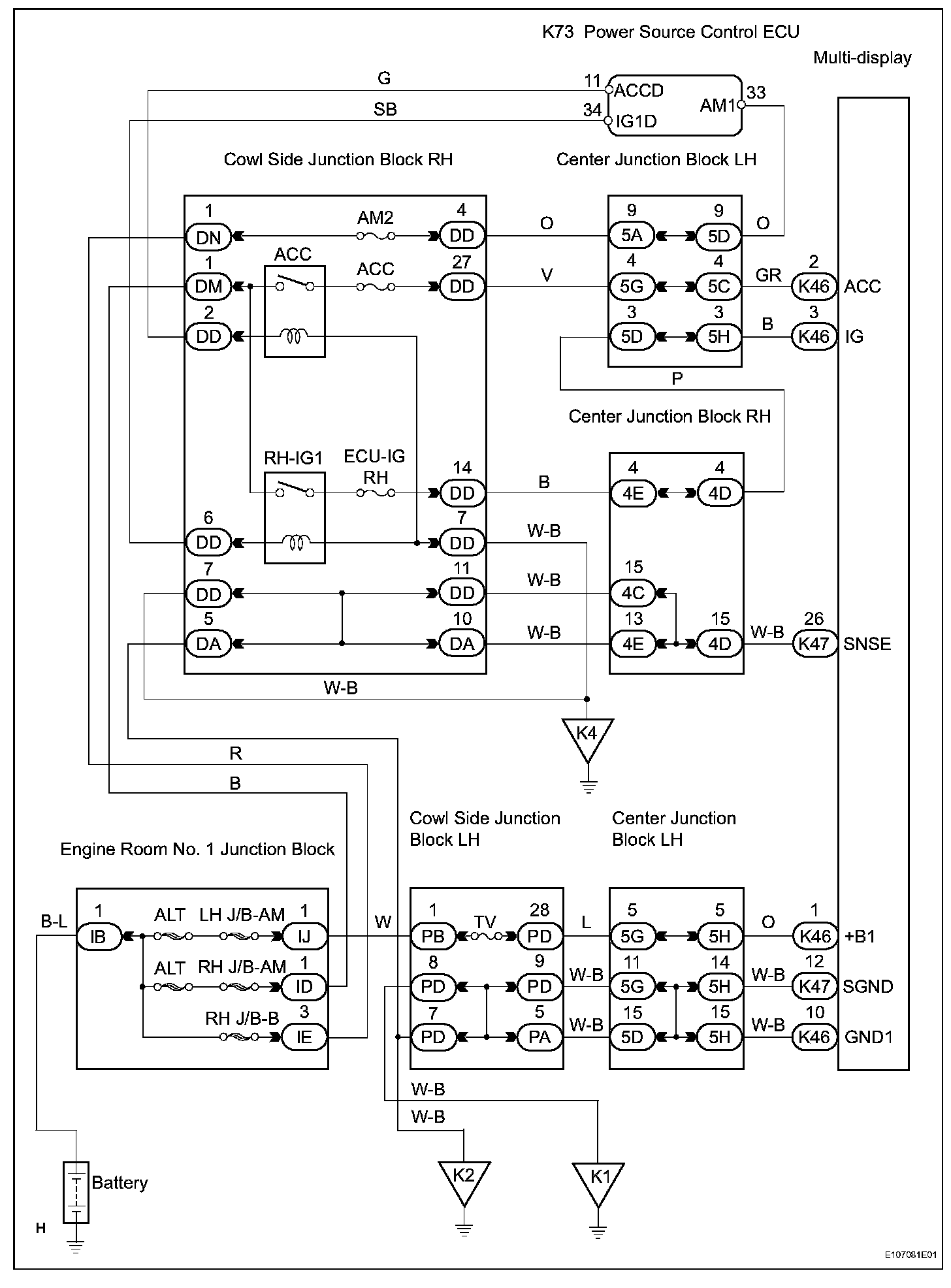

Wiring Diagram (Part 2):

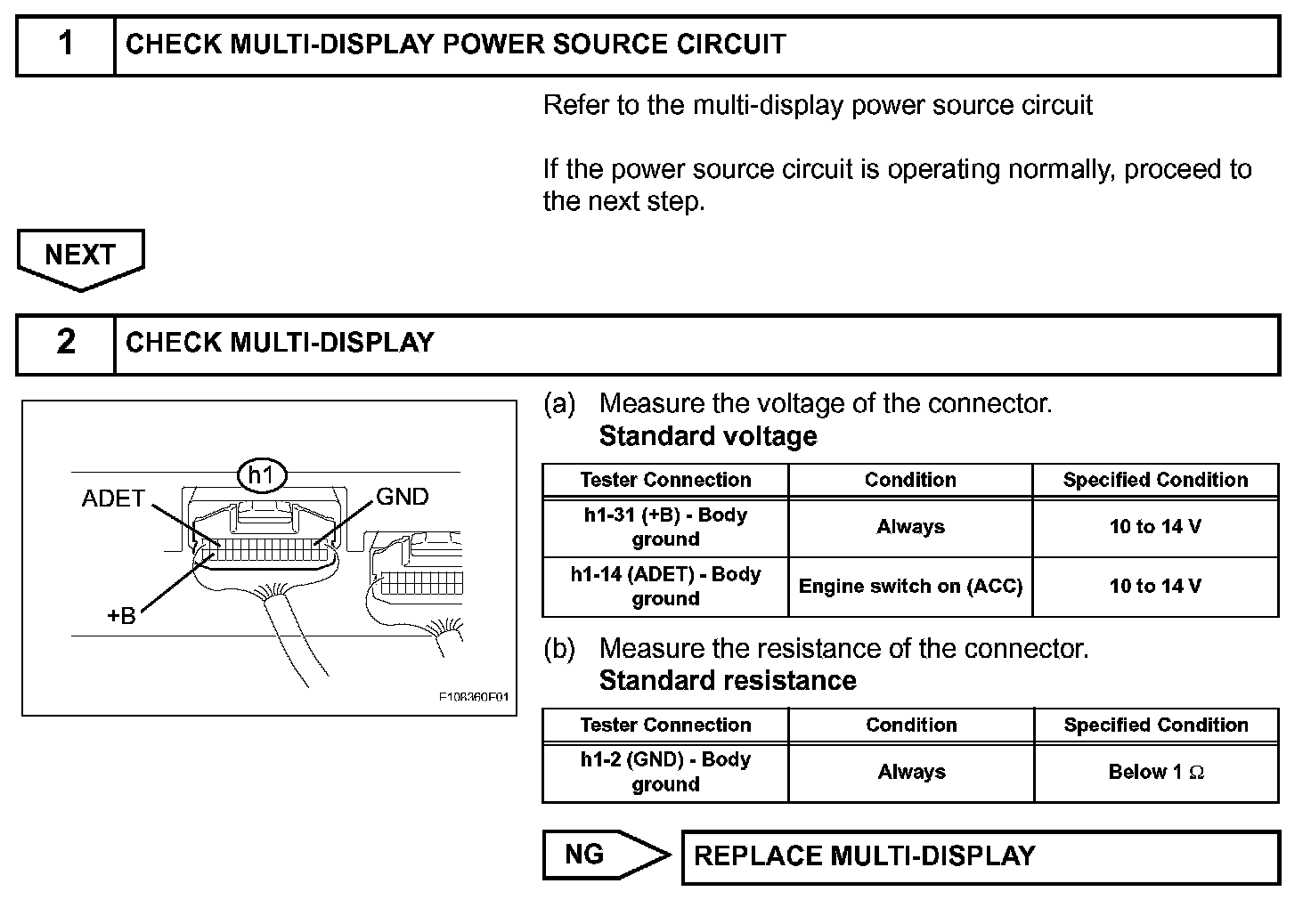

Step 1-2:

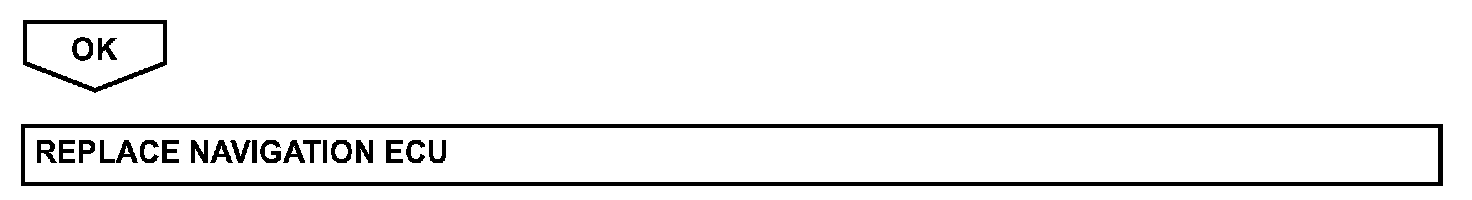

Step 2(Continued):

INSPECTION PROCEDURE
