Microphone Circuit Between Overhead J/B and Multi-Display

Microphone Circuit between Overhead J/B and Multi-display

DESCRIPTION
This circuit sends a microphone signal from the multi-display to the map light assembly.

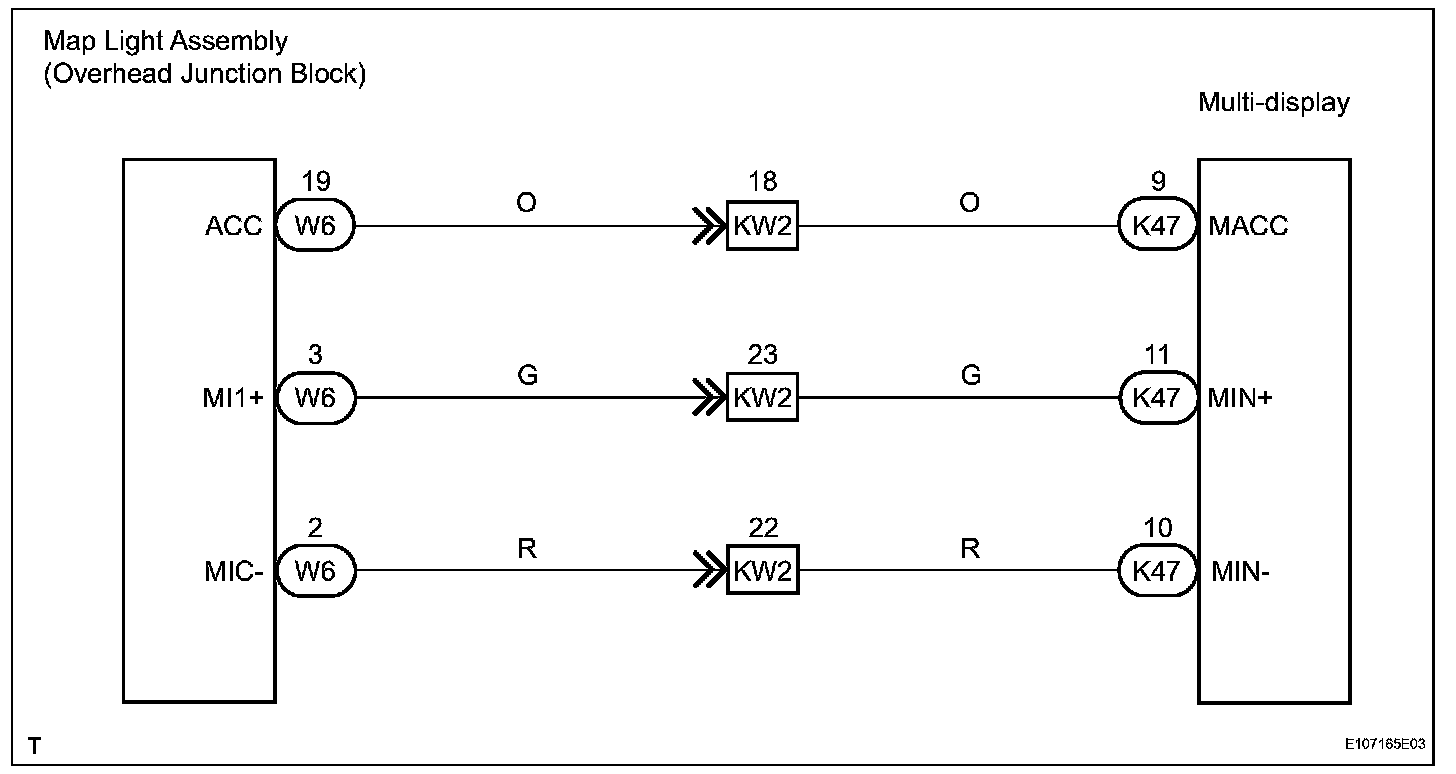

Wiring Diagram:

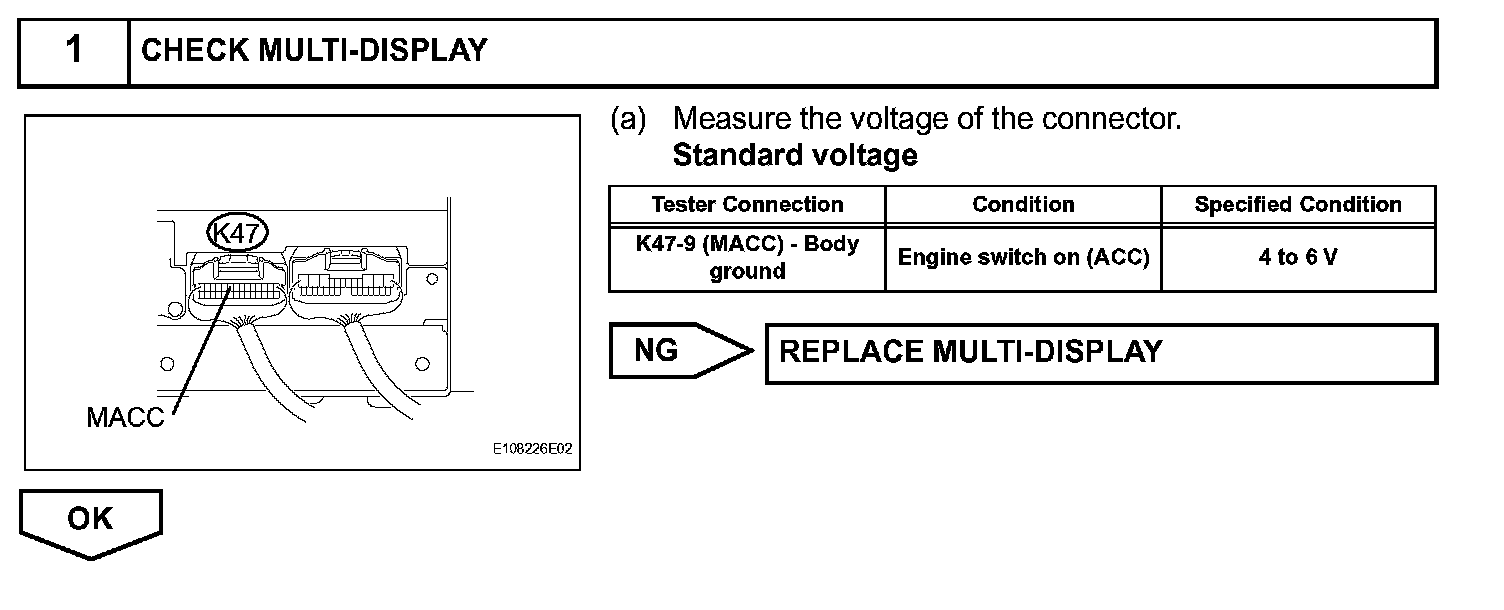

Step 1:

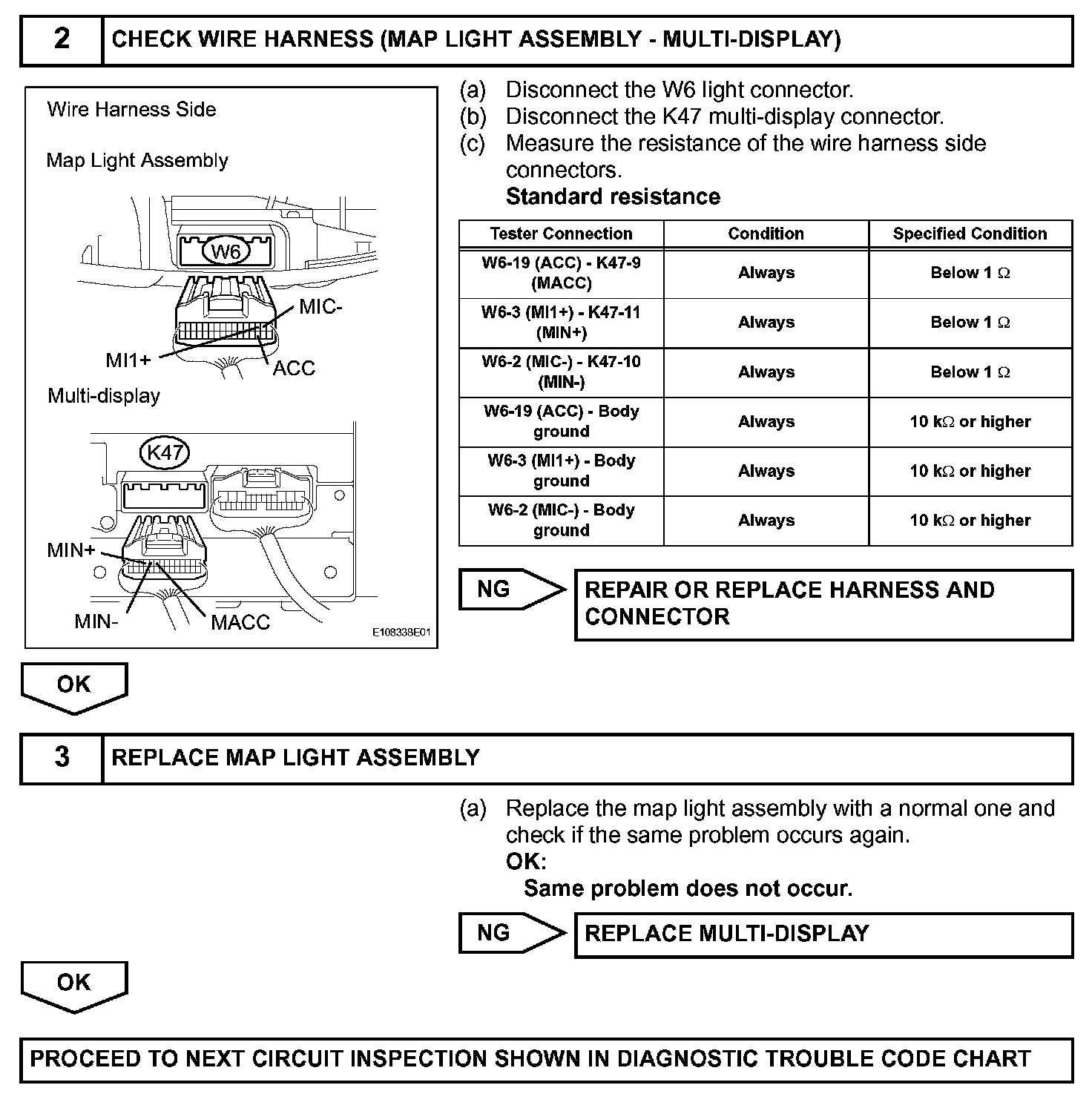

Step 2-3:




INSPECTION PROCEDURE
