Dimmer Signal Circuit

Dimmer Signal Circuit

DESCRIPTION
The multi-display dims by receiving the dimmer signal from the cowl side junction block ECU LH.

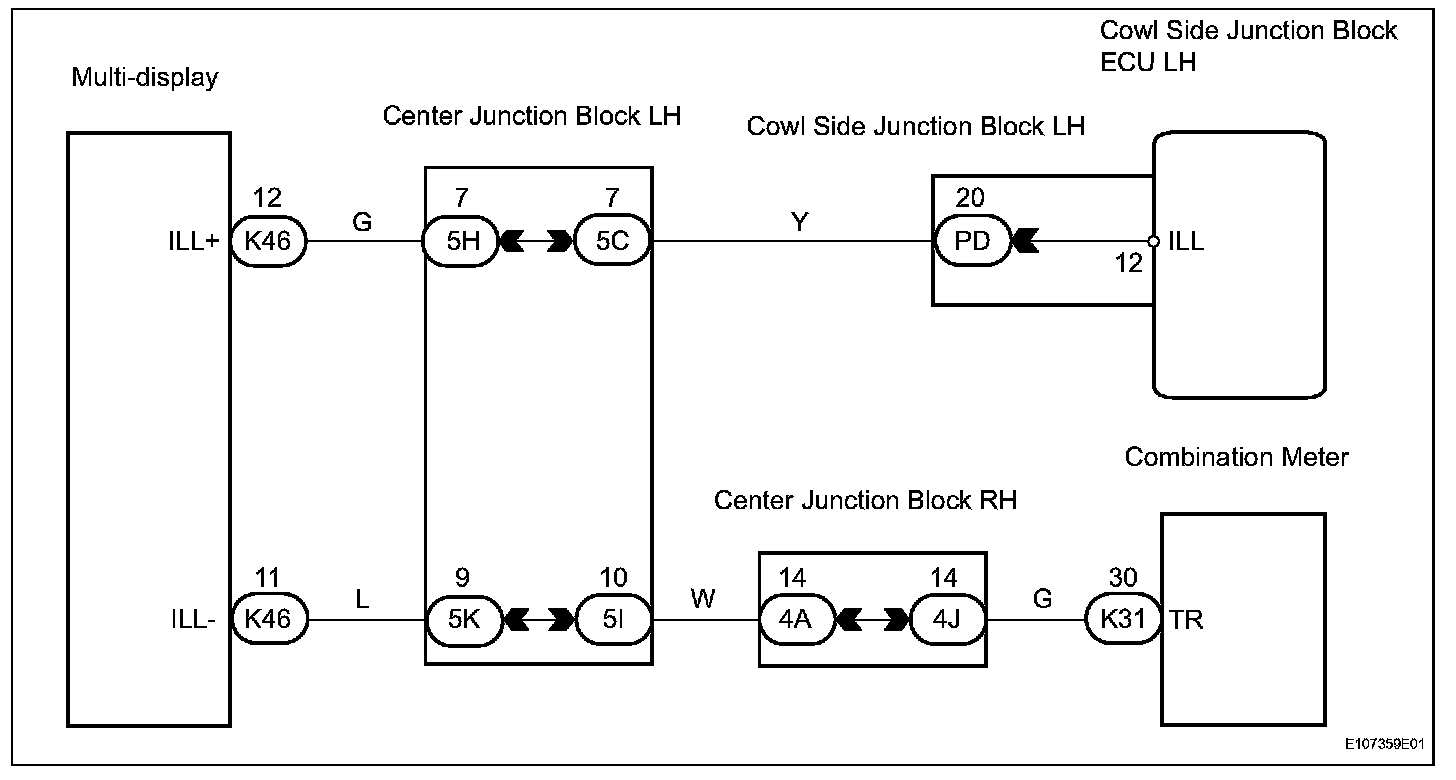

Wiring Diagram:

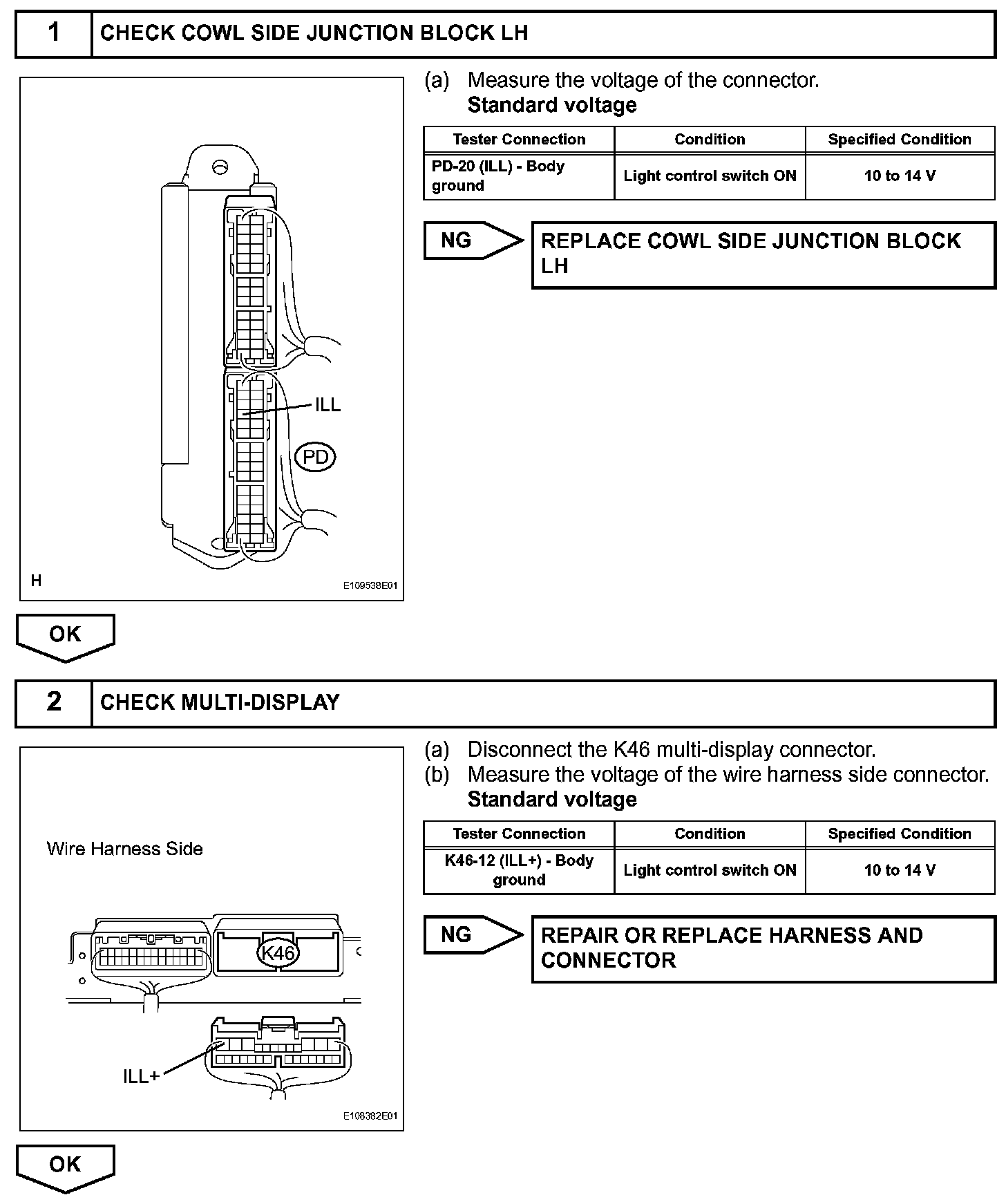

Step 1-2:

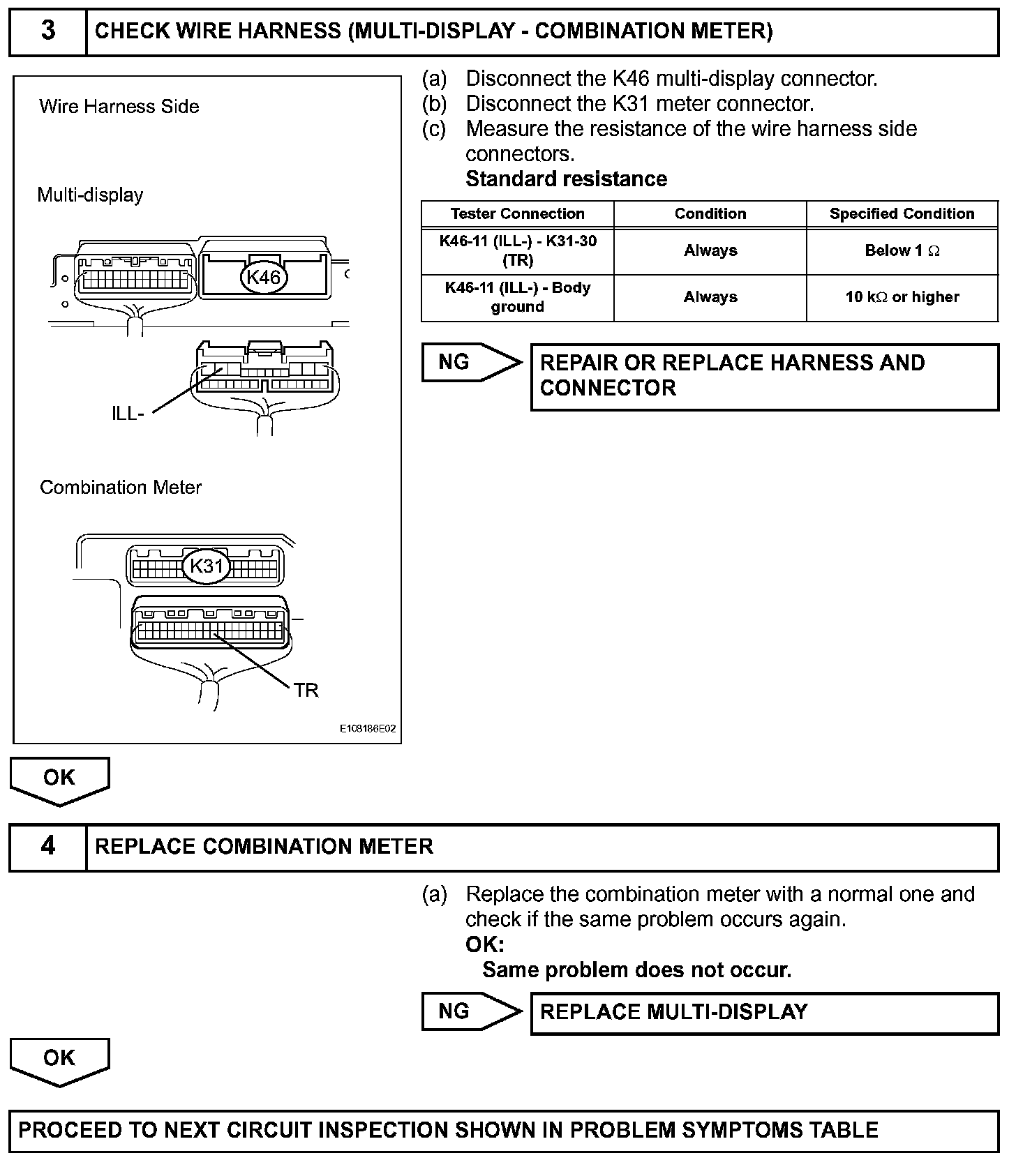

Step 3-4:




INSPECTION PROCEDURE
