Display Check Mode

DISPLAY CHECK MODE

1. COLOR BAR CHECK

HINT:
- This mode checks the color display on the multidisplay.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

a. Enter diagnostic mode.

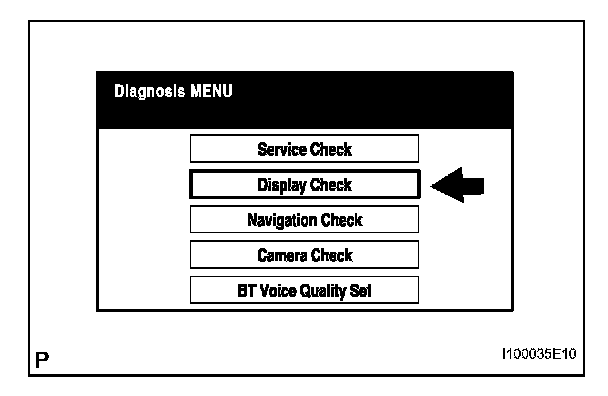

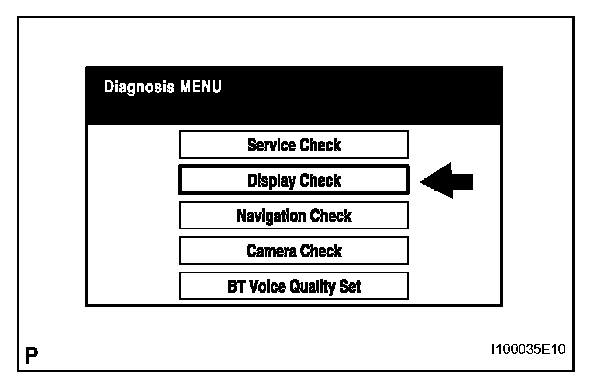

b. Select "Display Check" from the "Diagnosis MENU" screen.

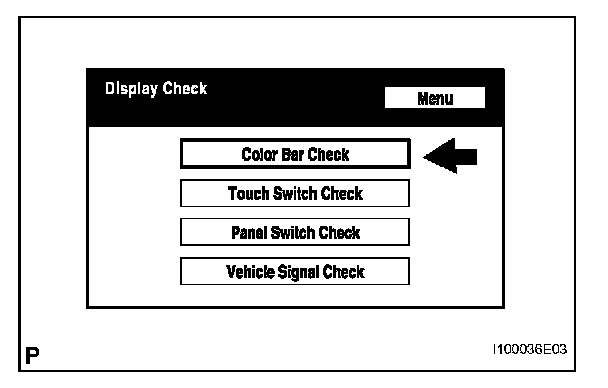

c. Select "Color Bar Check" from the "Display Check" screen.

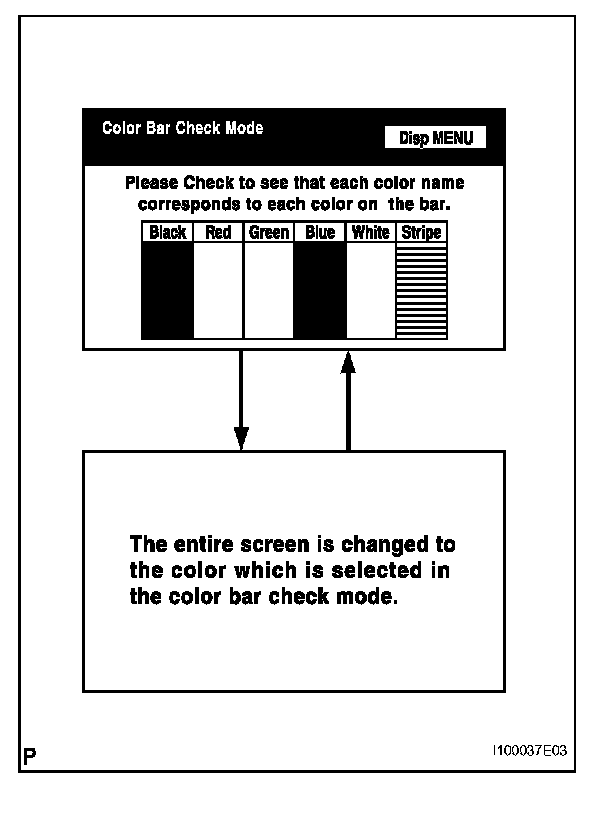

d. Select a color bar from the "Color Bar Check Mode" screen.

HINT:
- The entire screen turns to the color or stripe selected.
- Touching the display will return to the "Color Bar Check" screen.

2. TOUCH SWITCH CHECK

HINT:
- This mode checks the touch switches on the multidisplay.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

a. Enter diagnostic mode.

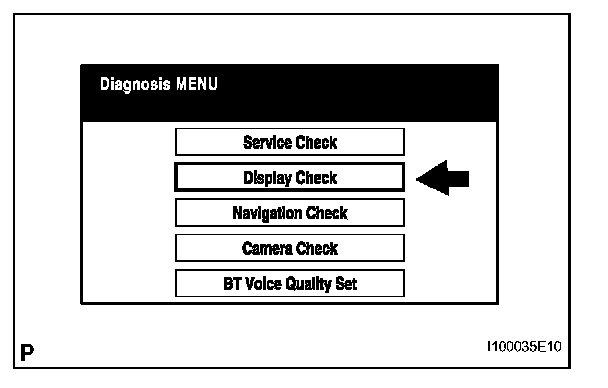

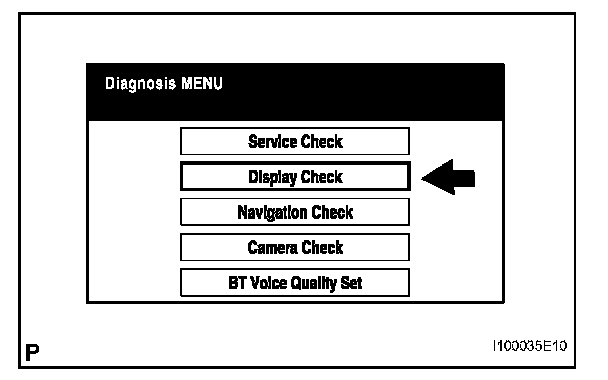

b. Select "Display Check" from the "Diagnosis MENU" screen.

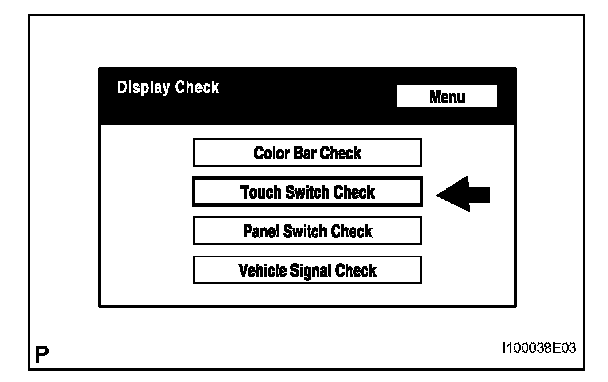

c. Select "Touch Switch Check" from the "Display Check" screen.

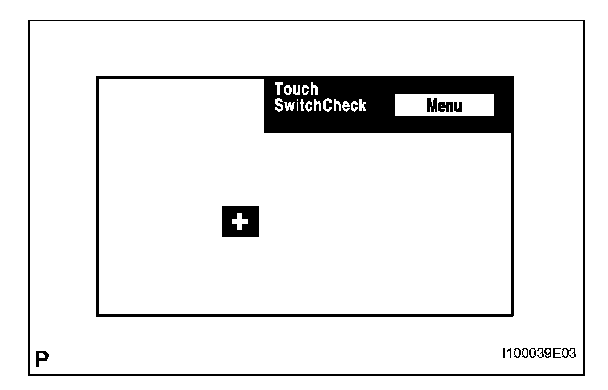

d. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

HINT:
- A "+" mark is displayed where the display is touched.
- The "+" mark remains on the display even after the finger is removed.

3. PANEL SWITCH CHECK

HINT:
- This mode checks the panel switches on the multidisplay.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

a. Enter diagnostic mode.




b. Select "Display Check" from the "Diagnosis MENU" screen.

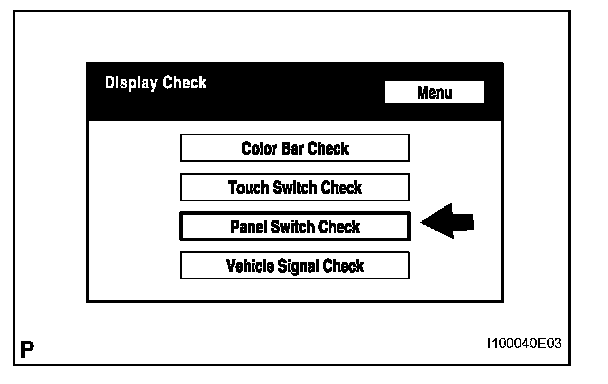

c. Select "Panel Switch Check" from the "Display Check" screen.

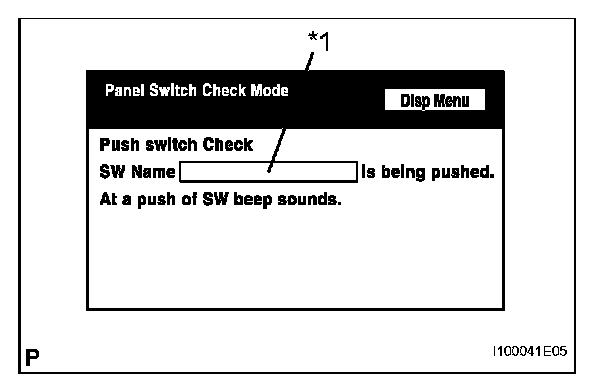

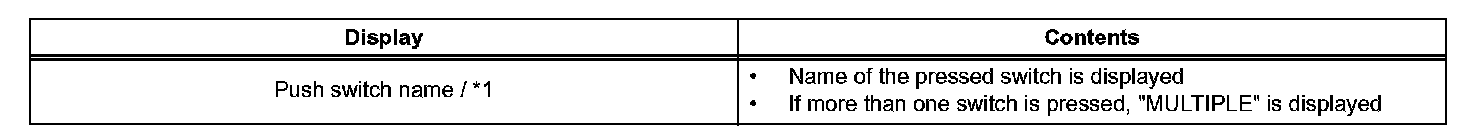

d. Operate each switch and check that the switch name and condition are correctly displayed.

4. VEHICLE SIGNAL CHECK

HINT:
- This mode checks the vehicle signal status input to the multi-display.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

a. Enter diagnostic mode.




b. Select "Display Check" from the "Diagnosis MENU" screen.




c. Select "Vehicle Signal Check" from the "Display Check" screen.

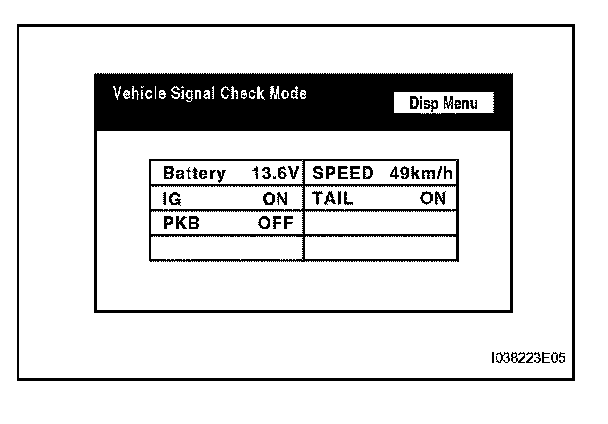

d. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

HINT:
- Only conditions having inputs are displayed.
- This screen is updated once per second when input signals to the vehicle are changed.
