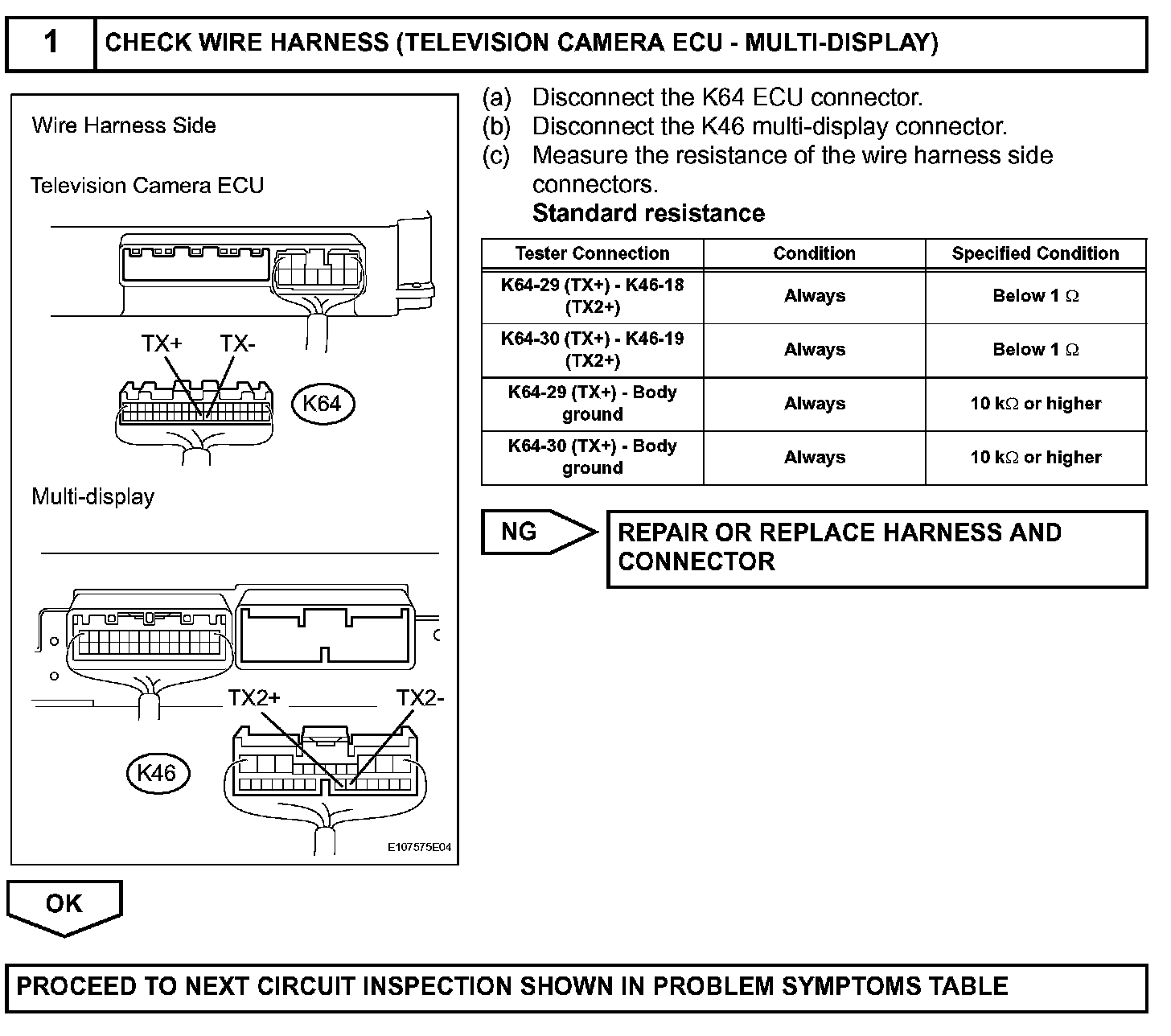

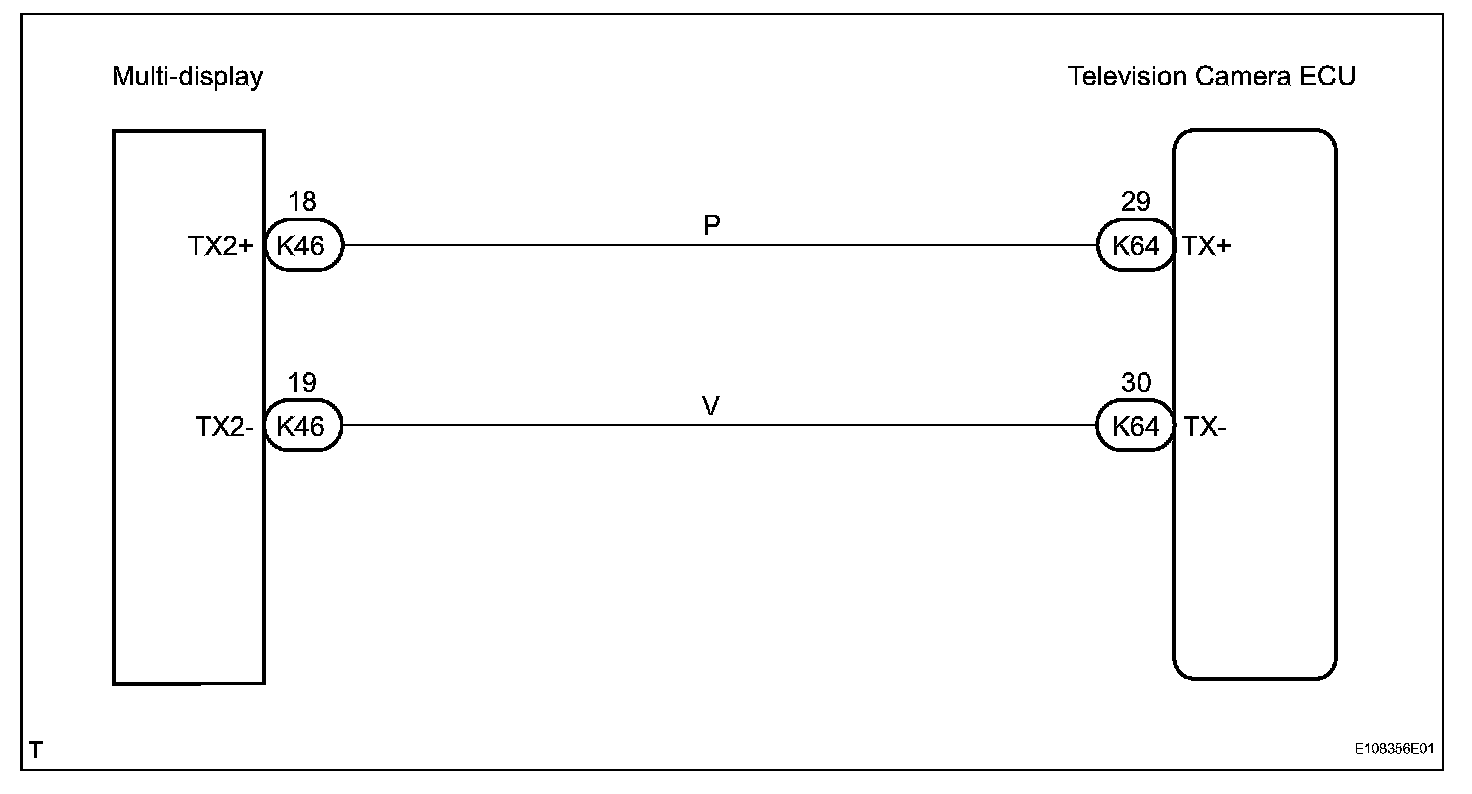

AVC-LAN Circuit Between Multi-Display and Television Camera ECU

AVC-LAN Circuit between Multi-display and Television Camera ECU

DESCRIPTION
Each unit of the rear view monitor system connected to the AVC-LAN (communication bus) communicates by transferring the signals from each switch.
When +B and GND shorts occur in the AVC-LAN, the rear view monitor system will not function normally as communication is discontinued.
