Rear View Monitor System

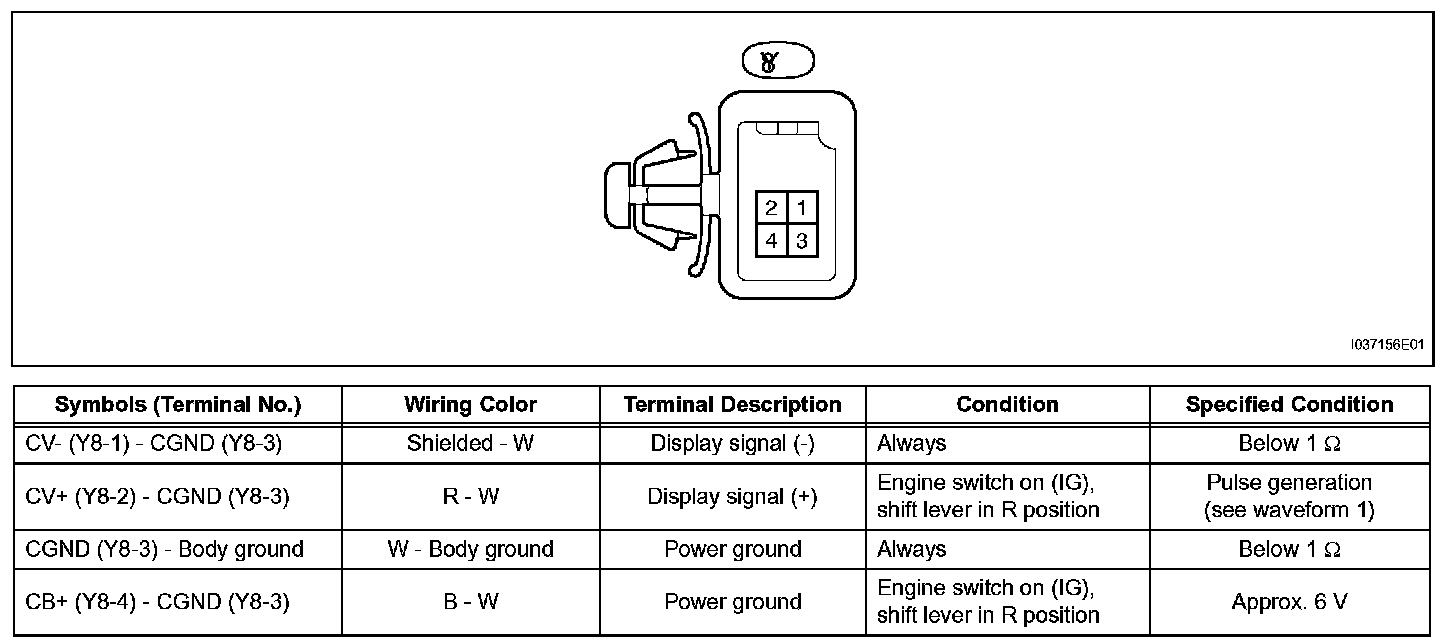

Terminals Of Control Module/Pinouts - Check Television Camera:

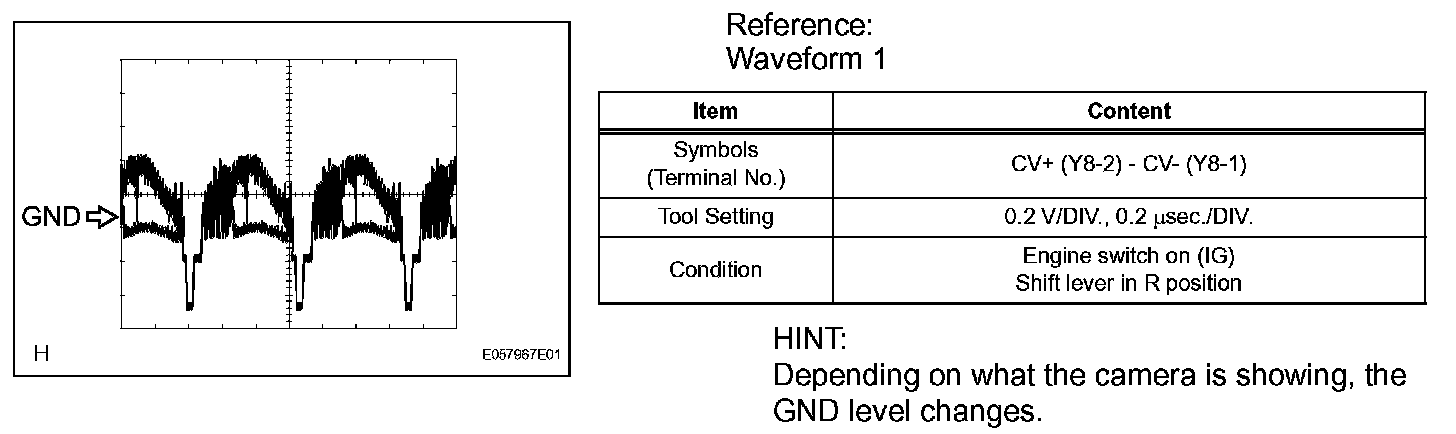

Oscilloscope Waveform:

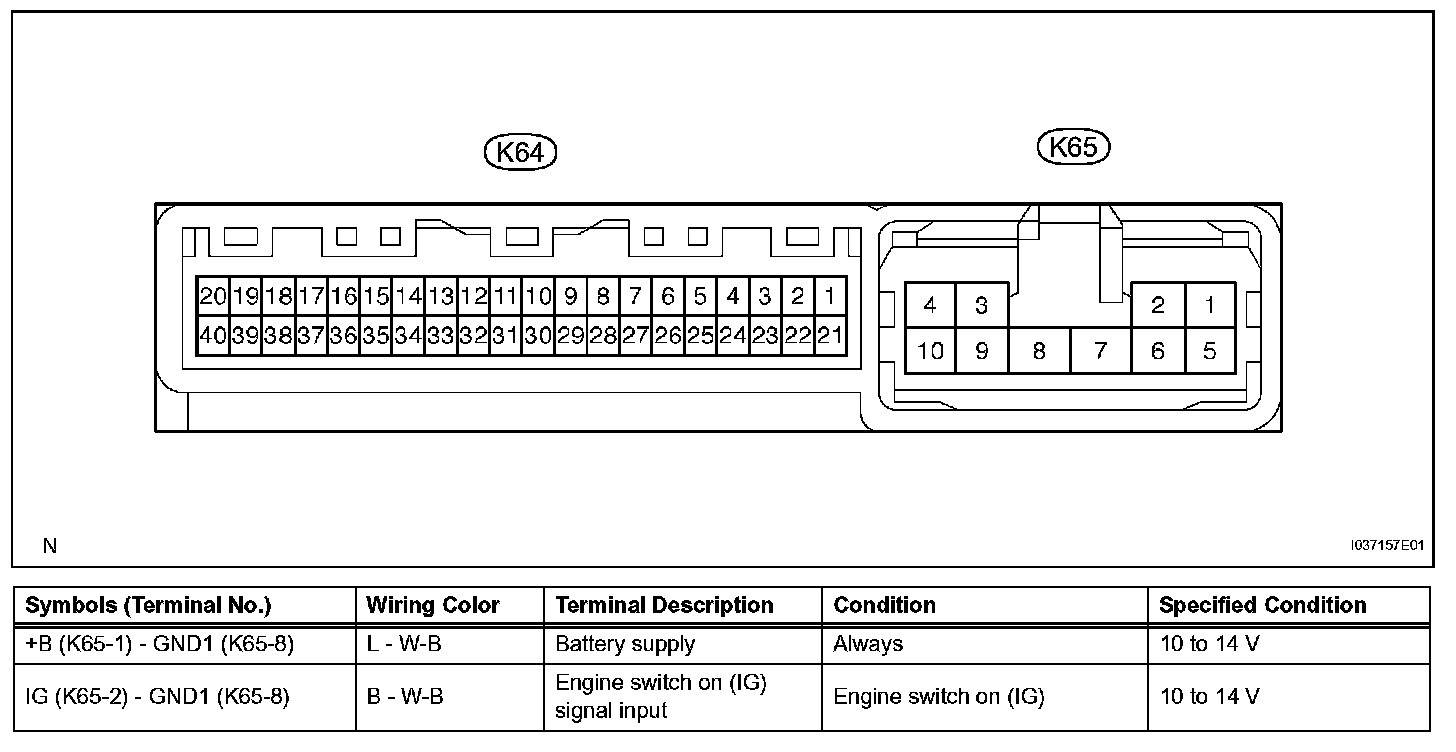

Terminals Of Control Module/Pinouts - Check Television Camera ECU (Part 1):

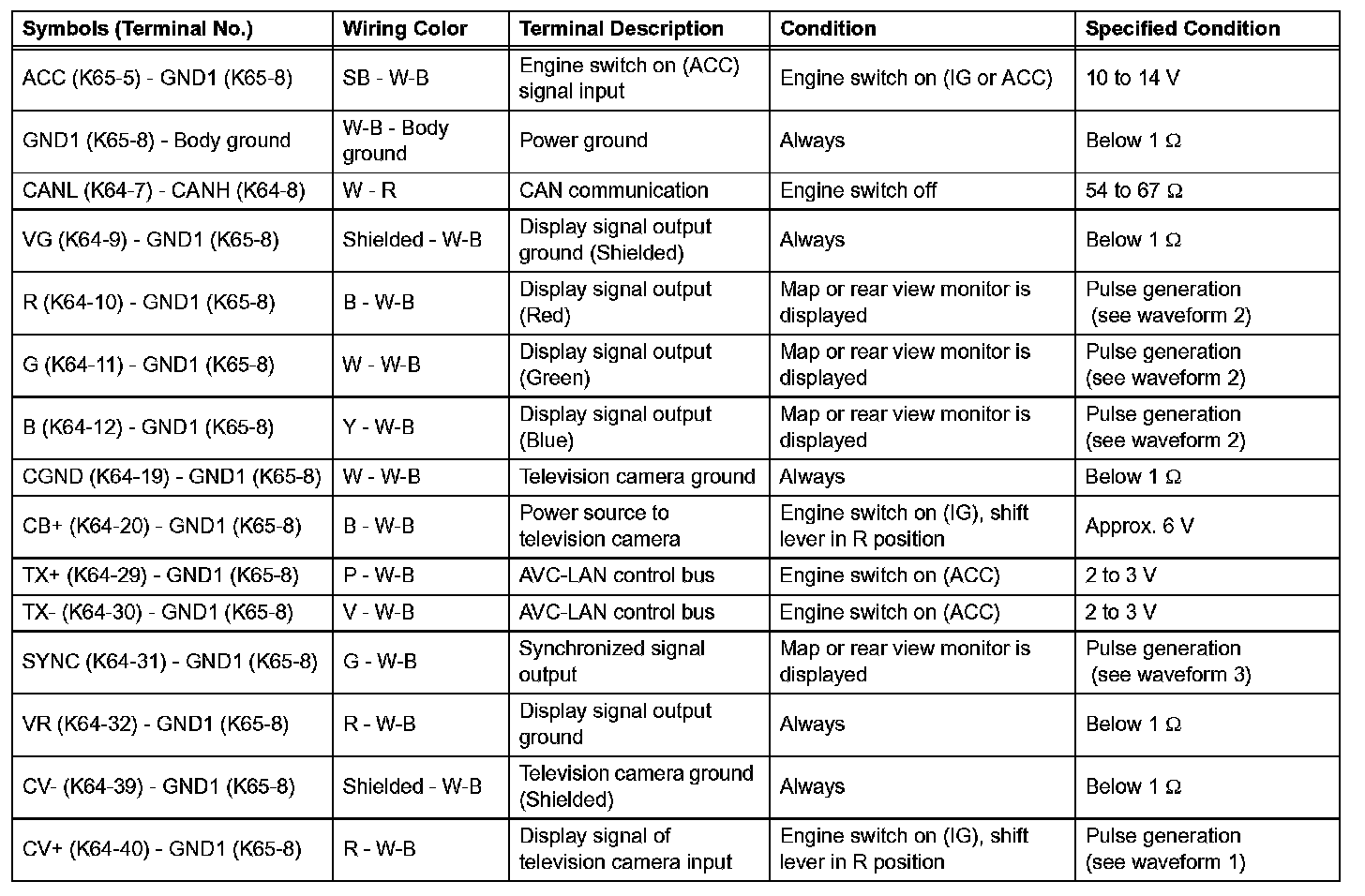

Terminals Of Control Module/Pinouts - Check Television Camera ECU (Part 2):

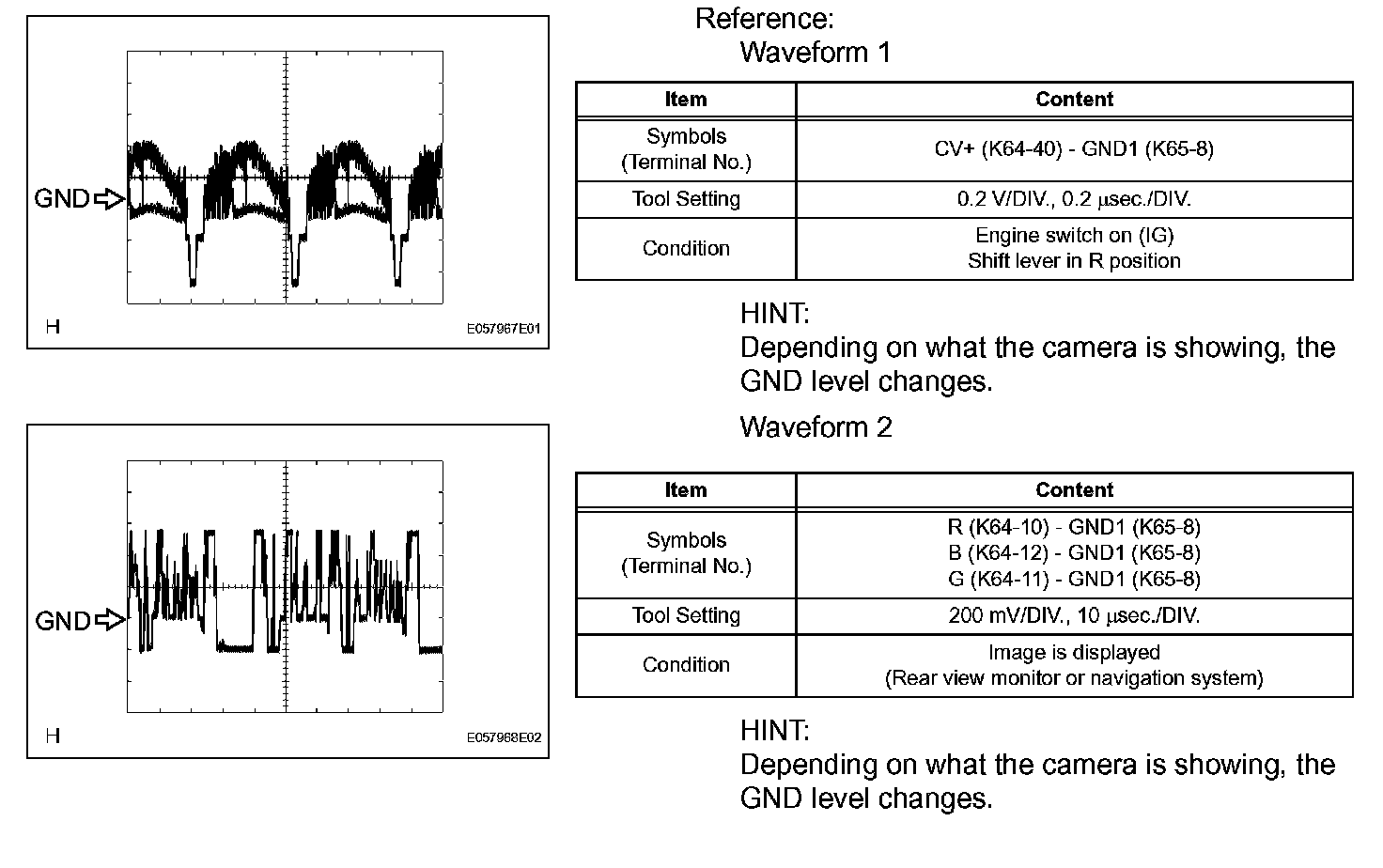

Oscilloscope Waveforms (Part 1):

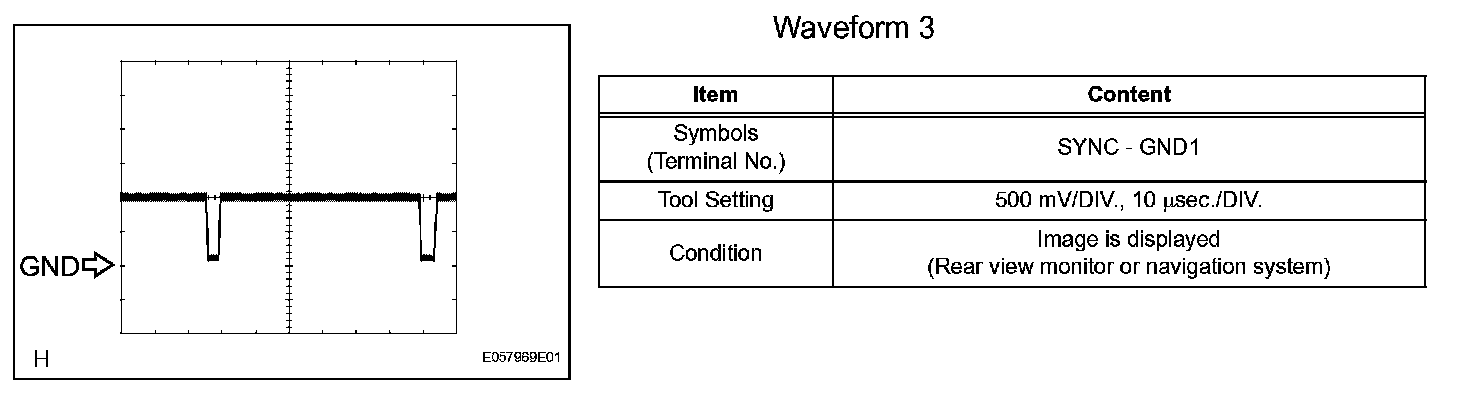

Oscilloscope Waveform (Part 2):
