Clearance SONAR System

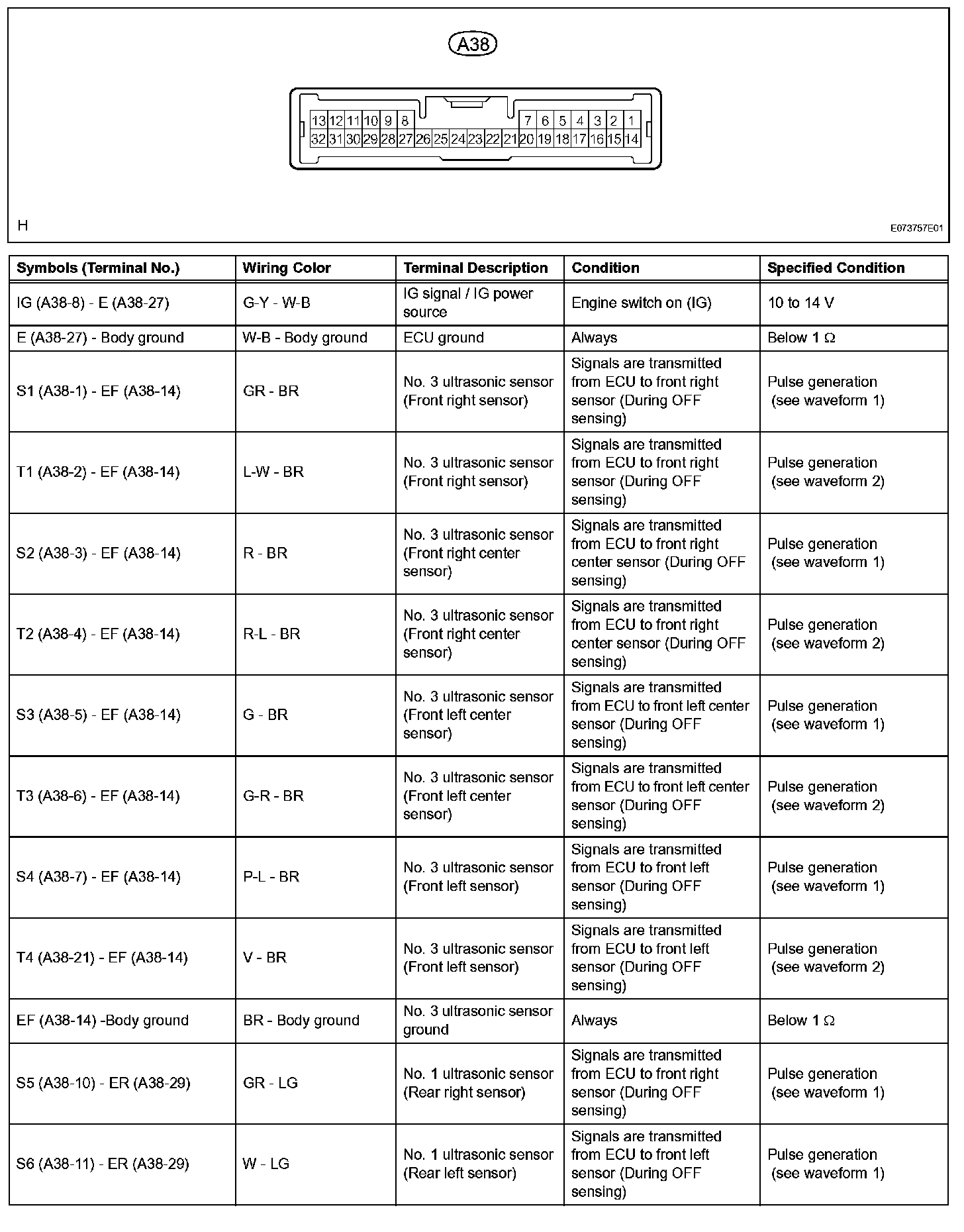

Terminals Of Control Module/Pinouts - Check Clearance Warning ECU (Part 1):

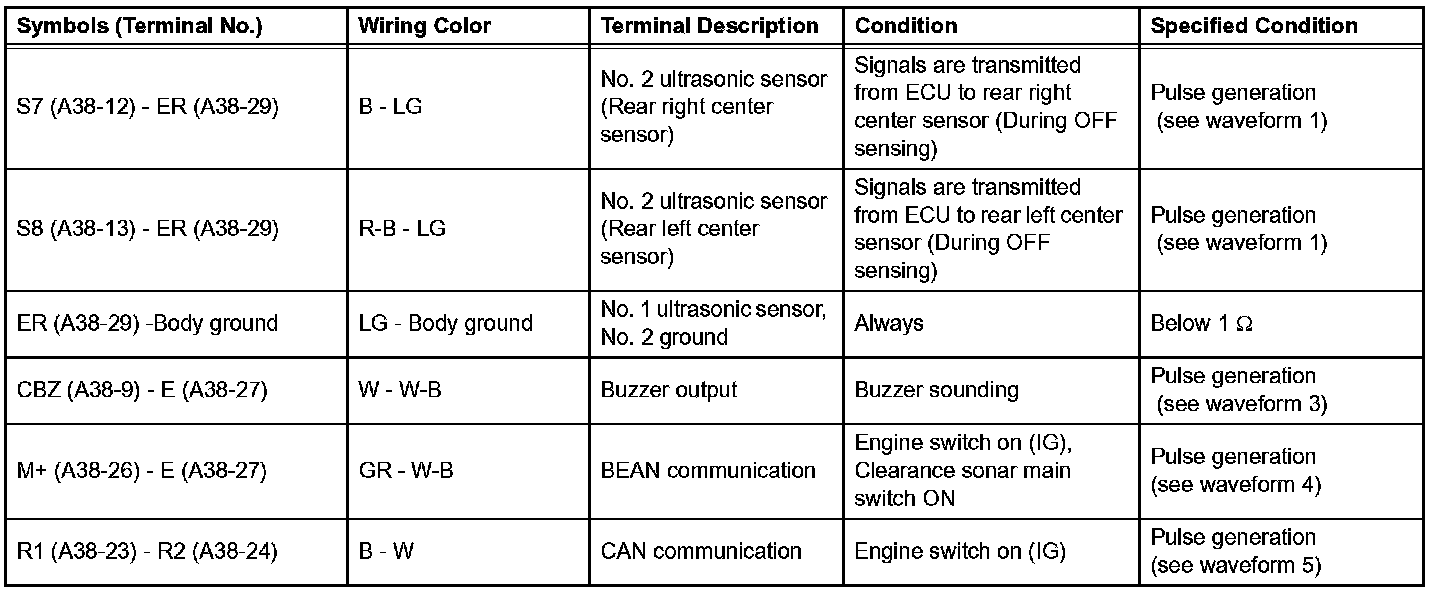

Terminals Of Control Module/Pinouts - Check Clearance Warning ECU (Part 2):

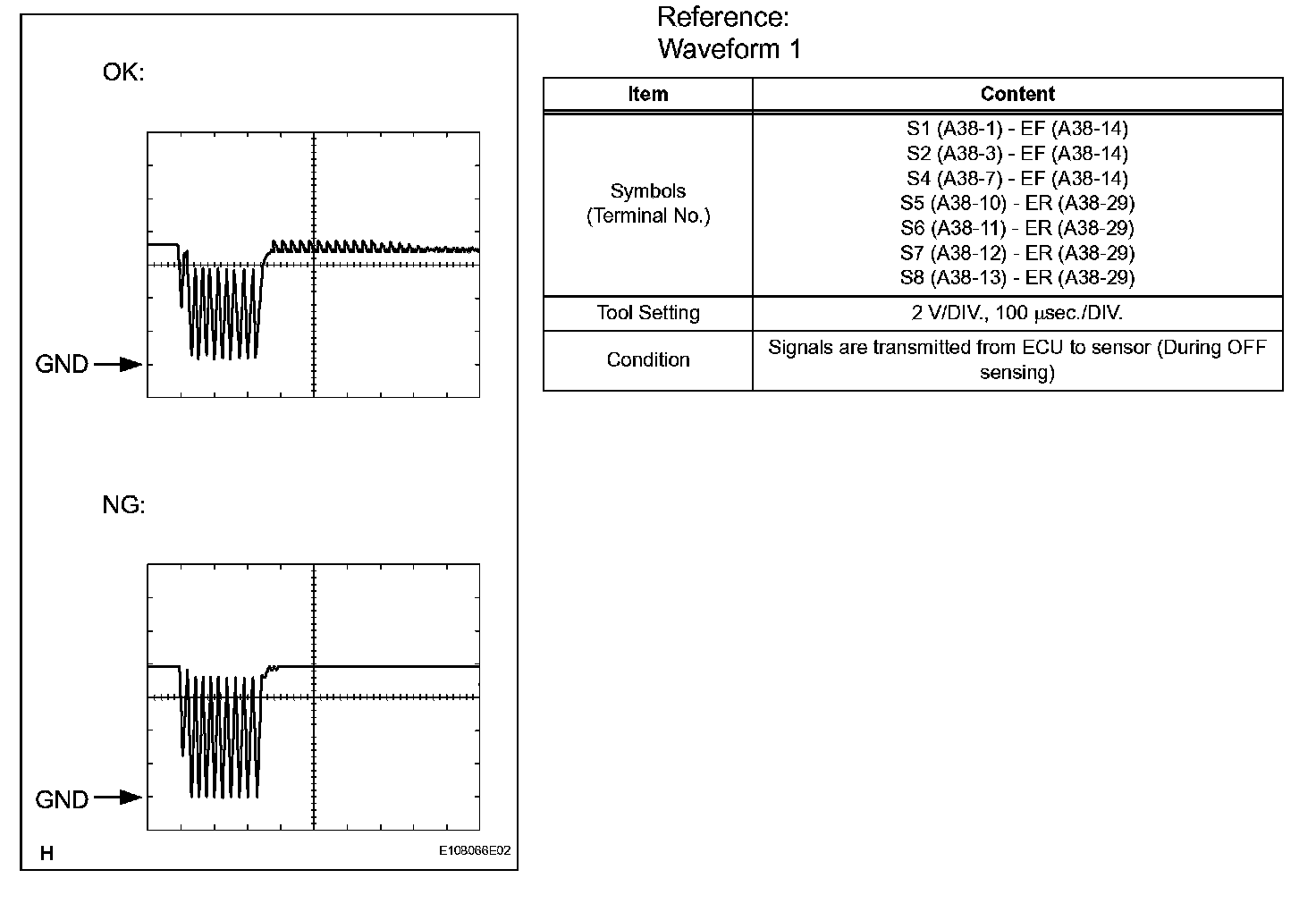

Oscilloscope Waveform (Part 1):

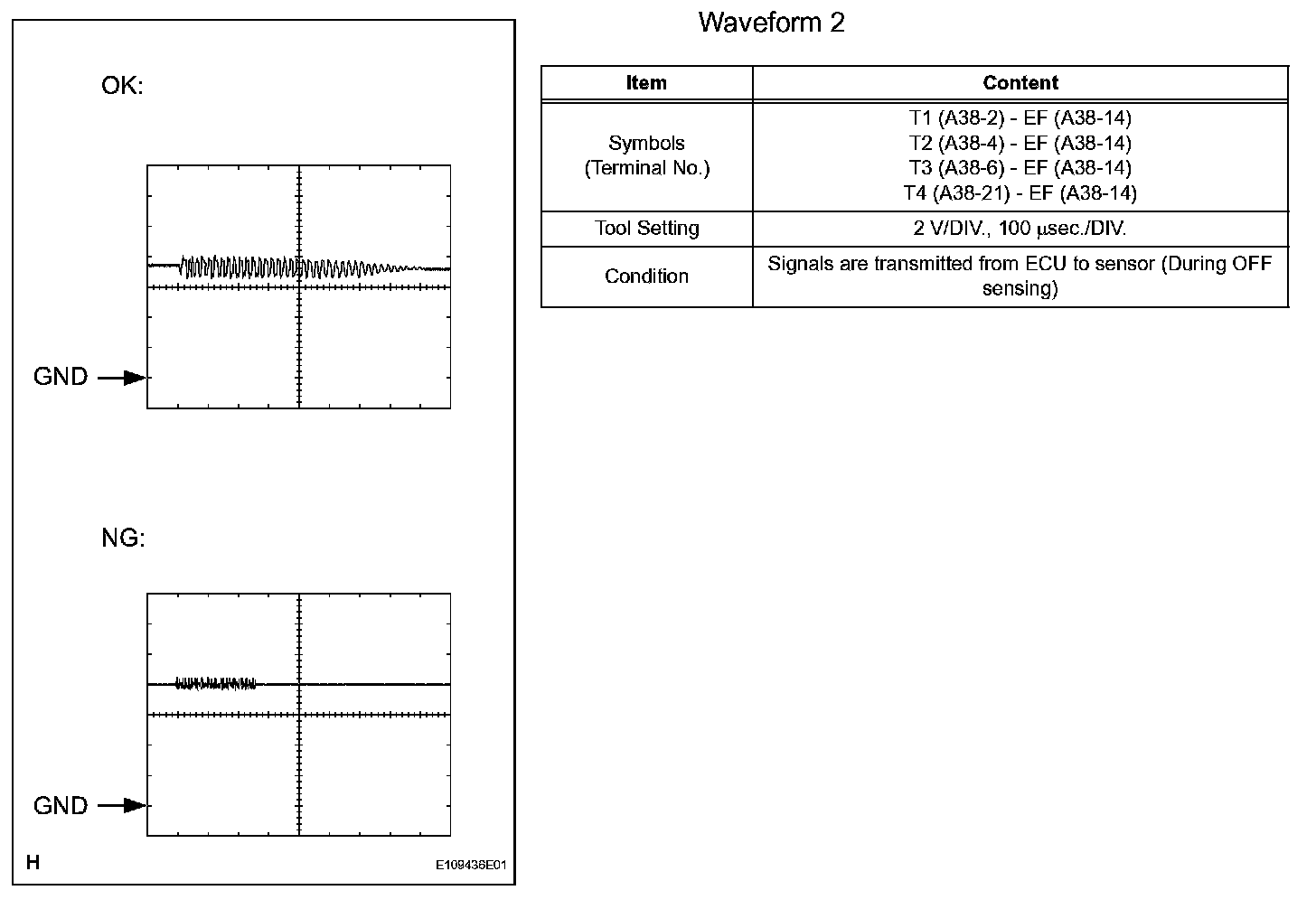

Oscilloscope Waveform (Part 2):

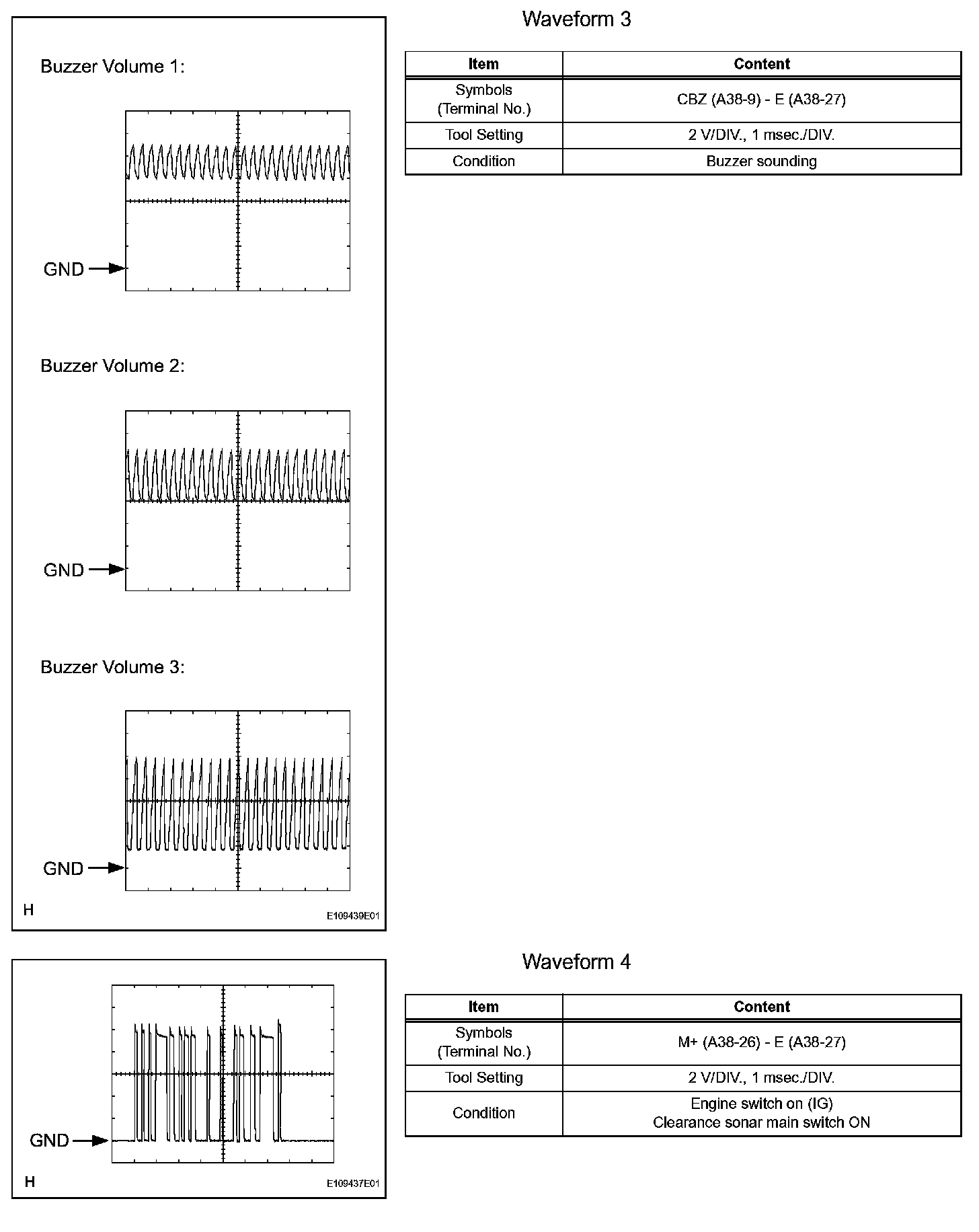

Oscilloscope Waveforms (Part 3):

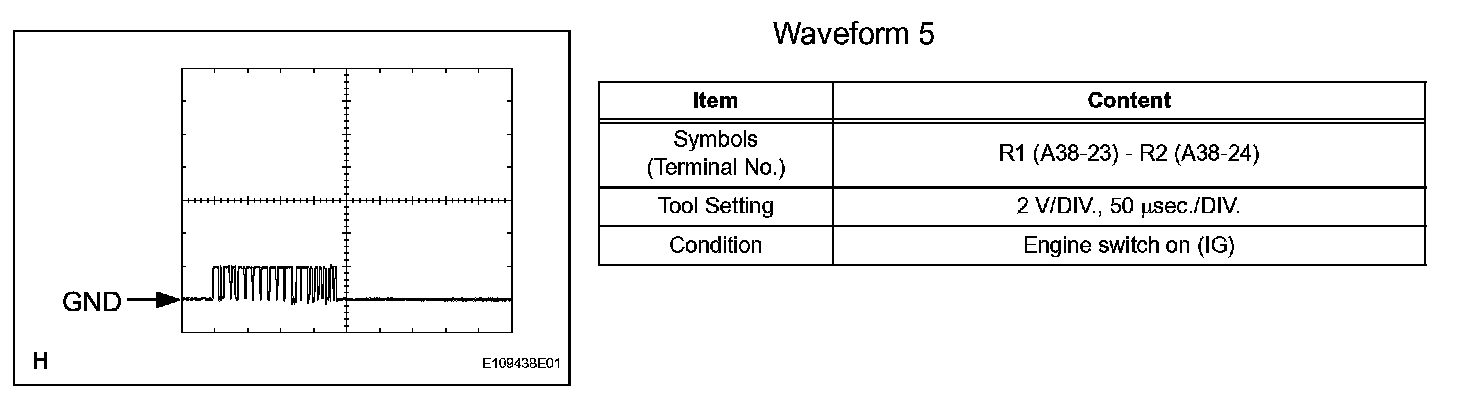

Oscilloscope Waveform (Part 4):
